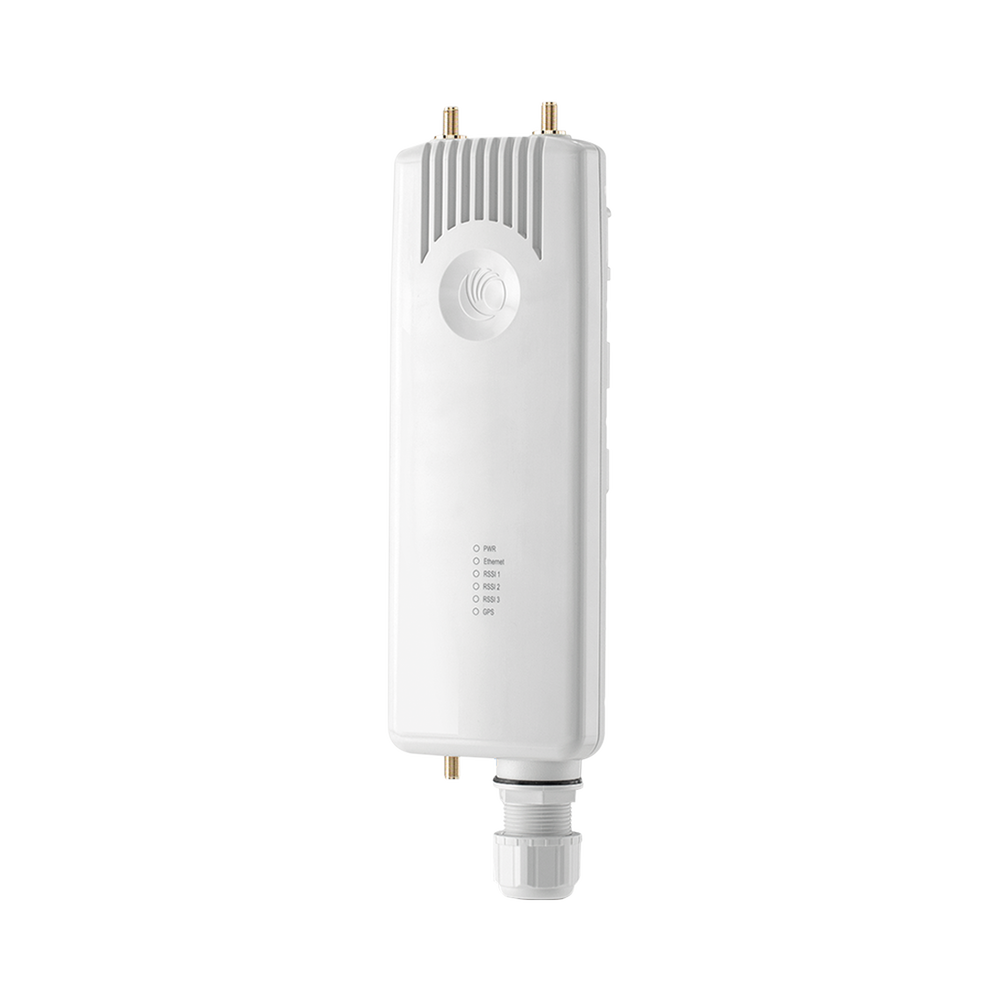

ePMP 3000L High Power Connectorized Base Station with Interference Mitigation, 4.9-6.1 GHz, up to 600 Mbps, GPS Synchronization (C050910A121A)
ePMP 3000L High Power Connectorized Base Station with Interference Mitigation, 4.9-6.1 GHz, up to 600 Mbps, GPS Synchronization (C050910A121A)
Couldn't load pickup availability
ePMP 3000L High Power Connectorized Base Station with Interference Mitigation, 4.9-6.1 GHz, up to 600 Mbps, GPS Synchronization (C050910A121A)
802.11ac
WAVE 2 MIMO
2 x 2 29
dBm PMP
Up to 600 Mbps
 QUALITY OF SERVICE A powerful multi-level prioritization scheme that can be configured by the network operator to enable the delivery of differentiated services. |
 SECURITY 128-bit AES encryption, L2 and L3 firewall rules, support for different user levels, HTTP/SSH support provide enhanced security.
|
 FLEXIBLE MODES OF OPERATION Provides extremely low latency for PTP deployments, highly scalable mode with GPS synchronization and TDD operation for synchronized towers
|
 NEW CHANNEL SIZE AND MODULATION Supports channel size configuration from 20 MHz to 80 MHz and modulates up to 256 QAM |
INTEGRATED LIVE SPECTRUM ANALYZER
Supports constant monitoring of the radio spectrum and allows live action without dropping the link.
| MIMO and modulation | MIMO 2x2 / 256 QAM-5/6 |
| Frequency range | 4910 – 6100 MHz (defined by country of operation) |
| Power Range | 0 to +29 dBm (combined, depending on EIRP allowed in the region) |
| Channel Width | 20 and 40 and 80 MHz |
| Maximum power consumption | 12 W Maximum |
| Exterior protection / Temperature | IP67 / -22°F to +140°F (-30°C to +60°C) |
| Management | HTTPS, SSH, SNMPv2c |
| Subscribers by Sector in PMP | up to 64 clients |
| DSO | Dynamic frequency optimization |
| Ethernet structure | 10/100/1000BaseT, auto-negotiation |
| Protocols used | IPv4, UDP, TCP, IP, ICMP, SSH, SNMPv2c, HTTPs, STP, SSH, IGMP Snooping |
| VLAN | 802.1Q with 802.1p priority |
| Input voltage | 30V PoE (included) (Range 14 to 30V) |
| Dimensions / Weight | 22.2 x 12.4 x 4.5 cm (8.75 x 4.9 x 1.75 in) |
| Antenna connector | 2 x 50 ohm, SMA F Reverse |
| Warranty | 3 years |
PoE included and power connection cable
Version up to 64 subscribers
Smart filter
Noise is always a concern, and as more transmitters are deployed, it will continue to be a critical factor in operation. While nearly all radios have some form of filtering, many use static filters that block only noise from outside the radios' full operating spectrum. While this provides a clear channel for operation, these systems with fixed filters still allow noise from neighboring channels to affect system performance. Cambium Networks solutions use dynamic filtering with a static filter to block noise from outside the operating spectrum, but also a dynamic filter to block interference from adjacent channels. As the system switches to another channel, the system automatically blocks noise from adjacent channels to improve signal quality.
Frequency reuse
Frequency is limited. There will never be more of it. By reusing frequencies when deployed in a back-to-back configuration, a network operator can effectively use the same frequency twice to connect users. In large deployments, a network operator can connect thousands of users by reusing the same frequencies in the field service area. This technology maximizes the use of available frequencies and can provide access to thousands of users in a small amount of spectrum.
|
|
|
13 in stock
MODELO: EPMP-3KL
