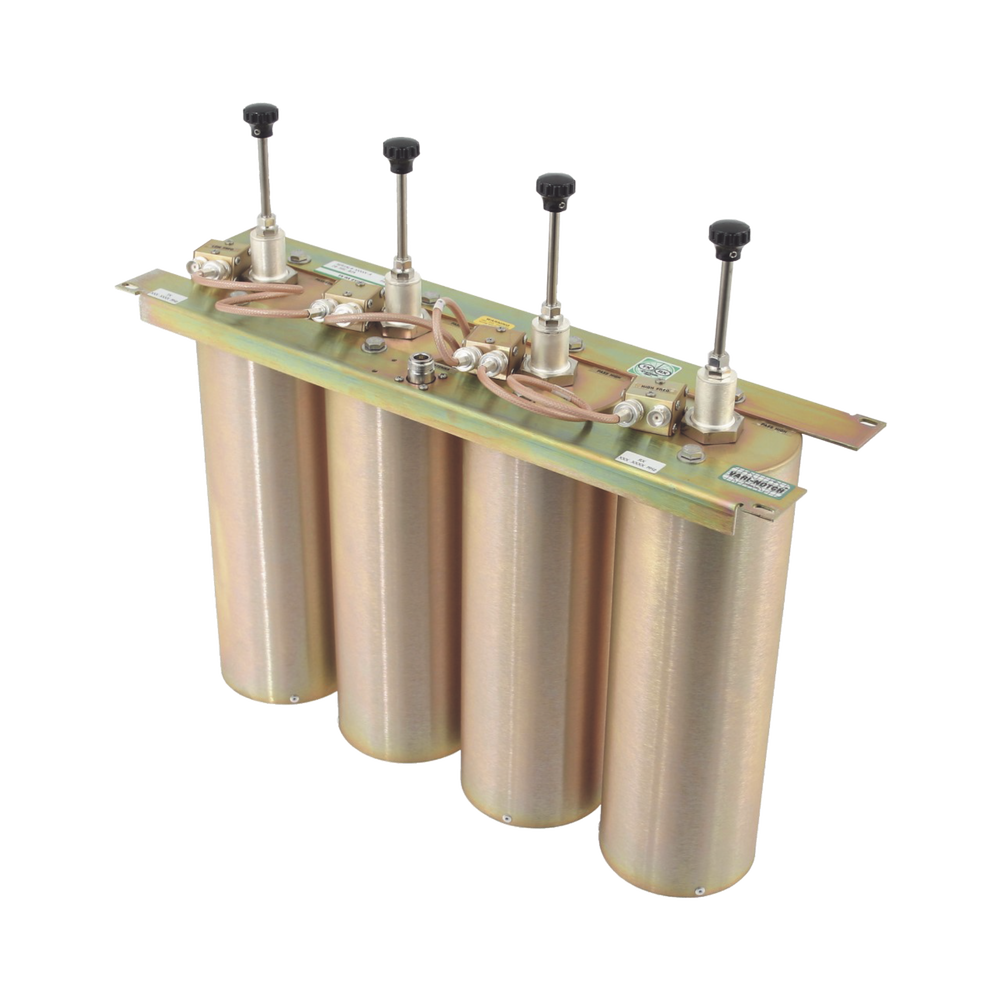

Bandpass-Band Reject Duplexer, 380-420 MHz, 4Cav.(4"Dia.) 3 MHz, 250 Watt, BNC Females.

Bandpass-Band Reject Duplexer, 380-420 MHz, 4Cav.(4"Dia.) 3 MHz, 250 Watt, BNC Females.

Duplexer TX/RX, 380-420 MHz, 3 MHz Separation, 250 Watt.

• Duplexer with 250 W input power capacity with 4 cavities (2 and 2) of 4' (101.6 mm) diameter X 5.25' (133.4 mm) height X 12' (305 mm) depth.
• With a minimum separation of 5 MHz between Tx-Rx, insertion loss of 0.7 dB and isolation of 100 dB.
• High performance with its Vari-Notch technology to optimize insulation specifications.
• Applications in small spaces offer the best cost-benefit
• Designed for mounting in 19' racks
• VSWR: 1.3:1
• Temperature range -40ºC @ +80ºC
• Standard BNC Female connectors and include BNC Male to 'N' Female adapters.

*Ask for Delivery Time.
