--Discontinued-Compact Band Rejection Duplexer, 154-164 MHz, 6 cavities, 50 Watt, N Female Connectors.

--Discontinued-Compact Band Rejection Duplexer, 154-164 MHz, 6 cavities, 50 Watt, N Female Connectors.

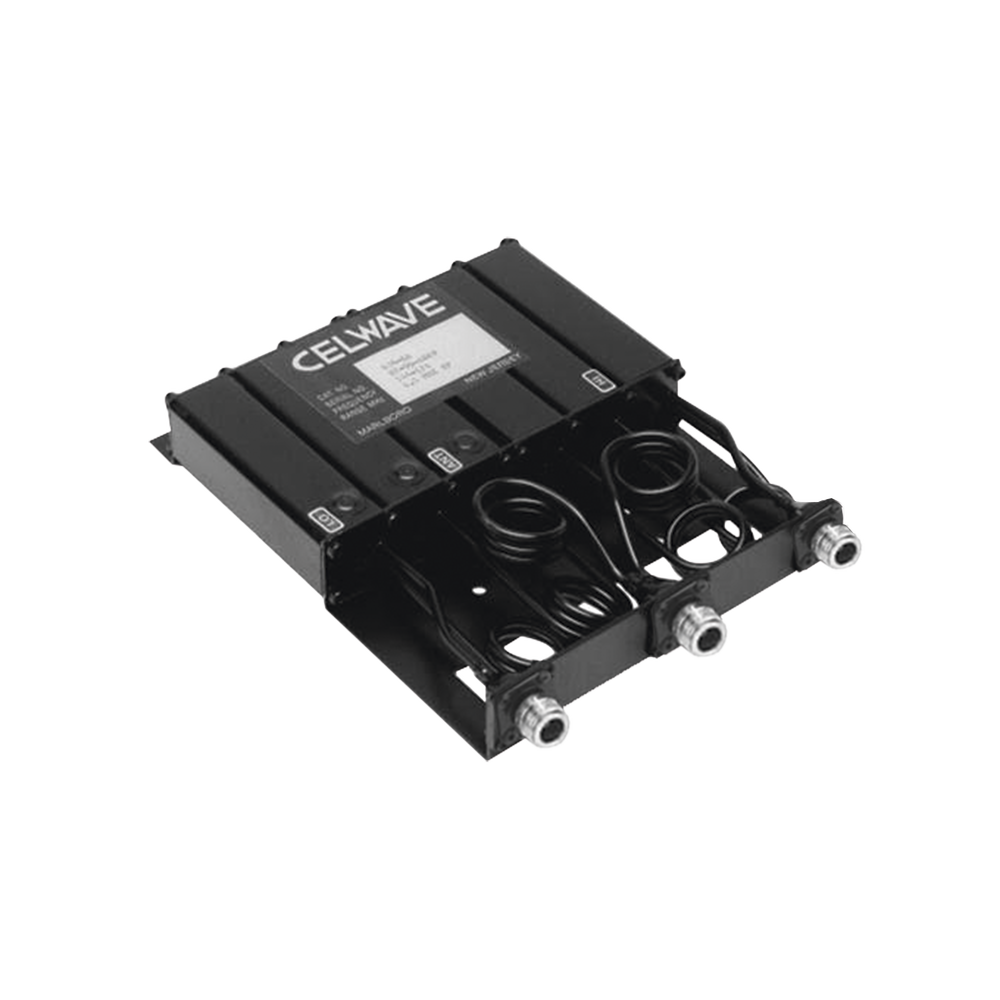

Compact Band Rejection Duplexer, 154-164 MHz , 6 cavities, 50 Watt.

• Frequency separation from 4.5 to 8 MHz.
• Maximum insertion loss of 1.2 dB.
• Maximum input power of 50 W.
• Isolation between Tx-Rx of 80 dB.
• High frequency stability.
• Temperature compensation mechanism.
• Minimum frequency shift due to temperature changes.
• Rexolite (VHF) insulation.
• Semi-rigid cables reduce insertion loss.
• Shielding with Iridium Aluminum cavities.
• Small size makes it practical in multiple applications.
• N Female connectors with BNC Female option upon specified request.

*Ask for availability.
