CAMBIUM NETWORKS
(C050900C805B), ePMP Force 300-19 for links in high interference areas, low latency, 4910-5970 MHz, 19 dBi Antenna, Wave 2, up to 600 Mbps.
(C050900C805B), ePMP Force 300-19 for links in high interference areas, low latency, 4910-5970 MHz, 19 dBi Antenna, Wave 2, up to 600 Mbps.
Couldn't load pickup availability
(C050900C805B), ePMP Force 300-19 for links in high interference areas, low latency, 4910-5970 MHz, 19 dBi Antenna, Wave 2, up to 600 Mbps.

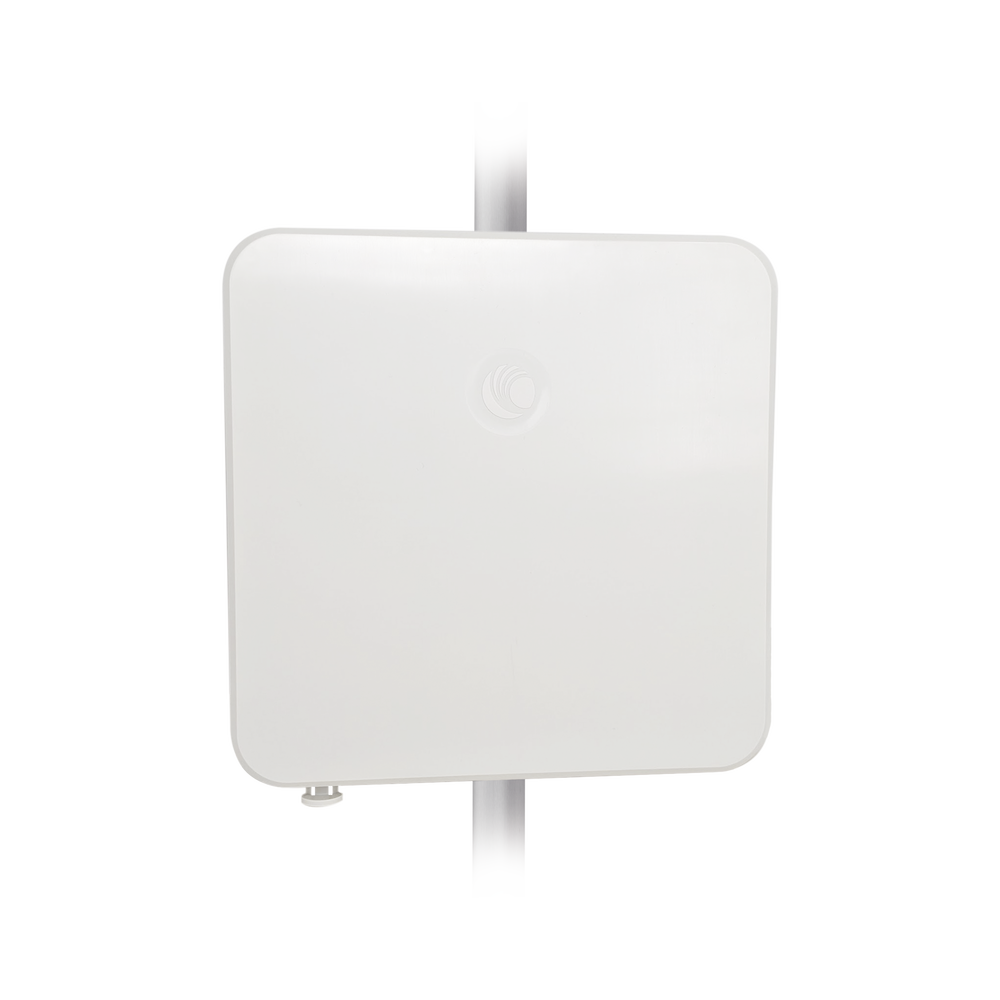

Force 300-19
5
GHz 600
19 Mbps
dBi
|
QUALITY OF SERVICE A powerful multi-level prioritization scheme that can be configured by the operator network to enable the delivery of differentiated services. |
SECURITY 128-bit AES encryption, L2 and L3 firewall rules, support for different levels User-friendly, HTTP/SSH support provides enhanced security. |
|
FLEXIBLE MODES OF OPERATION Provides extremely low latency for Multipoint deployments. Scalable without GPS synchronization and TDD operation for synchronized towers |
ROBUST DESIGN Operates in ambient temperatures as high as 60 degrees and as low as -30 degrees Celsius |
The ePMP Force 300-19 is a reliable device for wireless service providers in crowded RF environments.
Operation modes: Master PtP, SM PtP and SM PtMP.
| MIMO and modulation | 2x2 MIMO/OFDM |
| Frequency range | 4910 – 5970 MHz (defined by country of operation) |
| Maximum output power | 28 dBm |
| Antenna gain | 19 dBi |
| Maximum power consumption | 12 Watts |
| Exterior protection/ Temperature | IP55 / -30°C to +60°C (-22°F to +140°F) |
| Management | HTTPS, SSH, SNMPv2c |
| Channel spaces | Configurable in 5 MHz increments |
| MAC Layer | Cambium Proprietary |
| Ethernet structure | 10/100/1000Base PoE In |
| IPv4, UDP, TCP, IP, ICMP, SSH, SNMPv2c, HTTPs, STP, SSH, IGMP Snooping | |
| VLAN | 802.1Q with 802.1p priority |
| Input voltage | 14-30 Vdc (Includes 30V PoE power supply) |
| Encryption | 128-bit AES (CCMP mode) |
| Antenna Type | Integrated 19 dBi |
| Channel widths supported | 20, 40, 80 Mhz |
| Warranty | 3 years |
Package includes the following:
*Includes PoE power supply.
- Quality of service to prioritize Triple Play traffic (Video, Voice and Data), Cloud monitoring with cnMaestro, receive event notifications, Includes PoE power supply and accessories for mast installation, Option to configure as point-to-point
Out of stock
MODELO: FORCE300-19
