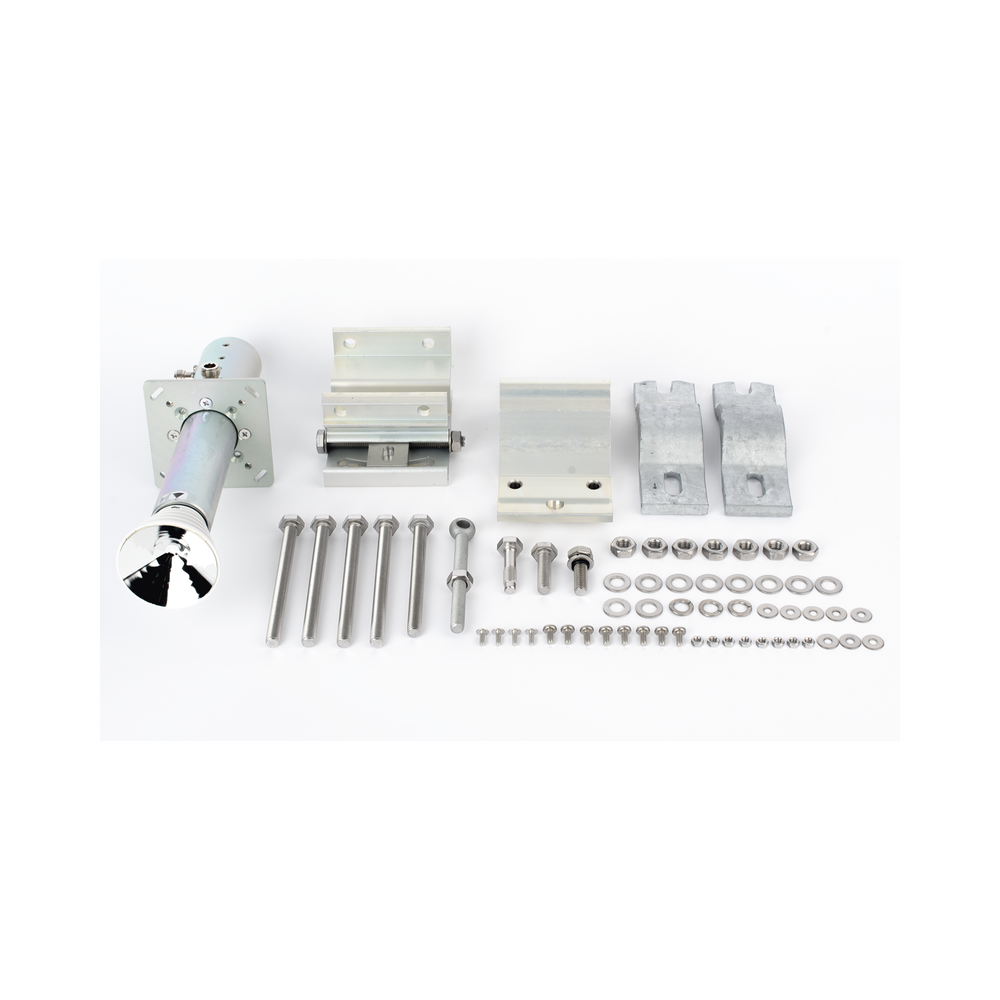

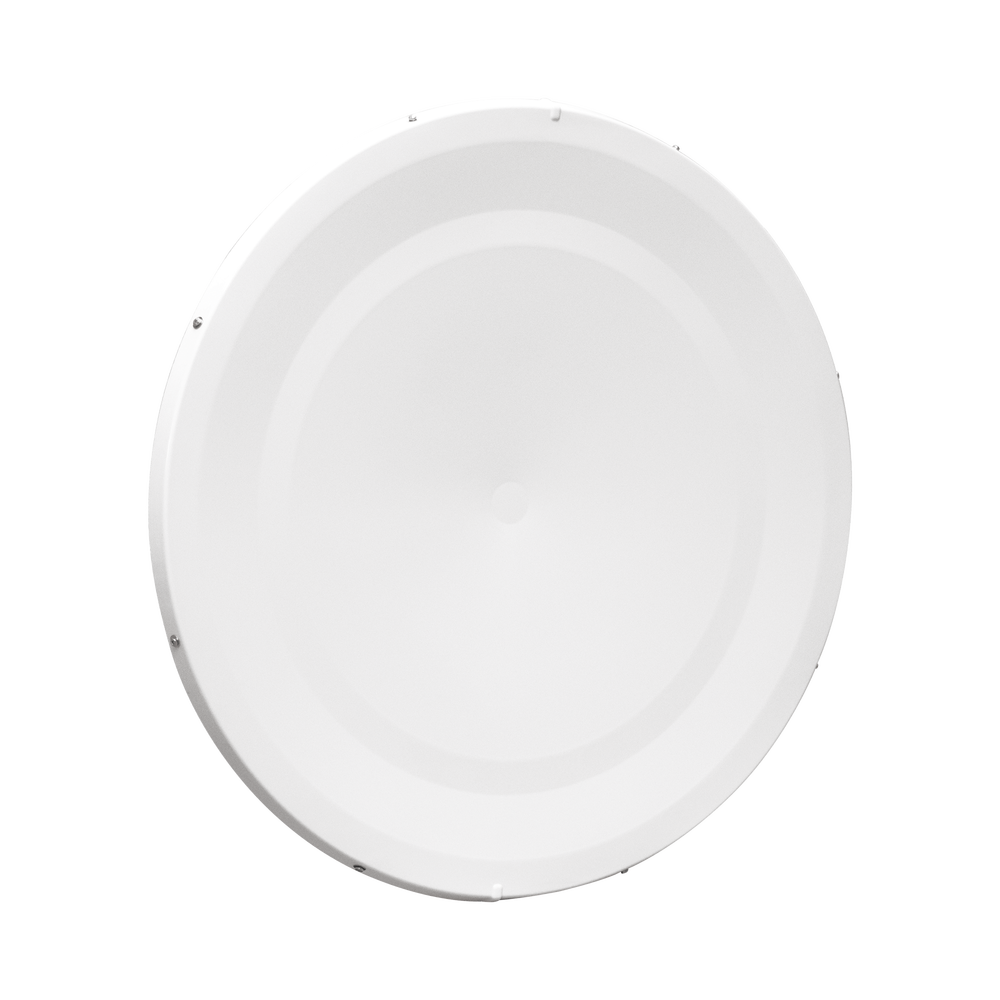

High Performance Directional Antenna / 3 ft / 4.9 to 6.1 GHz / 32 dBi Gain / Stainless Steel Mount / 90° and 45° Polarity / Includes Mounting Hardware.

Electrical parameters:

Frequency range: 4.9 - 6.1 GHz

Gain: 32.1 ± 1 dBi

VSWR: 5.1-5.9 GHz ≤ 1.6

Beamwidth: -3 dB 4.3Ëš

Port-to-port isolation: 5.1-5.9 GHz ≥ 50 dB (typical 53 dB) (rest of frequency range ≥ 43 dB)

Front-to-rear ratio: ≥ 52 dB

Linear Polarization, vertical/horizontal or 45°

Mechanical parameters:

Parabola Ø 900 mm, aluminum alloy

UV stable ABS plastic radome

N-female connector type.

Installation for mast Ø 40 - 120 mm

Antenna weight

of the holder

9.2 kg (20.3 lbs)

3.2 kg (7.0 lb)

Shipping Dimensions

antenna

995 x 995 x 545 mm / 12.9 kg (28.4 lb)
