CAMBIUM NETWORKS

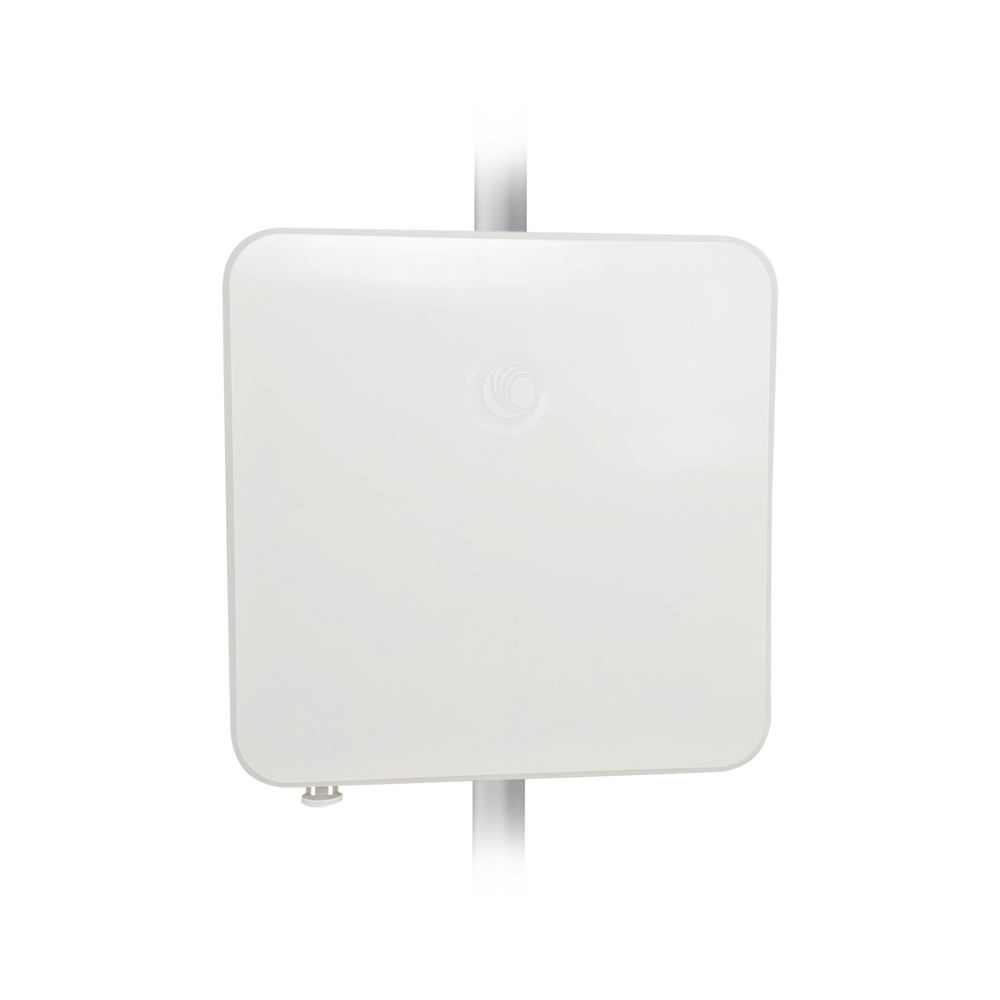

FORCE-300 / IP67 / +600 MBps Real / 5 GHz Wave2 802.11-AC / +19 dBi Antenna C050900C905A

Name: FORCE-300 / IP67 / +600 MBps Real / 5 GHz Wave2 802.11-AC / +19 dBi Antenna C050900C905A
Brand: CAMBIUM NETWORKS
SKU: FORCE-300-19R
Price: 1837214.76 COP
Availability: OutOfStock

$1.837.215 COP

~~$2.154.973 COP~~ $1.837.215 COP

Sale Sold out

Shipping calculated at checkout.

Quantity

FORCE-300 / IP67 / +600 MBps Real / 5 GHz Wave2 802.11-AC / +19 dBi Antenna C050900C905A

Force 300-19 5 GHz

5
GHz +600
13 Mbps
dBi 802.11AC
WAVE2

QUALITY OF SERVICE

A powerful multi-level prioritization scheme that can be configured by the network operator to enable the delivery of differentiated services.

SECURITY

128-bit AES encryption, L2 and L3 firewall rules, support for different user levels, HTTP/SSH support provide enhanced security.

FLEXIBLE MODES OF OPERATION

Provides extremely low latency for PTP deployments, highly scalable mode without GPS synchronization and TDD operation for synchronized towers

NEW CHANNEL SIZE AND MODULATION

Supports channel size configuration from 20 MHz to 80 MHz and modulates up to 256 QAM

INTEGRATED LIVE SPECTRUM ANALYZER
Supports constant monitoring of the radio spectrum and allows live action without dropping the link.

Main functions

Gigabit Ethernet port
Supports Cambium PoE and standard PoE (30Vdc)
Includes PoE
Maximum performance for voice and video surveillance applications

MIMO and modulation	2x2 MIMO/OFDM
Frequency range	4.910 – 5.970 MHz (defined by country of operation)
Maximum power output	0 to +28 dB
Antenna	19 dBi
Maximum power consumption	12 Watts
Exterior protection/ Temperature	IP67 / -30°C to +60°C (-22°F to +140°F)
Management	HTTPS, SSH, SNMPv2c
Channel spaces	Configurable in 5 MHz increments
MAC Layer	Cambium Proprietary
Ethernet structure	10/100/1000BaseT, rate auto negotiated Cambium PoE (Included)
Protocols used	IPv4, UDP, TCP, IP, ICMP, SSH, SNMPv2c, HTTPs, STP, SSH, IGMP Snooping
VLAN	802.1Q with 802.1p priority
Input voltage	30 V (PoE Included)
Encryption	128-bit AES (CCMP mode)
Antenna Type	Connectorized (any antenna in its frequency range is compatible)
Channel width	(1x20,1x40,1x80 Mhz)

Warranty	3 years

cnMaestro

LINKPlanner

cnArcher

cnHeat

cnMaestro™ is an on-premises or cloud-based software platform for secure, end-to-end network control. cnMaestro Wireless Network Manager simplifies device management by offering complete network visibility and zero-touch provisioning. View and perform a full suite of wireless network management functions in real time. Optimize system availability, maximize performance, and meet the emerging needs of business and residential customers.

LINKPlanner allows you to model "what-if" scenarios (based on geography, distance, antenna height, transmit power, and other factors) to optimize system performance before purchase. Quickly design networks for optimal deployment and cost-effectiveness with ease. Available for Microsoft® Windows® and Mac® systems, it is a free and easy-to-use link design tool.

LINKPlanner leads the industry as the most reliable and intuitive RF link planning tool, with tens of thousands of links successfully deployed worldwide.

Raise the bar on installation accuracy with cnArcher™, the free mobile app that provides field technicians with the information they need to properly configure and align Cambium Networks PMP and ePMP wireless broadband subscriber modules.

Built on Cambium Networks’ expertise in RF planning, propagation, and modeling as seen in LINKPlanner and integrated with GIS data up to 1 meter in accuracy, cnHeat generates highly accurate RF predictions and derived services that accurately represent the reality of the RF world.
