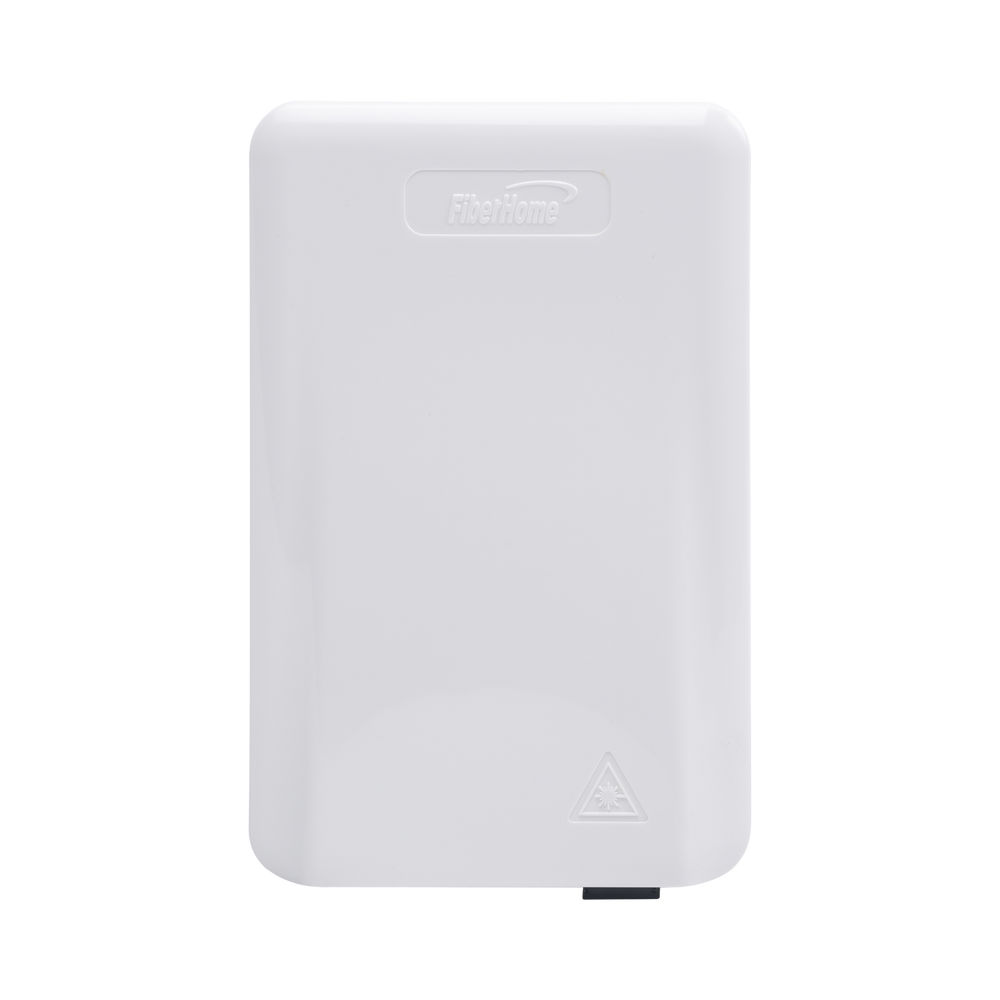

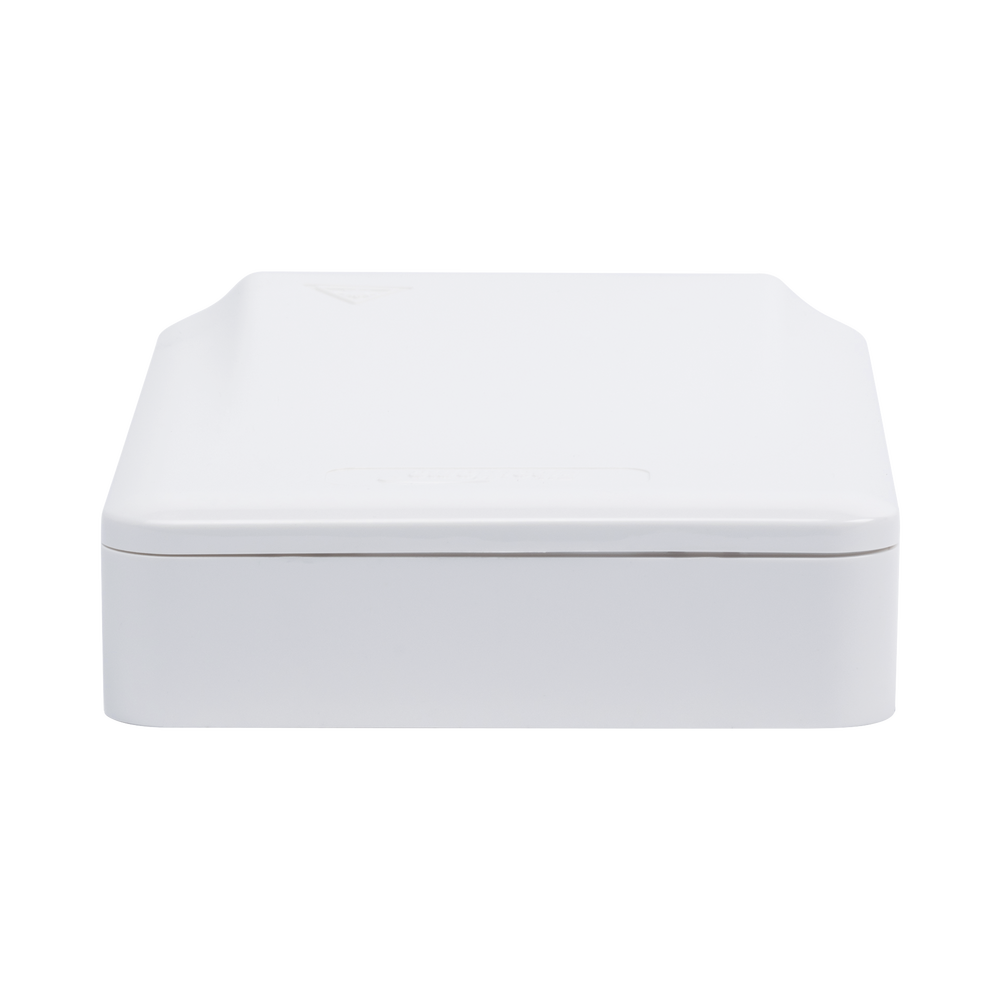

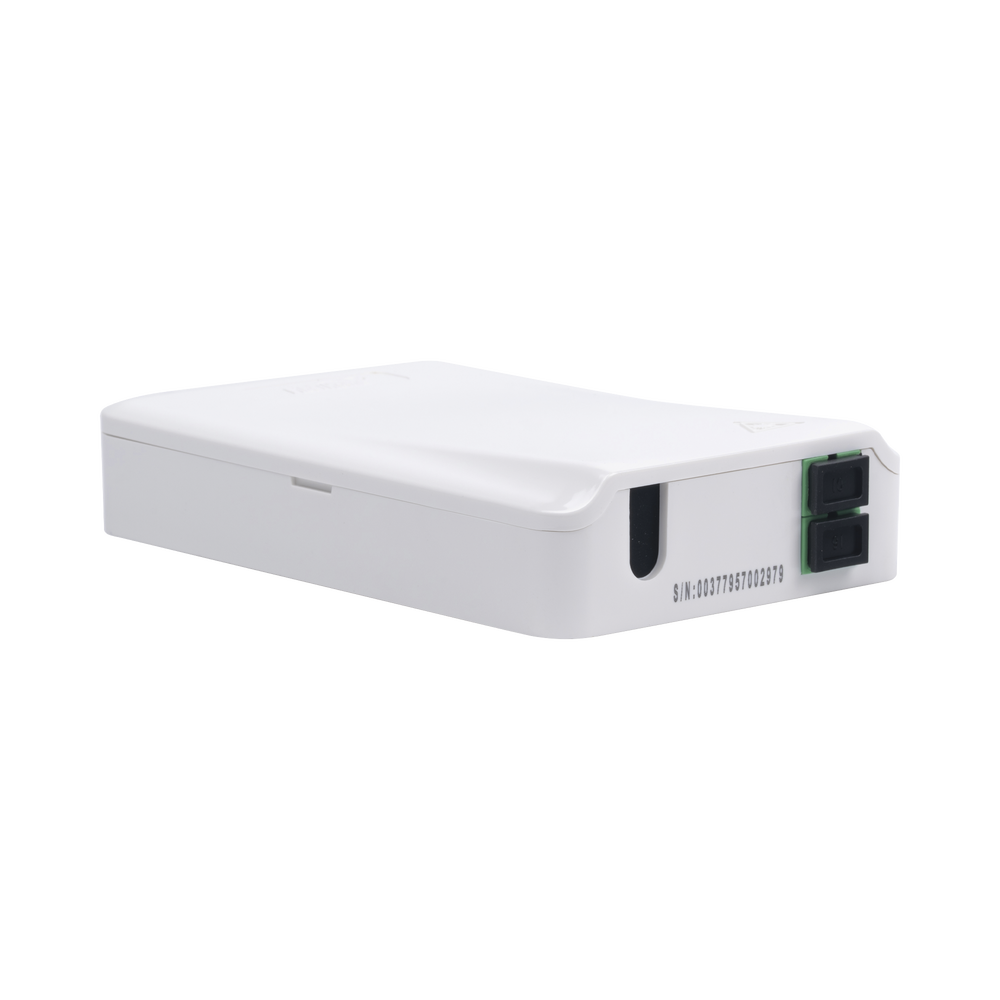

Fiber Optic Terminal Box (Rosette) with 2 SC/APC couplers, white

Fiber Optic Terminal Box (Rosette) with 2 SC/APC couplers, white

The FTB-506 box offers a compact and aesthetic design for easy access to the customer. It features fiber protection for two-point termination, leaving the service ready for connections to the optical network unit (ONT/ONU).

Characteristics:

• Proper cable routing, bend radius protection, and strain relief of incoming cable

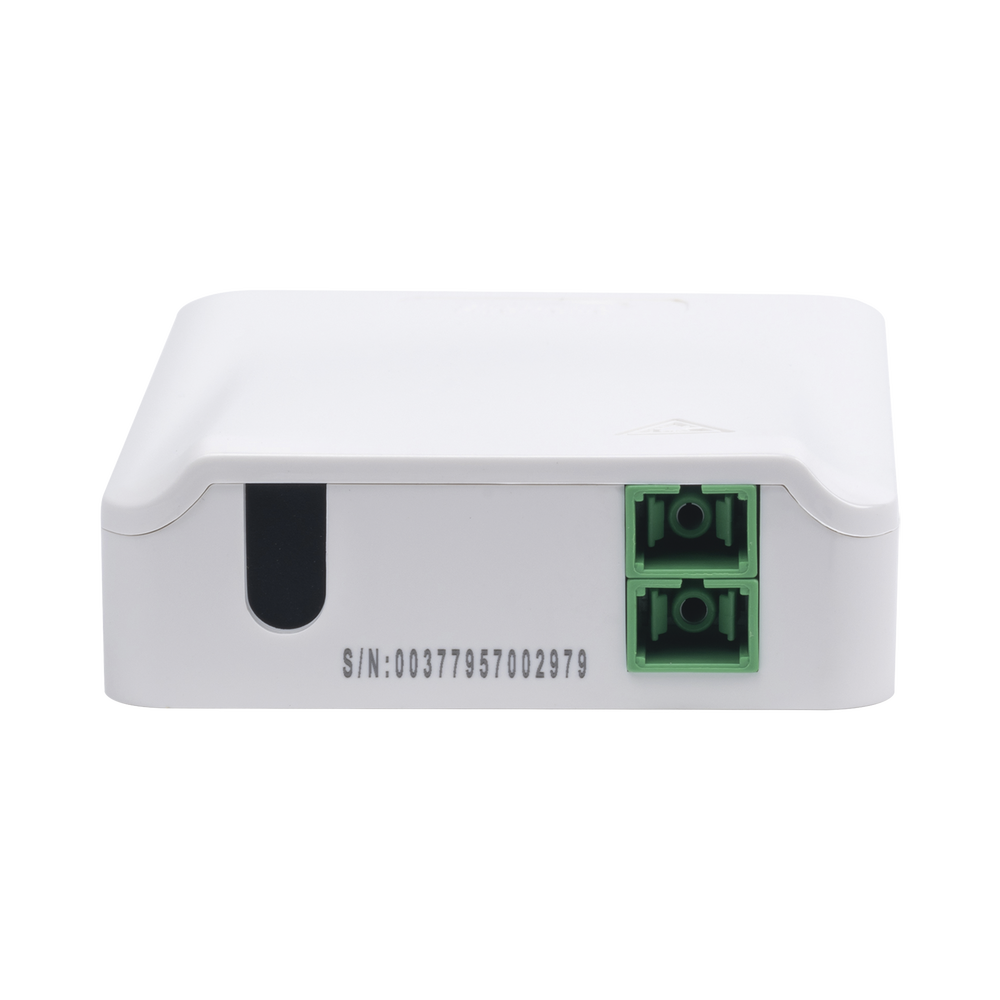

• 2 SC/APC couplers included
• Compatible with Drop fiber for field termination or pigtail fusion
• Flame retardant plastic material (ABS)

Specs:

• Dimensions (mm): 78 x 120 x 25.4
• Adapter Type: SC/APC x2
• Installation: Wall mount, for indoor applications
• Maximum diameter for round Drop type cable: ≤Φ 5mm x 1 cable
• Maximum diameter for flat Drop type cable: 2 x 3 mm x 2 cables
• Protection level: IP30
• Color: White

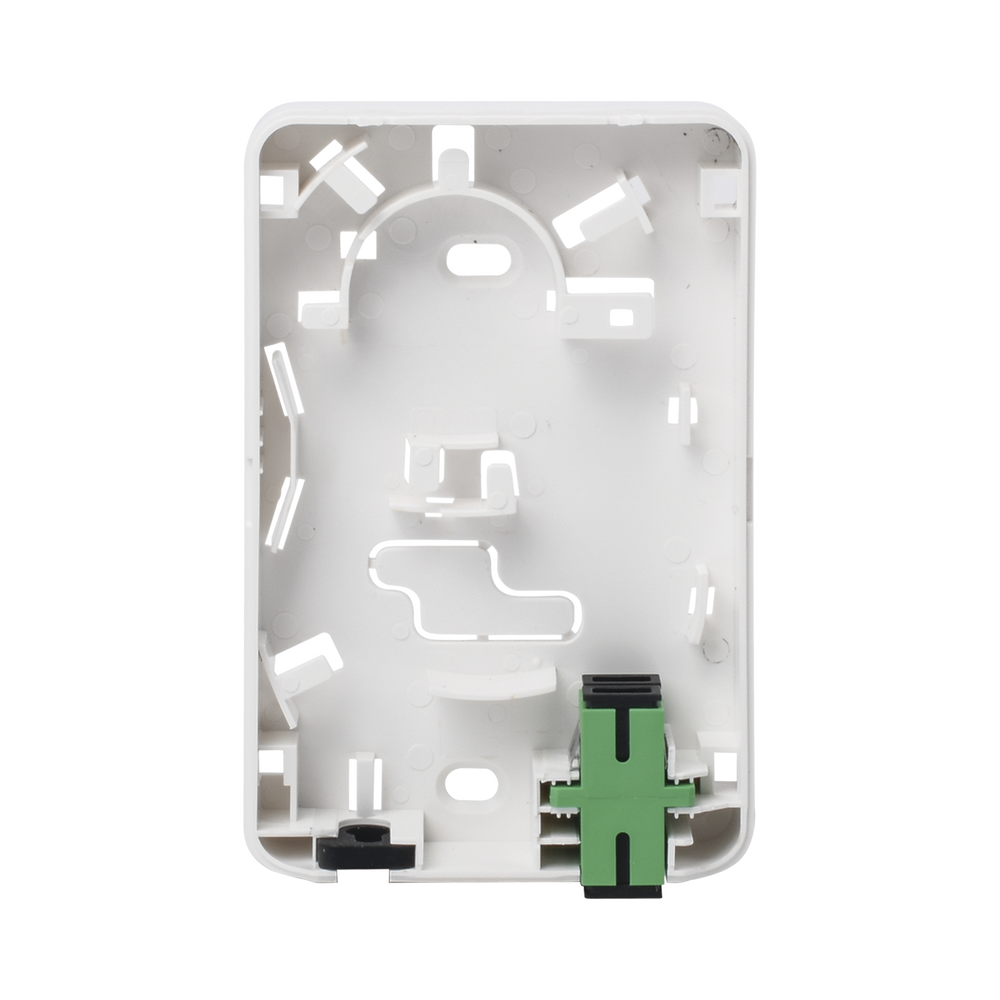

Accommodates 2 fusions or 2 field-terminated connectors, Made of fire-retardant ABS materials, "Auto-clip" cover, allowing easy opening and closing, Proper cable routing, bend radius protection and strain relief of incoming cable
