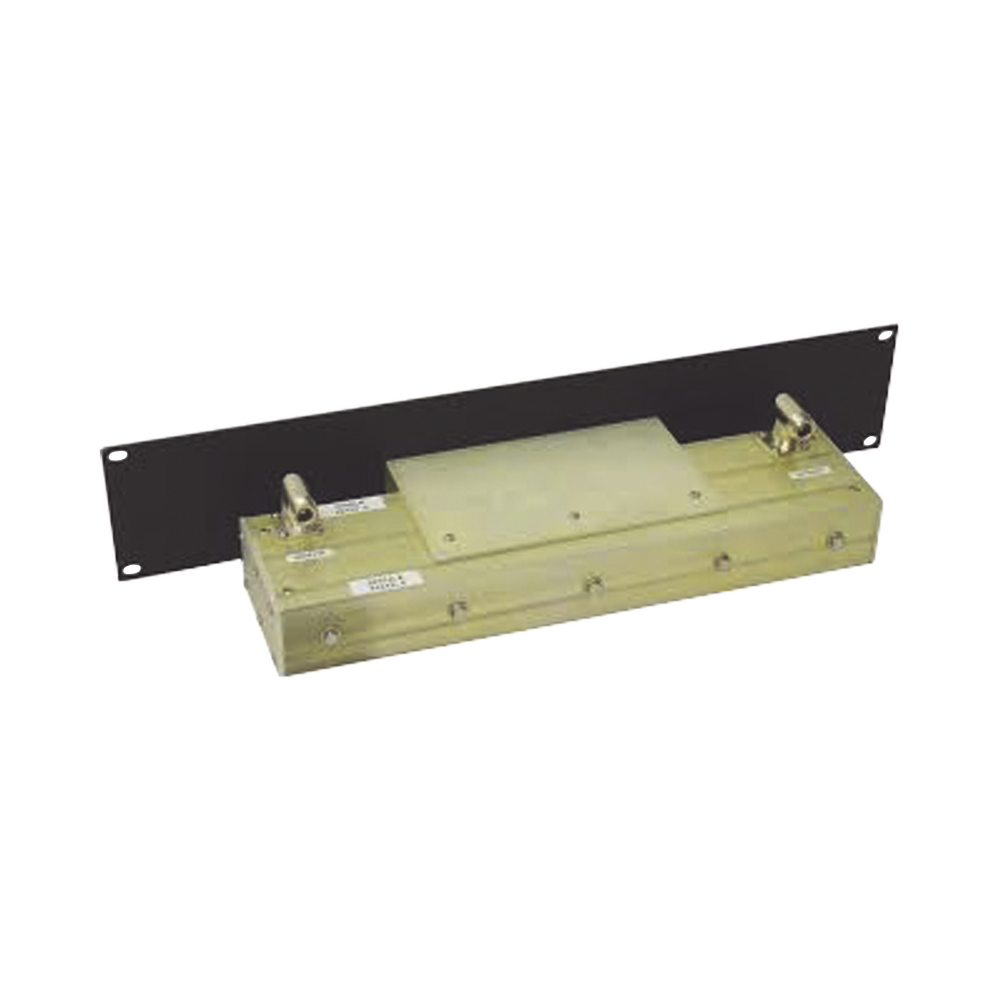

TX-RX Preselector Filter, 806-824 MHz, 18 MHz Bandwidth, 2UR, 19 in Rack Mount, N Females.

TX-RX Preselector Filter, 806-824 MHz, 18 MHz Bandwidth, 2UR, 19 in Rack Mount, N Females.

TX-RX Preselector Filter, 806-824 MHz, 18 MHz Bandwidth, N Females.

• Frequency Range: 806-824 MHz.
• Bandwidth: 18 MHz.
• Selectivity: 100 dB isolation at 851 MHz.
• Number of Cavities: 10 R esonators .
• Insertion Loss (Typical): 1.0 dB.
• Return Loss, dB (VSWR): 14 (1.5:1).
• Mounting: On 19' EIA Rack.
• Connectors: N Female.
• Temperature Range: -30 ºC to +60 ºC.
• Dimensions (Height x Width x Depth): 89 x 483 x 127 mm.
• Shipping Weight: 2.7 kg.

*Ask for delivery time.
