Fiber Optic Splice Box, Outdoor IP65, Aerial Installation, Up to 144 Splices

Fiber Optic Splice Box, Outdoor IP65, Aerial Installation, Up to 144 Splices

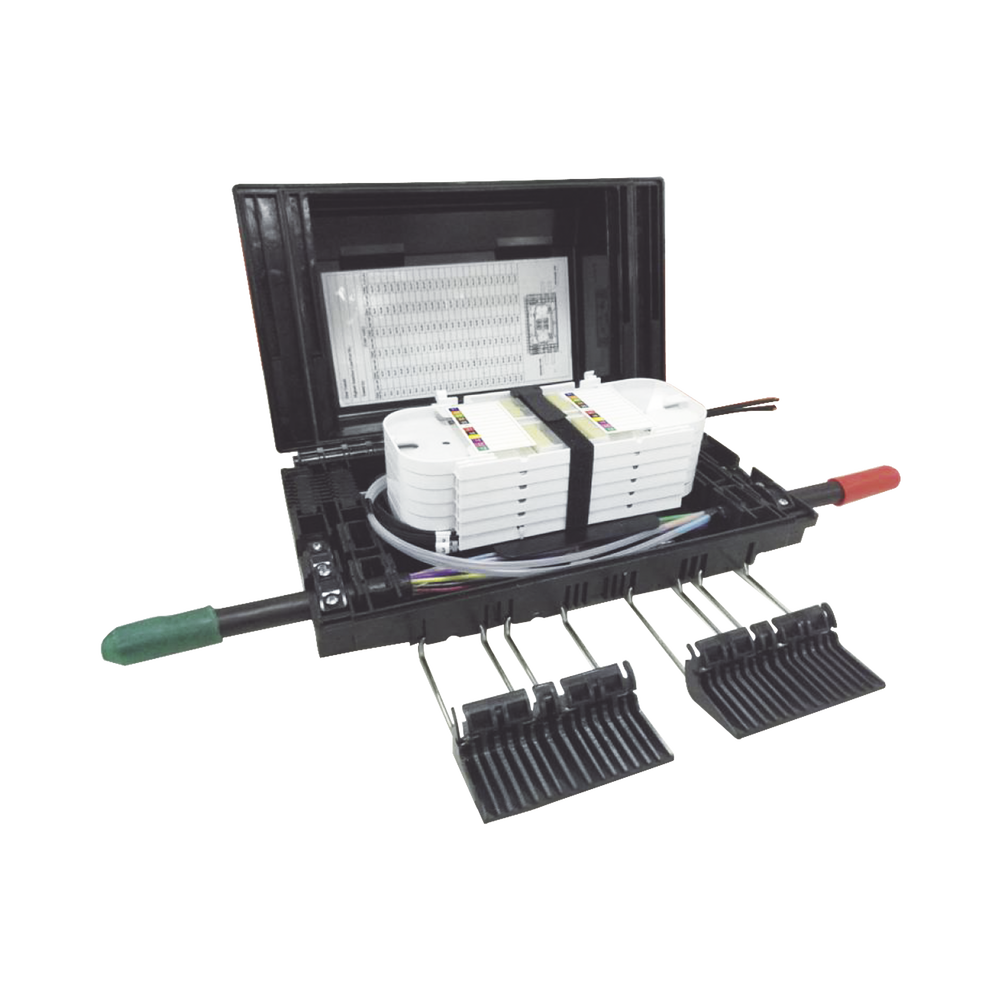

The GJS-2019 is a subscriber-level fiber optic splice box used to construct the first layer in FTTH networks.

It is designed for in-line applications to provide a protected access point between the feeder cable and the distribution cable. This product can protect internal components from outdoor environmental damage. Its flexible configuration supports two cable entries and two cable exits. 900um splitters can be added to provide mid-span functionality. IP65 performance is useful in harsh environments. The GJS-2019 series is suitable for LCP applications in PON architecture distribution.

Characteristics

• Excellent UV protection
• IP65
• 6 trays of 24 joints (Up to 144 joints)
• 4 main fiber inputs for Φ4 - 16 mm cable
• 8 drop cable outlets on each side
• Operating Temperature -40 to +65°C
• Dimensions 350x210x110 mm
• 6 slots for micro splitter (1:2, 1:4, 1:8) (Not included)
• Compatible with ADSS, Mini ADSS and Mini Figure 8 fiber*
• For aerial installation

*It is recommended to add more fusion tape (sealing mud) at the cable entry when used with Mini Figure 8 fiber ( OC-FIG8-06C , OC-FIG8-12C )

Includes:

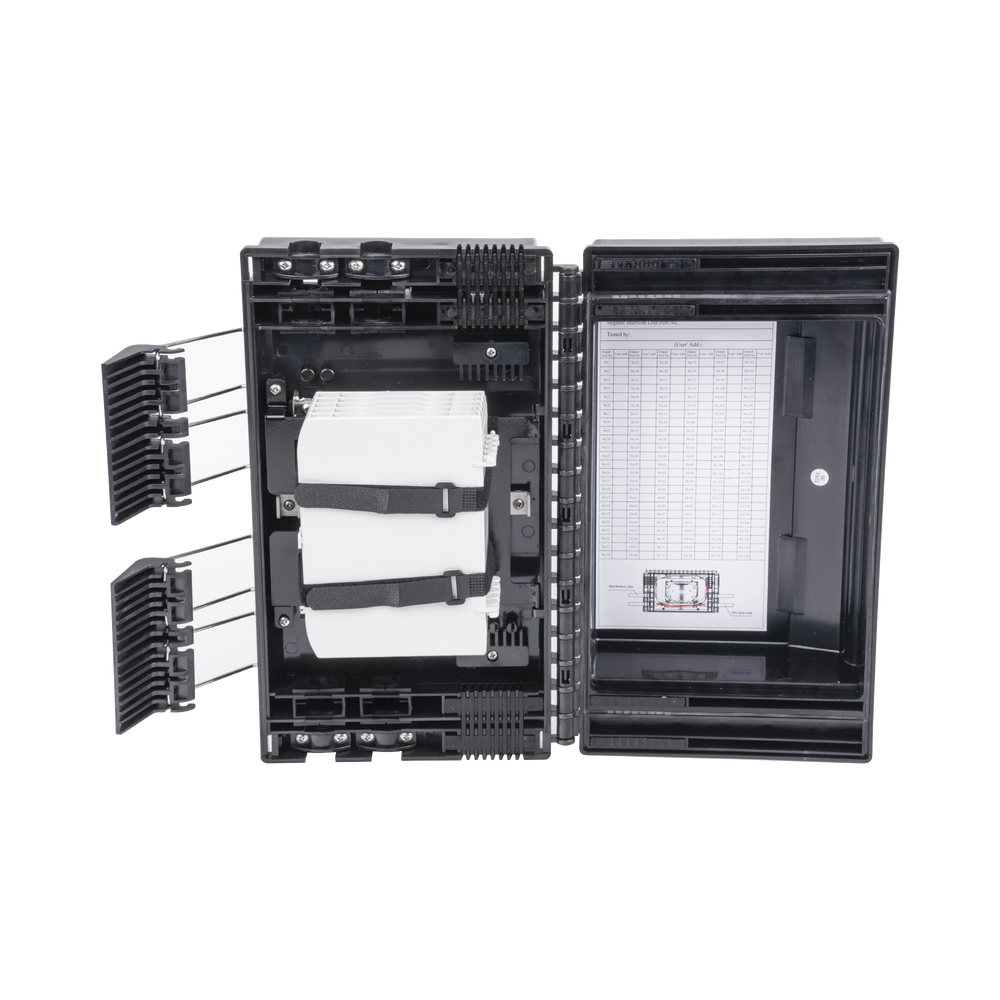

• 1 junction box with 6 trays
• 1 bare fiber protection tube (2 m)
• 1 roll of insulating tape
• 1 spiral tube (1 m)
• 24 cable ties
• 1 fusion tape
• 144 splice sleeves
• 1 fiber optic cleaning wipe
• Instructive
• 1 set of 2 hooks for overhead mounting
• 1 sandpaper

6 trays of 24 splices (Up to 144 splices), Dimensions 350x210x110 mm, Operating Temperature -40 to +65°C, IP65
