Automatic switch for 2 radio bases and one antenna

Automatic switch for 2 radio bases and one antenna

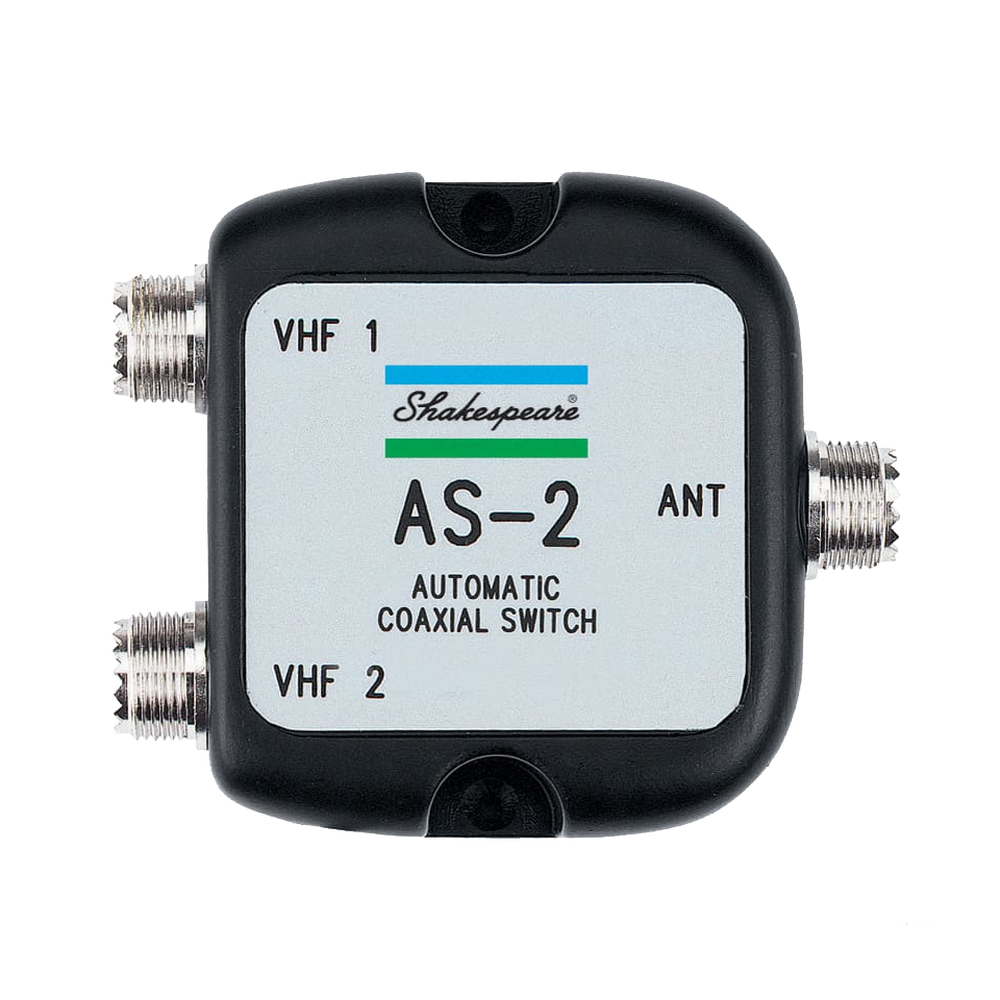

The AS-2 model is an automatic antenna switch, for use on two bases with a single marine antenna.

Characteristics:

• Frequency range: up to 600 MHz
• VSWR: below 1.2:1
• Nominal power: 30 W
• Impedance: 50 ohms
• Connections: SO-239 type
• Power supply: 12 Vdc @ 200 mA
• Detection/switching time: less than 100 ms

Note: It does not provide simultaneous reception to both radios, only one radio at a time.
