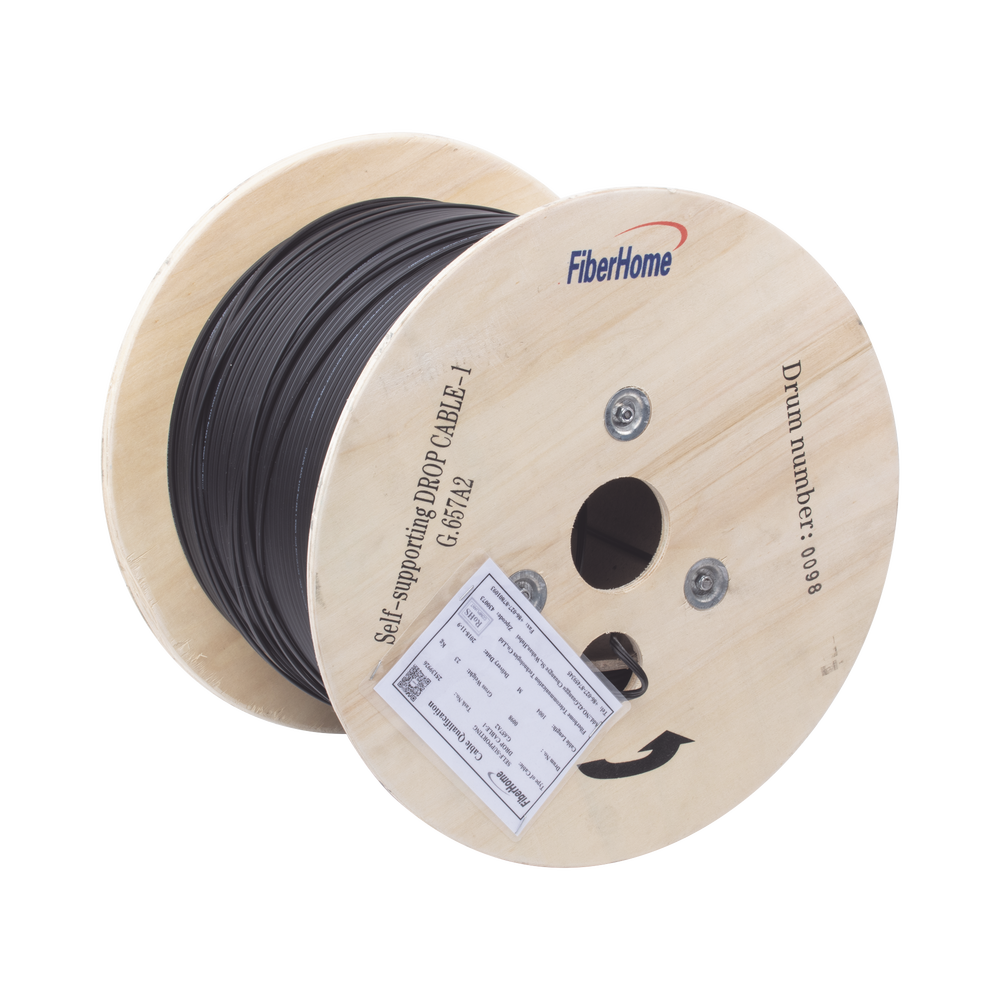

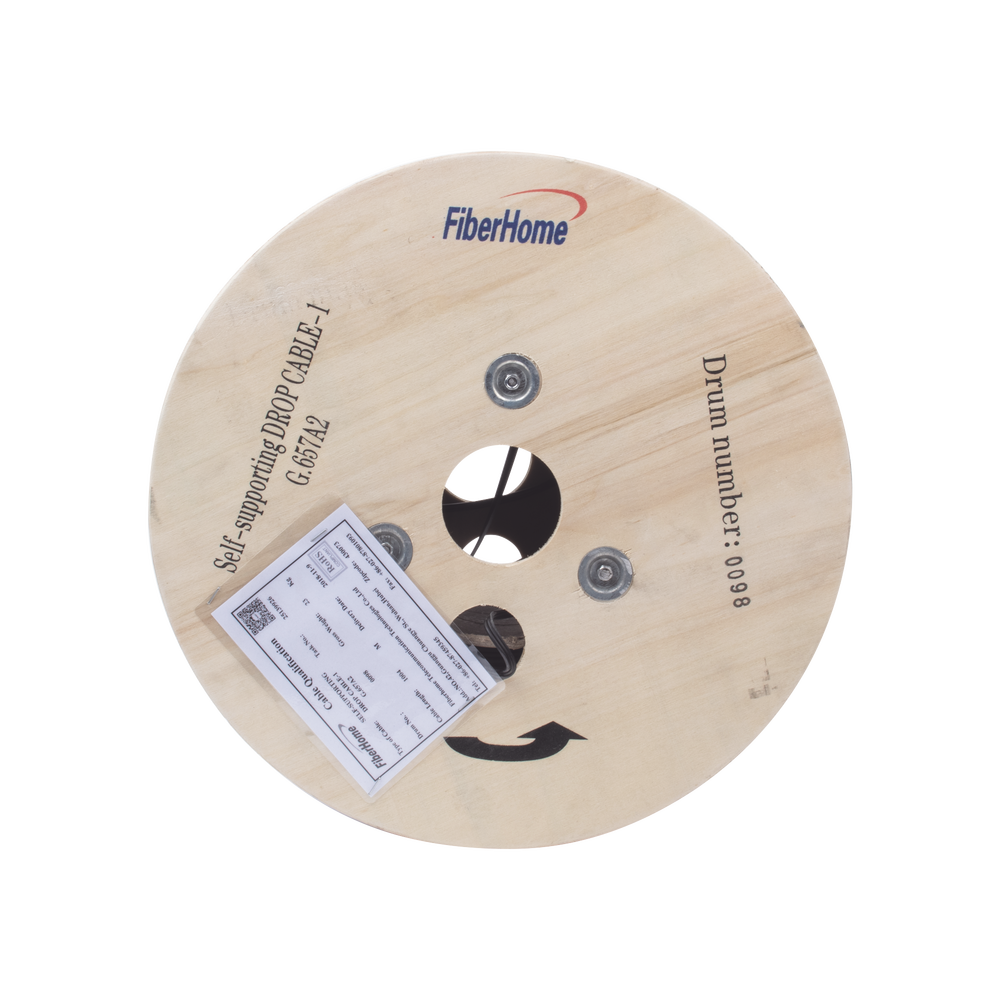

1 km reel of Mini Figure 8 G.657A2 Drop type Aerial Optical Fiber, 1 Wire Single Mode (single fiber), Black Color

1 km reel of Mini Figure 8 G.657A2 Drop type Aerial Optical Fiber, 1 Wire Single Mode (single fiber), Black Color

The Self-Supporting Drop type fiber optic cable is ideal for aerial transmission from the NAP to buildings, homes, offices, etc. in FTTx applications.

Characteristics:

• Fiber Optic Drop G.657A2 flat BIF (Insensitive to curvatures)
• Φ 1.0 mm steel messenger
• Lining: LS0H (Low Smoke, Zero Halogens)
• Maximum Tension: 600N
• Applications: Indoor/Outdoor
• Temperature Range: -20°C to +60°C
• Weight: 20 Kg (44 lb)
• 1 thread (single fiber)
• Diameter: 2±0.3mm(H) x 5.2±0.3mm
• Minimum bending radius: Installation 30H, Operation 15H
• Crush resistance: 1000N/10cm

*Price per 1 km reel

Maximum Tension: 600N, Applications: Indoor/Outdoor, Temperature Range: -20°C to +60°C, Jacket: LSZH (Low Smoke, Zero Halogen), Span: 80 meters, Low Friction Jacket
