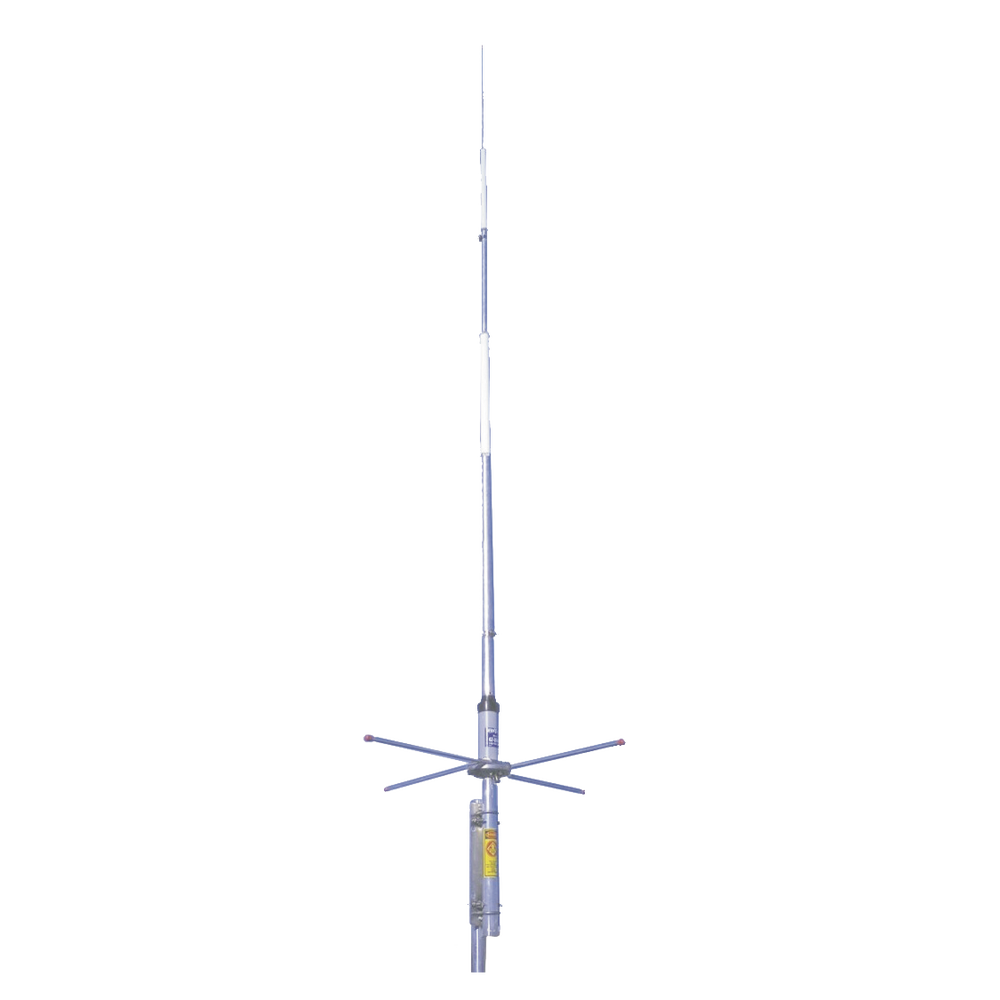

VHF Base Antenna, 148 - 154 MHz Range, 7 dB Gain / Fiberglass and Aluminum / Self-Supporting

VHF Base Antenna, 148 - 154 MHz Range, 7 dB Gain / Fiberglass and Aluminum / Self-Supporting

$1.759.458 COP
$1.924.408 COP $1.759.458 COP
Sale Sold out
Shipping calculated at checkout.

VHF Base Antenna, 148 - 154 MHz Range, 7 dB Gain / Fiberglass and Aluminum / Self-Supporting

General Description

The G7-150 antenna series is ideally designed for fixed or repeater applications, offering low-angle radiation for optimal signal quality. Constructed from high-strength aluminum and fiberglass, it ensures a completely self-supporting design for exceptional durability.

Technical Specifications

Main Features

  • Maximum input power: 800 watts FM
  • Gain: 7 dBd
  • VSWR: 6 MHz for 2:1; 3 MHz under 1.5:1
  • Impedance: 50 ohms nominal
  • Lightning protection: Shunt feed - Direct ground

Features

  • Aluminum and fiberglass construction
  • Self-supporting design

Advanced Specifications

Interfaces and Connectivity

  • Termination: Type N female

Requirements and Compatibility

  • Mounting: Up to 2 inches
  • Length: 15 ft 4 in
  • Weight: 10 lbs
  • Wind Survival: 100 mph
  • Equivalent area of ​​flat plate: 1.16 Ft'
  • Lateral thrust: 46 lbs at 100 mph

Applications and Use Cases

Ideal applications in fixed and repeater installations that require high durability and efficiency in signal transmission.


Accessories included for mounting on masts with diameters up to 1 1/2'.

    Frequency range of 148-174 MHz, Maximum input power 800 watts FM, Gain of 7 dBd for optimal signal, Aluminum and fiberglass construction

49 in stock

MODELO: G7-150-1
