Professional Cable Tester for UTP, STP and Coaxial Cable (NETcat® Pro2) with Backlit Touch Screen

Professional Cable Tester for UTP, STP and Coaxial Cable (NETcat® Pro2) with Backlit Touch Screen

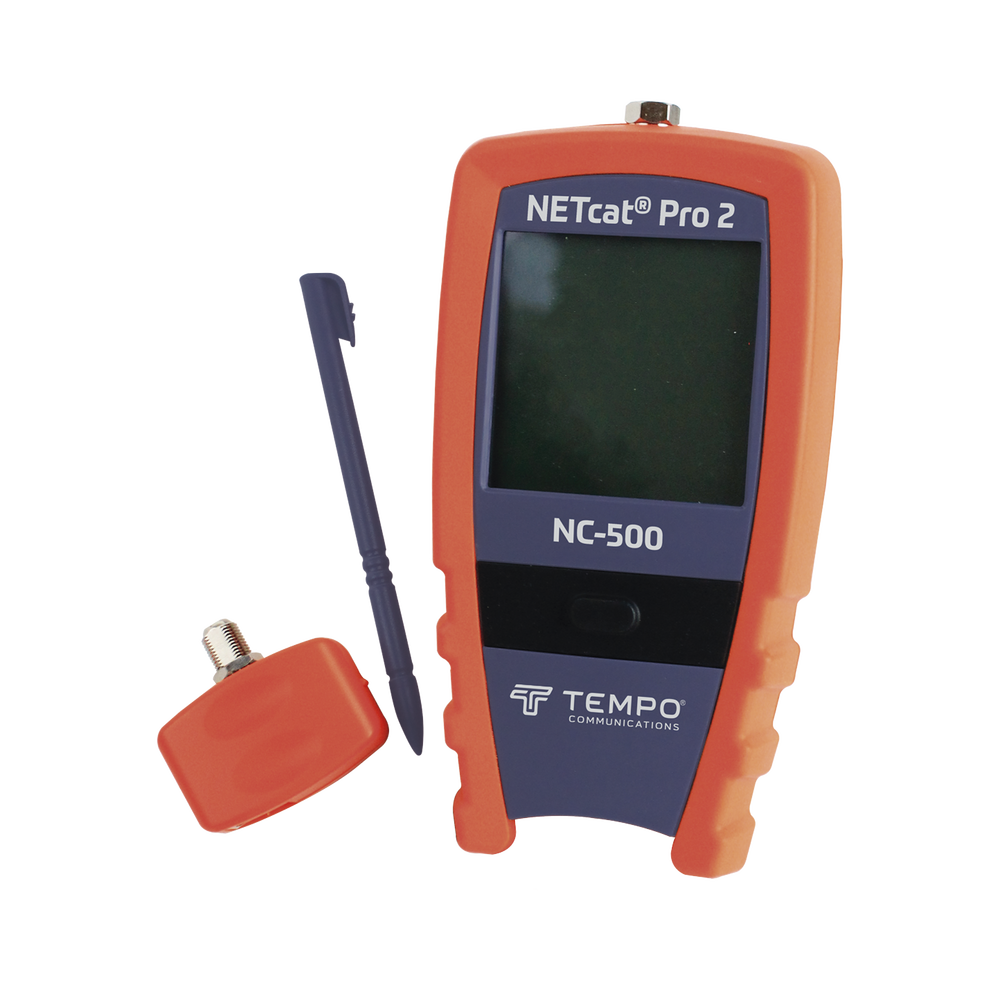

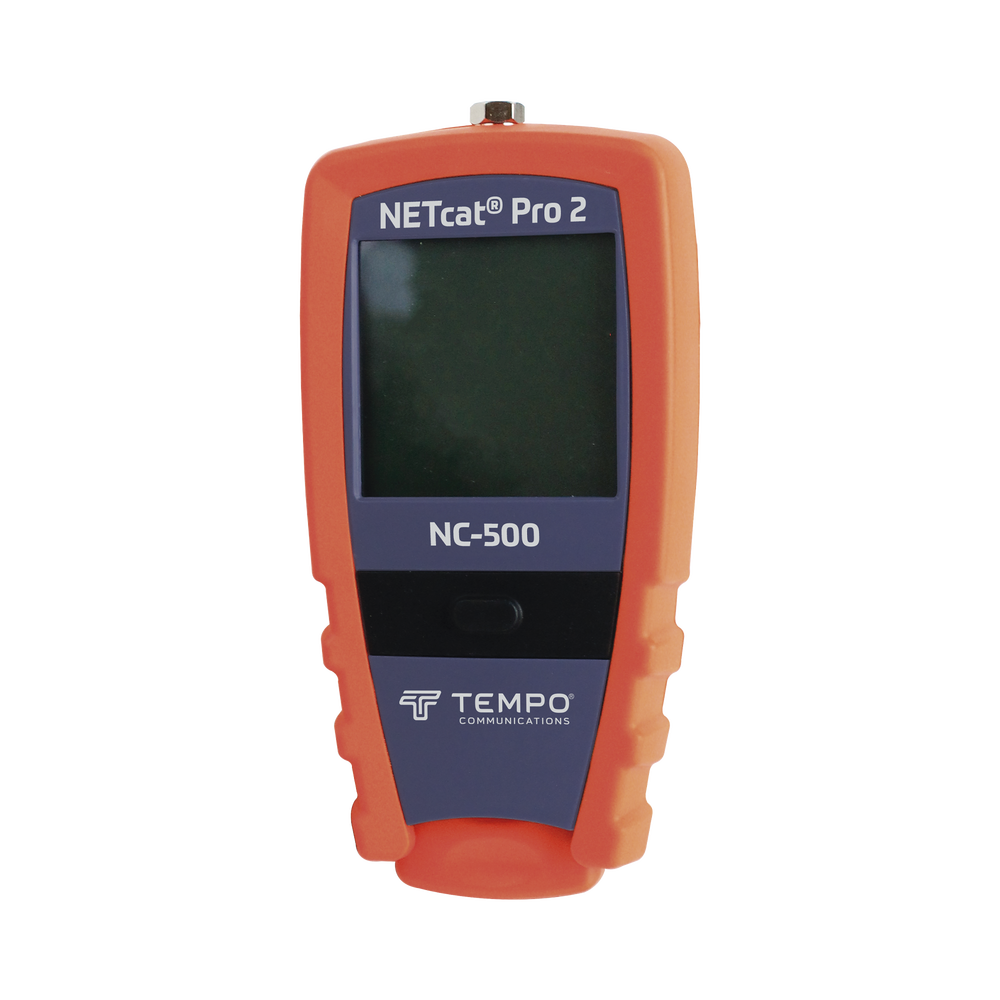

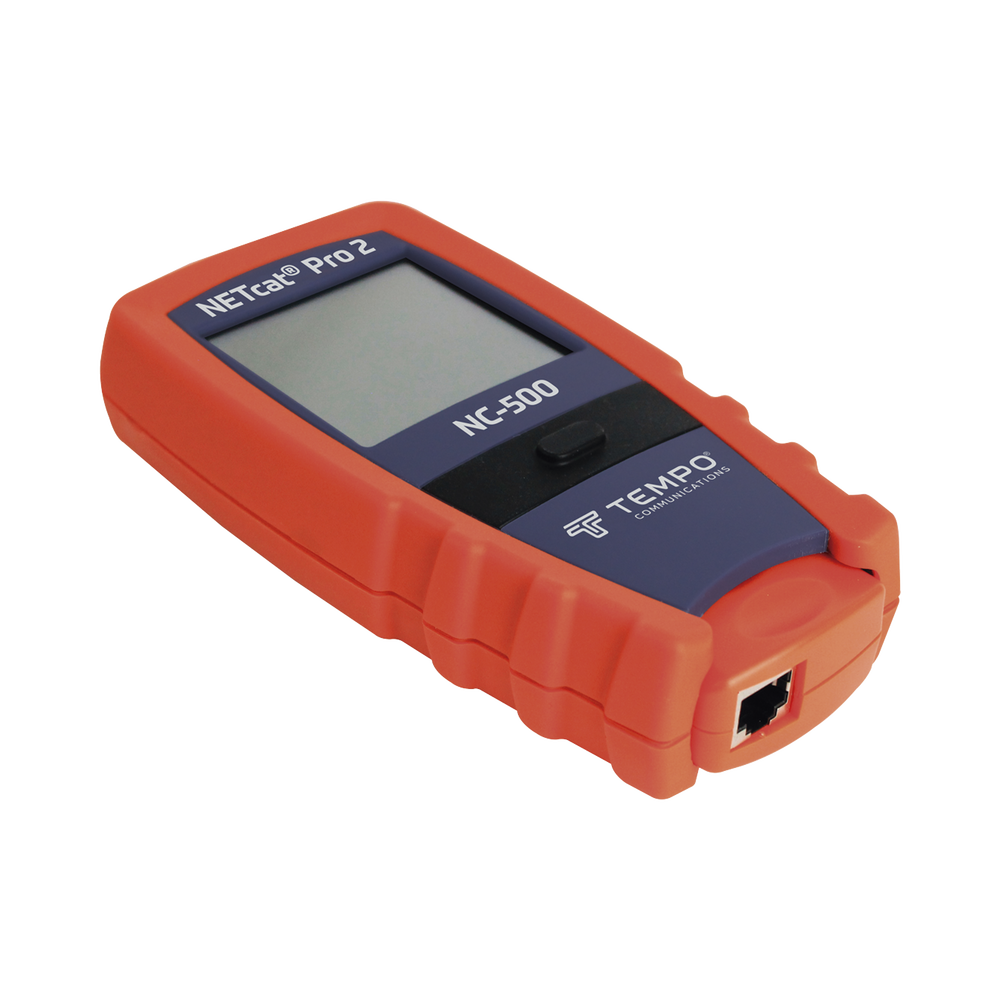

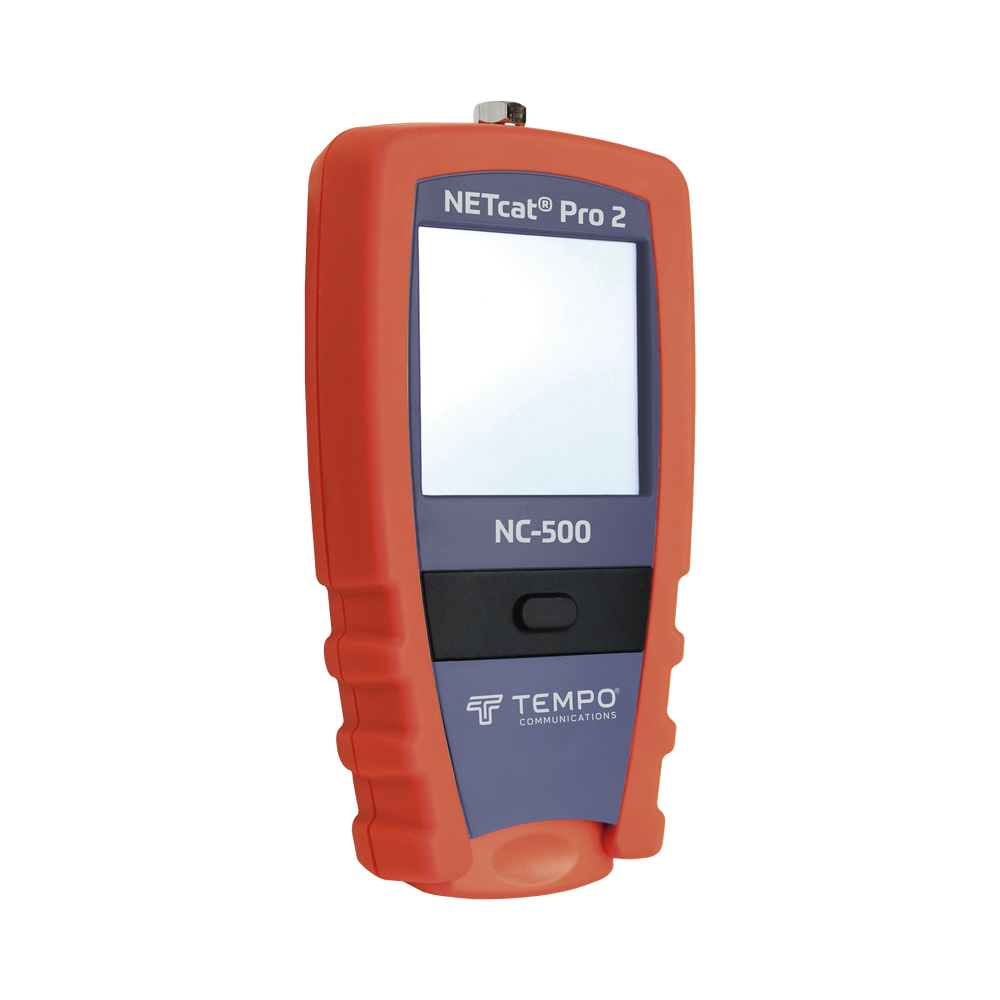

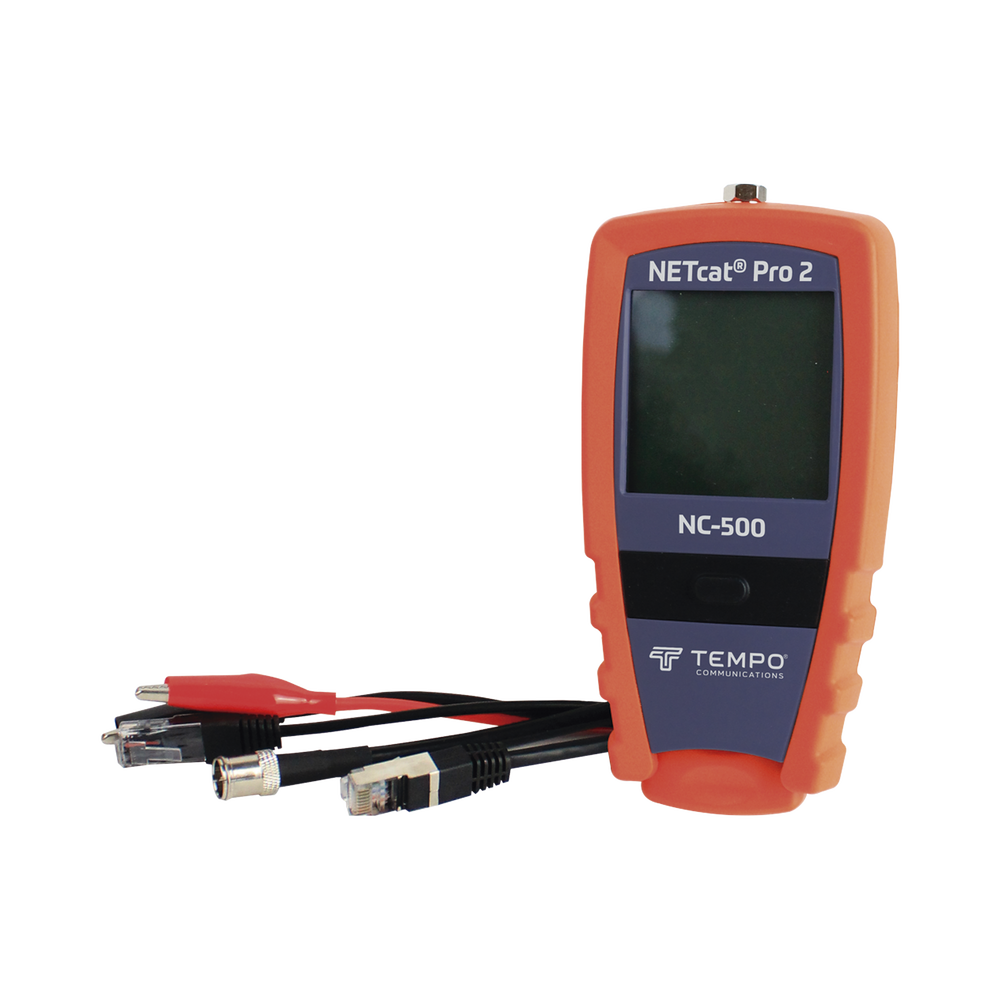

The NC-500 ( NETcat® Pro2 ) is a digital cable mapping and verification tool. Operated by a backlit touchscreen, this tester not only tests for cable continuity and proper pair assignment, but also measures the length of multi-pair, LAN, or coaxial cables using advanced, high-speed TDR (Time Domain Reflectometry). It also determines if network service is available up to Gigabit speed and displays if Power over Ethernet is being supplied.

When used with the NC-510 accessory kit containing seven expansion remote test modules, the NETcat Pro can uniquely test eight coaxial or twisted-pair connectors from a central location. Using a fingertip or the built-in stylus, the display can be used to control and display a variety of tests, from cable mapping fault finding to TDR length measurement. The display can be configured to English, Spanish, German, or French.

Characteristics:

• Compatible with CAT5e, CAT6 and CAT6A (shielded and unshielded) and coaxial cables
• Distance measurement in feet (ft) or meters.
• Pair tracing tones can be generated and applied to various cable combinations to aid detection
• If connected to a LAN cable with active equipment on the other end, available service speeds are identified and displayed, ranging from 10M, 100M, or 1G, full duplex or half duplex. While testing the cable, NETcat also checks for the presence of 802.3af Power over Ethernet (PoE).
• Test and troubleshoot telephone, data, and coaxial cabling
• Detects split pairs, short circuits, broken and crossed wires
• Step TDR technology shows the short or open circuit length of all pairs
• Large icons to ensure easy finger use
• Backlit touchscreen used to control all functions
• Slots for touch pen (stylus) included in the main unit
• Tone generator with 4 selectable precision frequency tones, compatible with Tempo advanced digital signal processing probes
• Identifies active devices on 10/100/1000 Base-T Ethernet (802.3) networks, both full duplex and half duplex
• Notepad/Reminder Function: Stored in non-volatile memory
• Field replaceable 'F' type connector
• Graphic touchscreen with contrast adjustment and backlight
• Tests shielded twisted pair (STP), unshielded twisted pair (UTP), and coaxial cables
• Sub-nanosecond resolution ensures this cable tester is one of the most accurate on the market, detecting errors that simple low-speed cable mappers miss.
• Detects short, open, inverted, cross and split pairs.
• Office ID using remote ID units: up to 8 different IDs, one included, seven additional available in the NC-510 accessory kit.
• Troubleshoots and verifies a wide range of networks.
• Generate 4 distinct precision tones to trace low-loss cables such as Cat 5.
• It works with a single 9V battery, with low battery indicator.
• Maximum length for office identifier: 609.6 m (2000 ft)
• Maximum length for wiring diagram: 100 m (328 ft)
• Minimum length for split pair detection: 3 m (10 ft) typical, on most cable types

Pair tracing tones can be generated and applied to various cable combinations to aid detection. Detects open, short, and crossed pairs. Measures length of multi-pair, UTP, STP, and coaxial cables.
