Visual Fault Locator (VFL) for optical fiber with universal 2.5 mm input, up to 7 km distance

Visual Fault Locator (VFL) for optical fiber with universal 2.5 mm input, up to 7 km distance

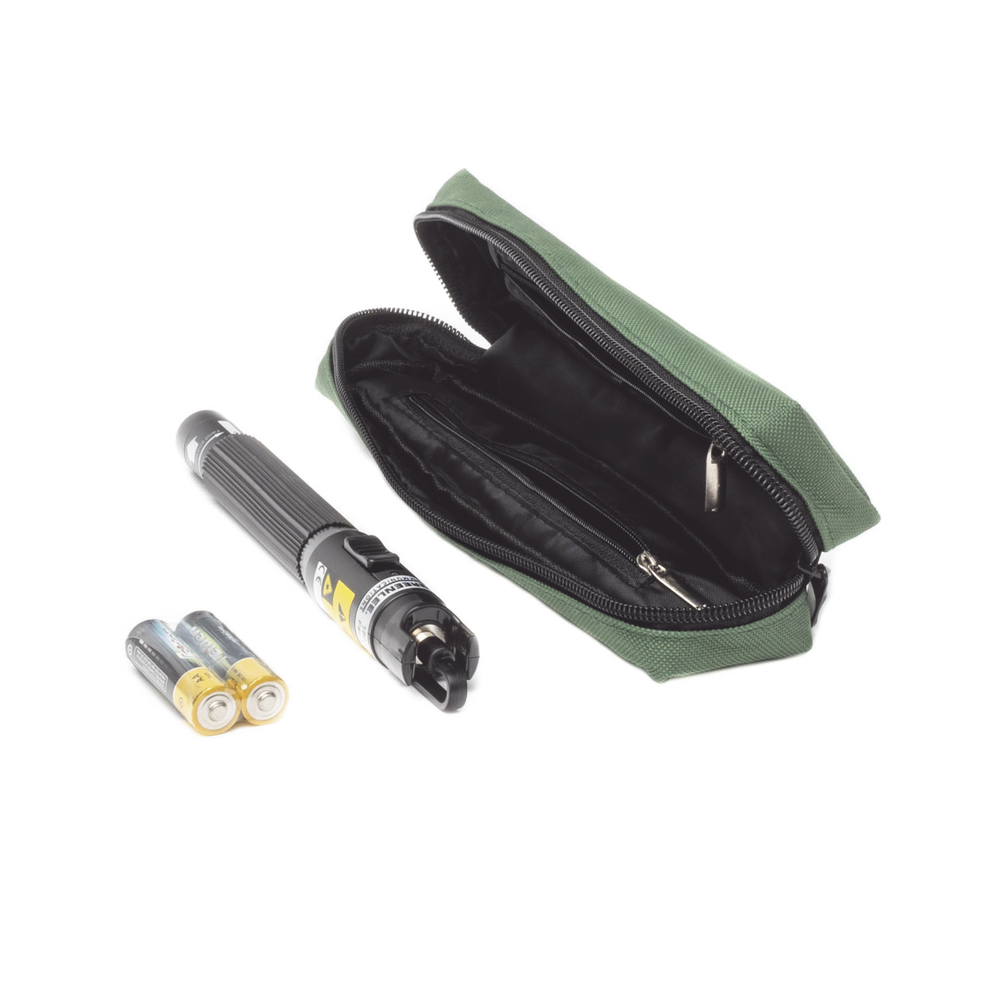

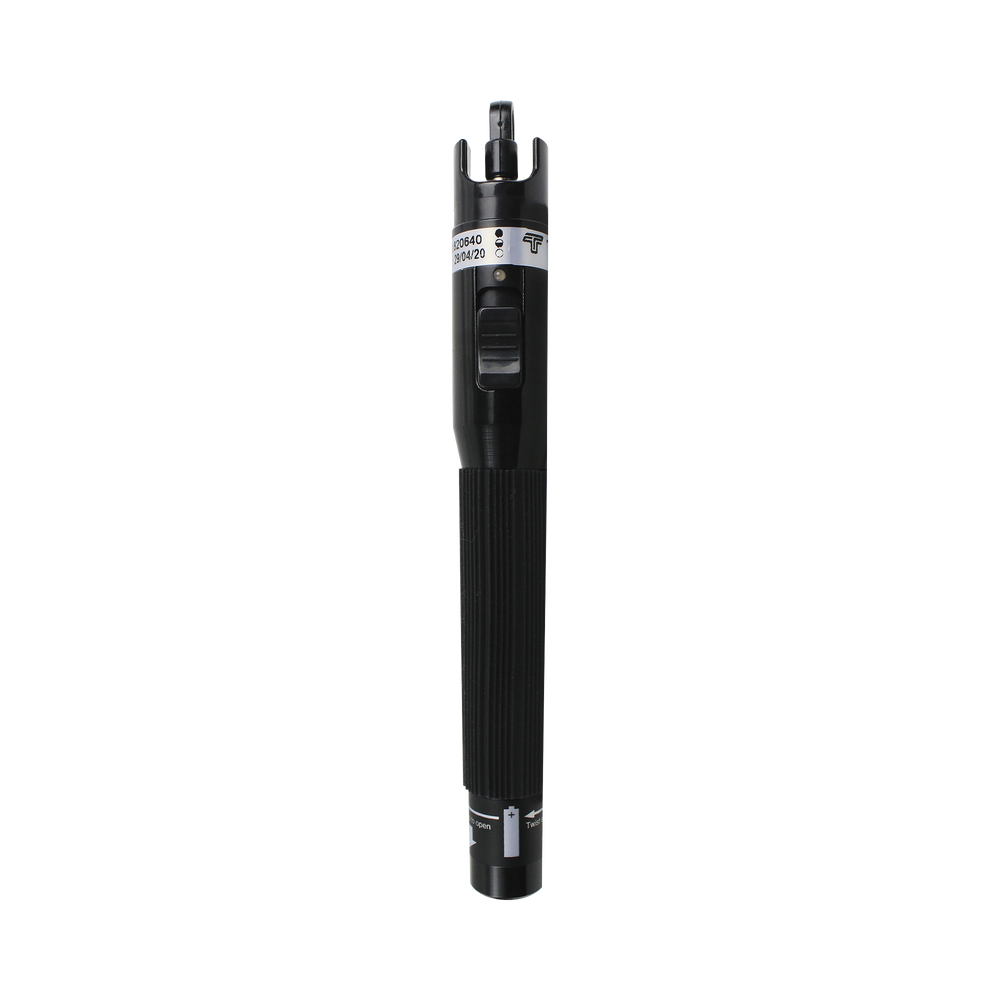

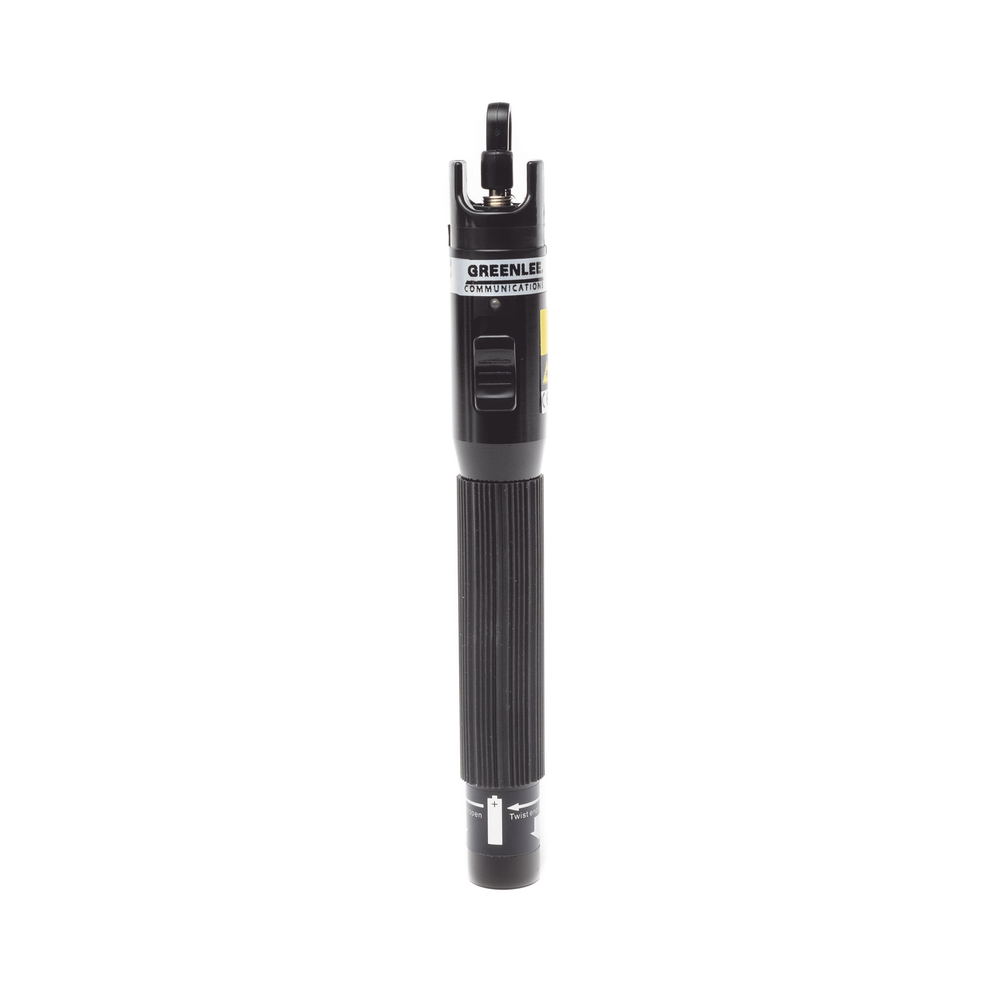

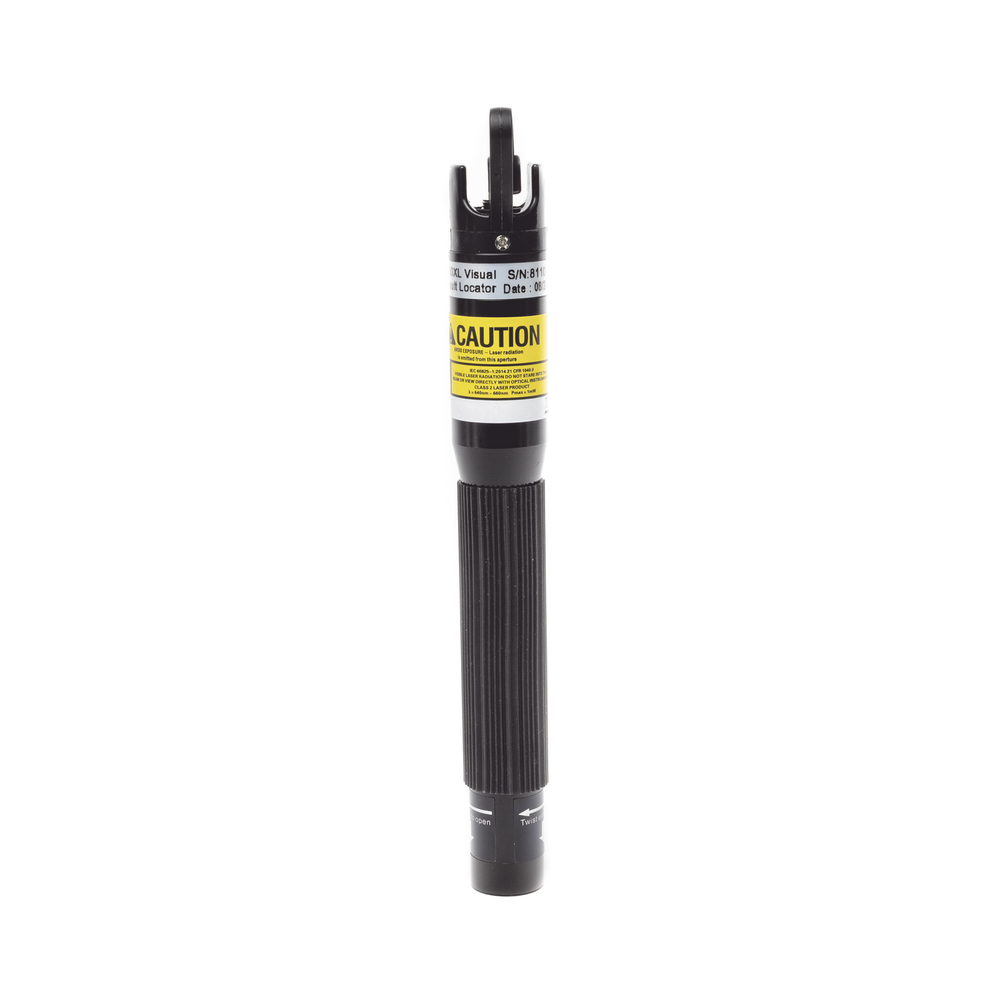

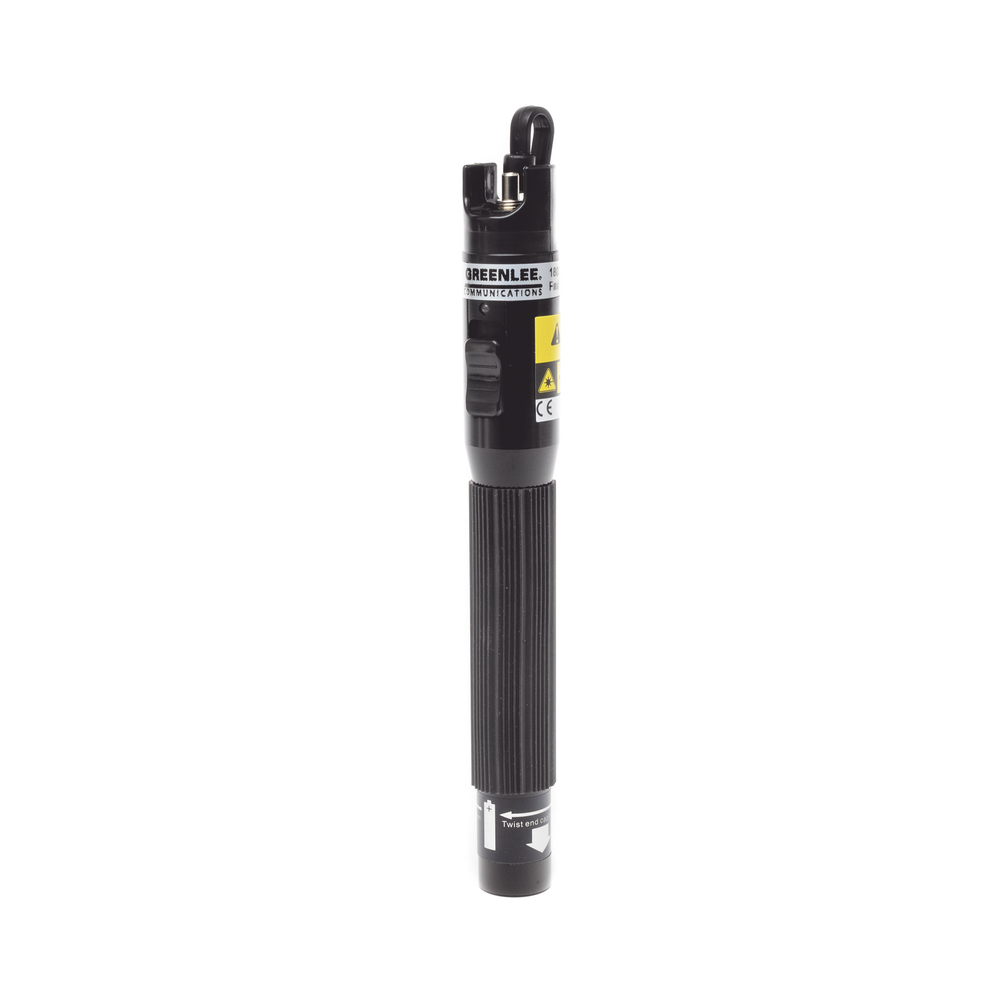

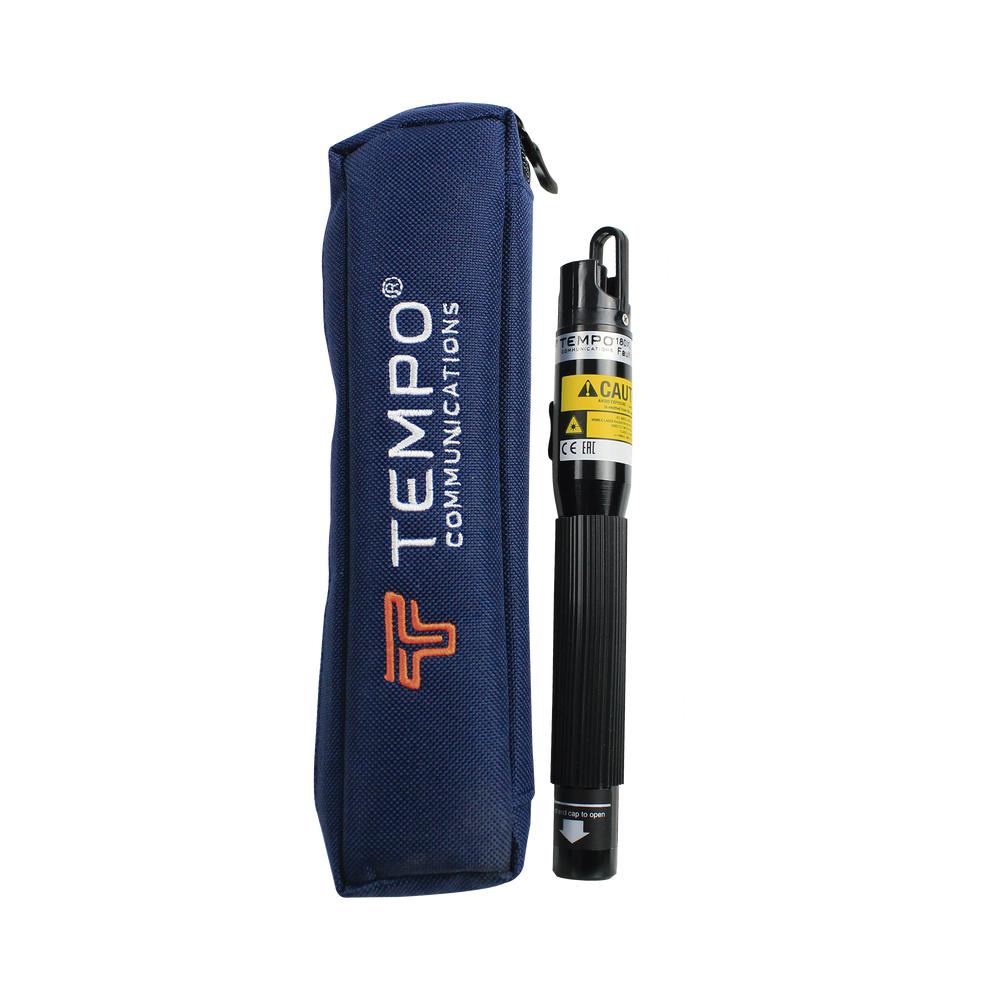

The 180XL Visual Fault Locator allows technical personnel to quickly and safely visually locate broken and pinched fibers, faulty connectors, and defective splices. The long range allows you to safely confirm fiber continuity up to distances of 7 km.

Characteristics:

• Allows technical personnel to quickly locate faults without the use of expensive equipment
• Class 2 designation provides safe light levels for the technician
• Up to 7 km away
• 2.5mm universal input (for SC, ST and FC connectors)
• Optional 1.25mm adapter available (for LC connector, not included)
• Output power of 0 dBm
• Compatible with single-mode and multimode fibers
• 2Hz flashing mode

Specs:

• Wavelength: 650 nm
• Light type: Red/green LED
• 2 AA batteries included
• Battery life: 80 hours with 3.9 Wh batteries
• Weight: 120 g (0.26 lbs) (without batteries)
• Dimensions: 180 mm (7.08') length x 23 mm (0.91') diameter
• Operating Temperature: -10ºC to +45ºC
• Storage temperature: -40ºC to +70ºC

Up to 7 km distance, Universal 2.5 mm input (for SC, ST and FC connectors), Compatible with multimode and single-mode fiber, Wavelength: 650 nm
