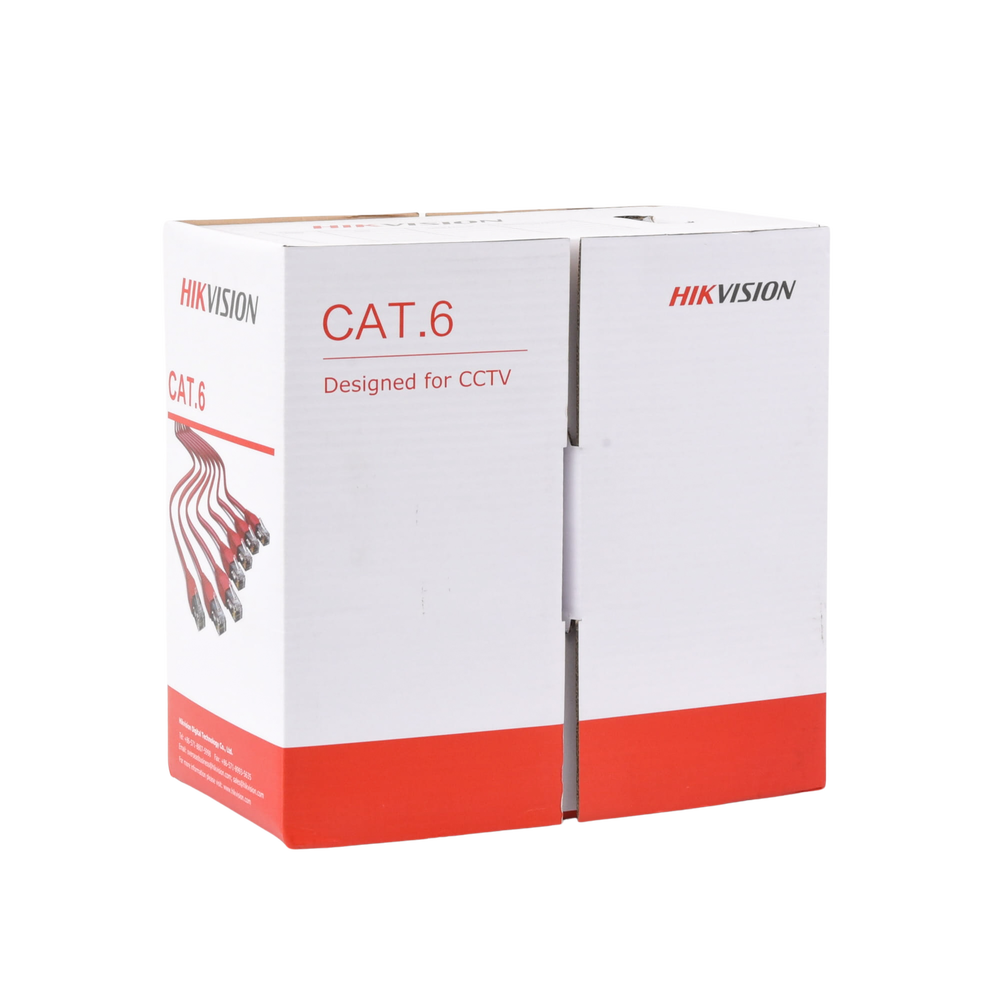

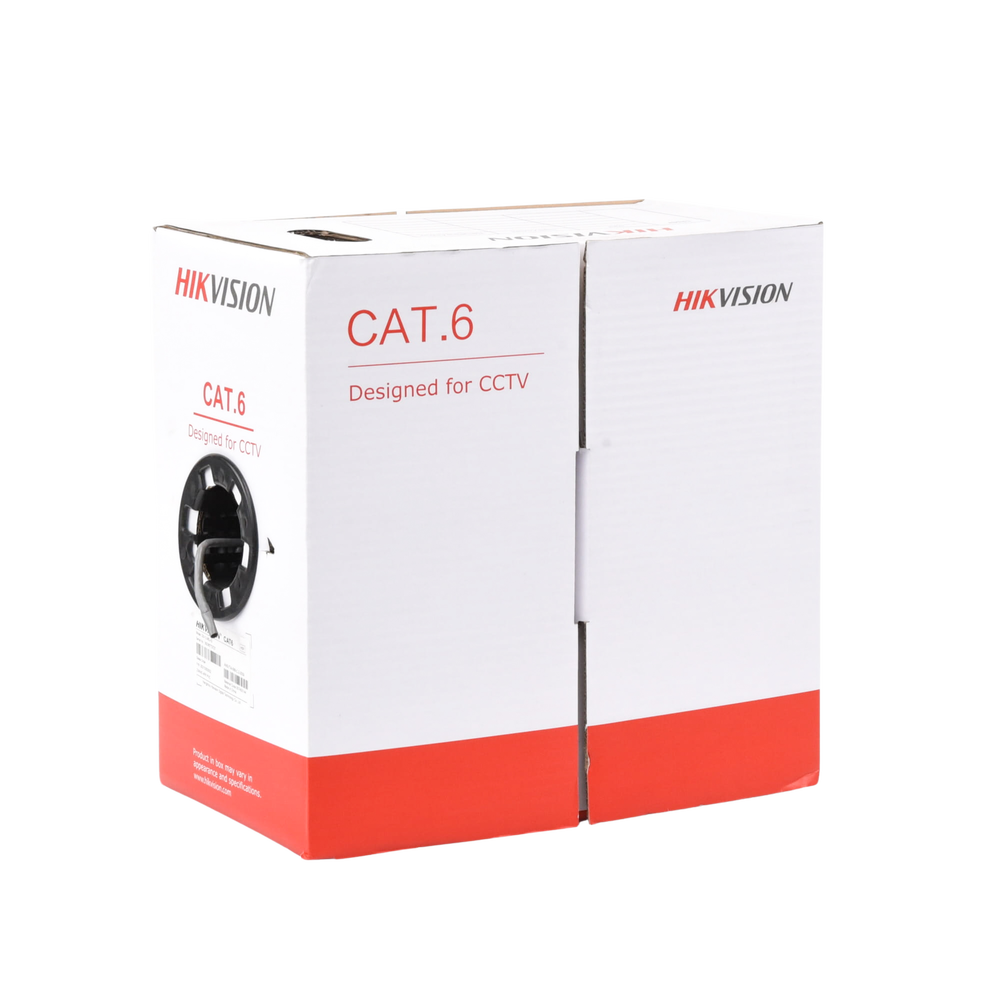

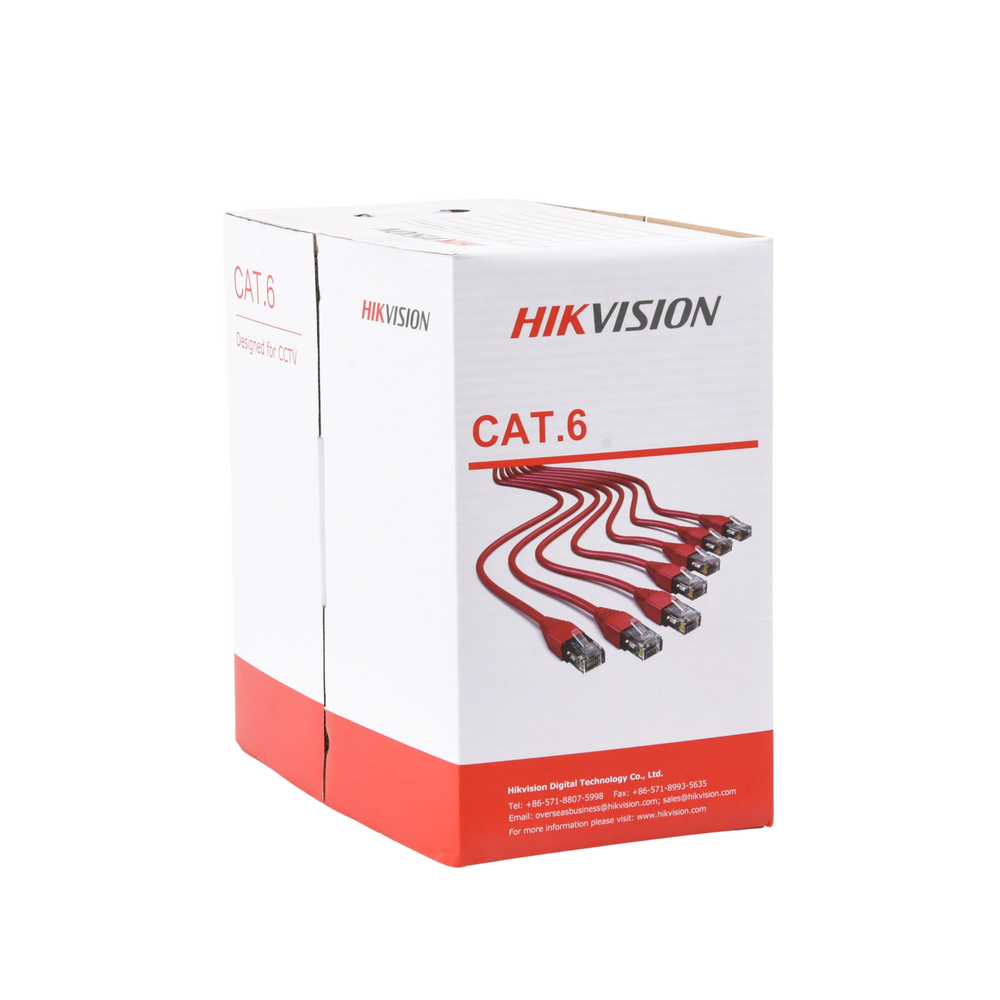

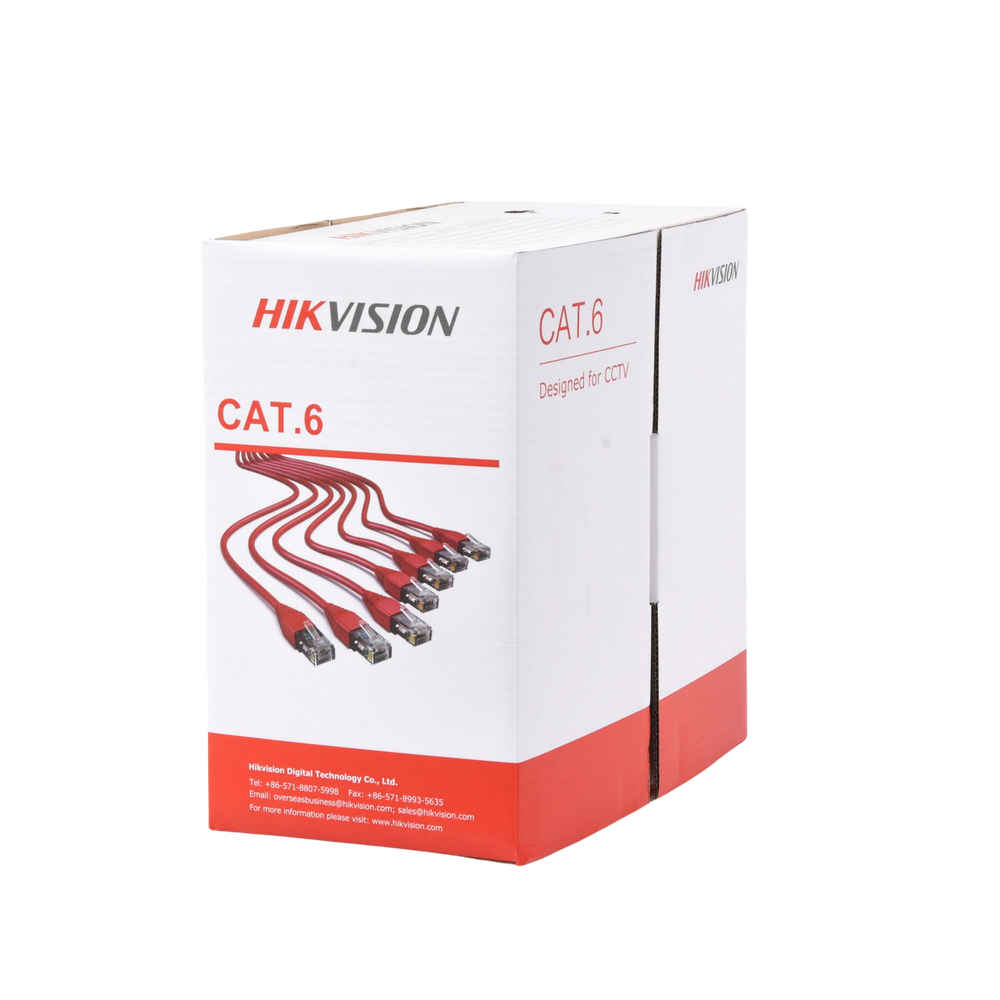

UTP cable reel 305 m., Cat6 (23 AWG), Gray color, PVC (CM), Indoor use, 100% Copper, For CCTV applications and data networks

Main features:

• Cable for Voice/Data and Video Networks.
• This is a UTP (Unshielded Twisted Pair) cable.
• Recommended for IP Megapixel CCTV.
• Recommended for data networks.
• Recommended for wireless networks.
• 802.af/at PoE applications.
• 100% copper conductors (wires).
• For 'Indoor' installations in homes, offices, buildings, etc.
• Each conductor is 23 gauge (AWG).
• Approvals: UL, CM, ANSI/TIA, ISO/IEC11801, YD/T1019, PVC.
• Quality verified by Fluke brand equipment.
• Cable outer diameter: 6.0±0.30 mm.
• Frequency: 250 MHz.

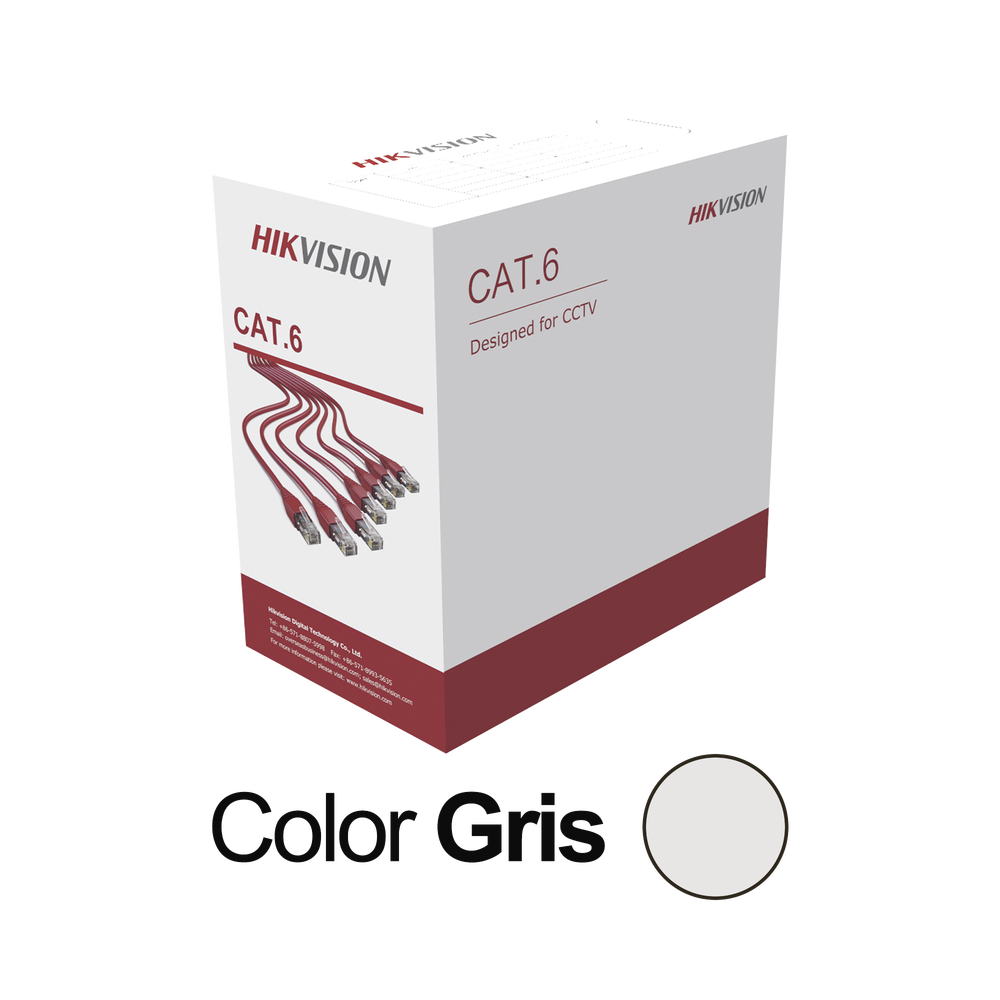

• Gray.
• Material: PVC(RoHS complies),CM.
• Operating temperature: -20ºC to 60ºC.
• Twisted pair cable (4 pairs).
• 5-year warranty.

General characteristics of wiring construction

What is the balanced twisted pair cable used for?

Balanced twisted pair serves to cancel or reduce interference , improving data transmission. In other words, it has a great advantage for telecommunications, because it maintains the quality of data transmission and reception, or because it minimizes anything that could interfere. This is achieved by twisting the pairs, decreasing crosstalk and increasing power .

Differences between cable performance categories

• When talking about Bandwidth, it is the part that is used in the electromagnetic spectrum and is measured in Mhz , what Gbps refers to is the data transmission speed (they are bits per second) .

• The term channel width DOES NOT EXIST in structured cabling.

There are different types of cable construction, for example:

UTP

Unshielded Twisted Pair

It is the cable that does not have a shield or shielding

FTP

Foiled Twisted Pair

It is the cable that has general shielding or screening for all wires.

STP

Shielded Twisted Pair

It is the cable that has a general mesh and a shield or shield for each pair of wires.

23 AWG 100% Copper Solid Conductors, Voice, Data, and Video Applications, Flame Rating: CM, 5-Year Warranty
