UNIVERSAL FORCE LINE WIRELESS TRANSMITTER

UNIVERSAL FORCE LINE WIRELESS TRANSMITTER

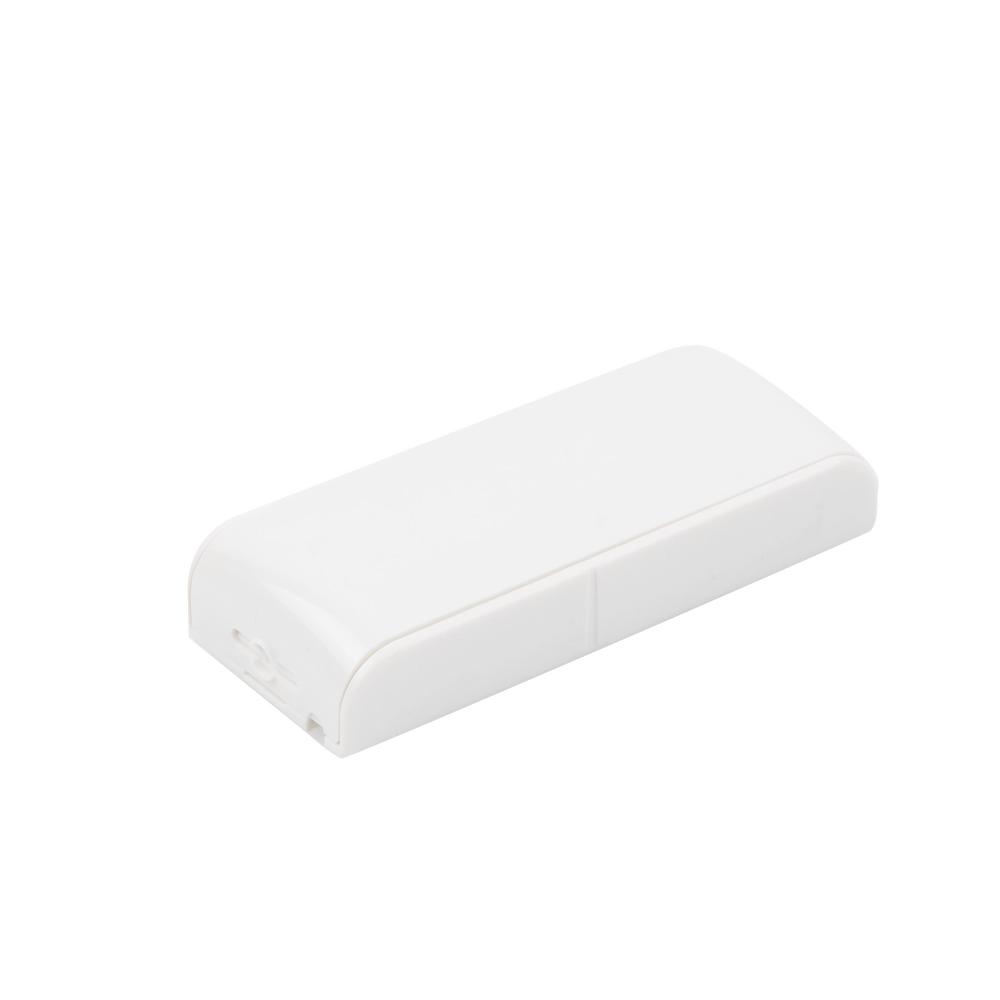

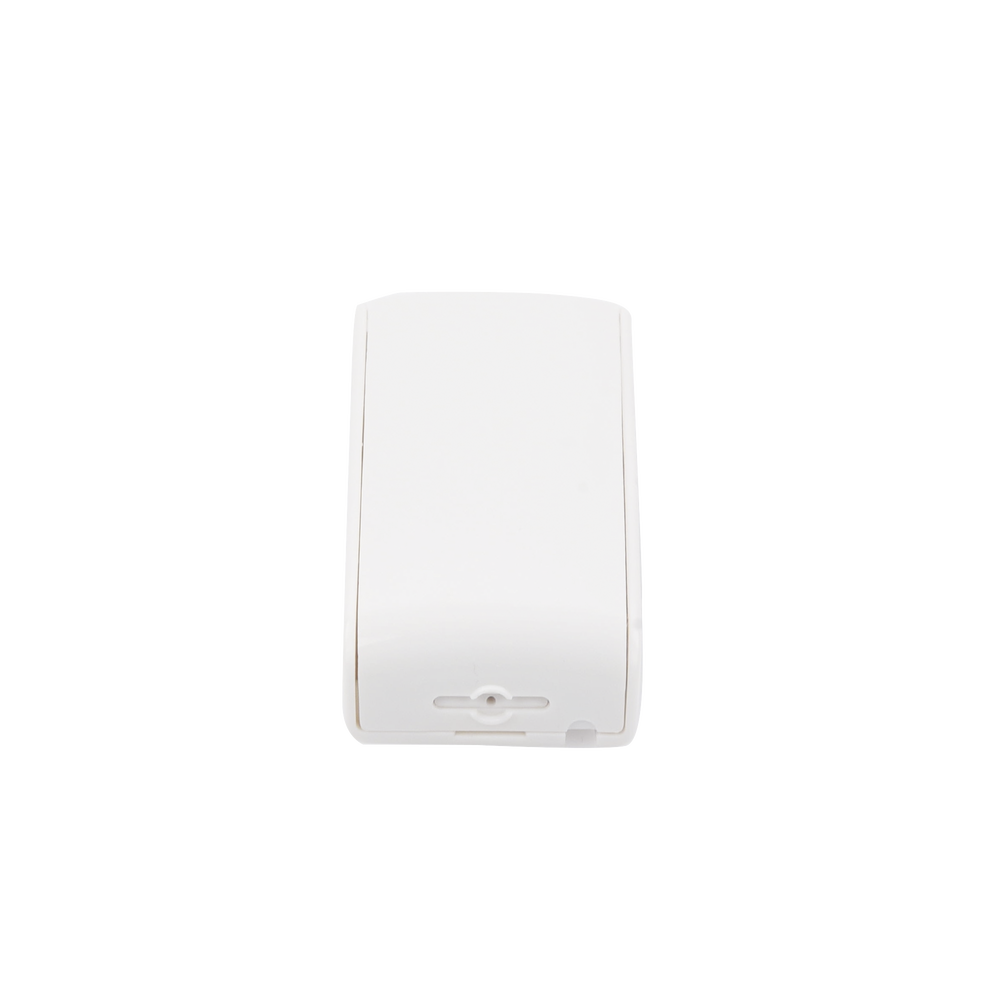

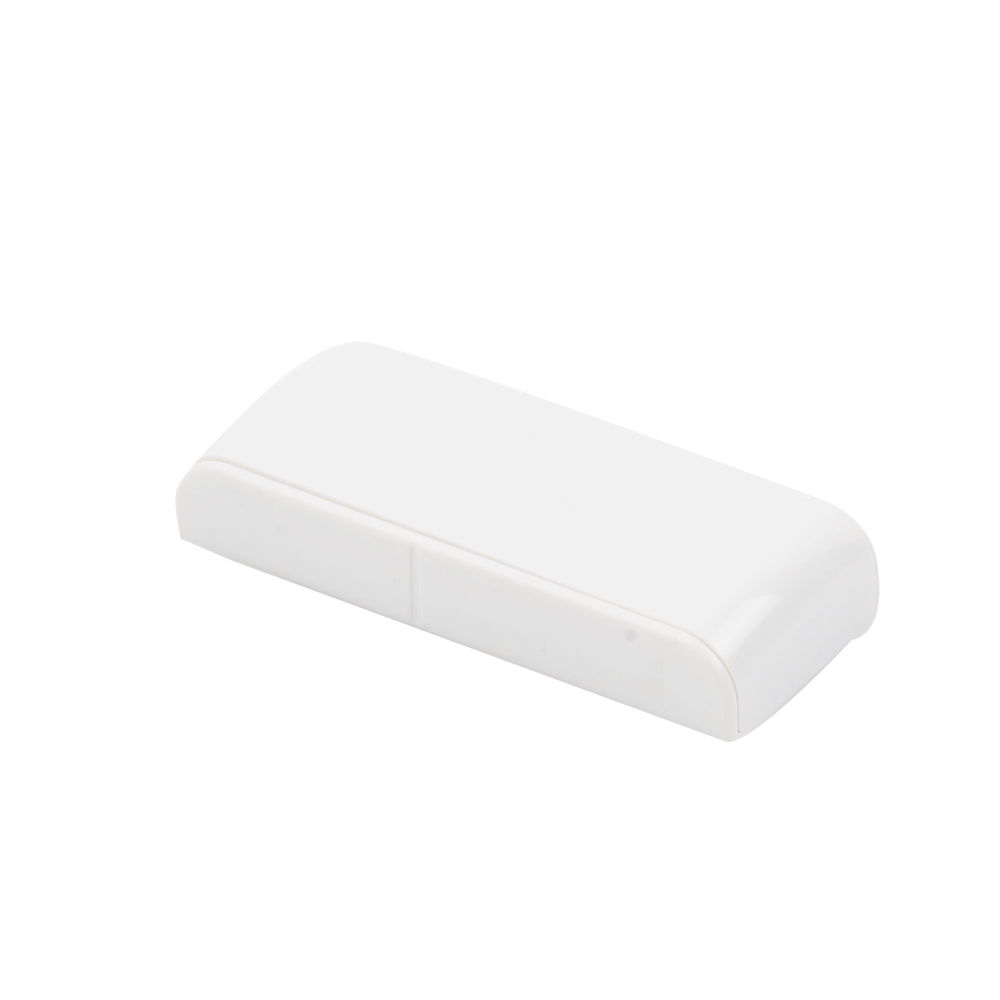

UTX - Universal Wireless Transmitter

The UTX is a universal wireless transmitter with FastLink technology, designed for PIMA's FORCE Series and Hunter-Pro Series alarm systems.

FastLink communication is encrypted using 128-bit AES encryption to provide a high level of security.

To use the UTX, the prior installation of a wireless expander is required.

The UTX has a modern design and is battery-operated. The transmitter is designed to send events from a normally closed (NC) contact device, such as a panic button. The device connects to the UTX terminal block and reports to the control panel as an independent zone.

The UTX reports a low battery condition to the control panel and also features a tamper switch that alerts when the unit is opened or removed from the wall. It transmits a test event every 15 minutes.

Its LED lights up to indicate any event transmission and when the battery is low.

For information on how to register (enroll) the device, refer to the FORCE System Installation Guide (P/N 4410459).

Technical specifications

- Frequencies (MHz):

- UTX143: 433.92

- Batteries: 2X 1.5V, AAA, Alkaline

- Battery life: Up to 3 years (typical use)

- Dimensions: 8.5 X 3.5 X 1.4cm

- Weight: 50gr

- Complies with CE regulations

- Operating temperatures: -10 to +50°C

- Humidity (Max): 93% RH, Non-condensing

Package contents

- UTX Transmitter

- Two batteries

- Screws and mounting tapes

- This guide
