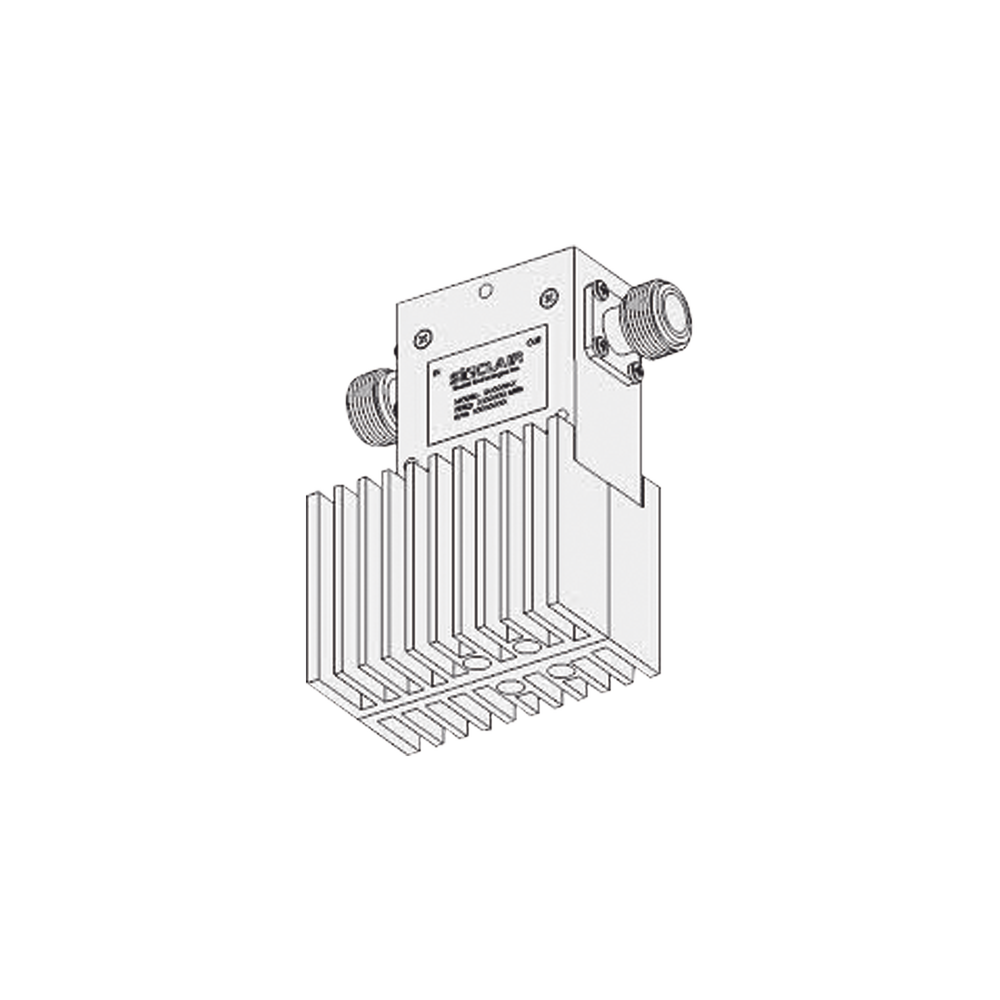

Single Stage Isolator, 380-415 MHz, 35 MHz Bandwidth, 60 Watt Load, N Female, 125 Watt.

Single Stage Isolator, 380-415 MHz, 35 MHz Bandwidth, 60 Watt Load, N Female, 125 Watt.


Single Isolator, 380-415 MHz, 35 MHz, 60 W Load, N Female, 125 W.

• Frequency Range: 380-415 MHz.
• Bandwidth: 35 MHz.
• Type: Simple Stage.
• Field Tunable: No.
• VSWR (max.): 1.2:1
• Insertion Loss (max.): 0.4 dB.
• Impedance: 50 Ohm.
• Average Reflected Power (max.): 60 Watt.
• Average Input Power (max.): 125 Watt.
• Connectors: N Females.
• Isolation (min.): 25 dB.
• Operating temperature: -30 to +60 ºC.
• Net Weight (Circulator Only): 0.54 kg.
• Dimensions (Width x Height x Depth): 38 x 88 x 64 mm.
• Packaging Dimensions: 152 x 127 x 102 mm.

*Ask for delivery time.
