TP-LINK

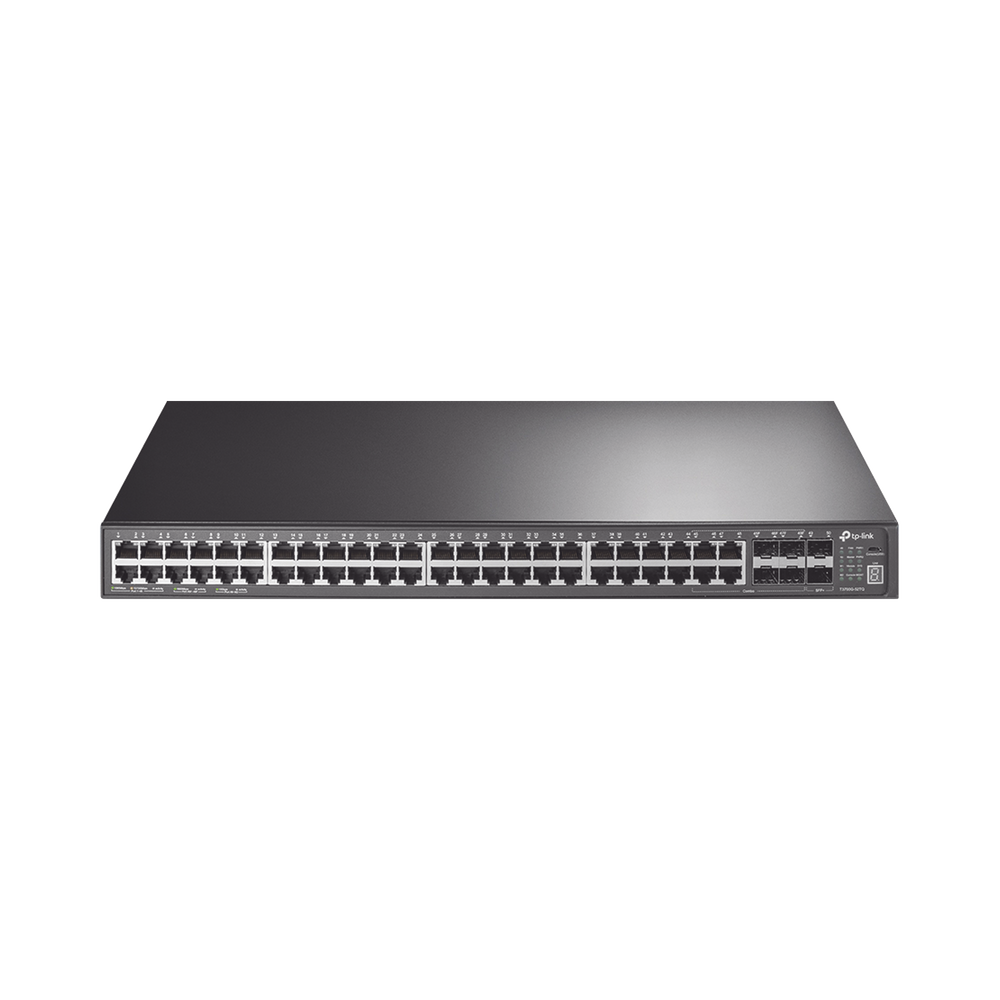

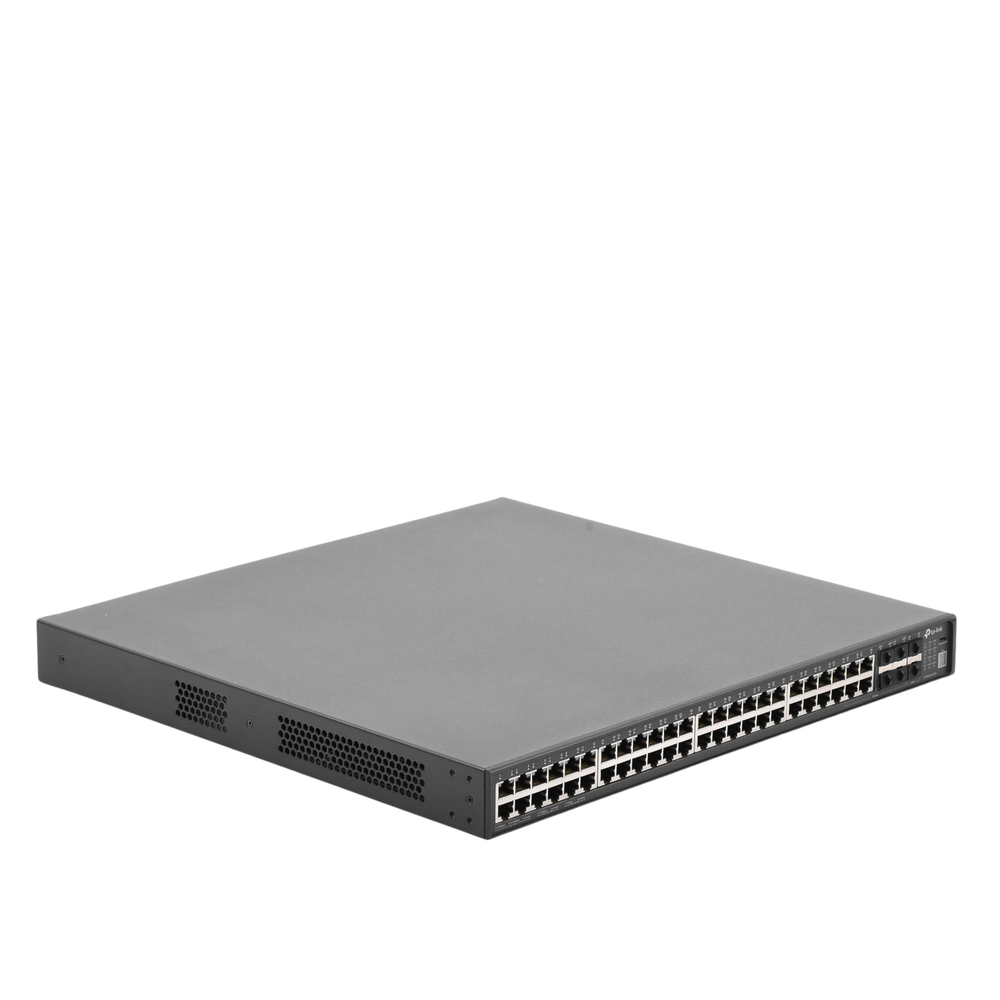

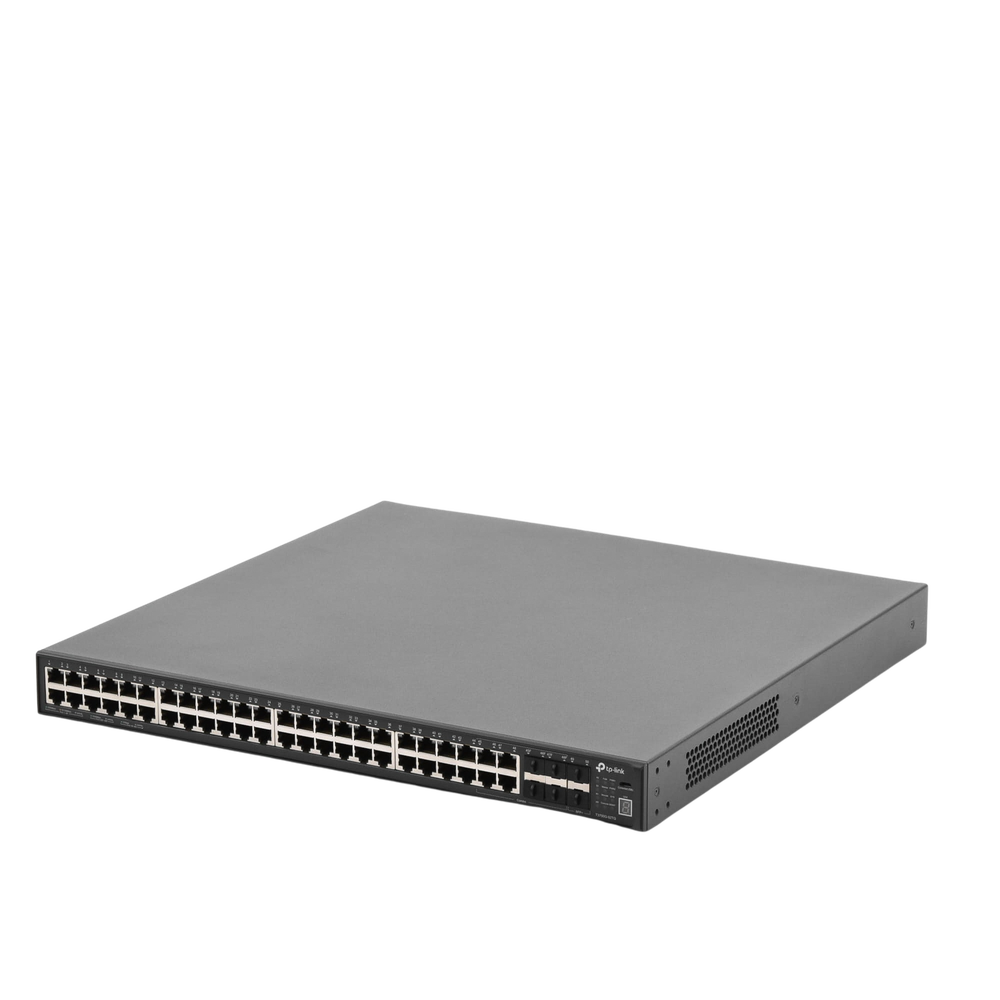

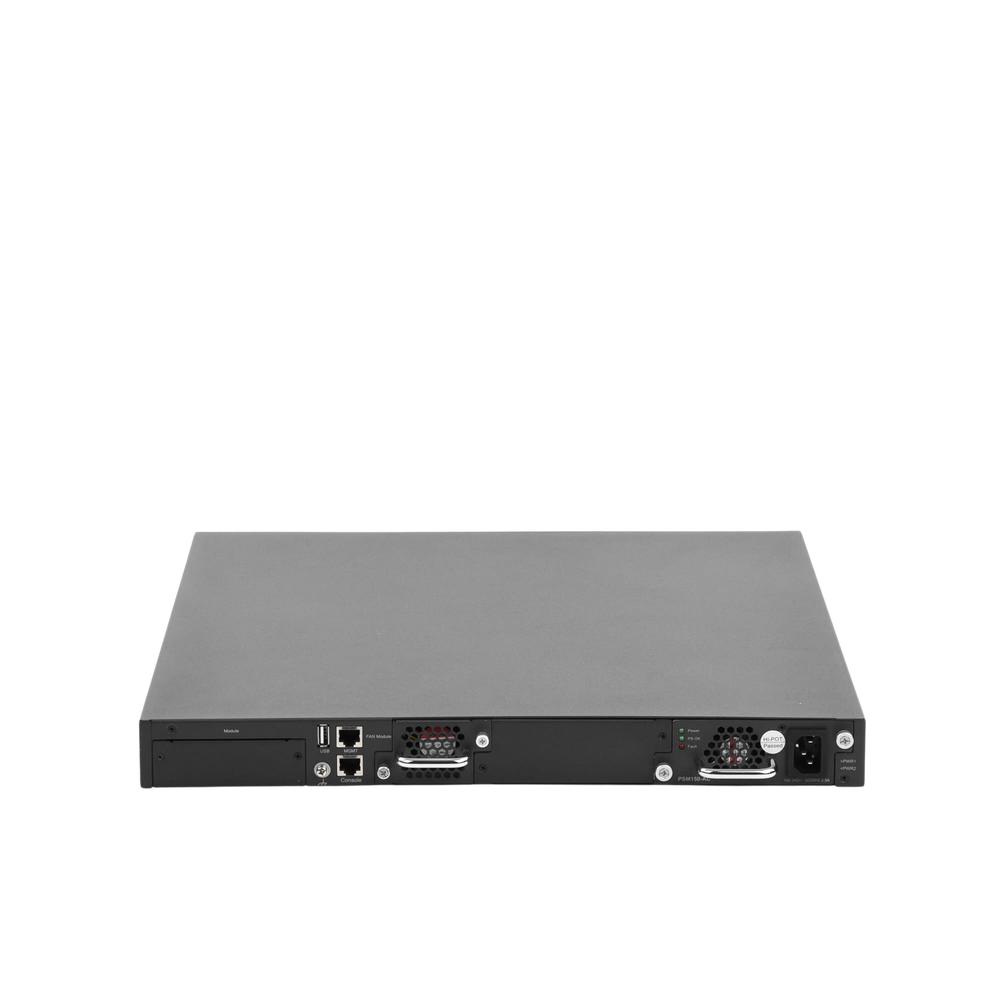

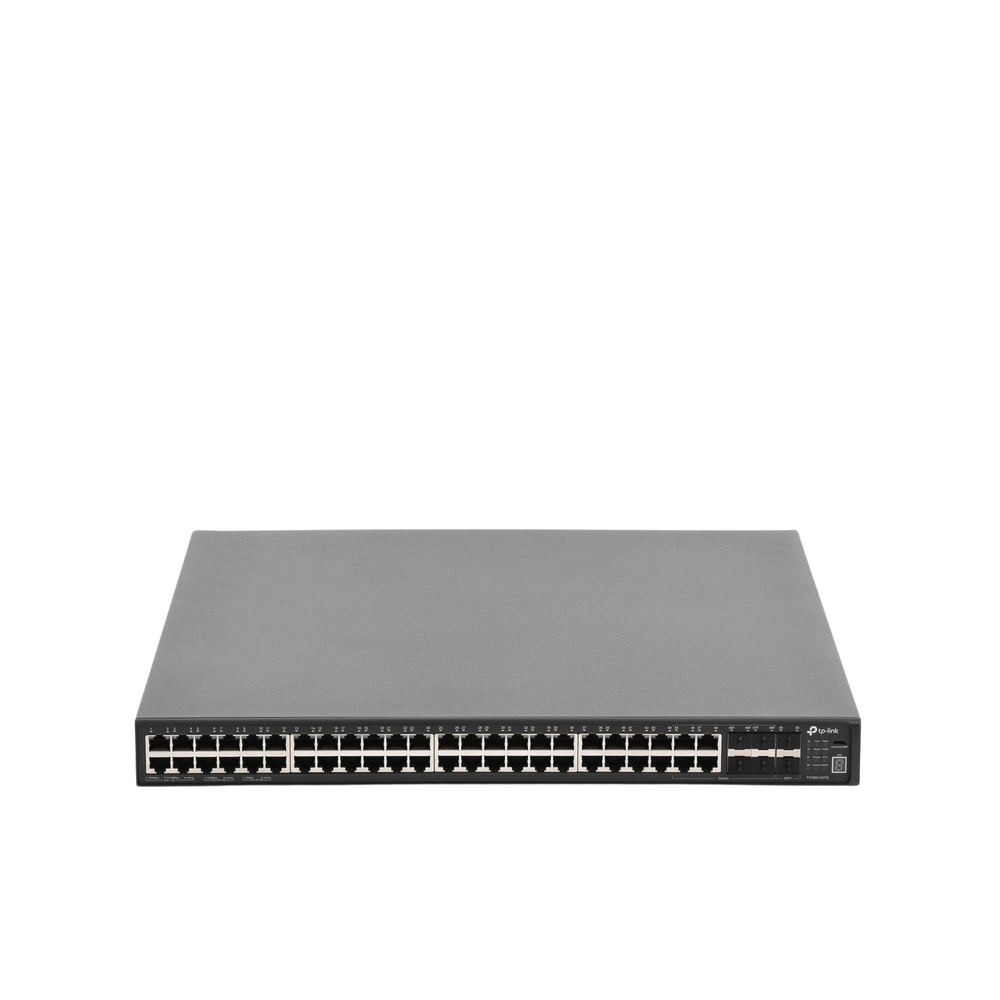

JetStream Layer 3 Managed Core Switch, 48 Gigabit RJ45 ports, 4 SFP ports, up to 4 SFP+ slots, stacking up to 8
JetStream Layer 3 Managed Core Switch, 48 Gigabit RJ45 ports, 4 SFP ports, up to 4 SFP+ slots, stacking up to 8
Regular price
$18.597.047 COP
Regular price
$20.340.520 COP
Sale price
$18.597.047 COP
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
JetStream Layer 3 Managed Core Switch, 48 Gigabit RJ45 ports, 4 SFP ports, up to 4 SFP+ slots, stacking up to 8
| HARDWARE FEATURES | |
|---|---|
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ae, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p |
| Interface | 48 RJ45 10/100/1000Mbps Ports (Auto Negotiation/Auto MDI/MDIX) 4 Gigabit Combo SFP Slots Up to 4 SFP+ 10G Slots (2 Fixed and 2 Optional SFP+ 10G Slots) 1 Micro-USB port, 1 RJ45 Console port 1 Management Port 1 USB Slot |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000Base-T: UTP category 5, 5e or higher cable (maximum 100m) 100BASE-FX: MMF, SMF 1000BASE-X: MMF, SMF 10GBASE-LR 10GBASE-SR |
| Number of Fans | 2 Removable |

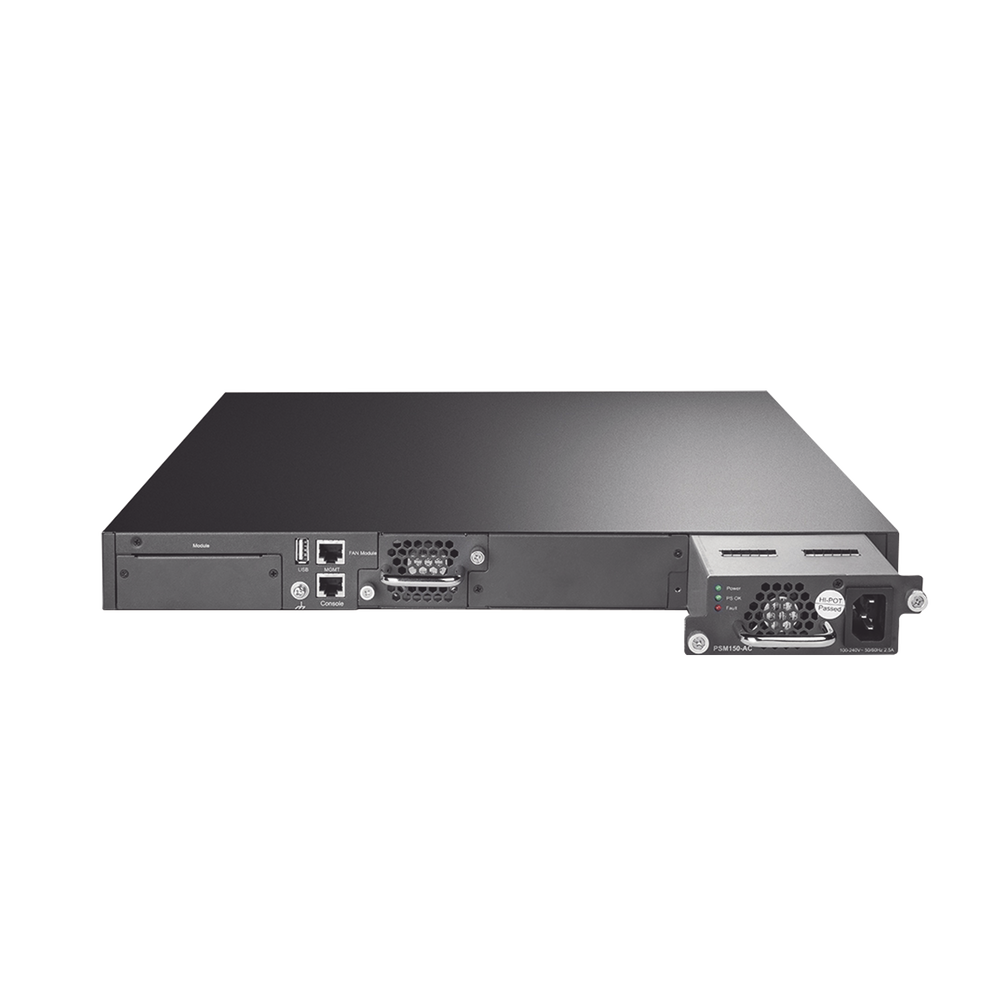

| Power Supply | 100~240VAC, 50/60Hz Hot-Swap Dual Power Supply Module: PSM150 (Maximum Power Supply: 150W) |
| Dimensions | 440*420*44mm (17.32*16.55*1.73 in.) |
| Mounting | Rack Mount |
| Maximum Power Consumption | 58.82W (220V/50Hz) |
| Max Heat Dissipation | 200.69 BTU/h |
| PHYSICAL STACKING | |
|---|---|
| Installable SFP+ Transceivers and Direct Attach Copper Cables (DACs) | TXM431-SR TXM431-LR TXC432-CU1M TXC432-CU3M |
| Maximum Number of Stackable Ports Installable | 2 SFP+ |
| Number of Units per Stack | 8 |
| Stacking Speed (per Port) | 20 Gbps (Full-Duplex) |
| PERFORMANCE | |
|---|---|
| Switching Capacity | Up to 176Gbps for a single switch |
| Packet Forwarding Rate | Up to 130.9Mpps for a single switch |
| MAC Address Table | 32K |
| Packet Buffer Memory | 4MB |
| Jumbo Frame | 12KB |
| Number of Routers | 8K IPv4 |
| Number of Static Routes | 256 IPv4 |
| Number of IP Interfaces | 128 IPv4 |
| SOFTWARE FEATURES | |
|---|---|
| Quality of Service | Supports 802.1p CoS/DSCP priority Supports 8 priority queues Queue scheduling: SP, WRR, SP+WRR DiffServ Input/Output Port/Flow Based Flow Limiting Voice VLAN |
| L2 Features | IGMP Snooping V1/V2/V3 MVR 802.3ad LACP (Up to 32 aggregation groups with 8 ports per group) Spanning Tree STP/RSTP/MSTP BPDU Filter/Guard TC/Root Protection Loopback Detection 802.3x Flow Control |
| VLAN | Supports up to 4K VLANs simultaneously (from 4K VLAN IDs) IEEE 802.1Q VLAN/MAC VLAN/Protocol VLAN/QinQ/Private VLAN/GVRP |
| Security | IP-MAC-Port-VID Binding IEEE 802.1X Authentication AAA Radius/TACACS+ Authentication and Accounts DoS Defense Dynamic ARP Inspection (DAI) IP Origin Guard SSH v1/v2 SSL v2/v3/TLSv1 Port security Access Control List Broadcast/Multicast/Unknown Unicast Storm Control |
| L3 Features | Wire-speed IP forwarding Static routes RIP v1, v2 OSPF v2 ECMP PIM-SM/PIM-DM/IGMP DHCP Server/Relay ARP Proxy VRRP |
| Management | Web-based GUI and CLI management SNMP v1/v2c/v3 compatible with TP-LINK public and private MIBs RMON (Groups 1, 2, 3, 9) DHCP/BOOTP Client, DHCP Snooping, DHCP Option 82 CPU Monitoring Port mirroring Time setting: SNTP Integrated NDP/NTDP features Firmware Update: TFTP & Web SYSLOG & Public MIBS Dual image IPv6 Management |
| OTHERS | |
|---|---|
| Certifications | CE, FCC, RoHS |
| Package Contents | Switch; Power cord; Quick Installation Guide; Resource CD; Rackmount kit; Rubber feet |
| System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8, MAC® OS, NetWare®, UNIX® or Linux. |
| Environmental Factors | Operating Temperature: 0℃~40℃ (32℃~104℃); Storage temperature: -40℃~70℃ (-40℉~158℉) Operating humidity: 10%~90% non-condensing Storage humidity: 5%~90% non-condensing |
Share
Out of stock
MODELO: T3700G-52TQ
