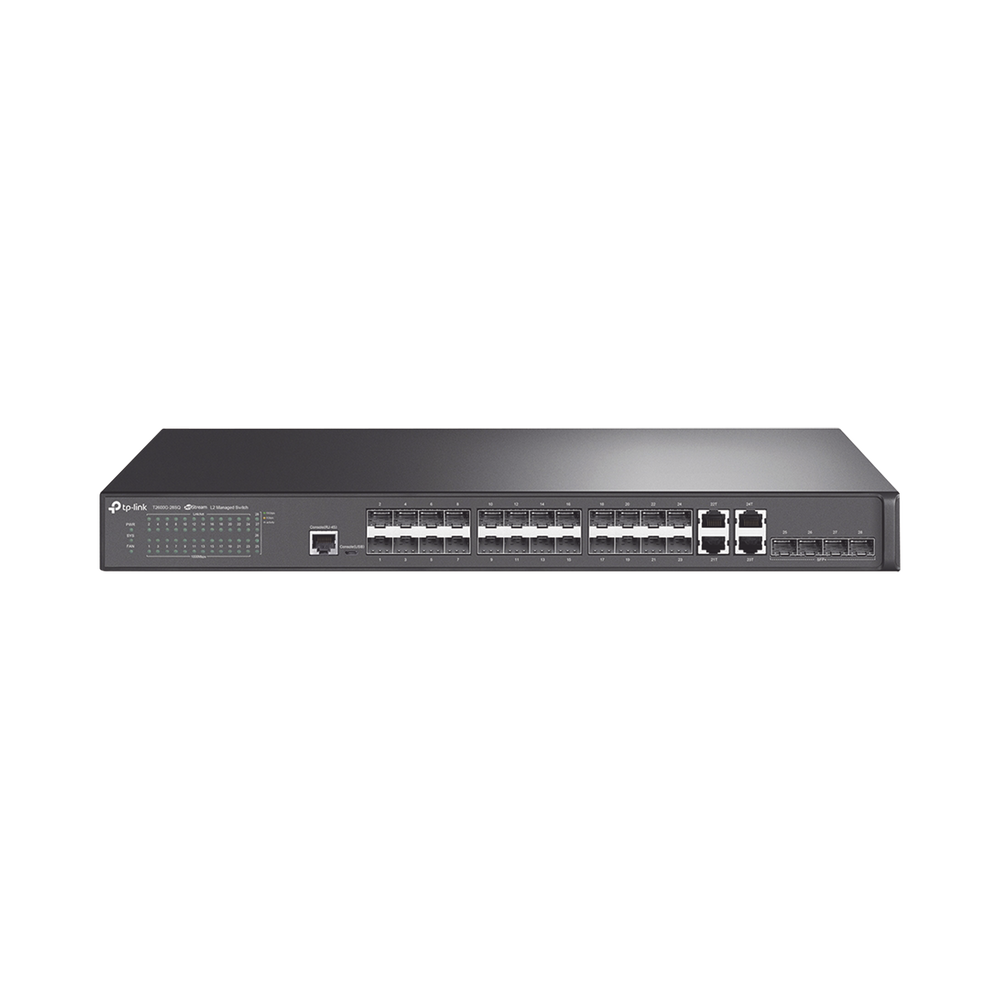

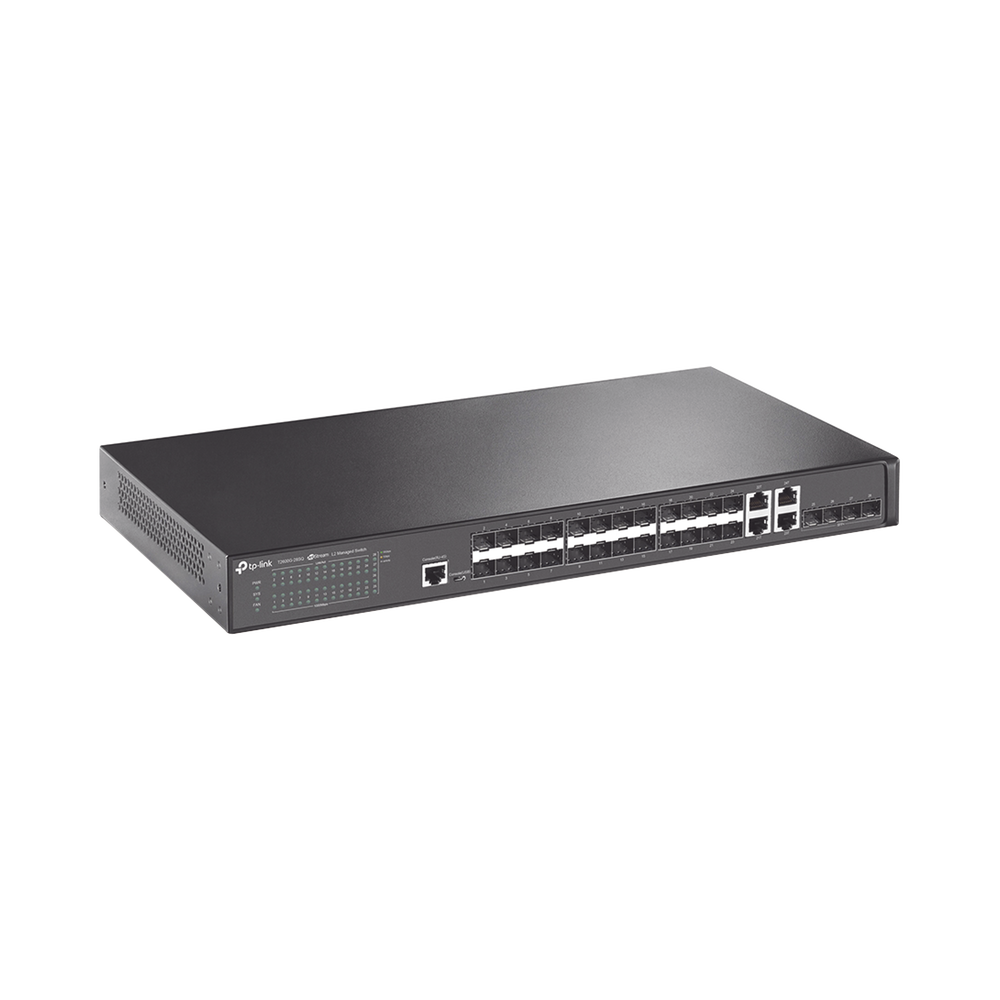

• Switch JetStream Gigabit administrable capa 2, 24 puertos SFP, 4 puertos SFP+ y 4 puertos RJ45 Gigabit en combo
1 2

TP-LINK

JetStream Gigabit Layer 2 Managed Switch, 24 SFP ports, 4 SFP+ ports, and 4 RJ45 Gigabit ports in combo

JetStream Gigabit Layer 2 Managed Switch, 24 SFP ports, 4 SFP+ ports, and 4 RJ45 Gigabit ports in combo

$4.091.329 COP
$4.474.891 COP $4.091.329 COP
Sale Sold out
Shipping calculated at checkout.

JetStream Gigabit Layer 2 Managed Switch, 24 SFP ports, 4 SFP+ ports, and 4 RJ45 Gigabit ports in combo

HARDWARE FEATURES
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z,
IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s,
IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p
Interface 24 Gigabit SFP Slots
4 RJ45 Combo Ports 10/100/1000 Mbps
4 10G SFP+ Slots
1 RJ45 Console Port
1 Micro-USB Console Port
Network Media 10BASE-T: Category 3, 4, 5 UTP cable (maximum 100m)
100BASE-TX/1000Base-T: UTP Cable Category 5, 5e or higher
(maximum 100m)
1000BASE-X: MMF, SMF
10GBASE-X:MMF, SMF
10GSFP+CU “SFP+ Direct Attach Cable” (TXC432-CU1M, TXC432-CU3M)
Number of Fans 2
Power Supply 100~240VAC, 50/60Hz
Dimensions 440*220*44mm (17.32*8.7*1.73in)
Mounting Rack Mount
Maximum Power Consumption 29.67W (220V/50Hz)
Max Heat Dissipation 101.23 BTU/h
PERFORMANCE
Bandwidth / Backplane 128Gbps
Packet Forwarding Rate 95.2Mpps
MAC Address Table 16k
Jumbo Frame 9216 Bytes
SOFTWARE FEATURES
Quality of Service Supports 802.1p CoS/DSCP priority
Supports 8 priority queues
Queue planning: SP, WRR, SP+WRR
Port/Flow Based Rate Limiting
Voice VLAN
L2 and L2+ Features Static Routing
DHCP Relay
IGMP Snooping V1/V2/V3
802.3ad LACP (Up to 14 group aggregations, contains 8 ports per group)
Spanning Tree STP/RSTP/MSTP
BPDU Filtering/Guard
TC/Root Protect
Loopback detection
802.3x Flow Control
L2PT
VLAN Supports up to 4K VLANs simultaneously (up to 4K VLAN IDs)
IEEE 802.1Q VLAN / MAC VLAN / VLAN Protocol / QinQ / Private VLAN / GVRP
Security IP-MAC-Port-VID Binding
AAA
802.1x and Radius Authentication
DoS Defense
Dynamic ARP Inspection (DAI)
SSH v1/v2
SSL v3/TLSv1
Security by Port
Broadcast/Multicast/Unicast-unknown Storm Control
IPv6 Dual Stack IPv4/IPv6
Multicast Listener Discovery (MLD) Snooping
IPv6 Neighbor Discovery (ND)
Path maximum transmission unit (MTU) discovery
Internet Control Message Protocol (ICMP) version 6
TCPv6/UDPv6
IPv6 ACL
DHCPv6 Snooping
IPv6 Interface
IPv6 Applications DHCPv6 Client
Ping6
Tracert6
Telnet (v6)
IPv6 SNMP
IPv6 SSH
IPv6 SSL
Http/Https
IPv6 TFTP
IPv6 ACL
IPv6 Interface
IPv6 Routing
DHCPv6 Relay
DHCPv6 Snooping
Management Web-based CLI and GUI management
SNMP v1/v2c/v3, compatible with TP-LINK public MIBs and private MIBs
RMON (1, 2, 3, 9 groups)
sFlow
PPPoE Circuit ID
DHCP Relay
DHCP Server
DHCP/BOOTP Client, DHCP Snooping, DHCP Option82
Dual Image
CPU Monitoring
Port Mirroring
Time Configuration: SNTP
Integrated NDP/NTDP Functionality
Firmware Update: TFTP & Web
System Diagnostics: VCT
SYSLOG & Public MIBS
Password Recovery
Access Control L2-L4 packet filtering based on source and destination MAC and IP addresses,
TCP/UDP ports, 802.1p, DSCP, protocol and VLAN ID based on Time Range
OTHERS
Certifications CE, FCC, RoHS
Package Contents Switch
Power Cable
Installation Guide
Resource CD
Rack Mount Kit
Rubber Feet
System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8, MAC® OS,
NetWare®, UNIX® or Linux.
Environmental Factors Operating Temperature: 0℃~40℃ (32℉~104℉);
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

    Out of stock

    MODELO: T2600G-28SQ
