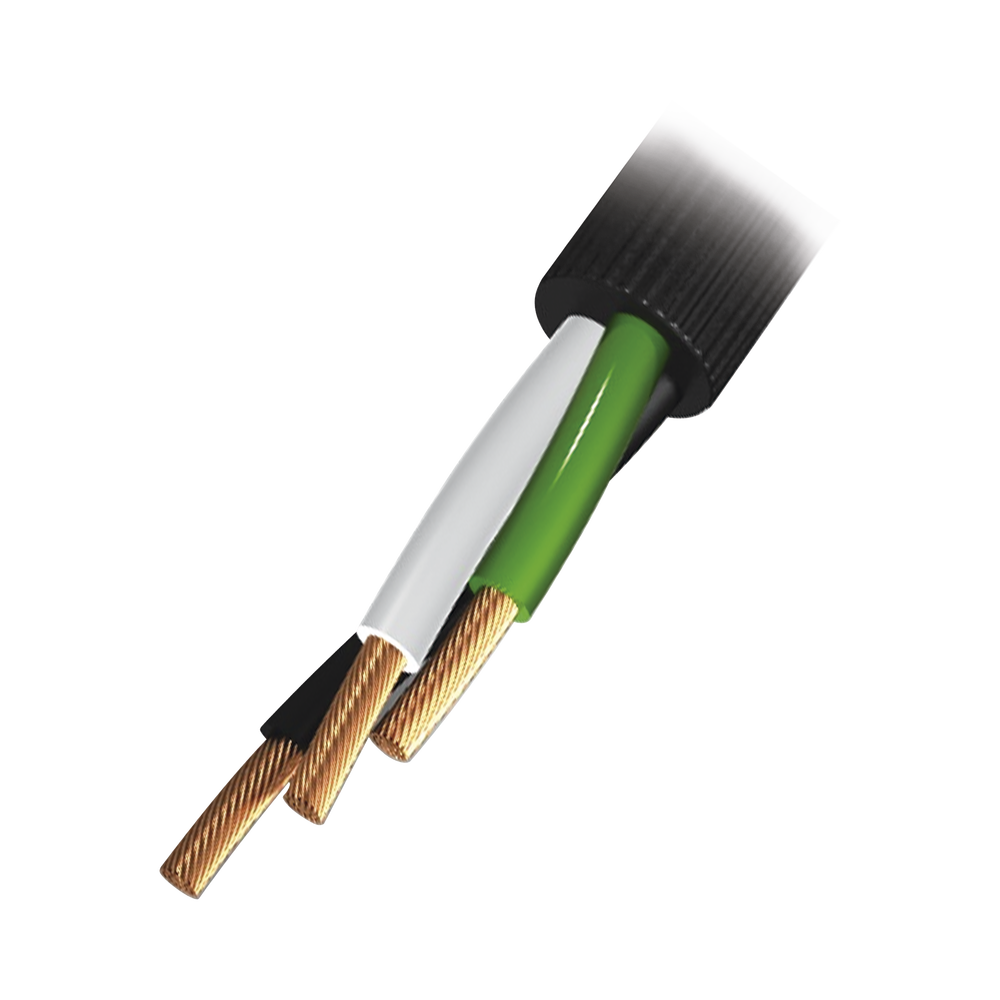

Heavy Duty 3-Wire Electrical Cable, Gauge 14 AWG, Up to 600 V. 100 m roll.

Cable made up of soft copper conductors in flexible construction, with individual polyvinyl chloride (PVC) insulation identified by color and a black polyvinyl chloride (PVC) outer sheath with a colored trace.

• Maximum operating temperature: 60 °C.
• Soft copper cord in flexible construction in class K wiring
• Flame-resistant PVC insulation and cover
• Black, ribbed, sunlight-resistant PVC outer cover with a colored trace and a numerical sequence per meter.

• Maximum operating voltage: 600 V
• AWG Designation: 3 X14
• Nominal cross-sectional area: 2.08 mm ²
• Driving capacity: 15 A
• Insulation thickness: 0.76 mm
• Outer diameter: 9.1 mm
• Color code:
  2 drivers: Black and white .
  3 conductors: Black, white and green.
  4 conductors: Black, white, red and green.

• Numerical sequential markings every meter for better length management during installation, improving inventory and waste control.
• Cover with color trace for quick identification of the caliber during installation, resistant to sunlight.
• They comply with the flame propagation resistance test (NMX-J-192-ANCE)
• The conductors are made of soft copper strands, which makes them easier to handle and install, giving them greater flexibility during use.
