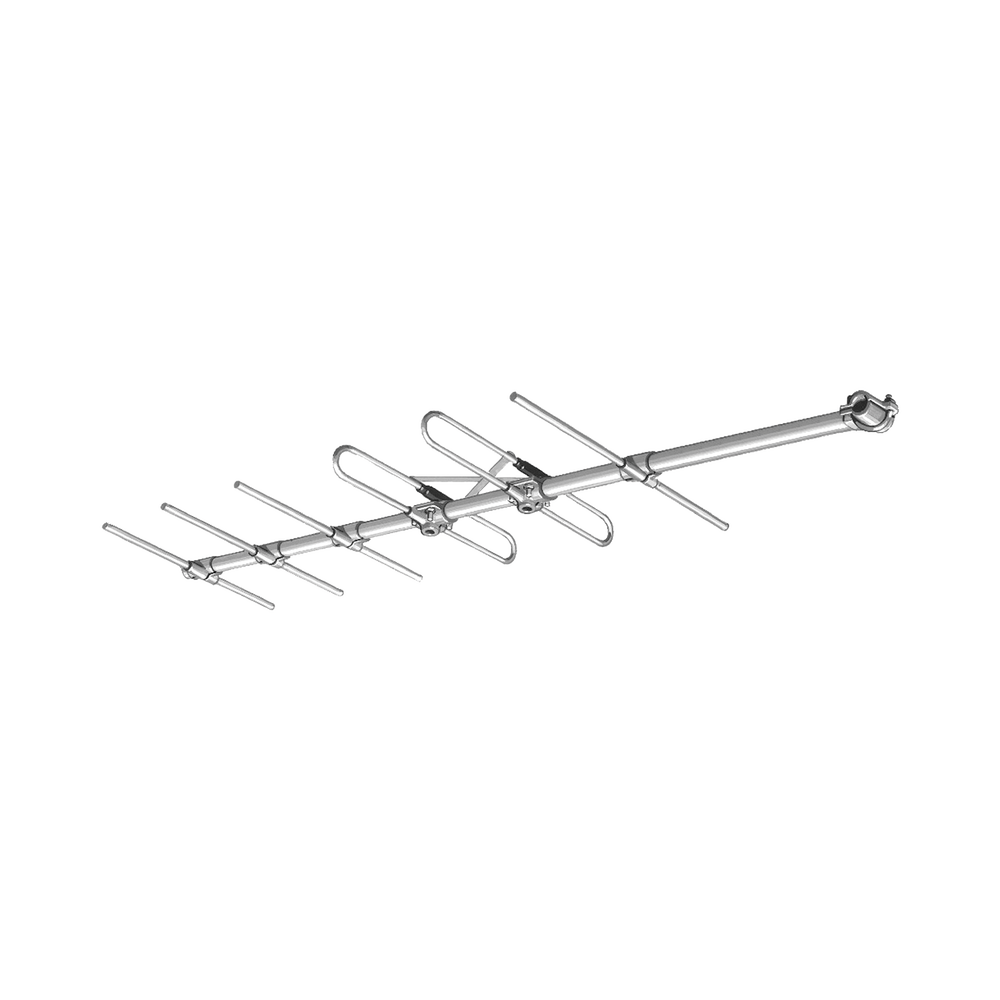

Directional Yagi Antenna 138-174 MHz, 7 dBd (9.1 dBi) Gain, 36 MHz, Center Mount, N Female.

Directional Yagi Antenna 138-174 MHz, 7 dBd (9.1 dBi) Gain, 36 MHz, Center Mount, N Female.

Yagi Antenna 138-174 MHZ 7 dB 36 MHz Center Mount, N Female.

• Frequency range: 138-174 MHz.
• Bandwidth: 36 MHz.
• Gain (nominal): 7 dBd (9.1 dBi).
• Input VSWR (max): 2:1
• Polarization: Vertical / Horizontal.
• Pattern: Directional.
• Horizontal beamwidth (typical): 80°
• Vertical beamwidth (typical): 60°
• Average input power: 200 Watt.
• Front to rear ratio (typical): 20 dB.
• Connector: N Female.
• Mounting hardware: Clamp001 (Included).
• Nominal wind speed (without ice): 279 km/h.
• Temperature range: -40° to +60°C
• Dimensions (W x D x L): 1067 x 127 x 2045 mm.
• Tube base diameter: 38 mm.
• Weight: 4.31 kg.
• Shipping dimensions: 2134 x 1219 x 152 mm.

*Ask for delivery time.
