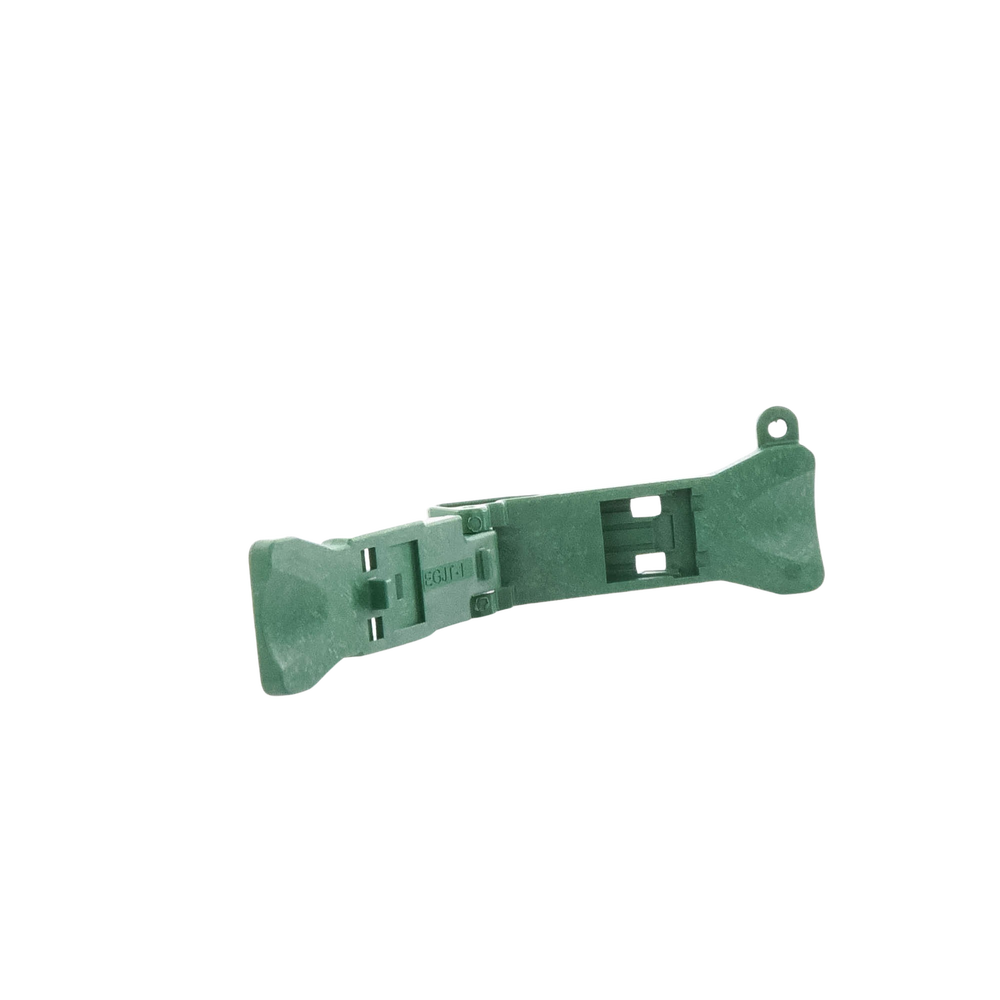

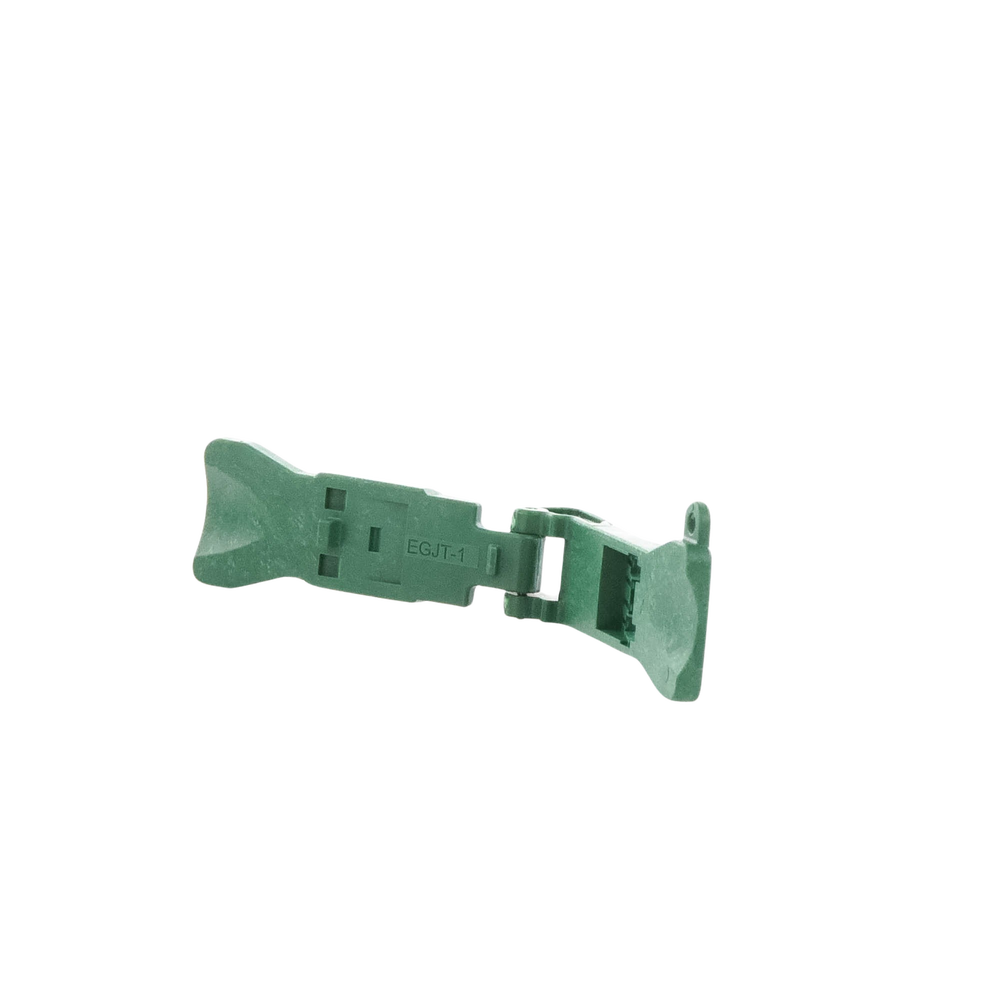

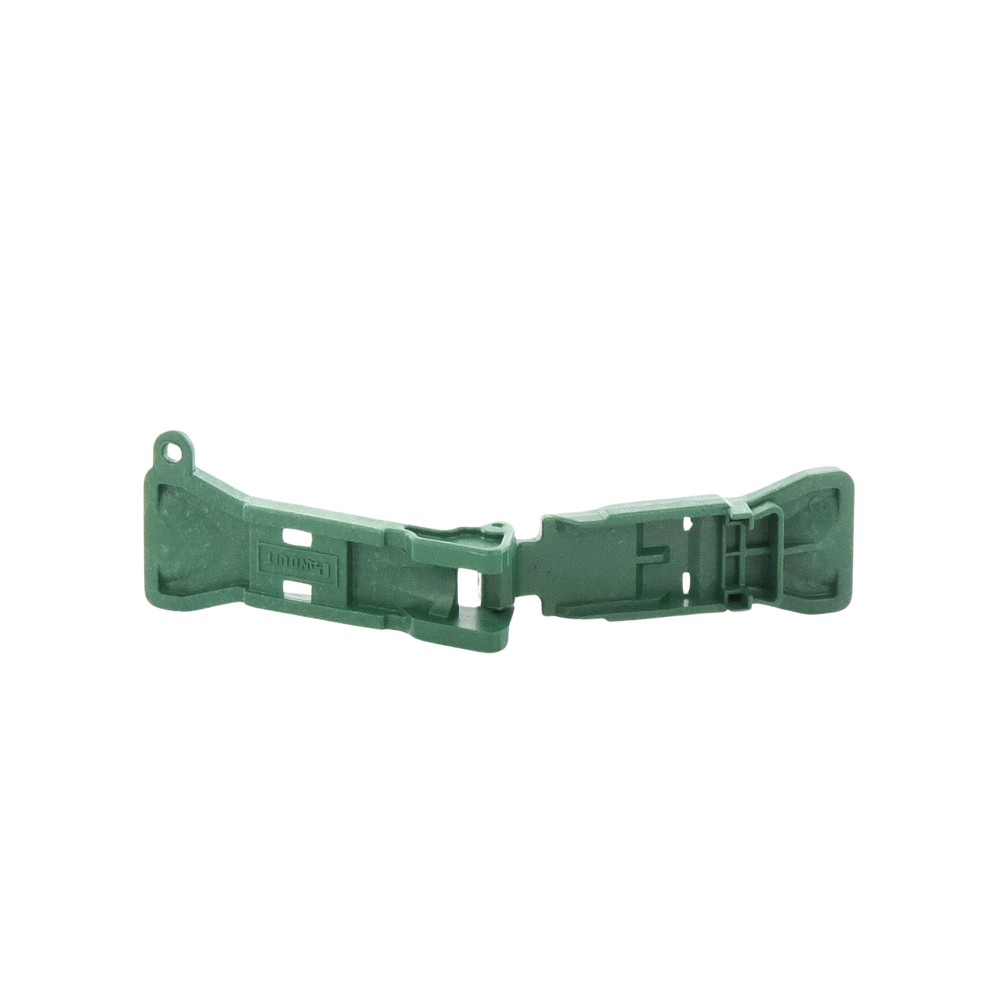

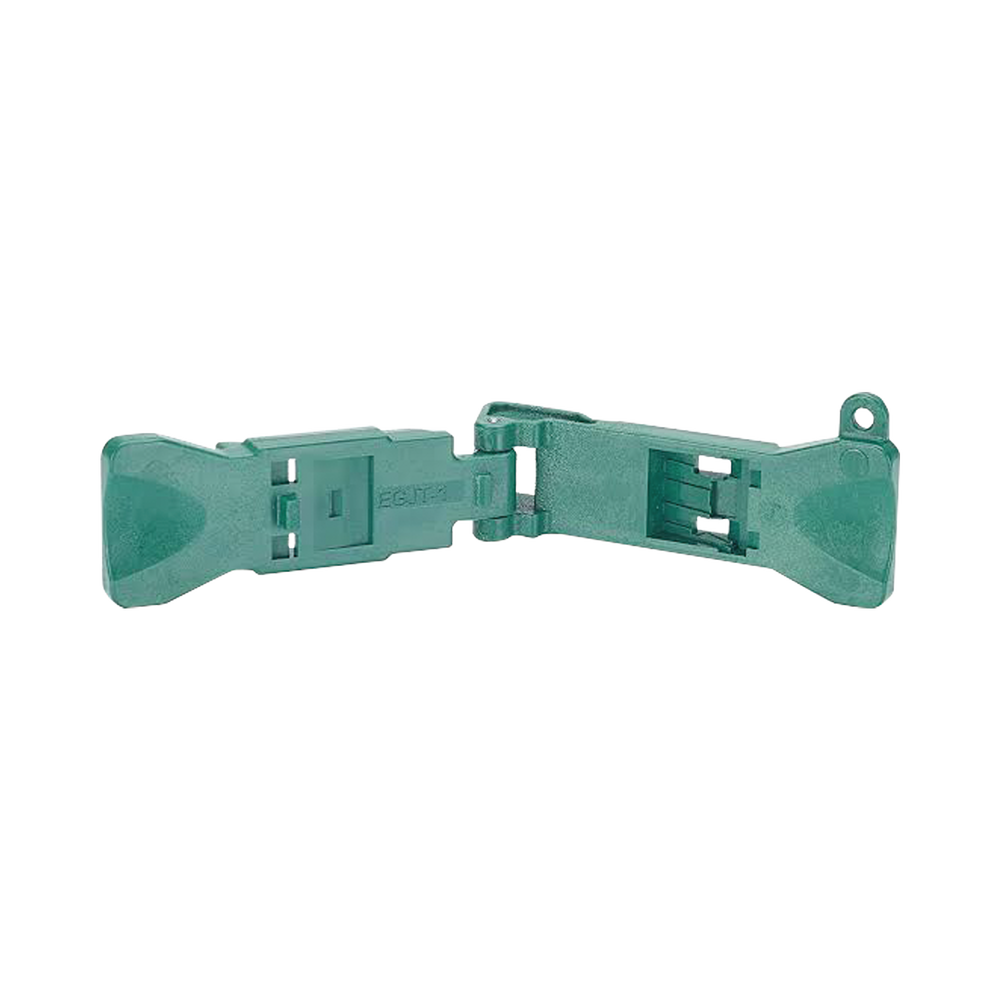

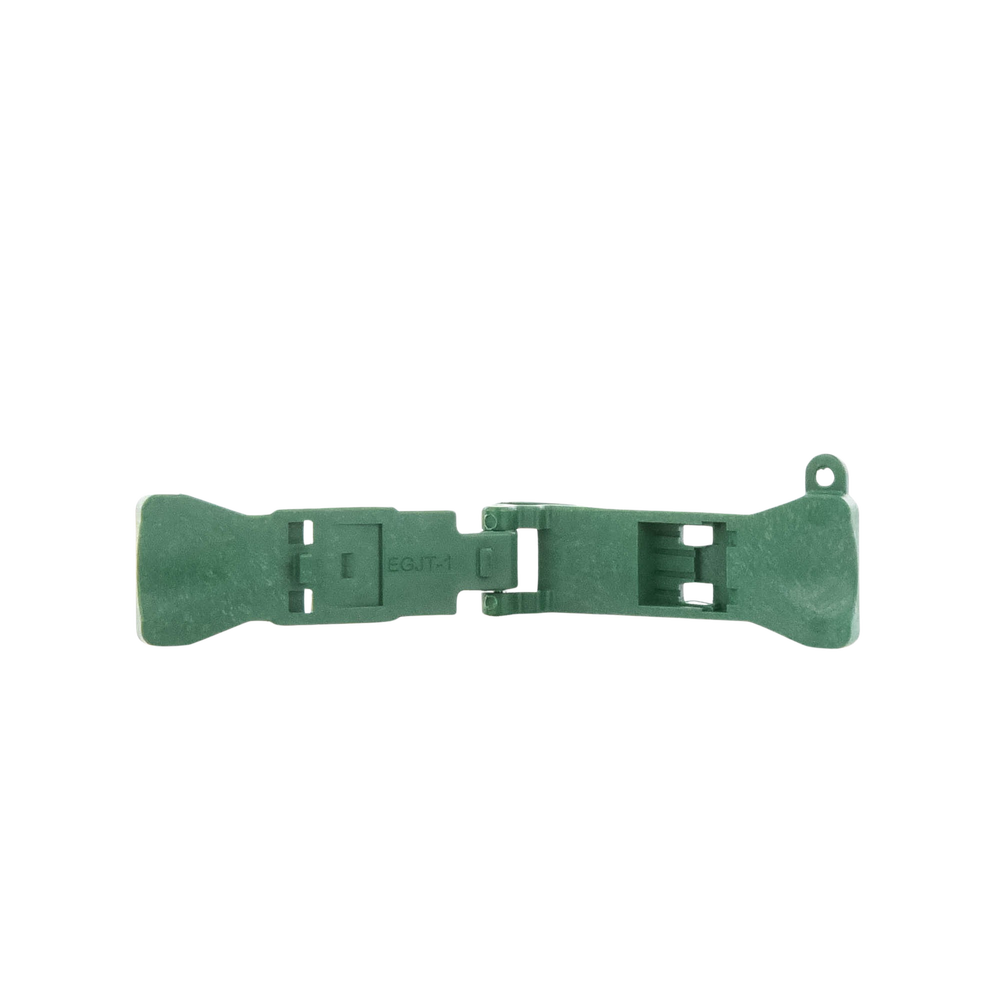

Tool for Panduit TX6A Straight Field Termination Plugs and TG Jacks

Tool for Panduit TX6A Straight Field Termination Plugs and TG Jacks

The Category 6A UTP field-terminating RJ-45 connector is an easy-to-connect plug for unshielded twisted-pair (UTP) cable. Providing Category 6A performance, it is backward compatible with Category 5e and 6 systems on 22 to 26 AWG conductors. The plug is available in straight and angled versions and utilizes the TG termination tool to optimize performance and maintain proper cable geometry.

Applications:

The field-terminated plug is easy to install and is ideal for a growing number of network-connected devices:

• Wireless Access Points (WAP)
• Power Over Ethernet (PoE) LED Lighting
• IP Security Cameras and Motion Sensors
• Access control points
• Network-connected audio and video equipment
• Other network devices with PoE or HDBASE-T power

Technical Information:

• Cat6A/Class EA Performance: Exceeds ANSI/TIA 568-C.2 Category 6A and ISO 11801 Class EA minimum performance requirements for two field termination connections. Exceeds TIA MPTL testing requirements with a maximum of two field termination connections.
• Cable Compatibility: Compatible with 4-pair, 22 to 26 AWG solid or unshielded twisted pair (UTP) stranded cable with 1.52 mm conductor diameter and 5.08 to 8.38 mm overall wire diameter.

Plug 45º Installation Video:

Straight Plug Installation Video:
