Panduit Opticam 2 OCTT Tool Kit for Terminating Pre-Polished LC, SC, or ST Connectors

Panduit Opticam 2 OCTT Tool Kit for Terminating Pre-Polished LC, SC, or ST Connectors

The OptiCam 2 termination tool is designed to deliver 100% correct termination of OptiCam connectors the first time. The tool immediately calculates the insertion loss value upon completion. Red and green indicator lights provide visual confirmation. Using the new OptiCam 2 tool increases installer productivity and reduces time spent on the job.

LCD display guides the user through the termination process, and insertion loss calculation on the fly:

Technical specifications:

• Laser diode type: IEC 60825-1 Class 1
• Compatible connectors: LC, SC, ST, singlemode and multimode, Panduit connectors only
• Power Source: 2 AA (type L91) 1.5 Volt Lithium Iron Disulfide batteries, maximum discharge: 2.5 Amps continuous, included. AA size alkaline batteries can be used with reduced life. The tool can also be powered without batteries via the power/data port (5 V DC, 1 Amp maximum) on the side of the tool.
• Battery life: approximately 8 hours (continuous use)
• Firmware Updates: Use the power/data port on the side of the tool to connect to a PC. Visit www.panduit.com for the latest firmware.
• Environment: For indoor use only, maximum altitude 2000m and pollution level 2
• Operating Temperature: +32°F to +104°F (0°C to +40°C), <93% RH, non-condensing
• Storage Temperature: -40°F to +158°F (-40°C to +70°C)
• Overall Dimensions: 2.1' H x 2.8' W x 9.1' L (53mm x 71mm x 231mm)
• Weight: 9.0 oz (255 g) without batteries

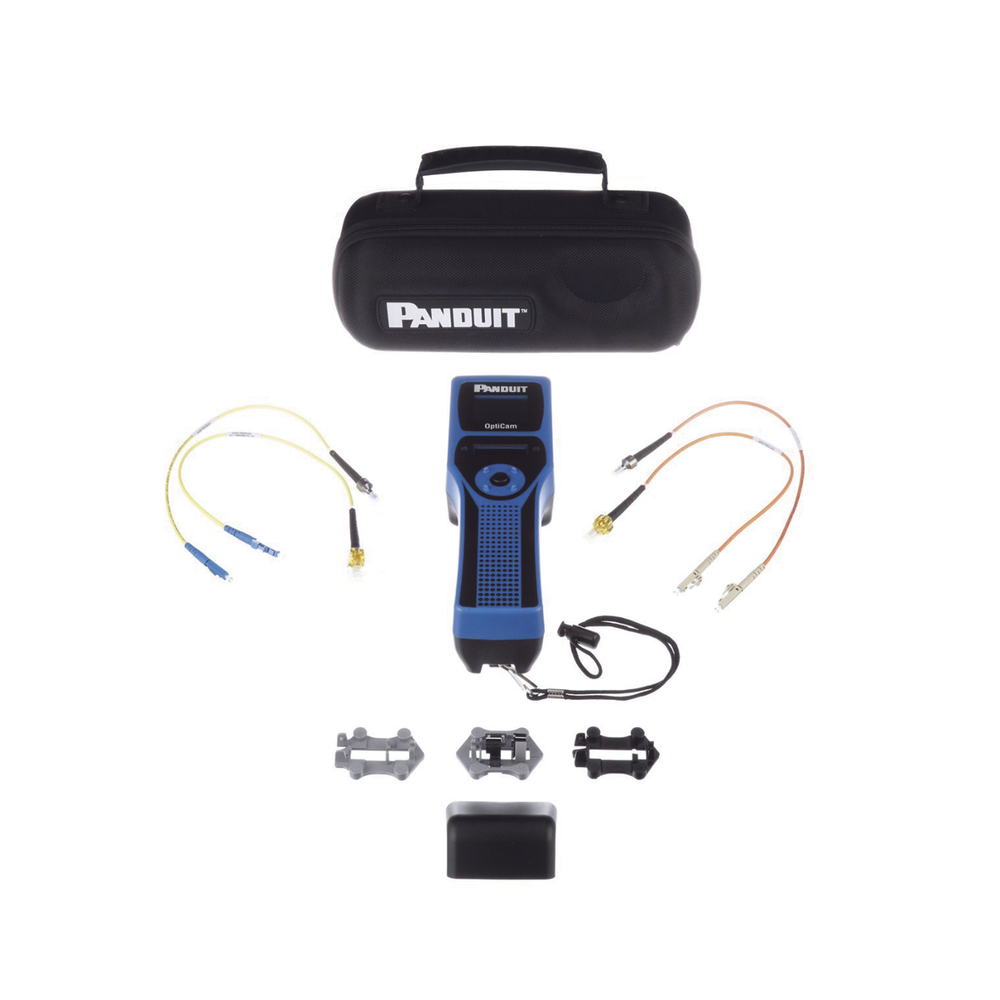

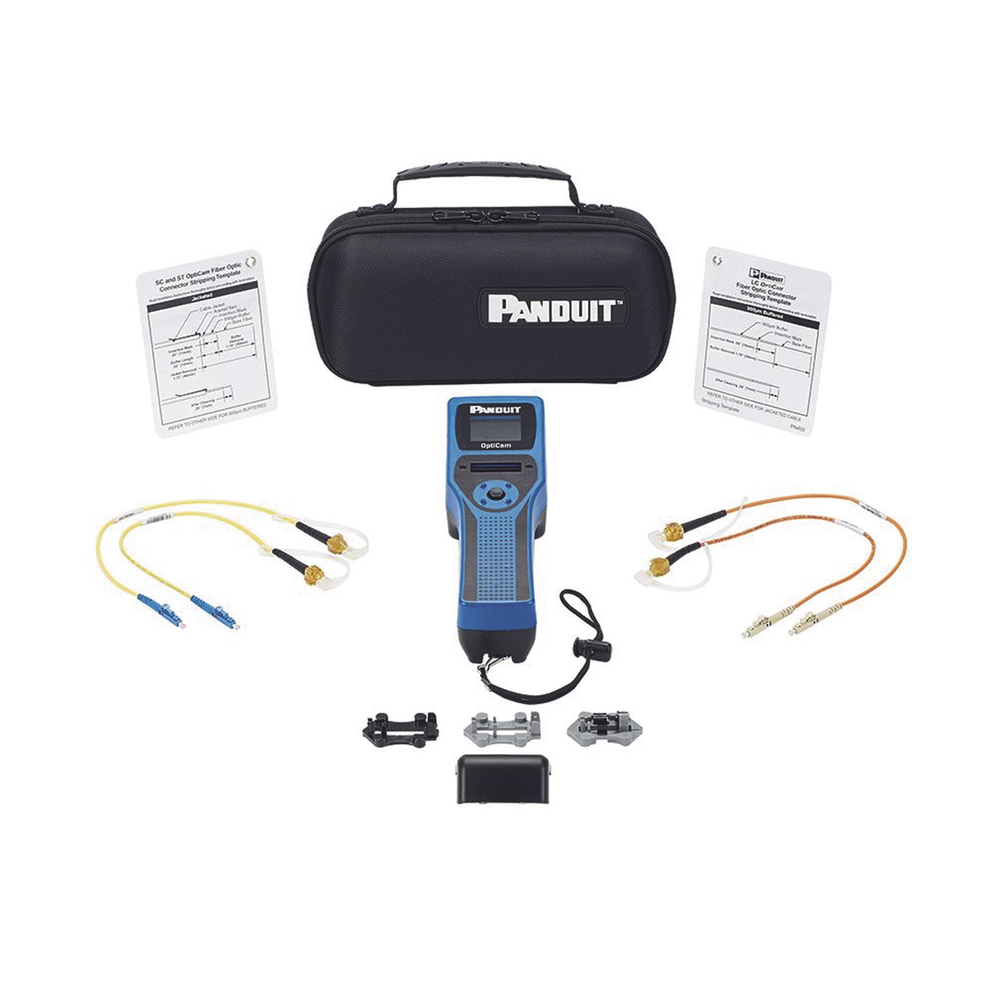

The Kit Includes:

• 1 OptiCam 2 Termination Tool
• 2 Strip Template Cards
• 3 Connector Holders
• 4 launch cables
• 1 Set of Energizer L91 AA batteries
• 1 Light limiting layer
• 1 Quick Start and Instruction Guide
• 1 FOCTT2CORD
• 1 Carrying case

LCD display guides the user through the termination process, On-the-fly Insertion Loss calculation, App available for Apple and Android smartphones
