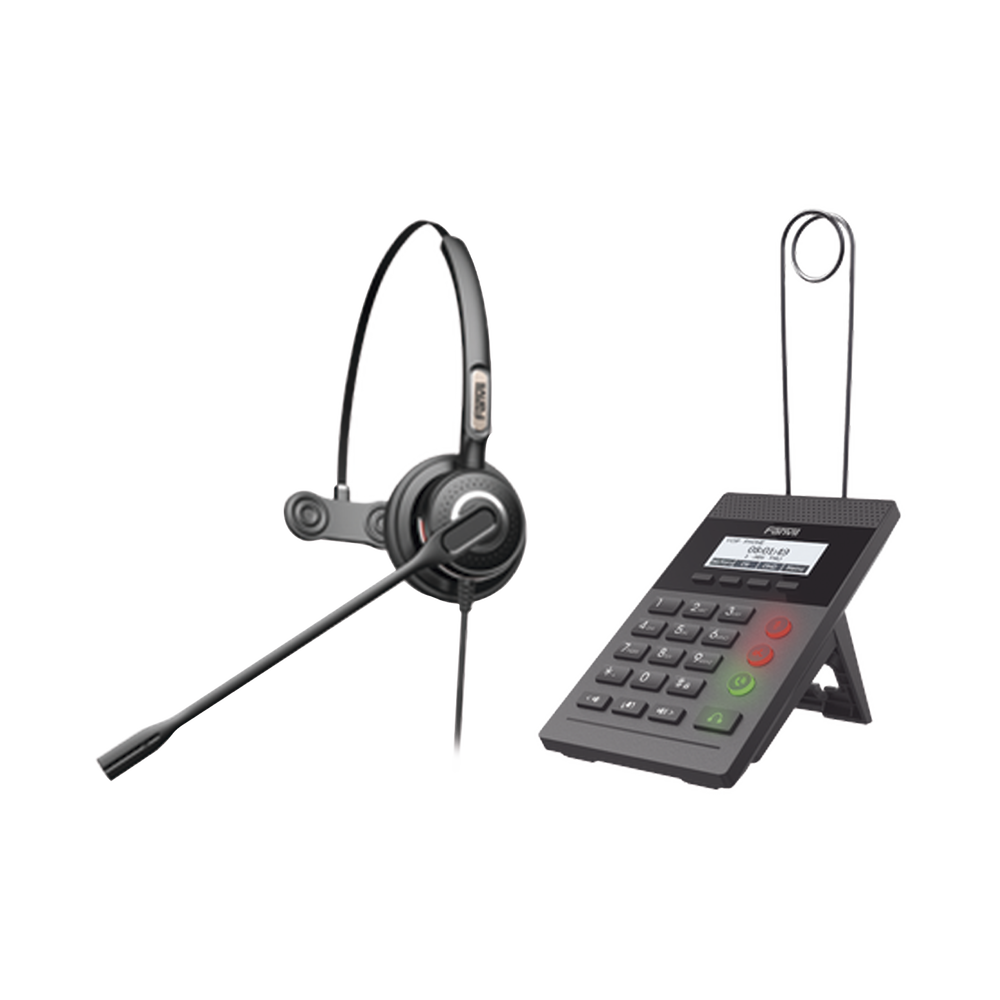

Fanvil Call Center Kit includes X2CP IP phone and HT201 headset and power supply.

Fanvil Call Center Kit includes X2CP IP phone and HT201 headset and power supply.

Fanvil X2CP IP Phone is a professional call center IP phone with an intuitive, clean design and rich features at an affordable price. The high-resolution backlit display allows users to access key information at a glance. The effective call monitor, LED function keys for mute/hold/auto answer/handset, and foot pedal switch can greatly improve the productivity of call center staff. Built-in PoE and rich extension functions of call center headset support, EHS wireless headset support provide more convenience.

Main features

• 128x48 backlit black and white display
• 2 SIP Accounts
• HD Voice
• Power supply via Poe 802 af
• Support RJ9 and 3.5mm headset port
• EHS Wireless Headphone Stand
• Industry standard certifications: CE/FCC
• Includes power supply

Network features

• 2 10/100 Mbps Ethernet ports in bridge mode for bypass to PC
• IP Configuration: Static / DHCP / PPPoE
• Network access control: 802.1 x
• VPN: L2TP (Basic Decryption)
• VLAN
• QoS

Physical and electrical specifications

• Power: PoE 802.3af / 5 VDC @ 0.6 A (transformer not included)
• Power consumption: Idle – 0.9~1.6 W, Active – 1.6~2.5 W
• Packaging dimensions: 200 x 75 x 52 mm (L x W x H)

Features of the HT201 Headset

• Headset Type: Monaural
• Port: 1 RJ9
• Speaker Diameter: 28nm
• Speaker Impedance: 300Ω
• Frequency range: 150Hz- 6400Hz
• Speaker Sensitivity: 95db +-5db
• Mic Sensitivity: -42db +-3db
• Mic Noise Reduction Type: Uni-directional Polarity
• Cable length: 1m
• Cable type: 2.5 diameter, fire retardant sheath
• Mic Cable: Multi-coated cable
• Steel bars: High hardness stainless steel, black

PoE Phone, Compatible with Grandstream, 3CX, Asterisk, Issabel and more., OpenVPN and L2TP client for remote deployments, Includes P5DC1A power supply, Includes HT201 headset
