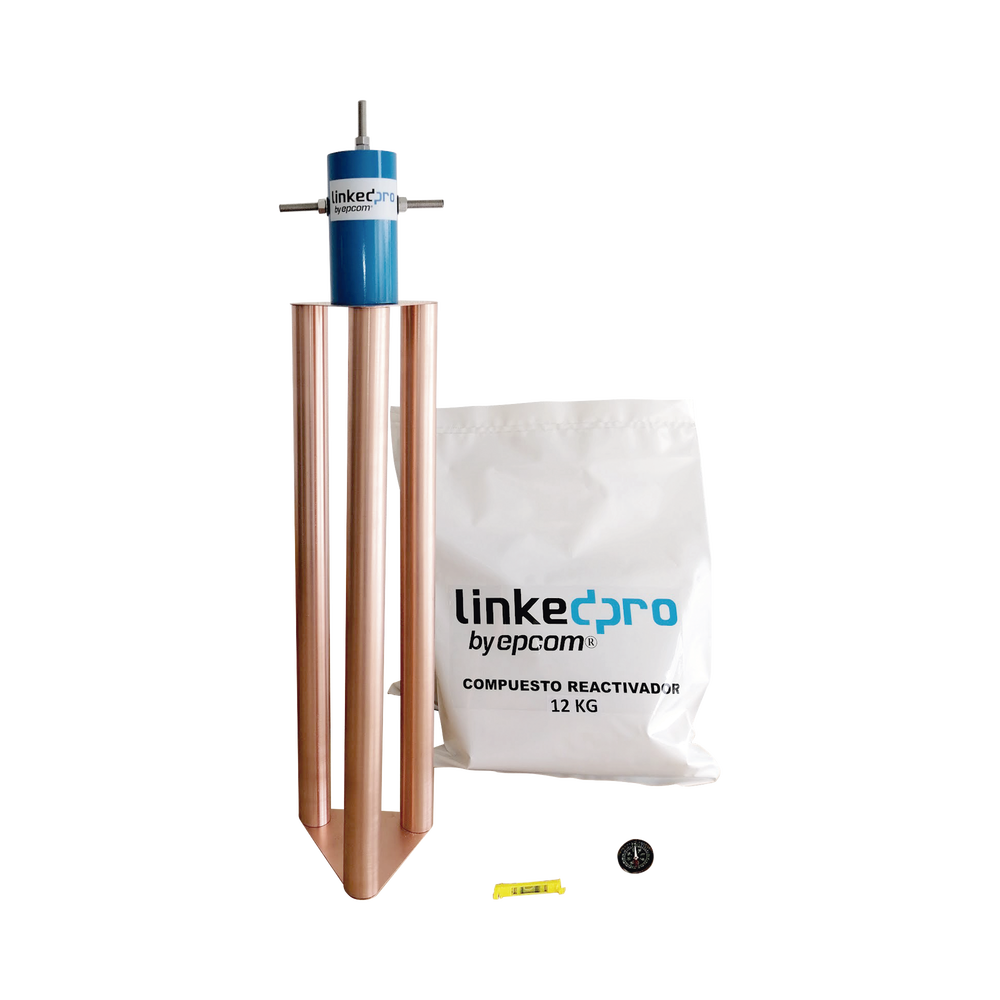

200 Amp Maximum Current Electrode with Soil Enhancer Compound

200 Amp Maximum Current Electrode with Soil Enhancer Compound

DESCRIPTION

Electrode made of copper with electrolytic treatment to obtain greater conductivity, low resistance and durability in aggressive terrain.

Its delta-shaped design provides a greater contact area with the ground, allowing it to efficiently dissipate eddy currents.

Equipotential filter which has the property of dampening low frequencies, minimizing noise, preventing the passage of return currents and equipotentially joining natural electrodes as well as those prefabricated on site.

Soil reactivating compound composed of conductive minerals to lower soil resistivity and improve the performance of the grounding system.

STANDARDS

The LPGROUND200A complies with telecommunications standards as well as official Mexican regulations.

• EIA/TIA J-STD-607-A and BICSI
• NOM-022-STPS-2012
• NOM-022-STPS-2015
• NMX-J-549-ANCE-2005

ELECTRODE

FILTER
