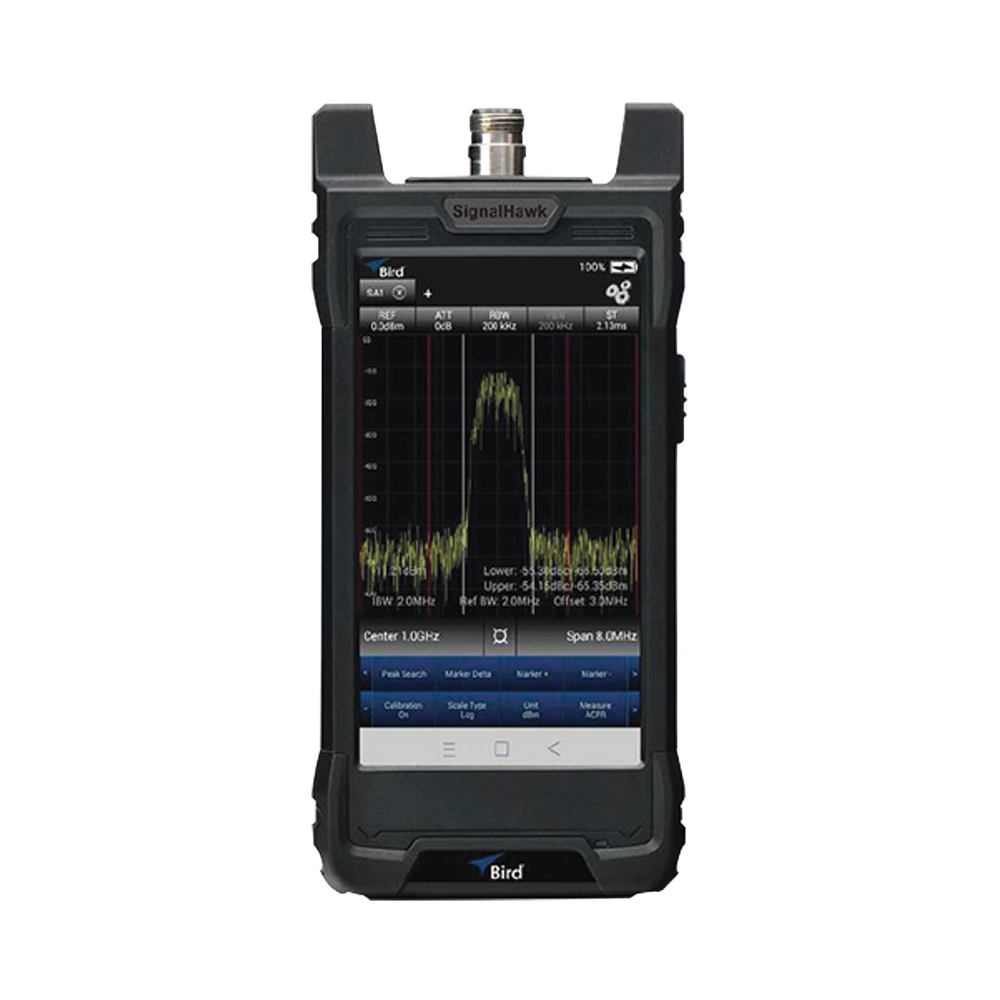

SIGNAL HAWK Handheld Spectrum Analyzer, 9 KHz to 6 GHz, Includes Rugged and Lightweight Cases, Li-Ion Battery, 12V Adapter, Stylus Pen, USB-C to USB-A Adapter, Instruction Manual.

SIGNAL HAWK Handheld Spectrum Analyzer, 9 KHz to 6 GHz, Includes Rugged and Lightweight Cases, Li-Ion Battery, 12V Adapter, Stylus Pen, USB-C to USB-A Adapter, Instruction Manual.

Portable Spectrum Analyzer, 9 KHz to 6 GHz.

Carry predefined precision measurements with you

• The SignalHawk™ SH-60S-TC is the latest offering in a line of next-generation handheld RF spectrum analyzers, combining best-in-class functionality in a compact and affordable package.
• Highly portable, the SH-60S-TC fits easily in one hand and features an intuitive touchscreen user interface. The SH-60S-TC operates between 9 kHz and 6 GHz.
• Leveraging multi-touch technology, users will find a high-resolution touchscreen with familiar, easy-to-use methods for configuring and operating the RF spectrum analyzer.
• Field engineers, technicians, wireless equipment manufacturers, service providers, contractors, tower builders, and military personnel have relied on SignalHawk™ for its precision results and efficiency.

Predefined measurements include:

• Channel power.
• Adjacent Channel Power Ratio (ACPR).
• Phase noise.
• N dB reduced bandwidth.
• Occupied bandwidth (OBW).
• Force field.
• FM demodulation.
• CNR loss (GNSS signal quality).
• Spectrum masking and boundary lines.
• Three-year warranty .

RF Spectrum Analysis at your fingertips!

• Affordable price, allowing every team member to have one.
• Intuitive and easy-to-use menus simplify operation for casual or experienced users.
• More than double the sweep times of the competition.
• High-resolution, full-color display for indoor or outdoor viewing.
• Internal two-level preamplifier.
• View the spectrum with the tracking display, the spectrogram display, or both.
• Includes the Bird RF Meter app that enables interoperability with a wide range of Bird Field sensors.
• Touch screen with multi-touch operation.
• The lightest all-in-one analyzer at only 1.98 lb (0.9 kg).
• Dimensions: 197 x 93 x 61 mm.
• Battery that offers 5 hours of continuous operation.
