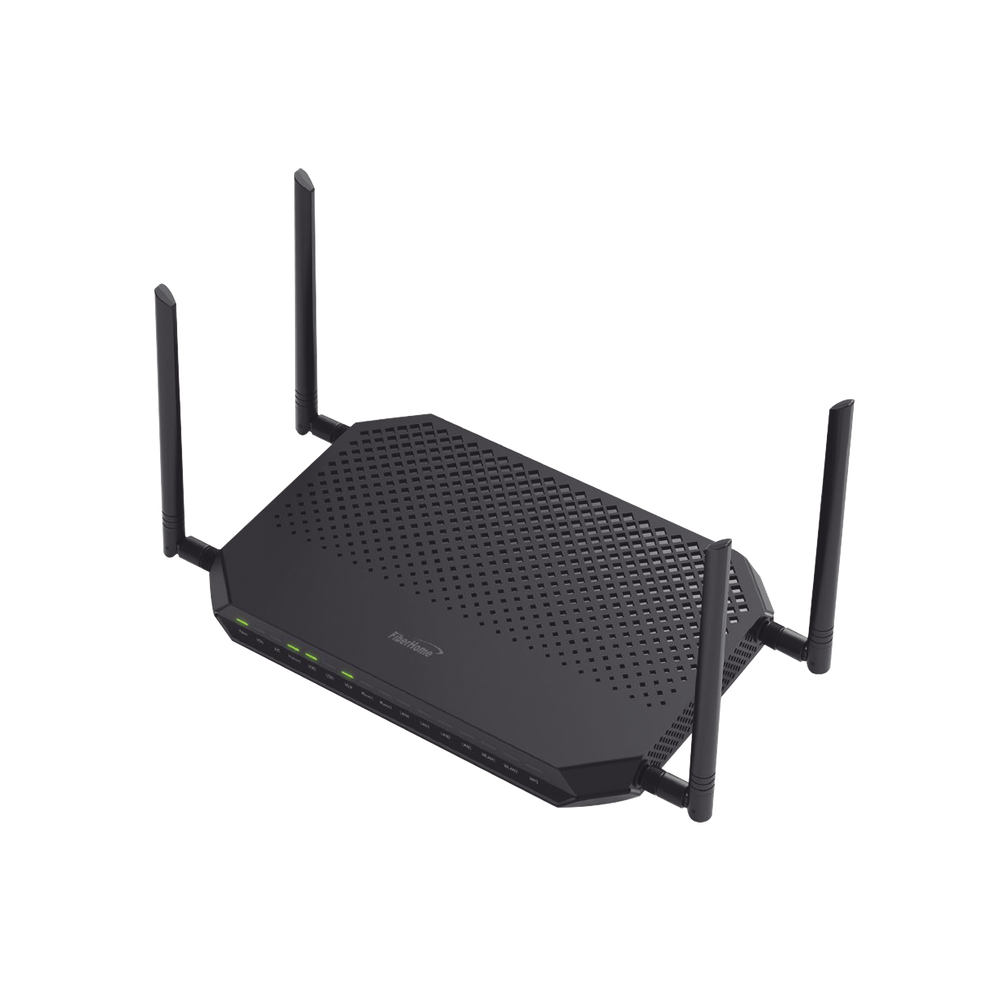

XGPON ONU with 4 Gigabit Ethernet ports, WiFi 2.4GHz MIMO 3x3 and 5GHz MIMO 4x4, SC/UPC connector

XGPON ONU with 4 Gigabit Ethernet ports, WiFi 2.4GHz MIMO 3x3 and 5GHz MIMO 4x4, SC/UPC connector

Characteristics:

• Interfaces
  • 4 Gigabit Ethernet ports (10/100/1000)
  • 2 POTS ports (RJ11)
  • WiFi 2.4 GHz
    • 3x3 MIMO
    • Supports IEEE standards 802.11b, 802.11g, 802.11n, 802.11b/g and hybrid mode
    • 4 SSIDs
    • 13 operating channels
  • 5 GHz WiFi
    • MIMO 4x4
    • Supports IEEE standards 802.11a, 802.11n, 802.11ac and hybrid mode
    • 4 SSIDs
    • 20 operating channels
  • 2 USB ports (2.0/3.0)
• XGPON interface
  • Standard: ITU-T G.987, Class N1
  • Speed: Rx: 10 Gbit/s; Tx: 2.5 Gbit/s
  • Fiber Type: Singlemode
  • Interface Type: SC/UPC
  • Maximum Distance: 20 km
  • Central Wavelength: Tx: 1270 nm; Rx: 1577nm
  • Optical Power: Class N1
• Dimensions (mm): 35 x 309 x 213 (Height x Width x Depth)
