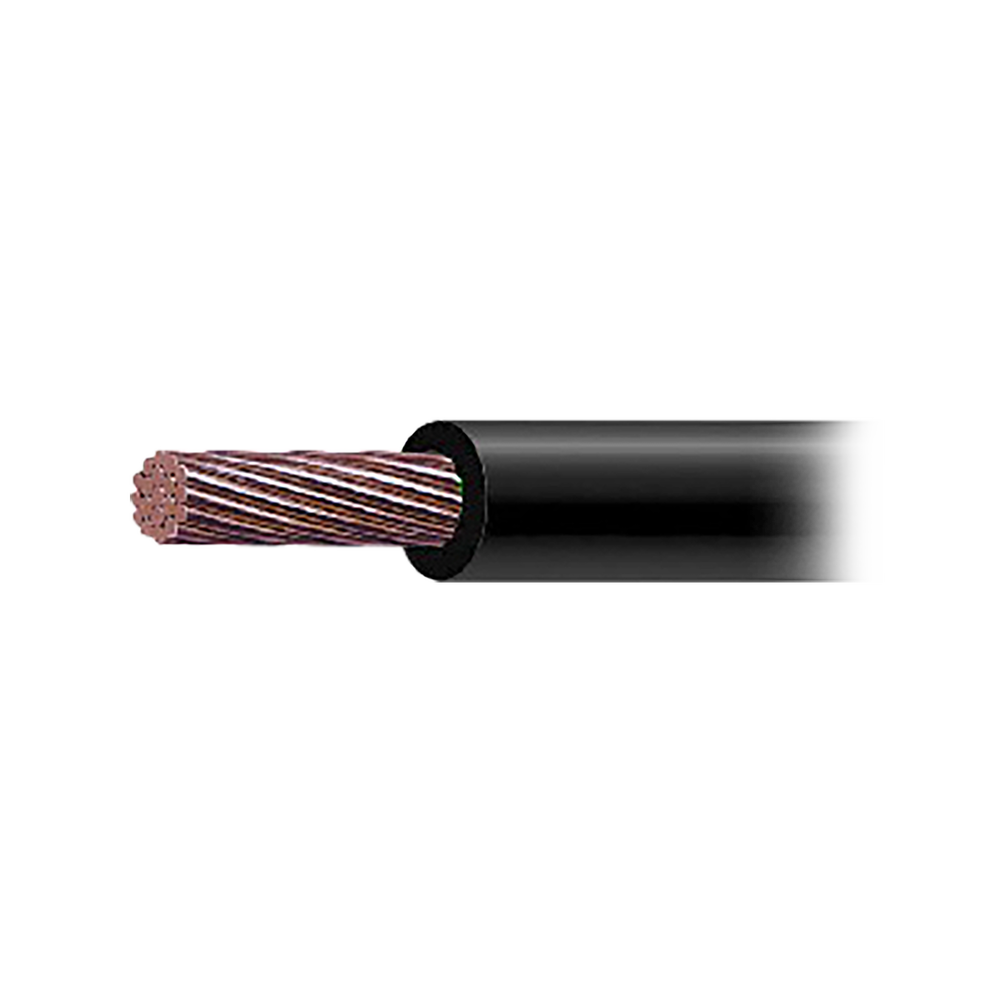

THW-LS Coated Copper Cable Gauge 1/0 AWG 19 Wires Black Color (1 METER)

THW-LS Coated Copper Cable Gauge 1/0 AWG 19 Wires Black Color (1 METER)

Soft copper conductor stranded with self-extinguishing PVC insulation. **SOLD BY THE METER**

Physical Characteristics.

• Gauge: 1/0 (Zero) AWG.
• Thread Count: 19.
• Conductor Area: 53.5 mm².
• Conductor Diameter: 9.47 mm.
• Insulation Thickness: 2.03 mm.
• Outer Diameter: 13.2 mm.
• Weight per Meter: 0.599 kg.
• Coating Color: Black. .
  Approximate data, subject to manufacturing tolerances.

Specs:
NMX-J-010-ANCE.

Benefits:
Indiana THW-LS Slide-On installs more easily in duct, reducing wiring time.

Applications:
THW-LS high-security conductors are manufactured for reliable use in dry, wet, or oil locations, and installed in duct, conduit, or trays.

Its excellent self-extinguishing properties make it ideal for installation in residential and small commercial buildings.

It is recommended for integration of Physical Earths.

Operating Temperature:

• In dry places 90° C.
• In Wet Places 75° C.
