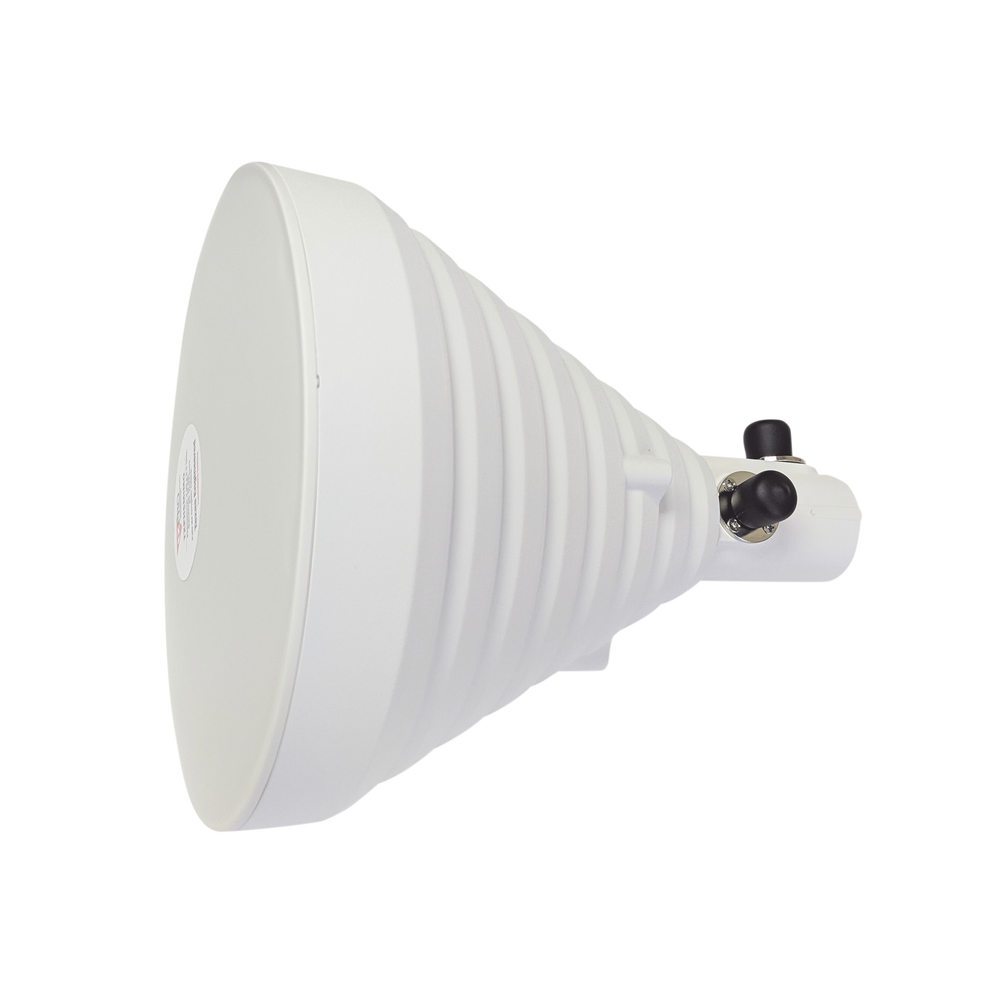

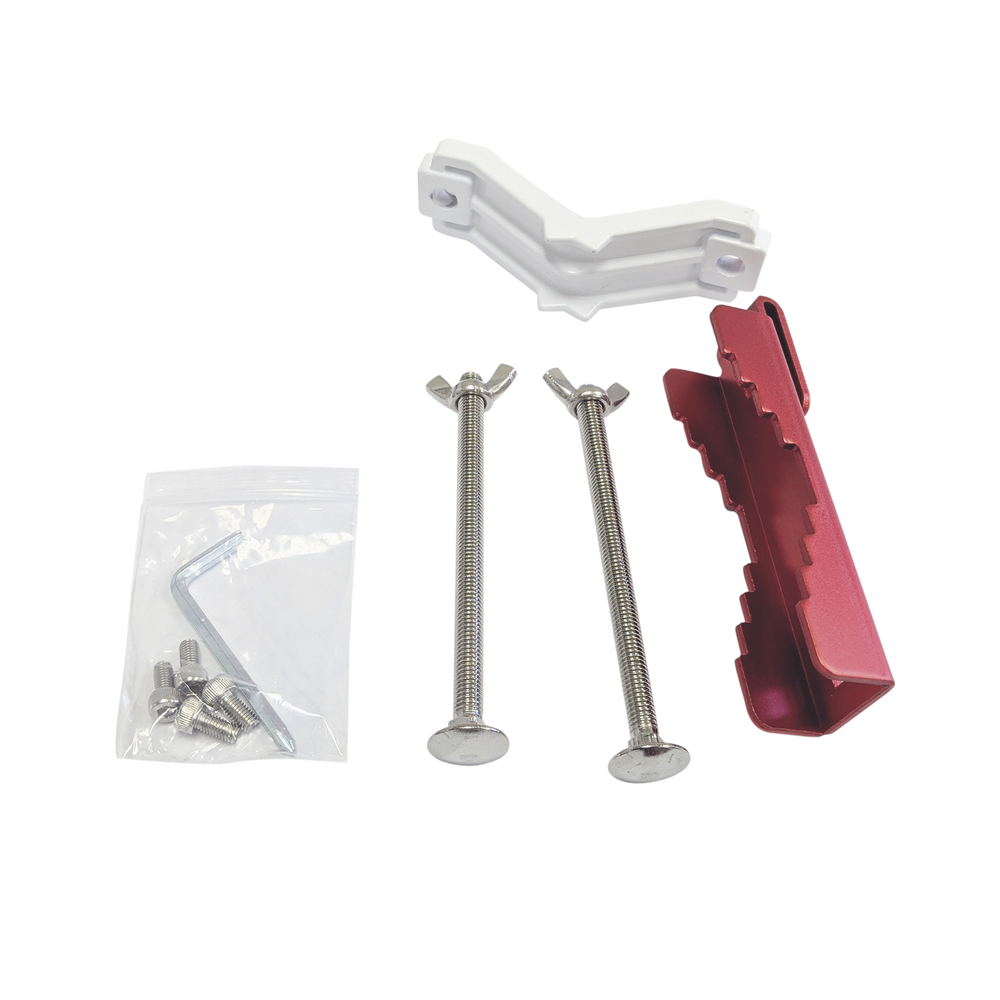

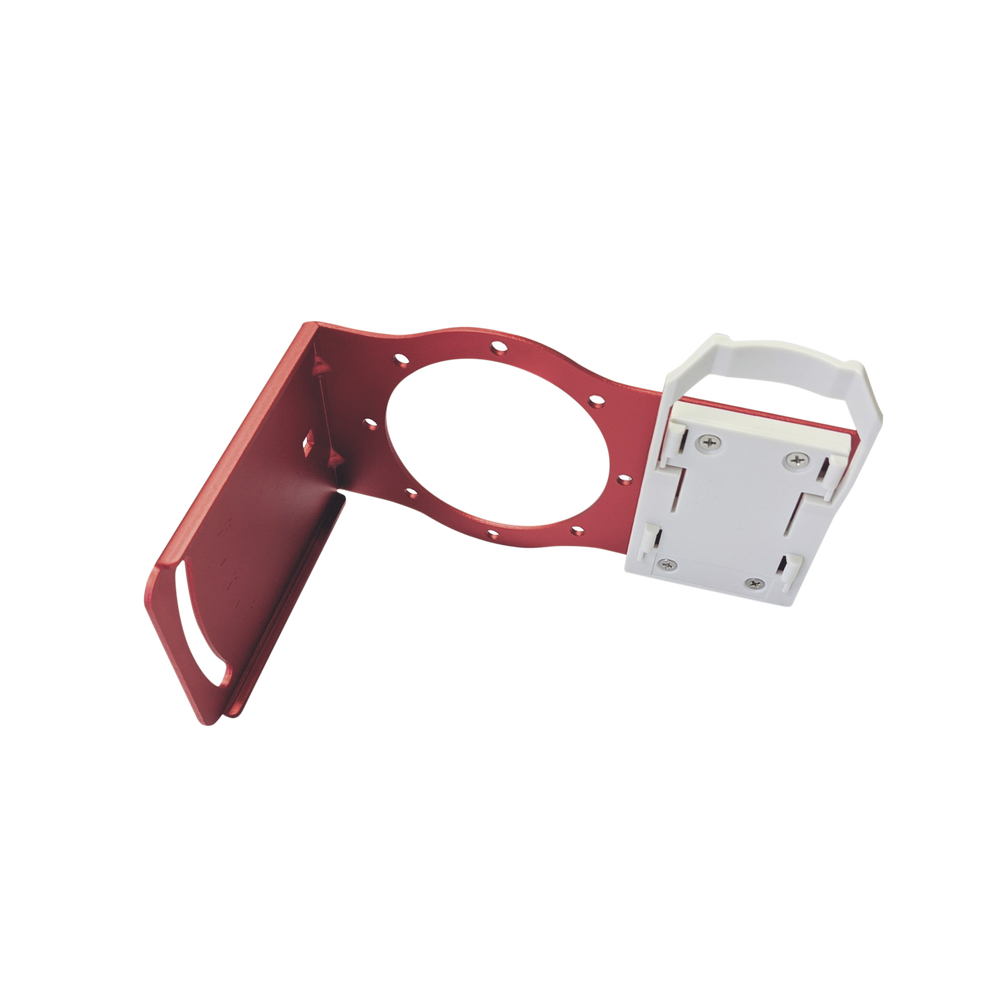

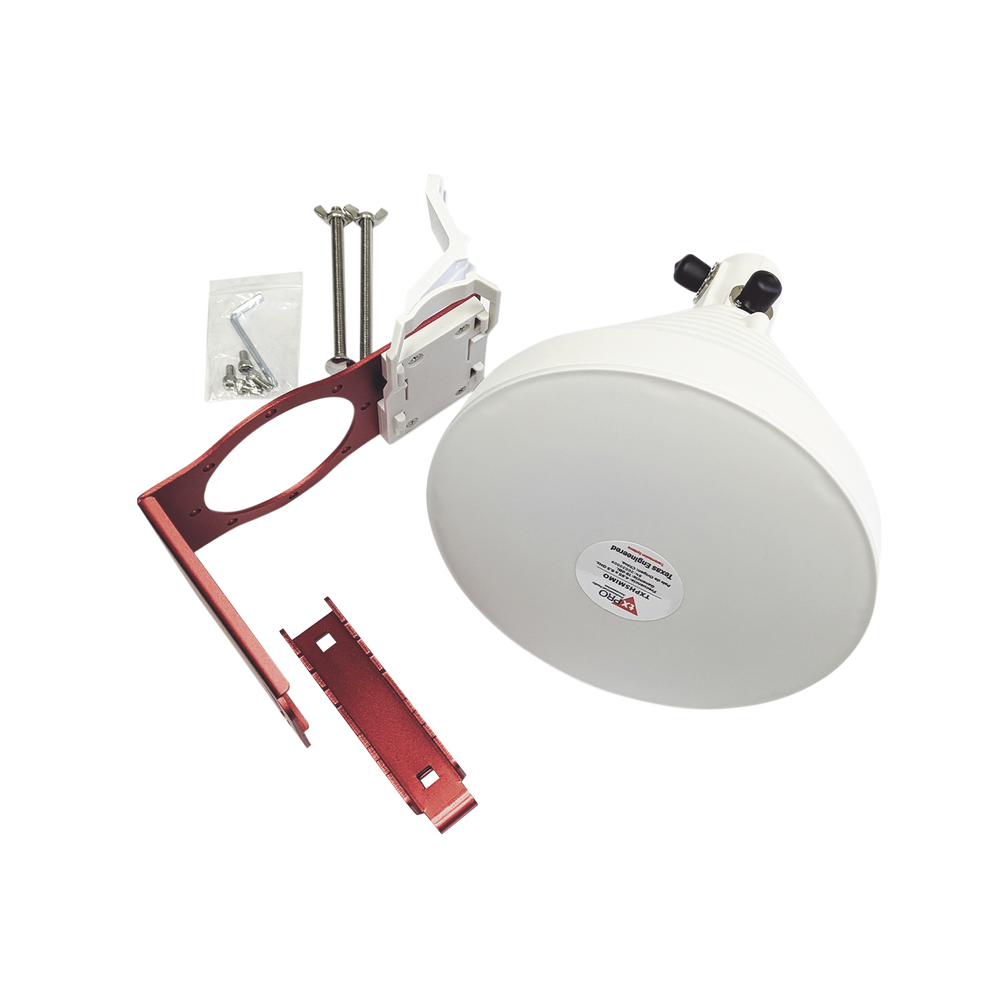

30° Symmetrical Sector Antenna, 19 dBi, 4.9-6.5 GHz, Ideal for high noise environments, N-Female connector type, with mounting included

Technical Specifications

• Frequency range 4.9 to 6.5 GHz
• Gain 19 dBi
• VSWR <2.0
• Dual polarization (V/H ± 45°)
• Isolation >30 dB
• Front to back ratio >40 dB
• Horizontal beamwidth 30°
• Vertical beamwidth 30°
• Maximum power per port 50W
• Impedance 50 Ω

Mechanical Specifications

• N Female Connector
• Antenna size 245 x 208 x 278 mm
• Weight 1 kg
• Operating temperature -40, +70 °C (-32 °F to +158 °F)

NOISE REJECTION

Fast and scalable connection, layers to avoid internal noise between antennas, thus achieving a greater number of wireless links in a single point

Fully insulated design

Custom designed to deliver a high-gain, mid-power 30° beamwidth with zero sidelobes.

Dual polarity (V/H ±45°), No side lobes, 30° beam width, Super light
