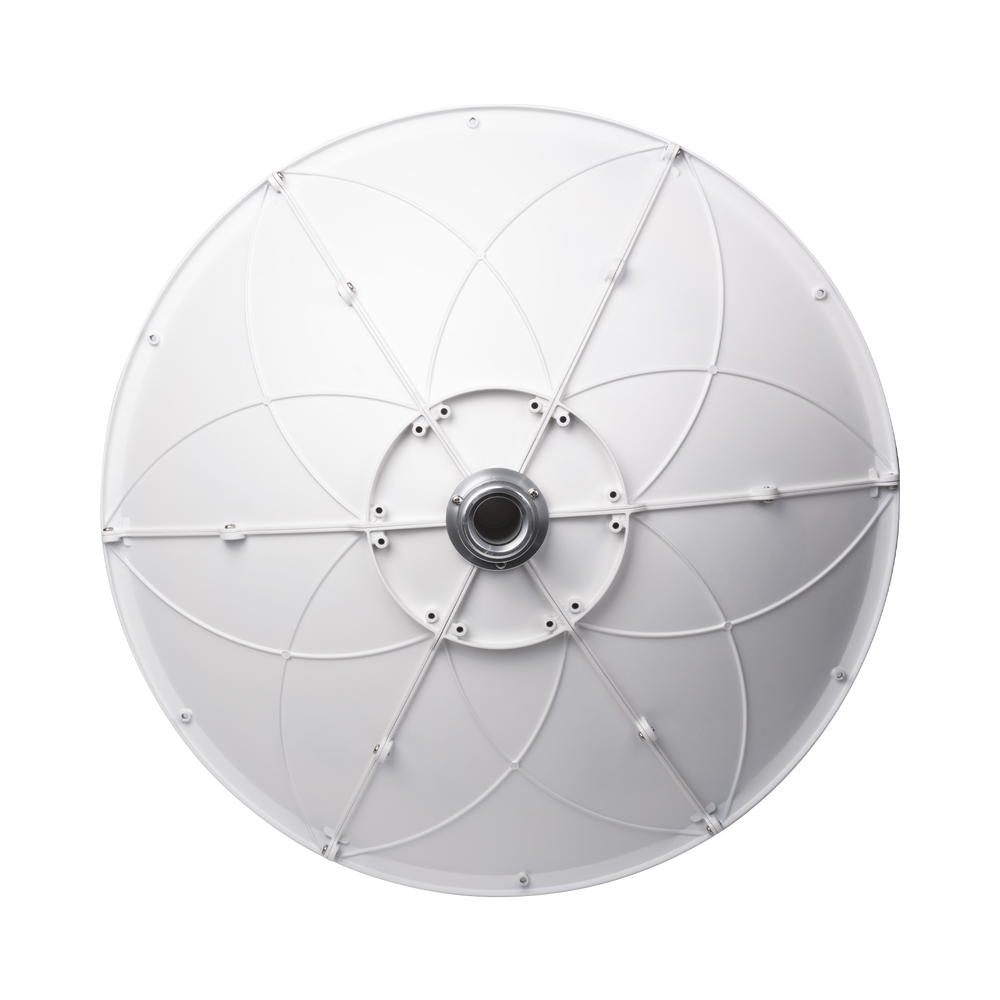

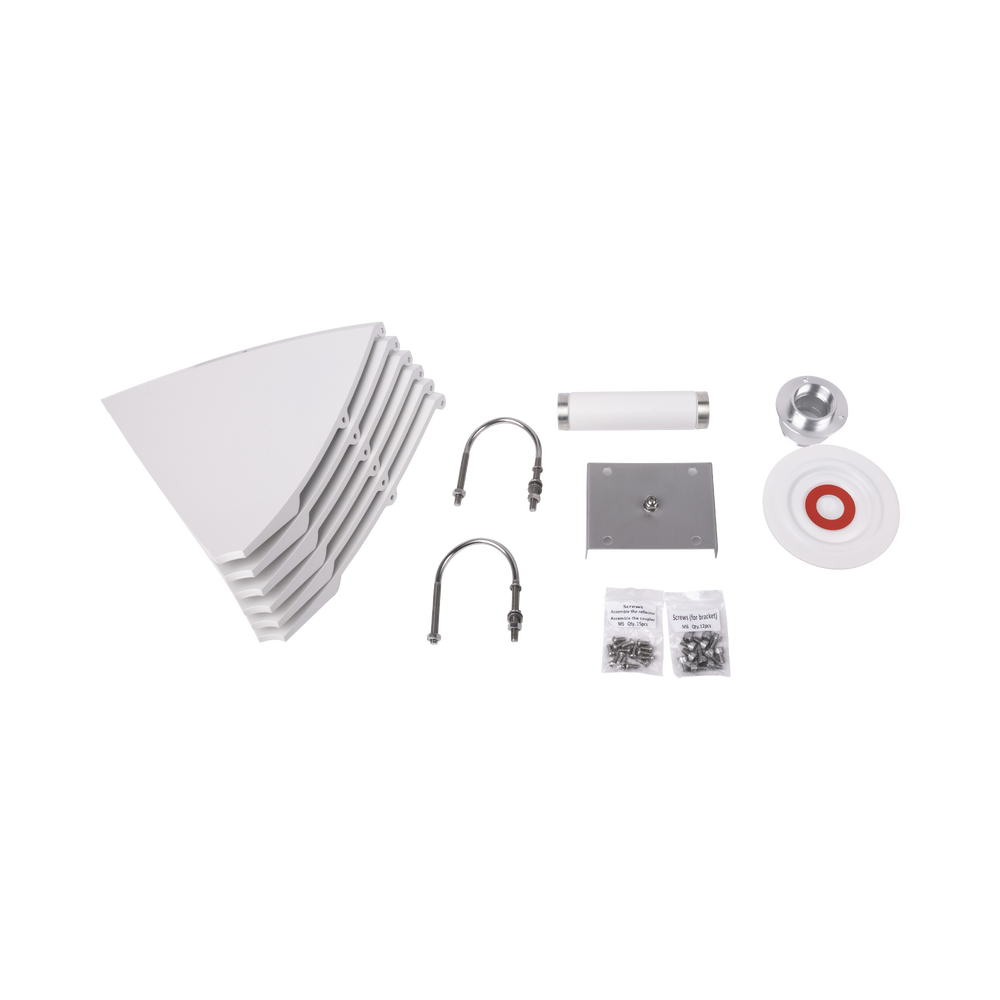

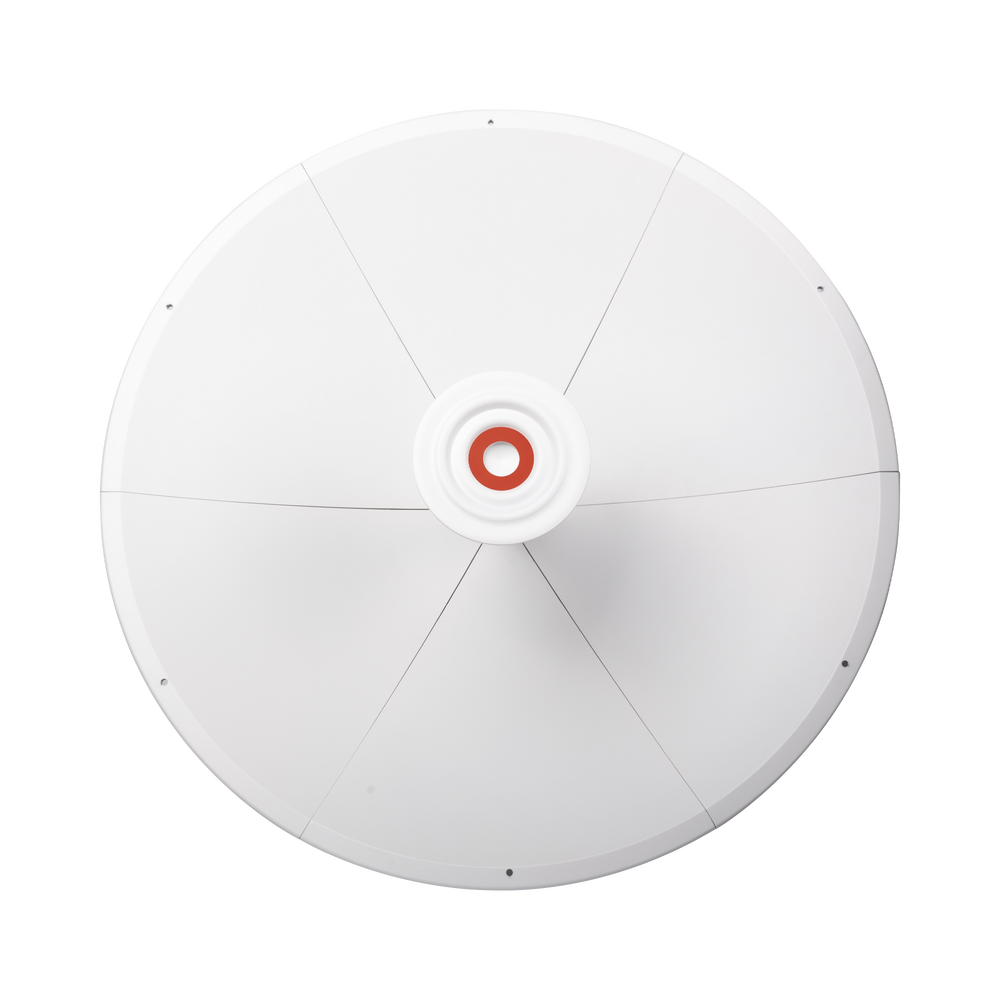

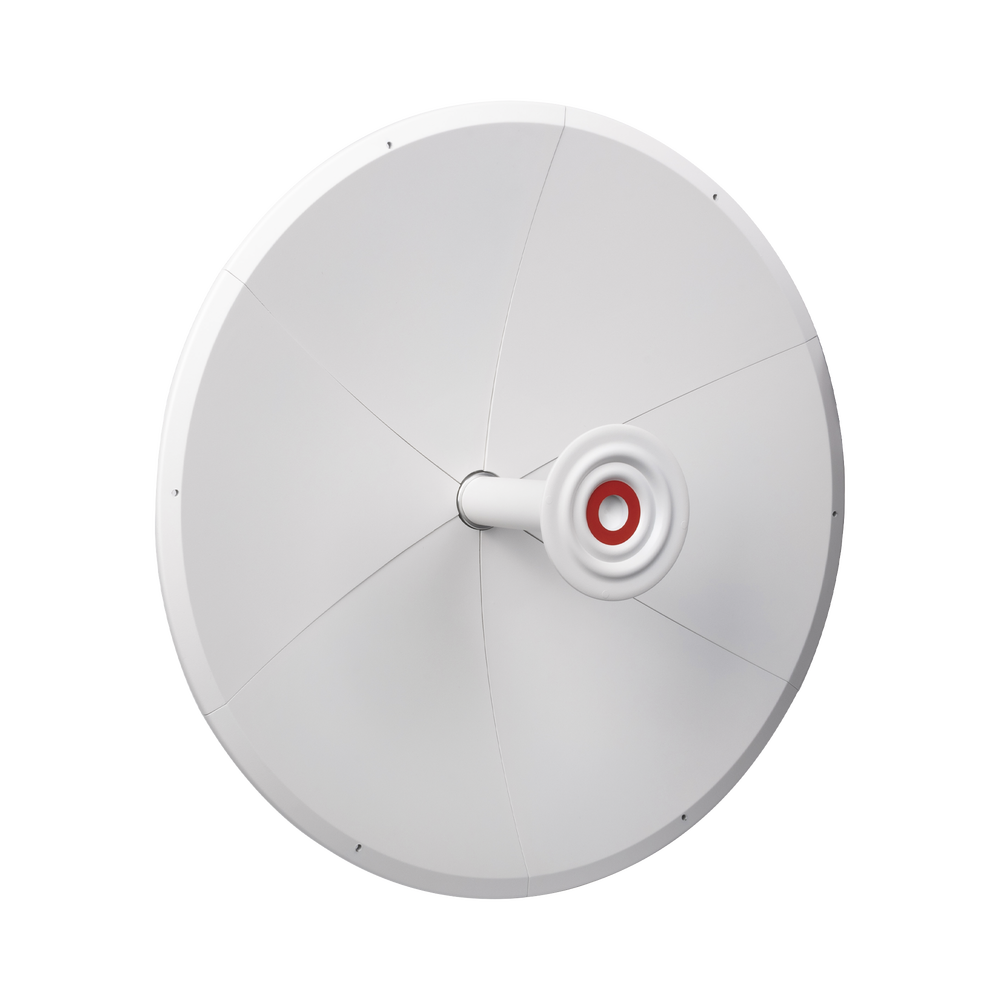

Directional Antenna for C5x, Dual Polarity 45° & 90°, 4.9 - 6.5 GHz, 2 ft, 30 dBi Gain, Mount Included

Directional Antenna for C5x, Dual Polarity 45° & 90°, 4.9 - 6.5 GHz, 2 ft, 30 dBi Gain, Mount Included

Regular price $632.222 COP
Regular price $691.493 COP Sale price $632.222 COP
Sale Sold out
Shipping calculated at checkout.

Directional Antenna for C5x, Dual Polarity 45° & 90°, 4.9 - 6.5 GHz, 2 ft, 30 dBi Gain, Mount Included

Electrical Specification

  • Frequency range 4.9 to 6.5 GHz
  • 30 dBi gain
  • VSWR <2.0
  • Double polarization
  • Isolation >30 dB
  • F/B > 35 dB
  • Horizontal beamwidth 5°
  • Vertical beamwidth 5°
  • Maximum power per port 50 W
  • Impedance 50Ω

Mechanical Specification

  • Connector to C5x
  • Weight 6.5 kg
  • Suitable diameter for mast or tower 30 cm to 80 cm
  • Operating temperature -40°C to +70°C (-32°F to +158°F)

An antenna designed specifically for the C5x, with the ability to increase distance range and improve your link.

    Dual Polarity 45° and 90°, Distances up to 20 km, No backlobes, With waveguide

30 in stock

MODELO: TXP-D30-C5X
