EPCOM TITANIUM
(POE 600 METERS) Receiver for PoE Extender TT-8001TPOE / 1 Port for video reception and power (PoE) / IDEAL FOR IP DOME AND CAMERAS / Cascade Connection / Supports 60 W PTZ / Supports IEEE802.3af/at
(POE 600 METERS) Receiver for PoE Extender TT-8001TPOE / 1 Port for video reception and power (PoE) / IDEAL FOR IP DOME AND CAMERAS / Cascade Connection / Supports 60 W PTZ / Supports IEEE802.3af/at
Couldn't load pickup availability
(POE 600 METERS) Receiver for PoE Extender TT-8001TPOE / 1 Port for video reception and power (PoE) / IDEAL FOR IP DOME AND CAMERAS / Cascade Connection / Supports 60 W PTZ / Supports IEEE802.3af/at
CLICK ON THE VIDEO
POE extenders up to 600 meters for video transmission and power supply to IP cameras and domes.
Thanks to your suggestions, Epcom TITANUM has developed equipment that can power PoE domes and cameras over long distances via a single network cable. The TT-8001R is a PoE and Ethernet receiver over Cat 5e/6 cable with an output of up to 60W. The TT-8001R is used in conjunction with the TT-8001T-PoE equipment to reach a maximum distance of 600m, either in Point-to-Point or Cascade connections. This can overcome the transmission distance limitations of network domes and cameras, or similar.
Featuring high-speed technology, the physical bandwidth reaches up to 100 Mbps (bidirectional). The TT-8001R features built-in multi-stage surge and lightning protection to safeguard video equipment from damaging voltage spikes and provide noise immunity to ensure high-quality signals.
Main Features:
- Injects power to PoE devices over the same data cable
- Supports cascade mode; maximum up to four transmitters
- Maximum Ethernet transmission distance up to 600 meters
- Maximum power transmission distance up to 600 meters with a maximum output of 23 W
- High speed technology, bandwidth reaches up to 100Mbps (bidirectional).
- Low power consumption, automatic error correction coding technology
- Multi-stage lightning and surge protection design
- Easy to install, plug & play mode, fast network connection
Physical and Electrical Characteristics:
-

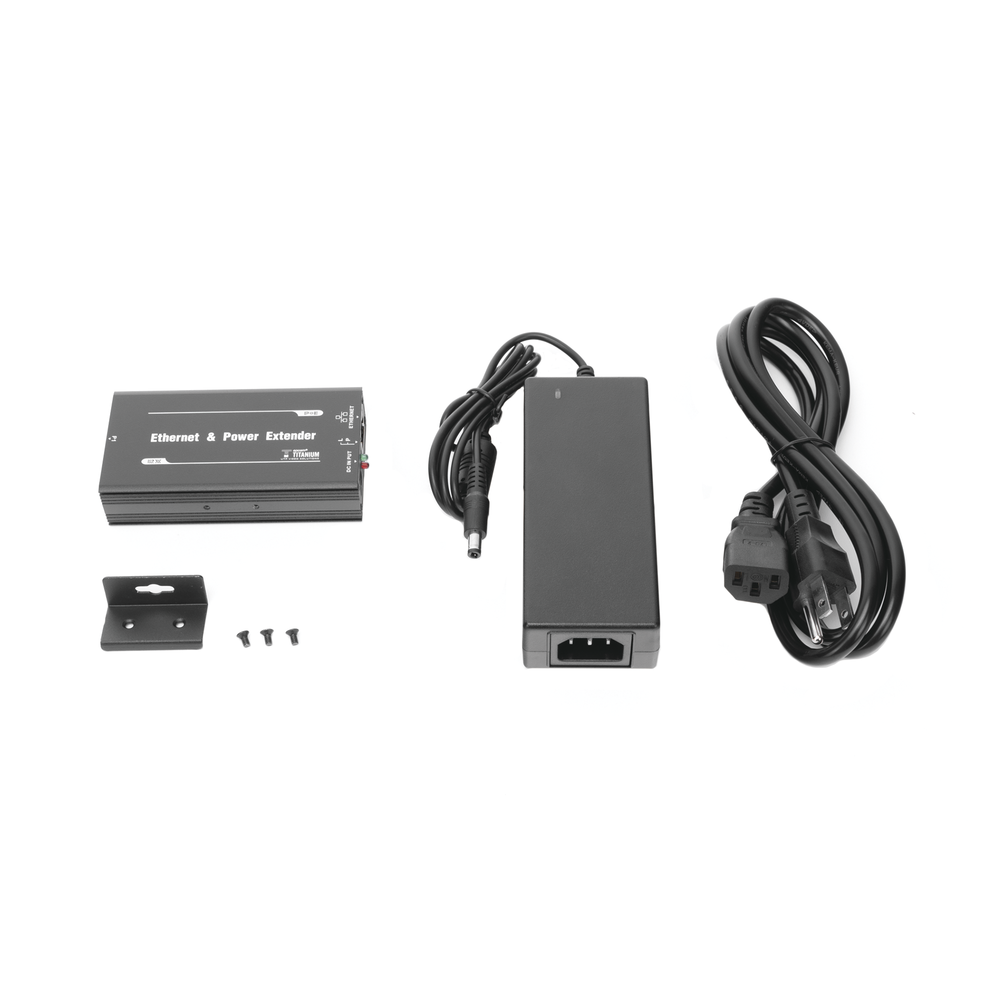

Includes 53VDC/1.85A power supply(Power supply included)
- Complies with IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX standards
- Supports IEEE802.3af/at/bt standard; automatically detects and recognizes standard PD devices and supplies power to the PD device, up to 60 watts output.
- TX Dimensions 123mm (L) × 54mm (W) × 24mm (H)
- TX Weight: 129g
- Operating Temperature: 0 to 55°C
- Humidity: 0 ~ 95% (non-condensing)
- Black color
- Material Aluminum
- 1 Year Warranty for manufacturing defects
Considerations on distances:
- The distance between the switch and the receiver is 100 meters maximum.
- The distance between the IP camera and the transmitter is 100 meters maximum.
- The distance between the transmitter and receiver is 600 meters maximum.
- If 4 transmitters are cascaded, the maximum distance from the receiver to the last transmitter is 600 m maximum, regardless of the distance between each transmitter.
- If the first camera uses 60W, then other cameras will have lower power consumption.
- More information click here
Out of stock
MODELO: TT-8001R
