Main Features:

• Injects power to PoE devices over the same data cable
• Cascade mode; maximum up to four transmitters
• Maximum power transmission distance up to 600 meters with a maximum output of 23 W
• High speed technology, bandwidth reaches up to 100Mbps (bidirectional).
• Low power consumption, automatic error correction coding technology
• Multi-stage lightning and surge protection design
• Easy to install, plug & play mode, fast network connection
• Note : If you require a power adapter, you can use the PLDC4830 model. See it by clicking here.

Physical and Electrical Characteristics:

• Power supply not included, supplied by the receiver
  (Optional power supply)
• Complies with IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX standards
• Supports IEEE802.3af/at/bt standard; automatically detects and recognizes standard PD devices and supplies power to the PD device, up to 60 watts output.

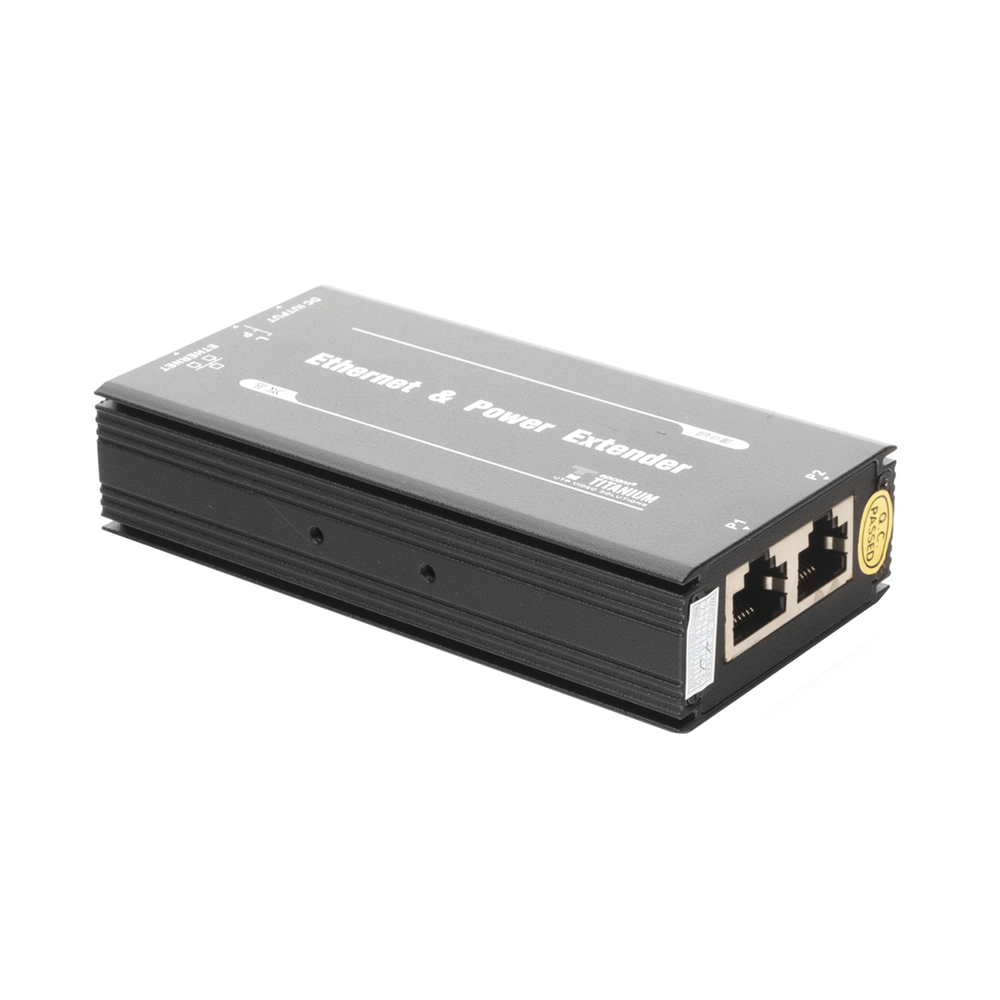

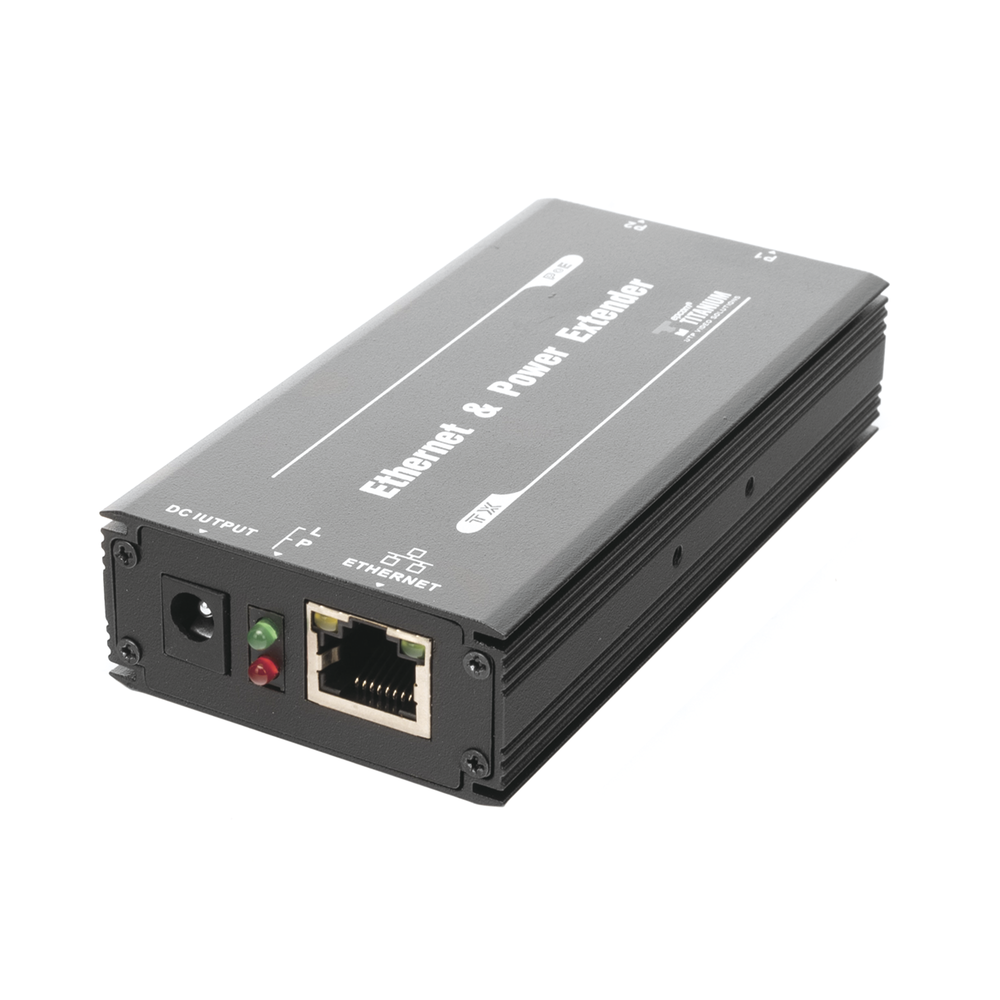

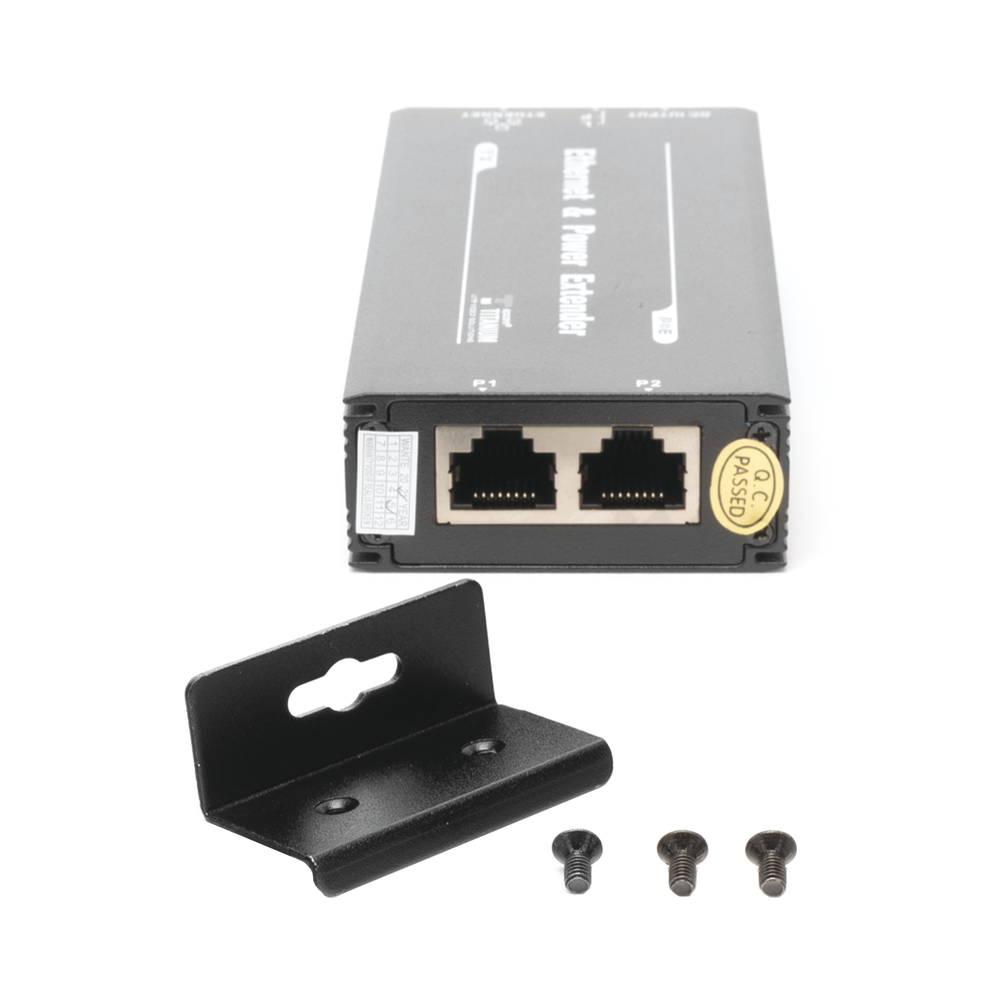

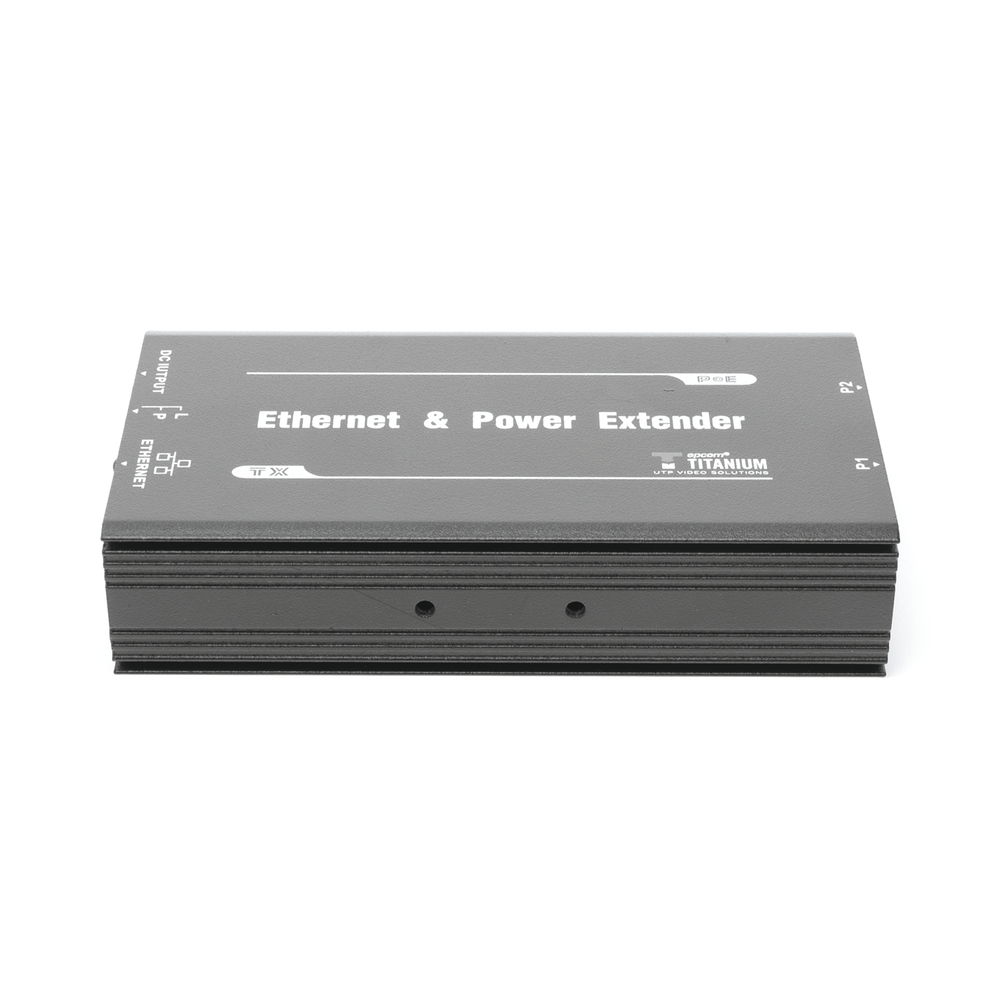

• TX Dimensions 123mm (L) × 54mm (W) × 24mm (H)
• TX Weight: 129g
• Operating Temperature: 0 to 55°C
• Humidity: 0 ~ 95% (non-condensing)
• 1 Year Warranty for manufacturing defects

Considerations on distances:

• The distance between the switch and the receiver is 100 meters maximum.
• The distance between the IP camera and the transmitter is 100 meters maximum.
• The distance between the transmitter and receiver is 600 meters maximum.
• If 4 transmitters are cascaded, the maximum distance from the receiver to the last transmitter is 600 m maximum, regardless of the distance between each transmitter.
• If the first camera uses 60W, then other cameras will have lower power consumption.
• Additional power will be required, if the power of POE IP camera exceeds 38W within a distance of 600 meters
• More information click here
