Continuous Duty Amplifier, 152-162 MHz, Input Power 2-5 Watt / Output 150 Watt (Adjustable).

Continuous Duty Amplifier, 152-162 MHz, Input Power 2-5 Watt / Output 150 Watt (Adjustable).

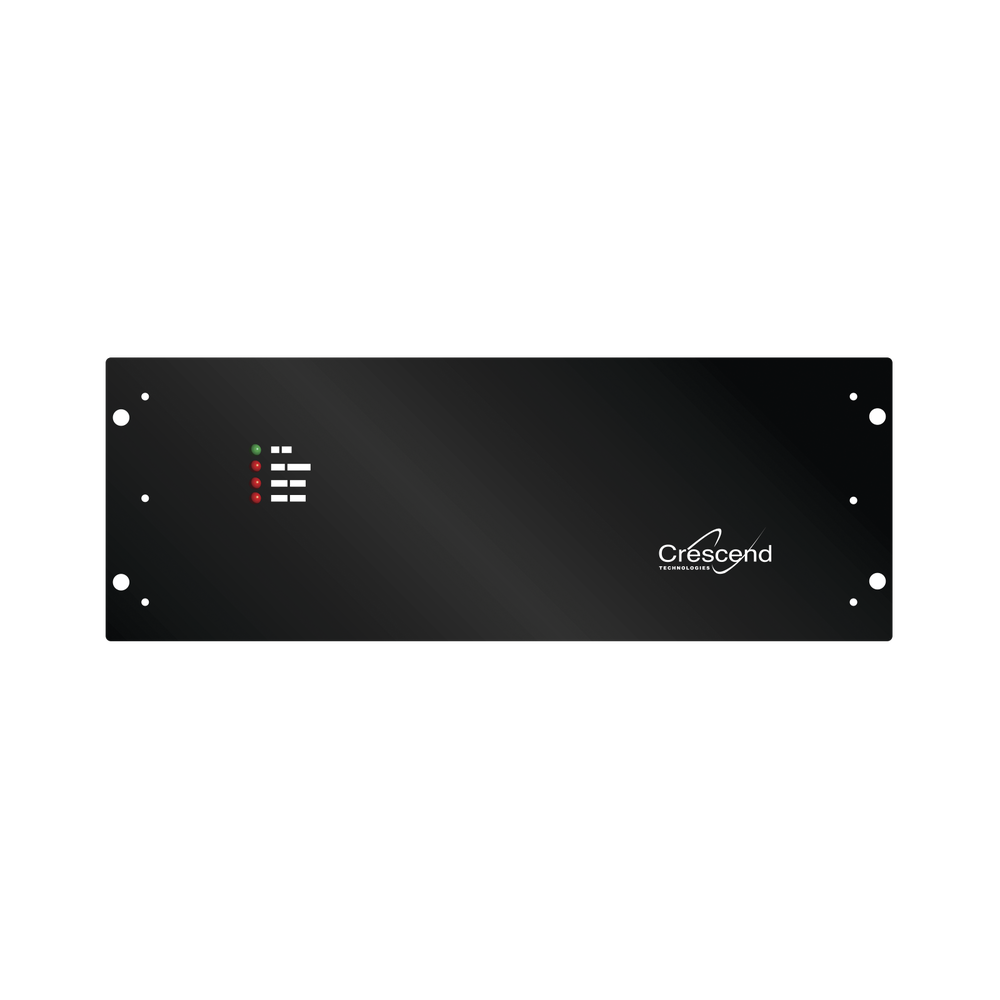

CRESCEND Continuous Duty Amplifier for Base Stations and Repeaters.

• Ideal for 152-162 MHz Repeaters.
• Duty Cycle: 100%
• Input/Output Impedance: 50 Ohm.
• Input Power: 2-5 Watt.
• Output Power: 150 Watt.
• VSWR Load Tolerance: Protected to VSWR.
• LED Indicators: DC Power, Low Output, High VSWR, High Temperature
• Current Consumption: 28 Amp.
• Input/Output Connector: N Female.
• Cooling Method: Fan-forced air over heat sink.
• Operating Temperature Range: -30°C to +60°C
• Humidity: 80% at +40 °C (Non-Condensing).
• Dimensions (Height x Width x Depth): 177.8 x 482.6 x 152.4 mm.
• Weight: 4.54 kg.
