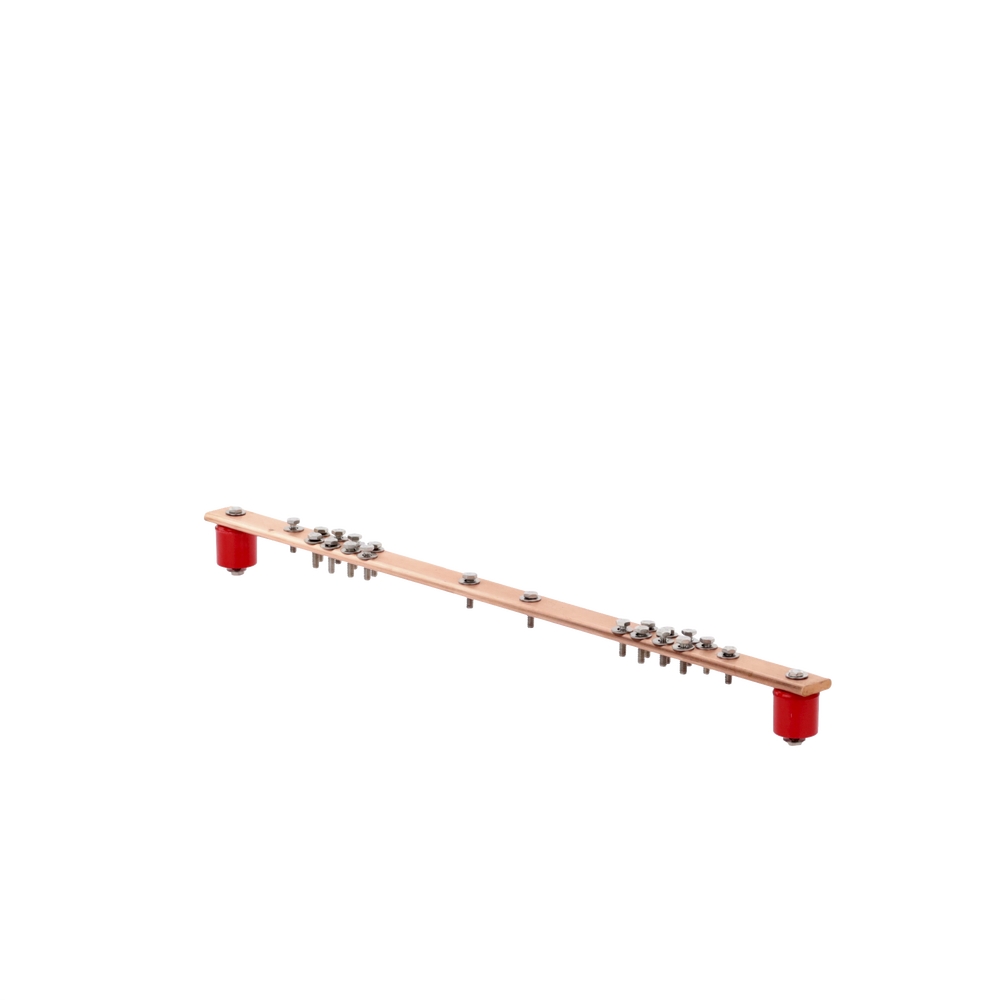

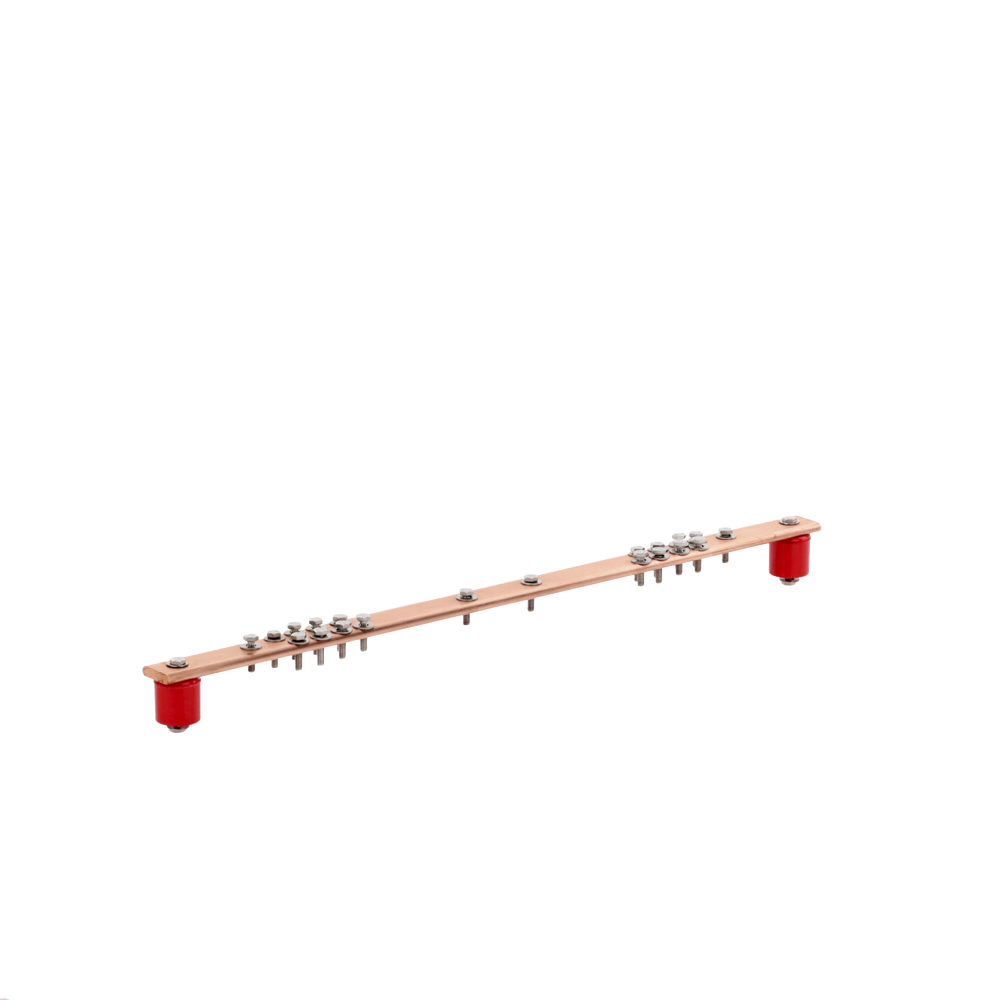

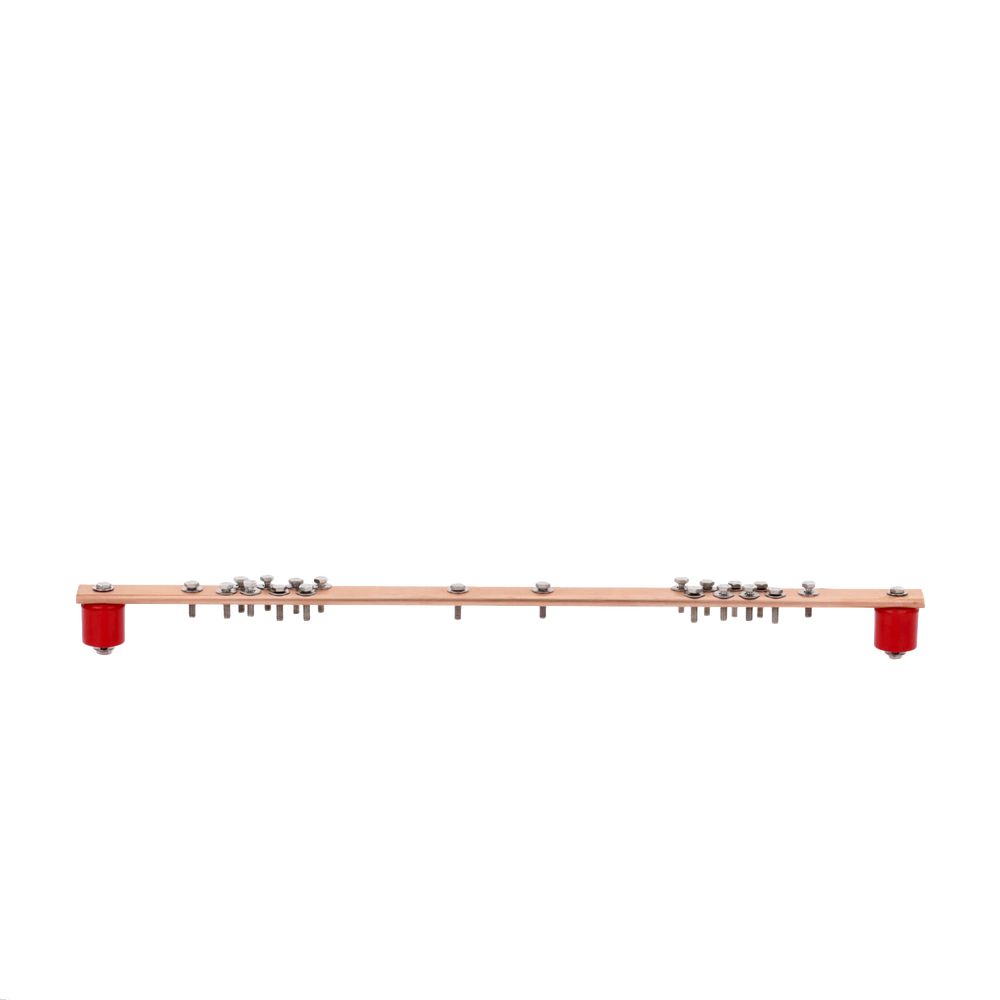

19" Rack Mount Physical Ground Distribution Bar

19" Rack Mount Physical Ground Distribution Bar

Copper tie bar for greater conductivity, 19 inches long.

Its main function is to distribute ground wires for telecommunications rack-mounted equipment, such as: switches, routers, DVRs, NVRs, servers, suppressors, etc.

Distributes the connected threads of the application to the SPT.

Benefits

• Designed for easy installation in a telecommunications rack.
• Accessible for periodic preventive and corrective maintenance.
• Screws for easy connection and installation using lugs and cable.
• Complies with EIA/TIA J-STD-607-A, BICSI, TMGB and TGB telecommunications standards.

Applications

• Telecommunications tie bar.
• Ground distribution for video surveillance
• Wire distribution for electrical panels.
• Ground wire derivation in SITE (MDF and IDF).

Characteristics

• Soleplate made of copper.
• Red apple-type insulators.

• Long	48.26 cm | 19 in
  Broad	2.54 cm | 1 in
  Thickness	0.64 cm | 1/4 in
