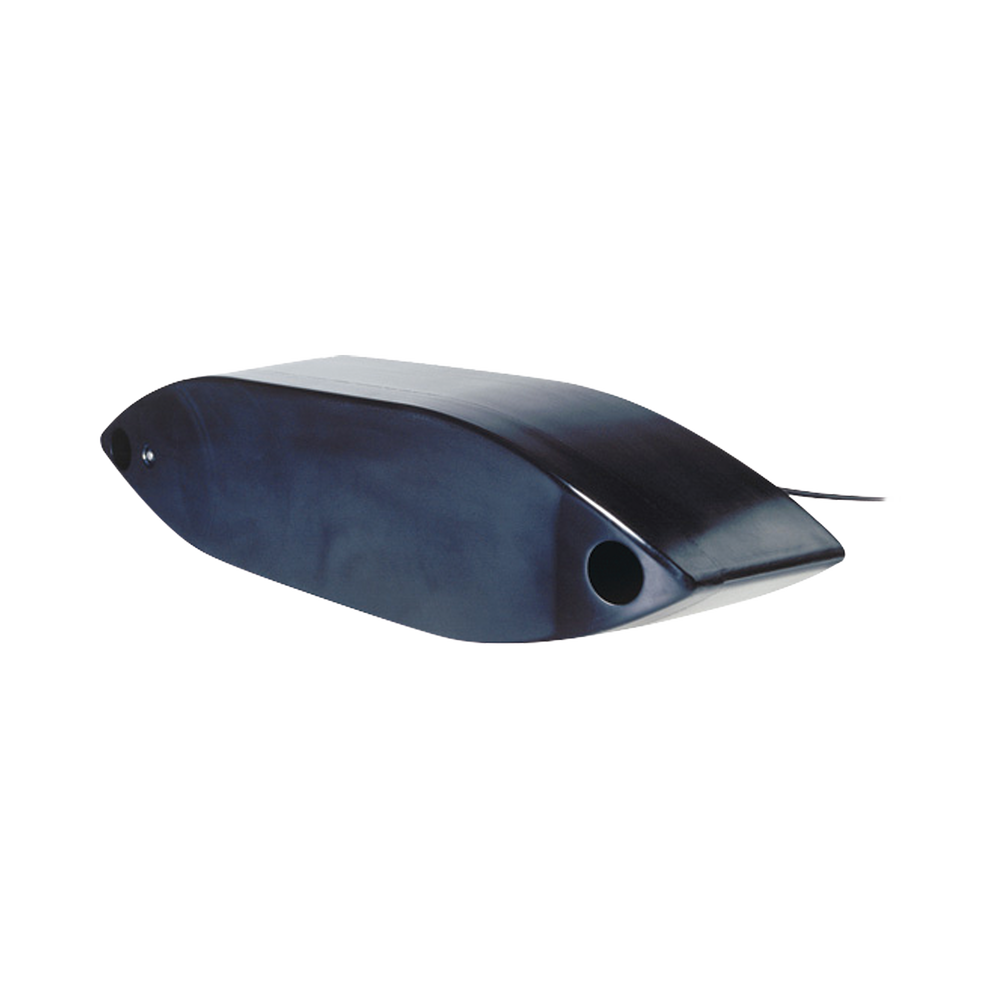

Airmar R109CLH Thru-Hull Transducer

The R109LH is a urethane CHIRP through-hull transducer ideal for sportfishing and commercial vessels up to 12 m (40 ft) in length. This dual-channel transducer combines Low CHIRP frequencies for accurate bottom tracking in deep water and High CHIRP for great resolution in shallow water.

Characteristics:

• 38-75 kHz Low CHIRP with 19-10° port/starboard (10-5° forward/aft) beamwidth
• 130-210 kHz High CHIRP with 8-4° beamwidth
• Range up to 1200 m (4000 ft) with low CHIRP
• Narrow High CHIRP is excellent for pinpointing structure in shallow water
• 16 internal broadband ceramics

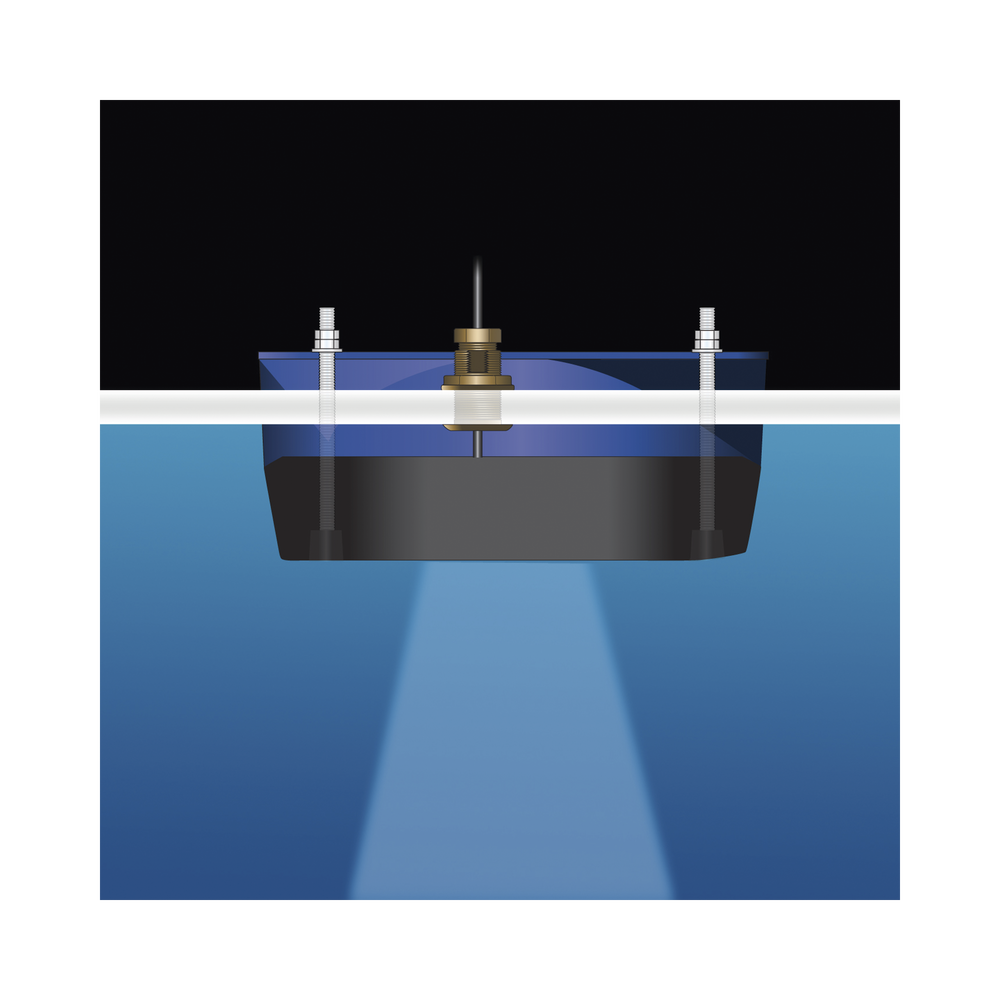

• Through-hull with urethane shell, filler tube, and high-performance fairing (can be retrofitted to existing R99 installations)
• Suitable for fiberglass, wood and metal hulls.
• Ideal for sport fishing and commercial vessels up to 12 m (40 ft) in length.

Note: It does not have a connector.



Weight: 15.1Kg
