AP48-kit High-capacity package, contains the AP48 controller, Precision-9 compass, RPU-160 pump, autopilot

AP48-kit High-capacity package, contains the AP48 controller, Precision-9 compass, RPU-160 pump, autopilot

The AP48 autopilot controller is a premium, dedicated control head for continuous autopilot systems, enhanced with modern glass-hull styling. Designed for responsiveness and ease of use in all conditions, the AP48 combines a large aluminum rotary control dial with dedicated dodge keys for adjusting the heading port or starboard in one- or ten-degree increments. Featuring a 4.1-inch optically bonded display and intuitive controls, the AP48 also provides full access to advanced Continuum Steering features, including automatic turn patterns, No Drift Steering, depth contour following and more.

Key Features:

• Rotary dial heading adjustment with new intuitive autopilot control.
• 4.1-inch optically bonded color display.
• Easy setup with auto-tuning and calibration.
• Simrad Continuum steering technology.
• All new intuitive autopilot control.
• Automated turning patterns.
• Adrift without direction
• Contour depth tracking.
• Low-profile 'Glass Helm' design.
• Low energy consumption
• NMEA 2000® certified connectivity.

Intuitive autopilot control

The goal of a dedicated autopilot controller is to allow immediate access to autosteer functionality, placing key controls within easy reach. Designed with that in mind, the AP44 features an intuitive interface with just four buttons and a rotary control dial that you push to enter.

Automated turning patterns

Your Simrad autopilot can do much more than keep you on course. The AP44 gives you easy access to a range of built-in turn patterns designed to help with fishing, diving, or simply making a quick and efficient U-turn.

Simrad Continuum Management

Every Simrad steering innovation is based on a legacy spanning over sixty years of autopilot development, which continues to this day at Simrad Yachting's autopilot research center in Norway.

Easy setup with auto-tuning and calibration

NAC-3

Installing and commissioning the autopilot doesn't have to be difficult or time-consuming. The AP44 offers automatic tuning to ensure optimal autopilot performance, with a simple on-screen commissioning process that includes port setup and sea trial.

The NAC-3 autopilot computer is the brains behind your autopilot system. NAC-3 contains the control algorithms developed to steer a yacht in a wide range of weather and sea conditions, along with the electronics necessary to operate a hydraulic or mechanical drive unit, while also interfacing with other components including heading sensors and rudder feedback units. The NAC-3 was designed for boats 10 meters (33 feet) or longer and is rated to operate high-current hydraulic drives, mechanical drive units, and solenoid valves with a current rating of 30 amps continuous (50 amps peak).

The Precision Compass 9

The Precision-9 Compass provides heading and rate-of-turn information to Simrad, B&G, and Lowrance pilot, radar, and navigation systems. Based on reliable solid-state sensor technology, this compact compass offers easy installation aboard any vessel.

• Heading, rate of turn (ROT), roll and tone output over NMEA 2000®.
• Heading and ROT are calculated using data from 9-axis rotation and motion sensors.
• Accurate and reliable solid-state sensor technology.
• Heading accuracy of ±2° after calibration.
• Easily adjustable mounting bracket allows for bulkhead or up mast installation.
• IPX7 waterproof. Best in class.
• Easy installation with a single NMEA 2000® connection.

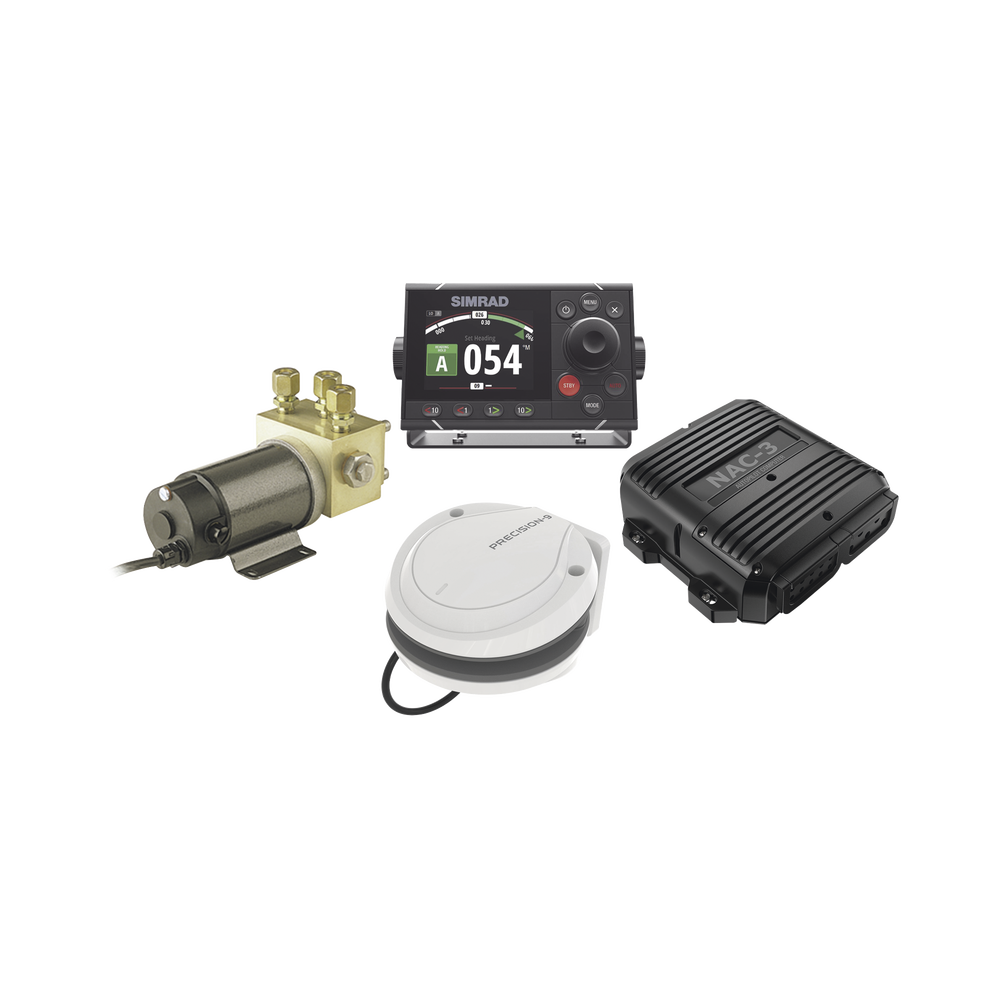

Includes:

• AP48 Autopilot Controller
• NAC-3 AUTOPILOT COMPUTER.
• PRECISION COMPASS-9.
• N2K-PWR-RD.
• TR-120-KIT.
• RPU160 ALL REGION.
