cnPilot e600 Indoor WiFi Access Point for high coverage and user density, Dual Band, Wave 2, MU-MIMO 4X4, Omnidirectional Beamforming antenna, up to 512 clients

e600 Indoor

802.11ac
Standard + MESH 512
Omi users
360º Controller
gratuitous

---

Free management in cnMaestro Comprehensive management of the entire network for inventory management, device onboarding, daily operations, maintenance, configuration, and provisioning, as well as ticket and/or voucher creation, time and bandwidth control, and a captive portal.	Designed for high capacity Triple Play Supports up to 512 active users with high traffic and up to 16 SSIDs.

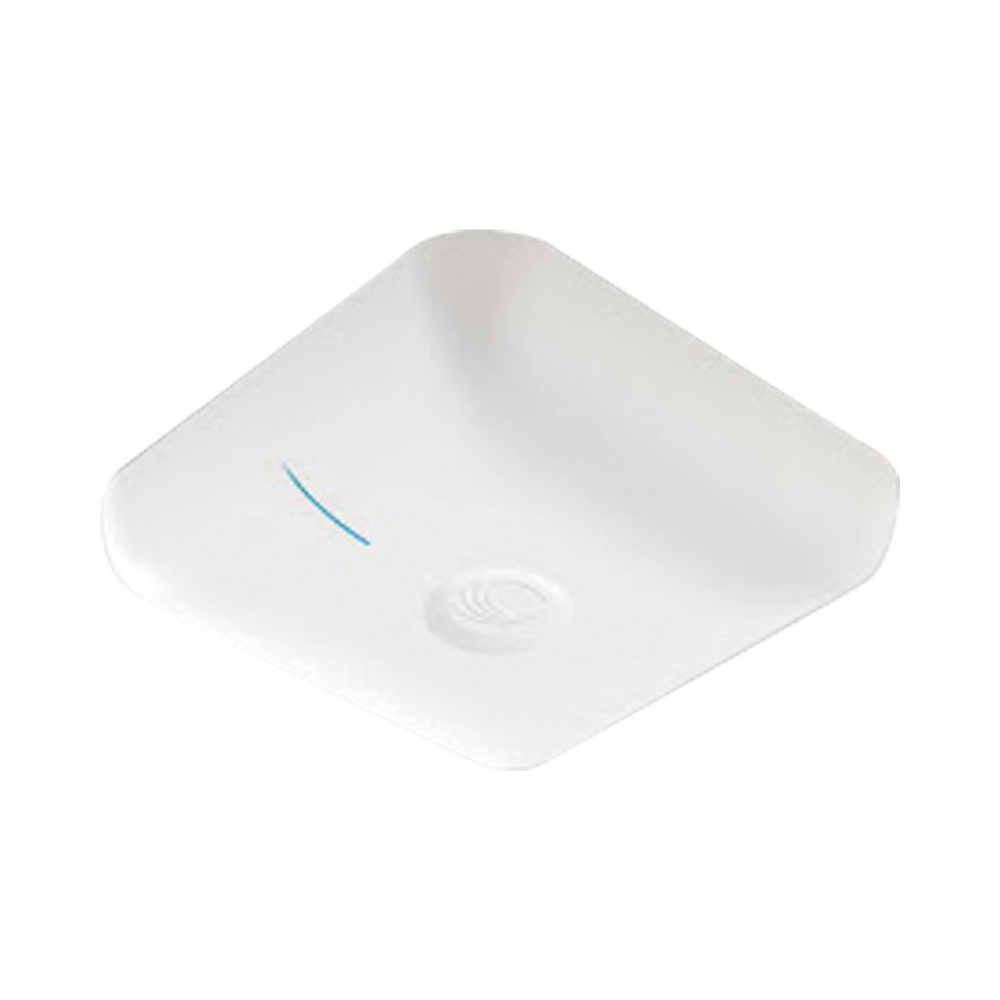

Aesthetic design for ceiling Designed to be installed on the ceiling of hallways or offices without sacrificing the aesthetics that a network device might create, it adapts to any setting.	Roaming and MESH Backhauling capability for MESH designs and supports Roaming to avoid losing connectivity when moving around rooms.
Guaranteed, categorized as the best Cost-benefit Access Point The e600 offers a reliable, high-capacity indoor Wi-Fi networking solution at a significantly lower cost than its high-end competitors. You'll save network nodes, and we guarantee the equipment for 5 years.	Monitor what's happening on your network. Limit access to restricted pages using the cn Maestro ACL

cnPilot e600 Indoor MU-MIMO4x4 delivers a maximum transmit power of 28 dBm and channels up to 80MHz wide at 5GHz, offering more flexibility, coverage and capacity than ever before.

Maximum number of connected devices: 512 Wi-Fi devices.

Operating modes: Access Point or Router (NAT, DHCP Server and Firewall).

Maximum coverage range: 250 meters with line of sight (requires Wi-Fi study to correctly calculate coverage, free with cnPilot equipment)

Main features:

802.11 a/b/g/n/ac Wave 2 standard.

Simultaneous dual band 2.4 and 5 GHz.

MU-MIMO 4X4.

Up to 400 Mbps at 2.4 GHz.

Up to 1733 Mbps at 5 GHz.

Beamforming antenna to increase performance in communication with devices.

Omnidirectional Antennas: 5.25 dBi at 2.4 GHz and 6 dBi at 5 GHz.

Power: 24dBm at 2.4 GHz and 28 dBm at 5 GHz.

General characteristics:

Management type: Standalone, cnMaestro Cloud Managed (free), and cnMaestro on-premises VM.

Up to 16 SSIDs per radio

Fast Roaming: Browse from cell to cell without losing connection.

ACL: Create blocking rules for web pages.

ACS function for automatic channel switching to avoid interference.

Schedule SSID to activate SSID on desired days at certain times.

Captive portal Hotspot from the cloud, customizable vouchers.

Limit bandwidth per user or SSID.

Isolation between clients to prevent broadcast and multicast storms from entering the network.

Load Balancing to balance the load between each band.

Supports MESH.

Physical and electrical characteristics.

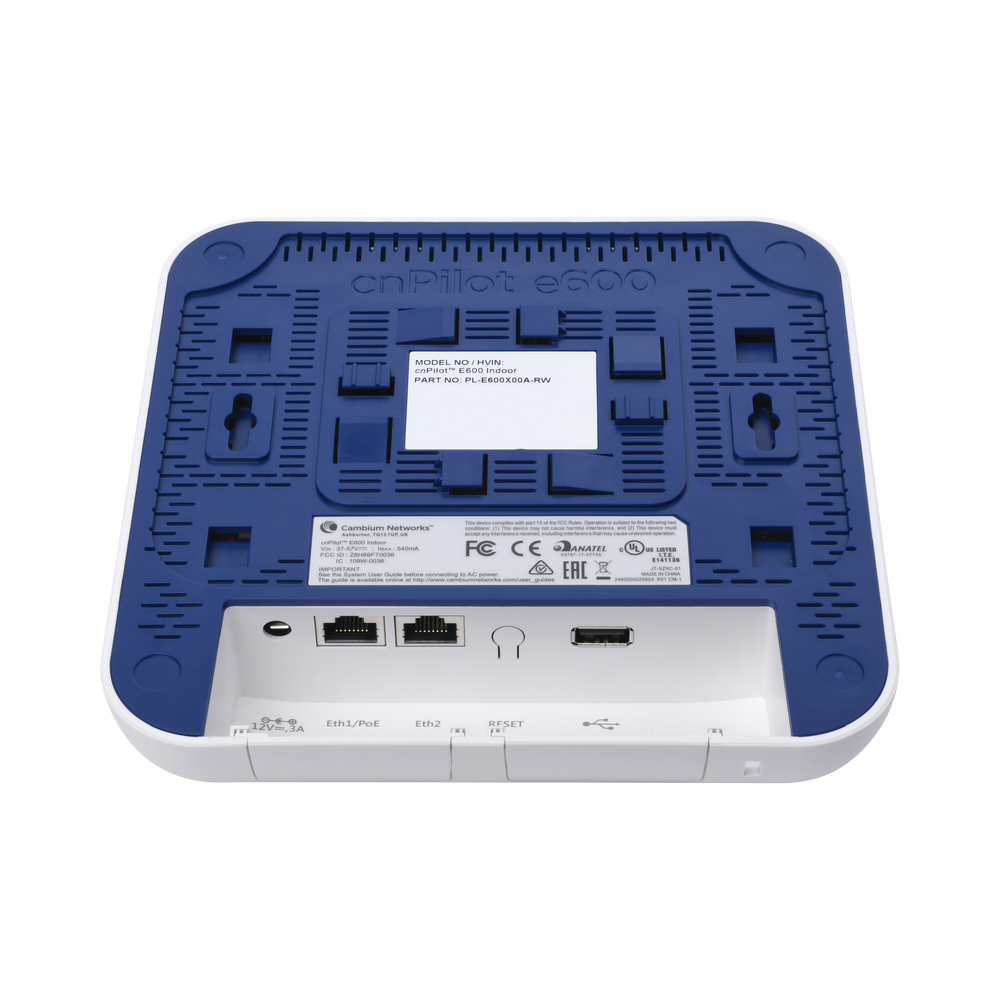

1 x 802.3at Gigabit PoE IN port, powered by cnMatrix Switches or PoE power supply model N000000L034A, not included).

1 Secondary Gigabit Ethernet port.

Maximum consumption: 22W

Free management via cnMaestro controller from the cloud, no additional equipment required.

Package includes the following:

Requires PoE power supply model N000000L034A.

Comparison with e410.

Comparison with other models.

It includes ACLs to create website blocking rules, a free Captive Portal with a cloud-based voucher creator, an ACS function for automatic channel switching to avoid interference, a Beamforming antenna to increase device communication performance, and ceiling or wall mounting.
