cnPilot e700 High-Density Outdoor WiFi Access Point, Industrial IP-67, Extreme Temperature, Dual Band, Omnidirectional Beamforming Antenna

e700 Outdoor Omni

Dual band (2.4 and 5 GHz) 512
Omi simultaneous users
360º Controller
gratuitous

Free management in cnMaestro Comprehensive management of the entire network for inventory management, device onboarding, daily operations, maintenance, configuration, and provisioning, as well as ticket and/or voucher creation, time and bandwidth control, and a captive portal.	Designed for high capacity Triple Play Supports up to 512 active users with high traffic and up to 16 SSIDs.

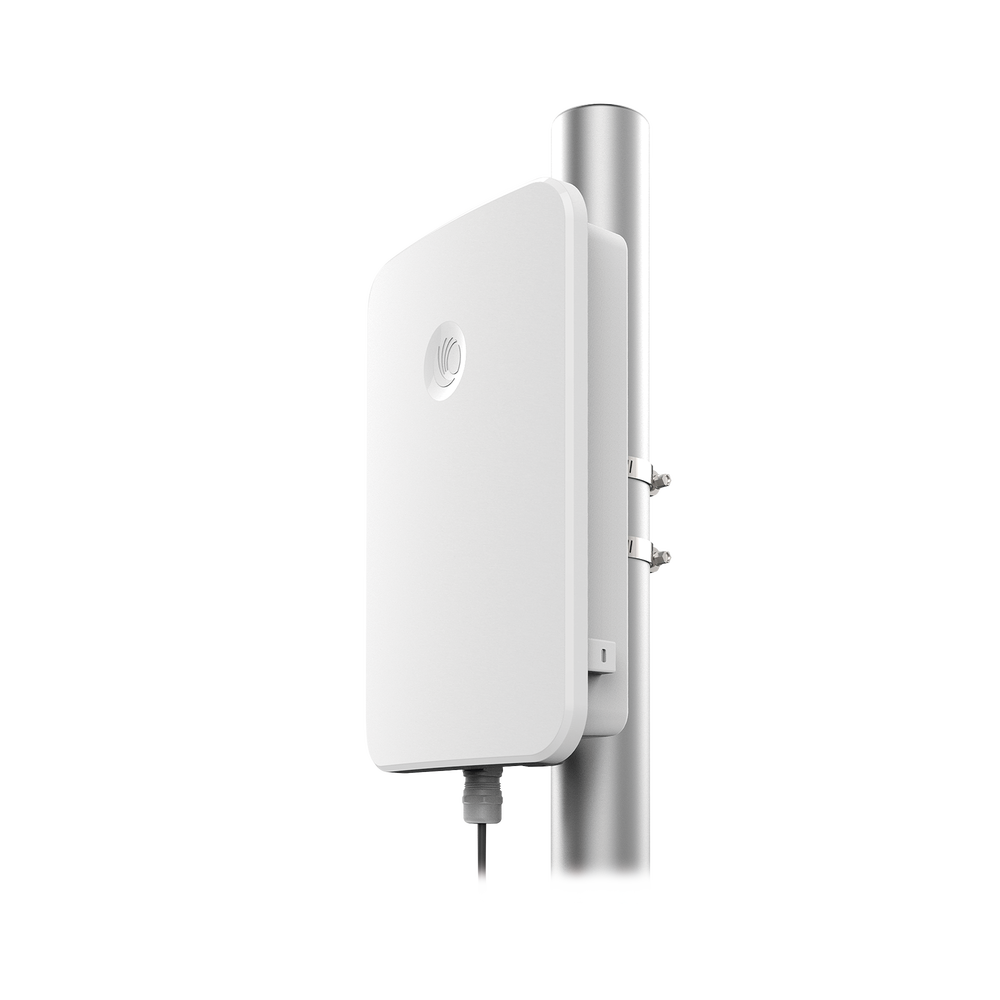

Made for high density Designed for mast installation in outdoor areas at key points for high user density, it adapts to any setting.	Roaming and MESH Backhauling capability for MESH designs and supports Roaming to avoid losing connectivity when moving within cells.
Guaranteed, categorized as the most robust Access Points Cost-benefit The e700 offers a reliable, high-capacity outdoor Wi-Fi networking solution at a significantly lower cost than its high-end competitors. You'll save on access points, and we guarantee the equipment for 5 years.	Monitor what's happening on your network. Limit access to restricted pages using the cn Maestro ACL

The cnPilot E700 Outdoor Omni is an 802.11ac outdoor access point with 4x4 MU-MIMO and simultaneous dual-band speeds of up to 2.133 Gbps. It combines ease of installation with the free cloud management of cnMaestro. The e700 is ideal for operators looking to extend their business network in high-density user environments and extreme environmental conditions, providing Wi-Fi connectivity to devices such as smartphones, tablets, and laptops.

Maximum number of connected devices: 512 Wi-Fi devices.

Operation mode: Access Point or Wireless Router (NAT, DHCP Server and Basic Firewall).

Main features:

• LTE interference filter; helps prevent interference from LTE equipment.
• IP67, with industrial-grade hardware for temperatures from -40 to 65°C.
• 360° coverage.

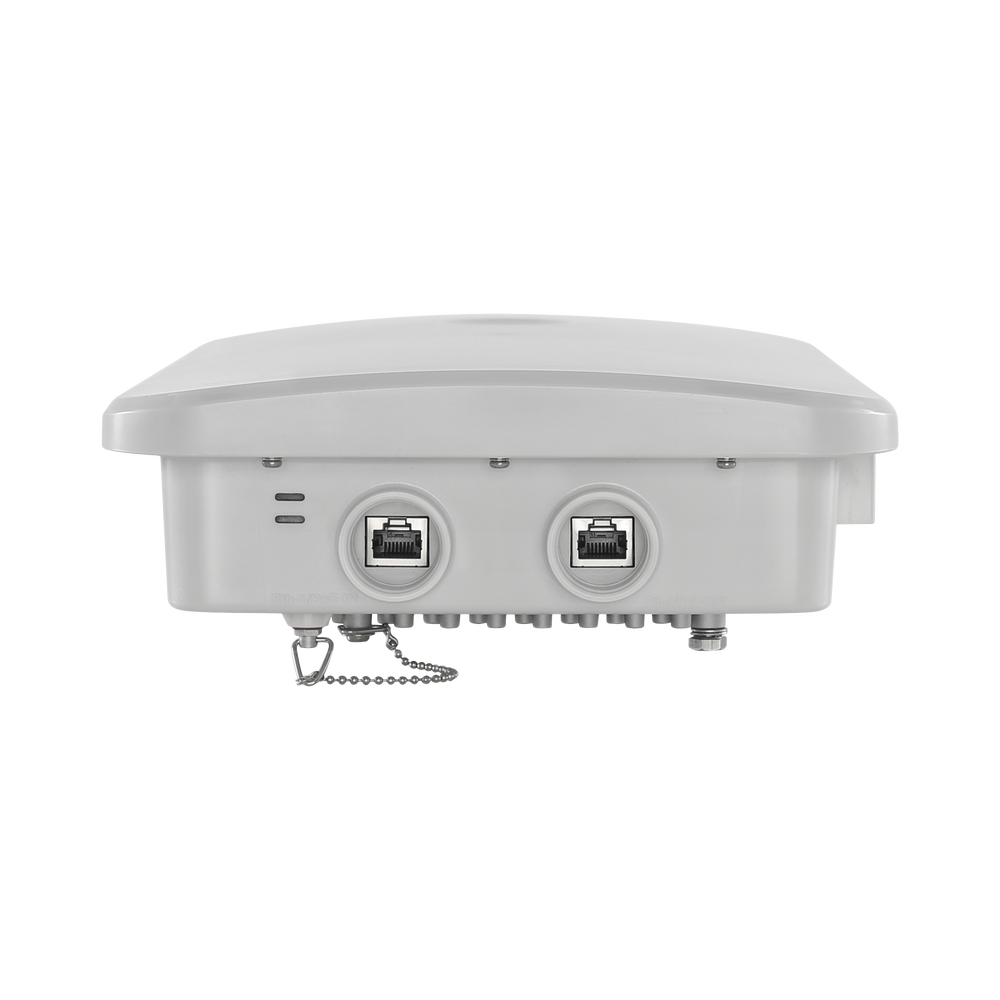

• Secondary PoE port to power Cambium equipment or 802.3af devices (to activate, the equipment must be powered with PoE model POE-450I and you must install protective gland model N000065L033A)
• ESD protection to prevent electrostatic discharge.
• Kensington slot to secure the equipment in place.

General characteristics:

• Simultaneous dual band, 802.11 a/b/g/n/ac standard
• 2X2 MIMO 2.4 GHz and 4X4 MU-MIMO 5 GHz
• Output power: 2.4 GHz: 25 dBm (316 mW), 5 GHz: 28 dBm (630 mW).
• Integrated 8 dBi omnidirectional antenna on both bands.
• Performance: 400 Mbps @ 2.4 GHz, 1733 Mbps @ 5 GHz.
• Consumption: 17.2W without activating secondary PoE or 30.2W if activating secondary PoE
• Input power: 802.3at or with passive PoE model N000000L034A
• Supports up to 16 SSIDs.

Package includes the following:

*Requires 802.3at PoE switch or PoE power supply model N000000L034A.

cnPilot comparison for outdoors.

Beamforming antenna to increase device communication performance, Secondary port to power ePMP, PMP 450, or 802.3af devices, IP-67 industrial grade for extreme temperatures -40 to 65°C, Special filters for coexistence with LTE networks, Pole or wall mounting accessories (included)
