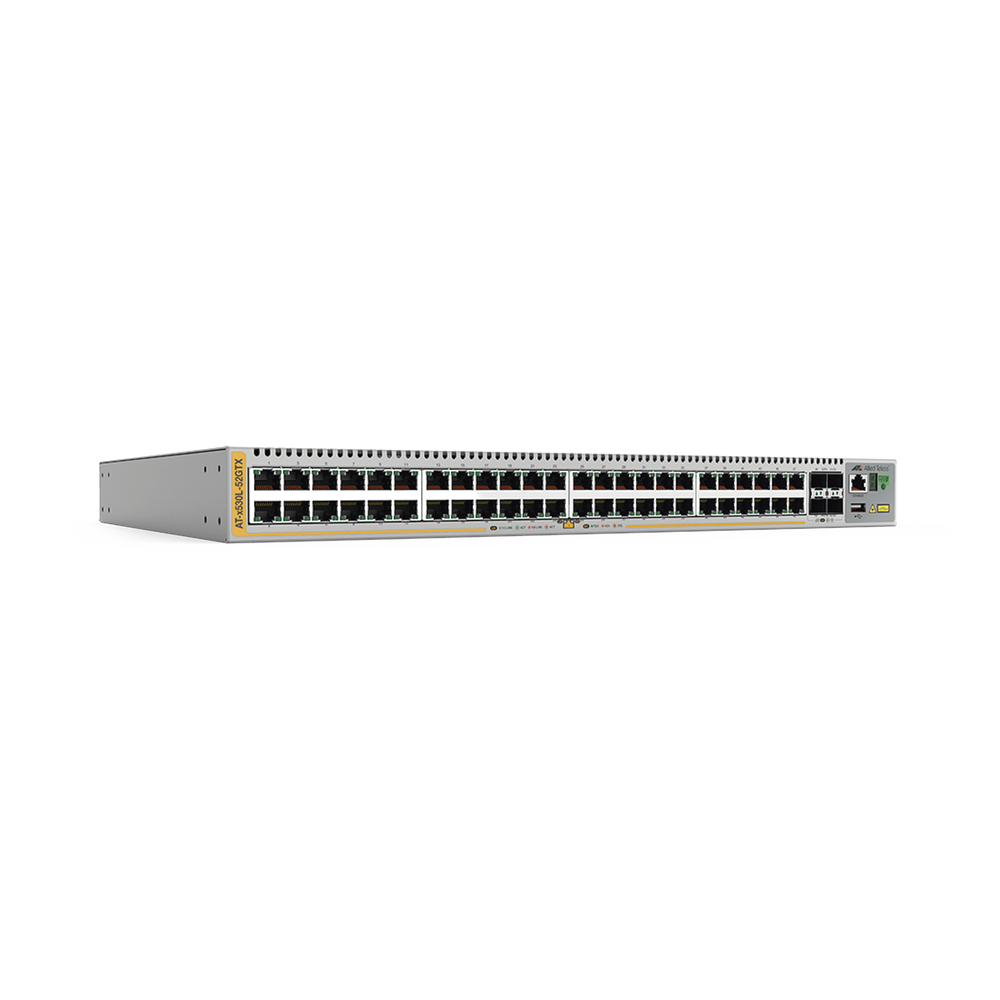

Smart distribution or core switch, Stackable, Layer 3, 48 x 1000 Mbps + 4 x SFP+ 10 G, Dual redundant power supply

Ports:

48 10/100/1000 Mbps ports.

4 SFP+ 10G ports (2 are stacked).

Forwarding rate: 130.9 Million packets per second (Mpps).

Switching fabric: 176 Gbps.



Operating system:

AlliedWare Plus™.



Administration:

Command Line Interface (CLI).

Telnet.

SSH.

SNMP v1, v2c & v3 monitoring.



General characteristics:

Voice VLAN.

VLAN Mirroring (RSPAN).

Access Control Lists (ACLs).

VLAN ACLs.

Storm protection.

Loop protection.

Multicast support -IGMP snooping (v1, v2 and v3)

Tri-authentication.

QoS (Quality of Service):

• 8 priority queues.
• Limit bandwidth by port or traffic class.



Routing protocols :

Static routing.

Border Gateway Protocol (BGP).

Routing Information Protocol (RIP).

Open Shortest Path First (OSPFv3).

AT-FL-x530L-01 Premium Layer 3 License.



Redundancy features:

G.8032 Ethernet Ring Protection.

Ethernet Protection Switched Ring (EPSRing).

Multiple Spanning Tree Protocol (MSTP).

Rapid Spanning Tree Protocol (RSTP).



Physical and electrical characteristics:

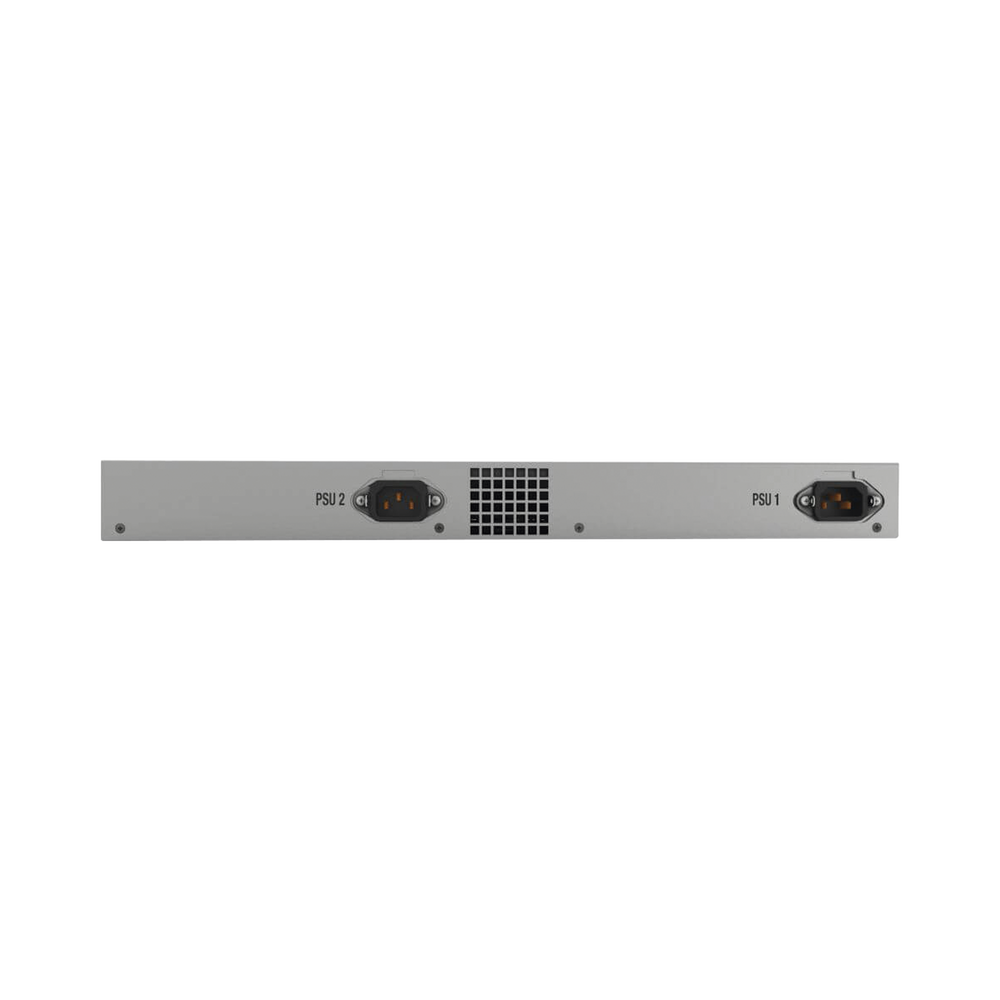

Power supply: 100-240 VAC, 47-63 Hz.

Dimensions: 1 U Rack, 44 x 421 x 441 mm.

Weight: 5.2 kg.

Operating Temperature: 0 to 50° C.



Warranty:

1 year.

Example of a high-performance business network.

Fully autonomous systems

Continuous PoE Technology

Vista Manager EX Traffic Monitoring

Vista Manager EX VLAN

Active Fiber Monitoring

Stackable up to 8 units, Build a reliable network as a core switch or distribution switch, Supports VCStack up to 8 local or long-distance units, Supports Autonomous Management Framework (AMF) and Vista Manager EX, Supports Active Fiber Monitoring (AFM)
