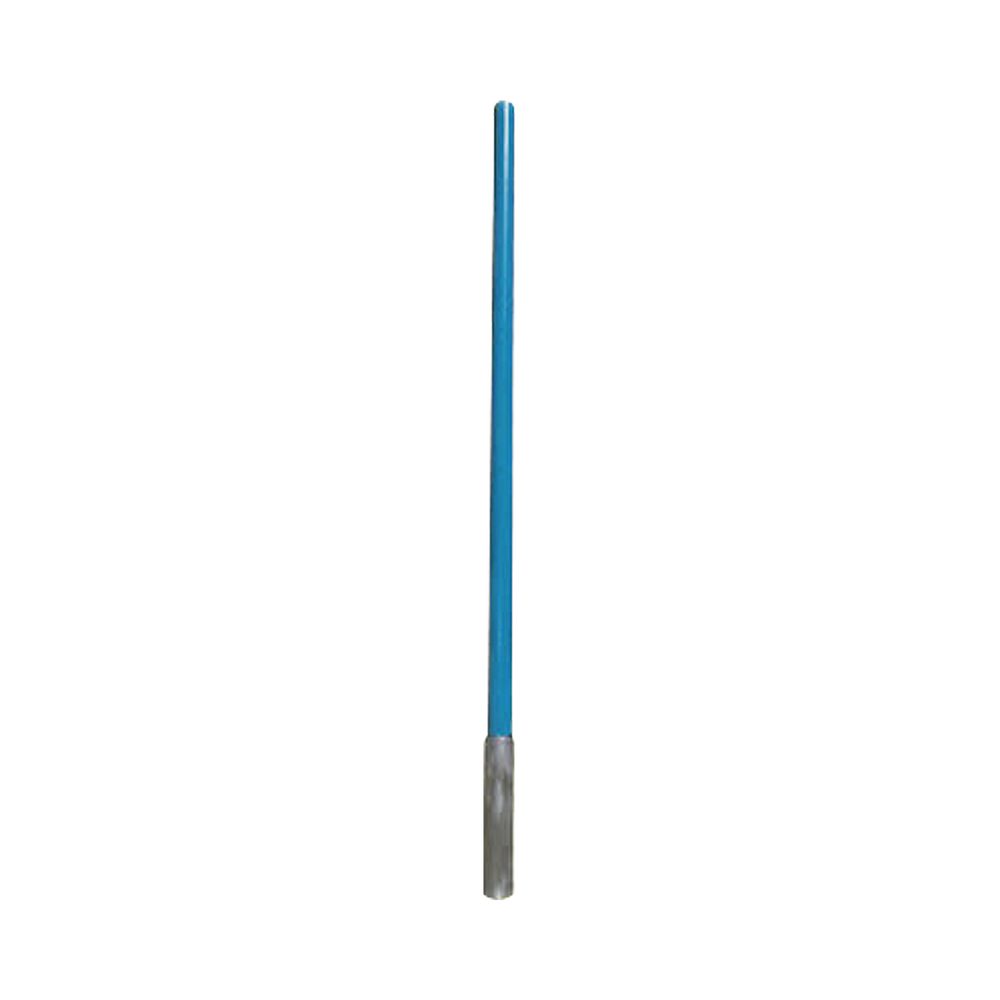

Fiberglass Collinear Omni Antenna for Base, 380-430 MHz, 9 dBd, 50 MHz B/W, 500 Watt, DIN 7-16 Female.

Fiberglass Collinear Omni Antenna for Base, 380-430 MHz, 9 dBd, 50 MHz B/W, 500 Watt, DIN 7-16 Female.

Collinear Omni Fiberglass Antenna, 380-430 MHz, 9 dBd, 500 Watt, DIN 7-16 Female.

• Frequency Range: 380-430 MHz.
• Bandwidth: 50 MHz.
• Gain (nominal): 9 dBd (11.1 dBi).
• VSWR (max): 1.5:1
• Polarization: Vertical.
• Impedance: 50 Ohm.
• Pattern: Omni-directional.
• Vertical Opening (typ.): 6.9º
• Average Power Input: 500 Watt.
• Discharge protection: DC grounding.
• Connector: DIN 7-16 Female.
• Dimensions (Height/Width/Depth): 7036/ 127/ 127 mm.
• Tube Base Diameter: 127 mm.
• Base Tube Mount Length: 660mm.
• Weight: 35.87 kgs .
• Wind resistance: 274 km/h.
• Electric Tilt: 10°

*Ask for delivery time.
