Preselector 375-440 MHz, Bandwidth 2-15 MHz, Insertion Loss 2.0 dB @ 5 MHz, N Females.

Preselector 375-440 MHz, Bandwidth 2-15 MHz, Insertion Loss 2.0 dB @ 5 MHz, N Females.

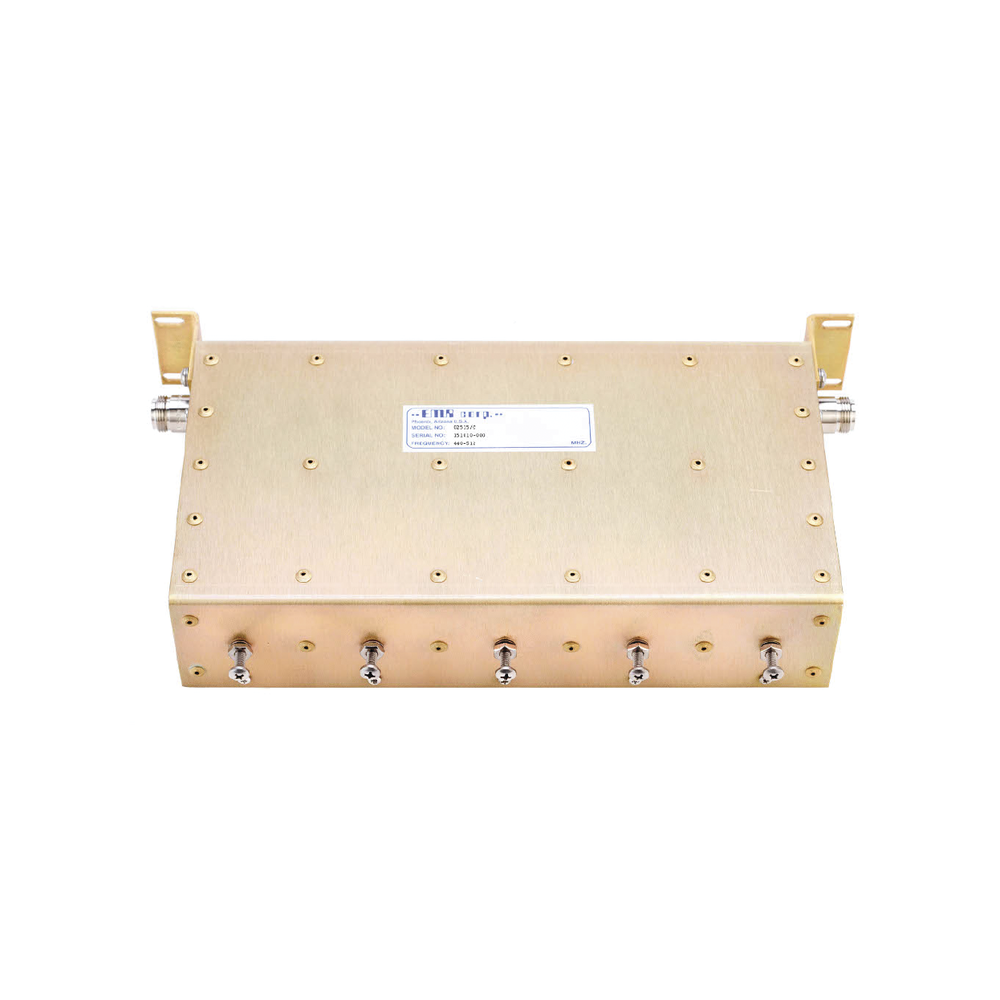

Compact UHF Preselector in 375-440 MHz with 5 Resonators.

Electrical Specifications

• Frequency Range: 375-440 MHz.
• Bandwidth: 2-15MHz.
• Insertion Loss (Typical): 2.0 dB @ 5 MHz Sep.
• Number of Resonators: 5.
• Input Power: Application for Rx only.
• VSWR (Max.): 1.2:1
• Impedance (Nom.): 50 Ω.
• Connectors: N Female.

Mechanical Specifications

• Finish: Tropicalized Galvanized.
• Dimensions: (Height x Width x Depth): 51 x 292 x 127 mm.
• Shipping Weight: 1.8 kg.

Environmental Specifications

• Operating Temp. Range: -20 to +50 °C

*Ask for delivery time.
