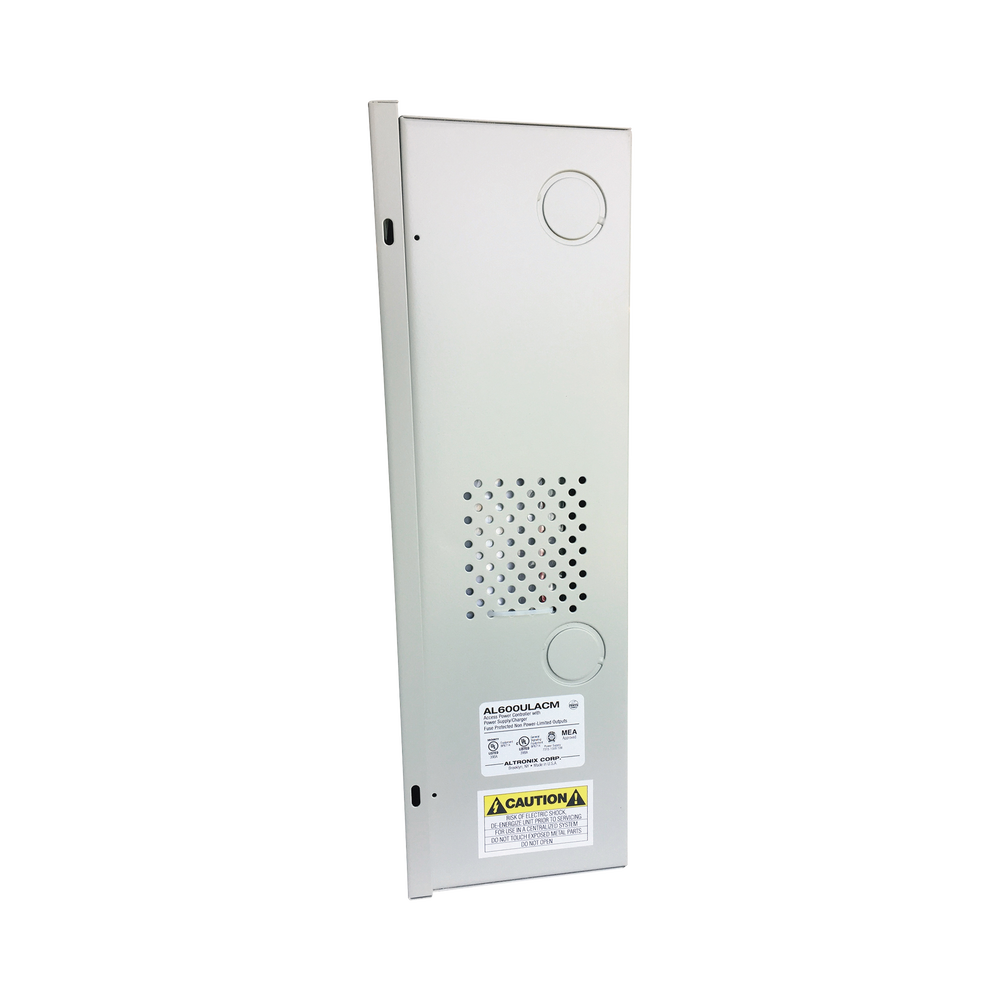

ALTRONIX 12/24 VDC @ 6 Ampere power supply, with battery backup capability, requires battery, 8 outlets, with 115 VAC input voltage

ALTRONIX 12/24 VDC @ 6 Ampere power supply, with battery backup capability, requires battery, 8 outlets, with 115 VAC input voltage

Entrance:

Input 115VAC 60Hz nominal @ 3.5A.

• Eight (8) access control system activation inputs.

Input options:

• a) Eight (8) normally open (NO) inputs.
• b) Eight (8) open collector inputs.
• c) Any combination of the above.

Exit:

• 12VDC or 24VDC @ 6A supply current.
• Eight (8) independently controlled outputs.

Exit options:

• a) Eight (8) fail-safe and/or fail-safe power outlets.
• b) Eight (8) 'C' rated 5A relay outputs
• c) Any combination of the above.
• Eight (8) auxiliary power outlets (unswitched)

Supervision:

• AC fault supervision (form 'C' contacts).
• The notification trigger can be selected for 30 seconds (factory set) or 6 hours.
• Low battery and battery presence supervision (contact 'C').

Characteristics:

• Fire alarm disconnection (latching or non-latching) can be individually selected for any or all of the eight (8) outputs.
• Fire Alarm Disconnect Input Options:
• a) Normally open (NO) or normally closed (NC) dry contact input.
• b) Polarity reversal input of the FACP signaling circuit.
• The alarm output relay indicates that the FACP input (form 'C' contact rated at 1A 28VDC) is activated.
• Short circuit and thermal overload protection.
• AC fault supervision (form 'C' contact).

Backup Battery Capacity:

• Built-in charger for sealed lead acid or gel batteries.
• With backup battery capacity.
• Battery not included.
• Suggested batteries: PL4.512 / PL712 / PL912.
• Automatic switch to battery backup when AC fails.
• Zero voltage drop when units switch to battery backup (AC fail condition).
• Battery failure and battery presence monitoring (contact 'C').

Temperature:

• Operating: 0ºC to 49ºC (32ºF to 120ºF).
• Storage: - 20ºC to 70ºC (- 4ºF to 158ºF).
