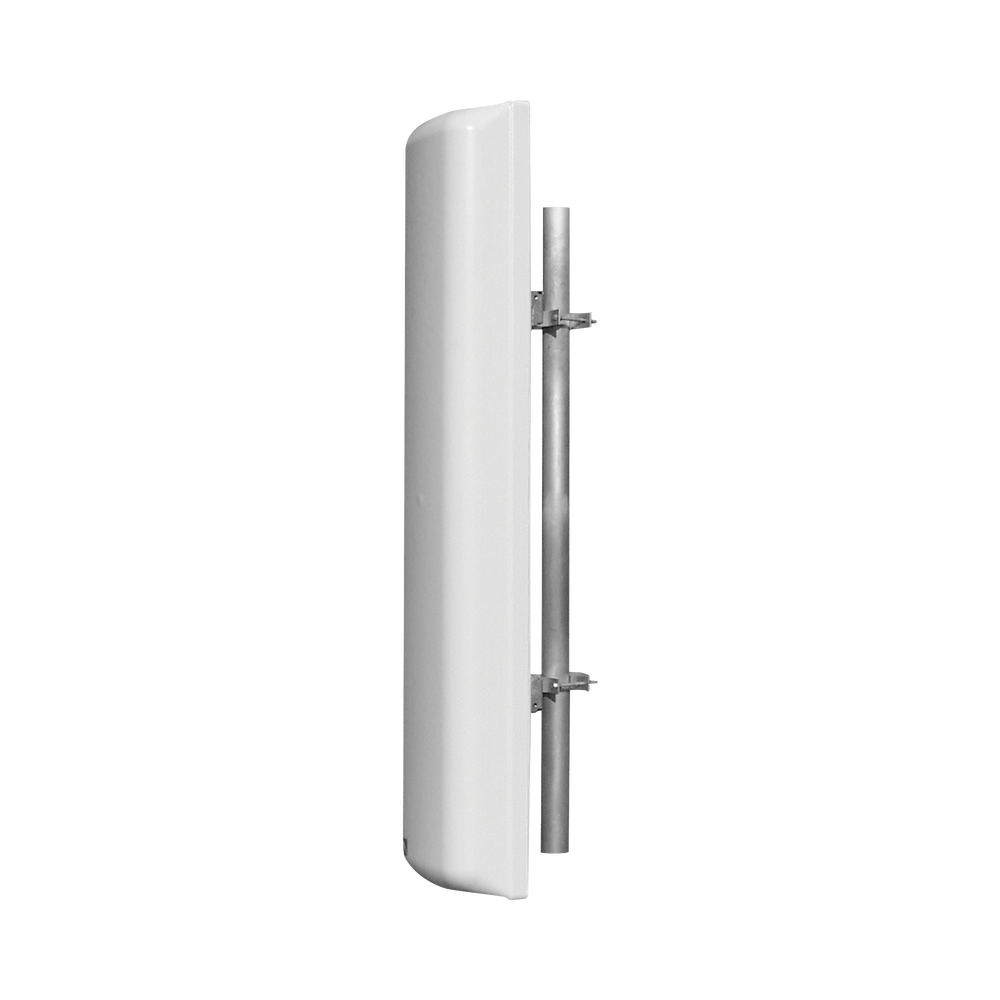

380-512 MHz Sector Antenna, 10.5 dBd, 90 Degree Opening, 132 MHz Bandwidth, 7-16 DIN Female.

380-512 MHz Sector Antenna, 10.5 dBd, 90 Degree Opening, 132 MHz Bandwidth, 7-16 DIN Female.

Sector Antenna 380-512 MHz, 10.5 dBd, 90° Opening, 7-16 DIN Female.

• Frequency Range: 380-512 MHz.
• Bandwidth: 132 MHz.
• Gain (nominal): 10.5 dBd (12.6 dBi).
• VSWR (max): 1.5:1
• Polarization: Vertical.
• Impedance: 50 Ohm.
• Pattern: Directional.
• Horizontal Opening (typ.): 90°
• Vertical Opening (typ.): 18º
• Average Power Input: 500 Watt.
• Passive Intermodulation: -150 dBc
• Discharge protection: DC grounding.
• Connector: 7-16 DIN Female.
• Dimensions (Height/Width/Depth): 1956/ 483/ 216 mm.
• Tube Base Diameter: 73 mm.
• Weight: 21.11 kgs .
• Wind resistance: 217 km/h.
• Electric Tilt: 10° (Optional)

*Ask for delivery time.
