WiFi Access Point and Repeater, Up to 2.2 Gbps, MU-MIMO, "Three Simultaneous Radios" (2.4/5/5 GHz), +400 Simultaneous Users, Up to 400 Mbps in 2.4 GHz and 867 Mbps per radio in 5 GHz

WiFi Access Point and Repeater, Up to 2.2 Gbps, MU-MIMO, "Three Simultaneous Radios" (2.4/5/5 GHz), +400 Simultaneous Users, Up to 400 Mbps in 2.4 GHz and 867 Mbps per radio in 5 GHz

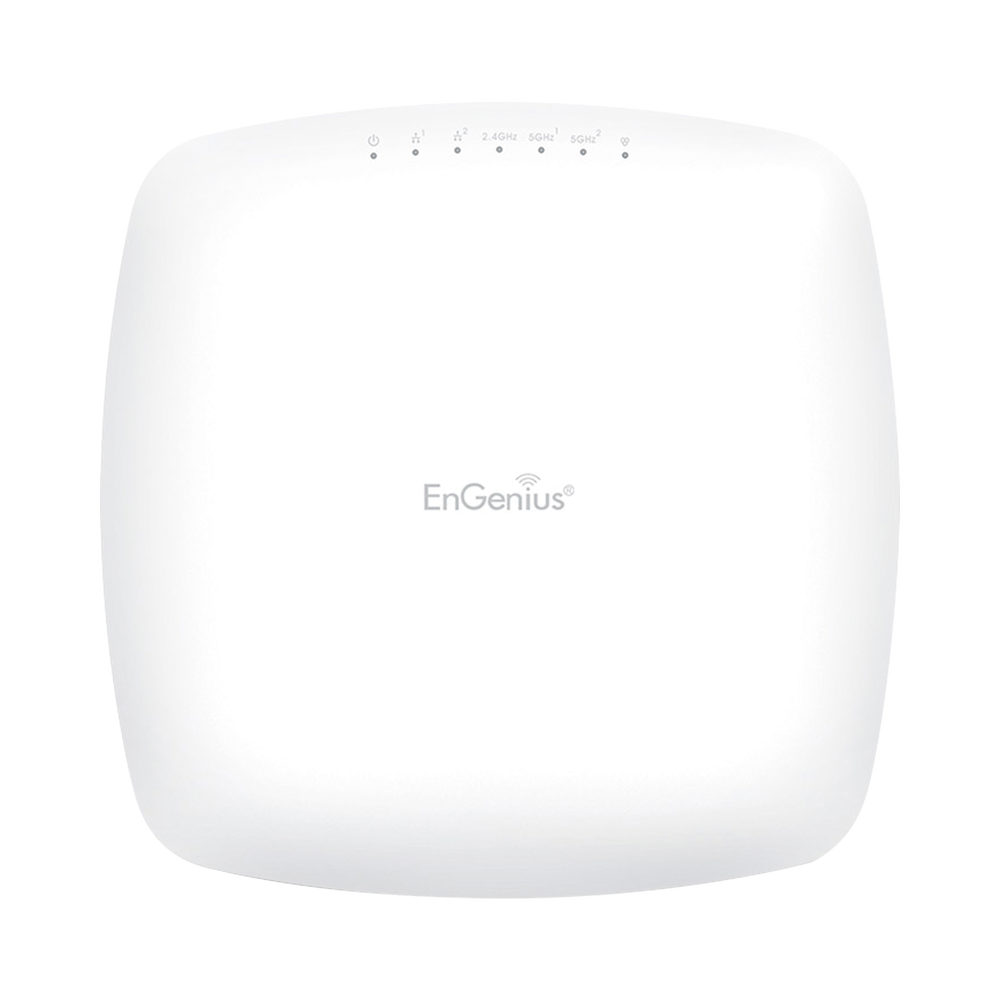

The EnGenius EnSky™ line of access points utilizes enhanced 11ac Wave 2 technology, delivering faster wireless network performance, more concurrent devices per access point, and improved reliability for seamless networking.

Main Features

• Indoor Access Point.
• Ceiling Mount.
• Supports Simultaneous Dual Band.
• It has 3 Radios (1 in 2.4 and 2 in 5 GHz).
• Supports 24 SSIDs (8 on 2.4 GHz and 16 on both 5 GHz bands).
• MAC address filtering, up to 32 MACs per SSID.

Modes of operation

• Access point, Mesh, Universal repeater.
• WDS: WDS AP, WDS Bridge.

Standards

• IEEE 802.11 b/g/n at 2.4 GHz.
• IEEE 802.11 a/n/ac at 5 GHz.

Integrated Omnidirectional Antennas

• 2 on 2.4 GHz at 5 dBi.
• 4 in 5 GHz at 5 dBi.

Transmission power

• Up to 22 dBm at 2.4 GHz.
• Up to 22 dBm at 5 GHz.

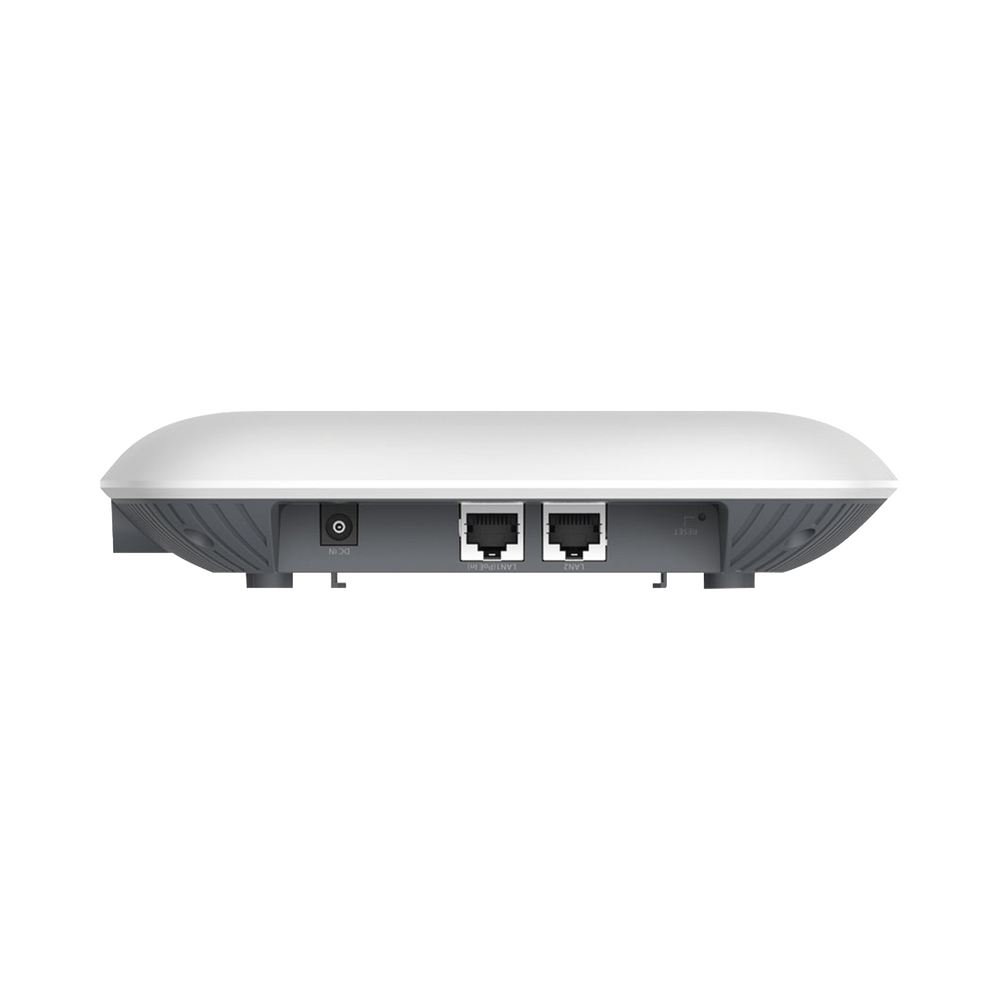

Physical interface

• 2 RJ-45 Gigabit Ethernet 10/100/1000 BASE-T port.
• 1 Jack for DC adapter.(12V DC / 1A power supply Not included )
• 1 reset button.

Power supply

• Supports 802.3af Power over Ethernet.
• Maximum consumption of 10 W.

Administration

• Stand-Alone
• Neutron Series Switch (Local Management)
• ezMaster Platform (Remote Management)
• SkyKey (Remote Management)
• EnGenius Cloud (Ask the engineering department for the procedure to add this device to EnCloud).

Package contents

• EWS385AP Access Point
• T-rail mounting kits
• Screw kits for ceiling and wall mounting
• Mounting brackets
• RJ-45 Ethernet cables
• Quick Installation Guide

Mobile application for EnWiFi management

Cloud management solution

Administration with ezMaster Platform

Three simultaneous radios, Up to 30% faster throughput than a Wave 1 3x3 AP, Supports IEEE802.3af PoE, More user capacity (MU-MIMO technology), Easy to configure
