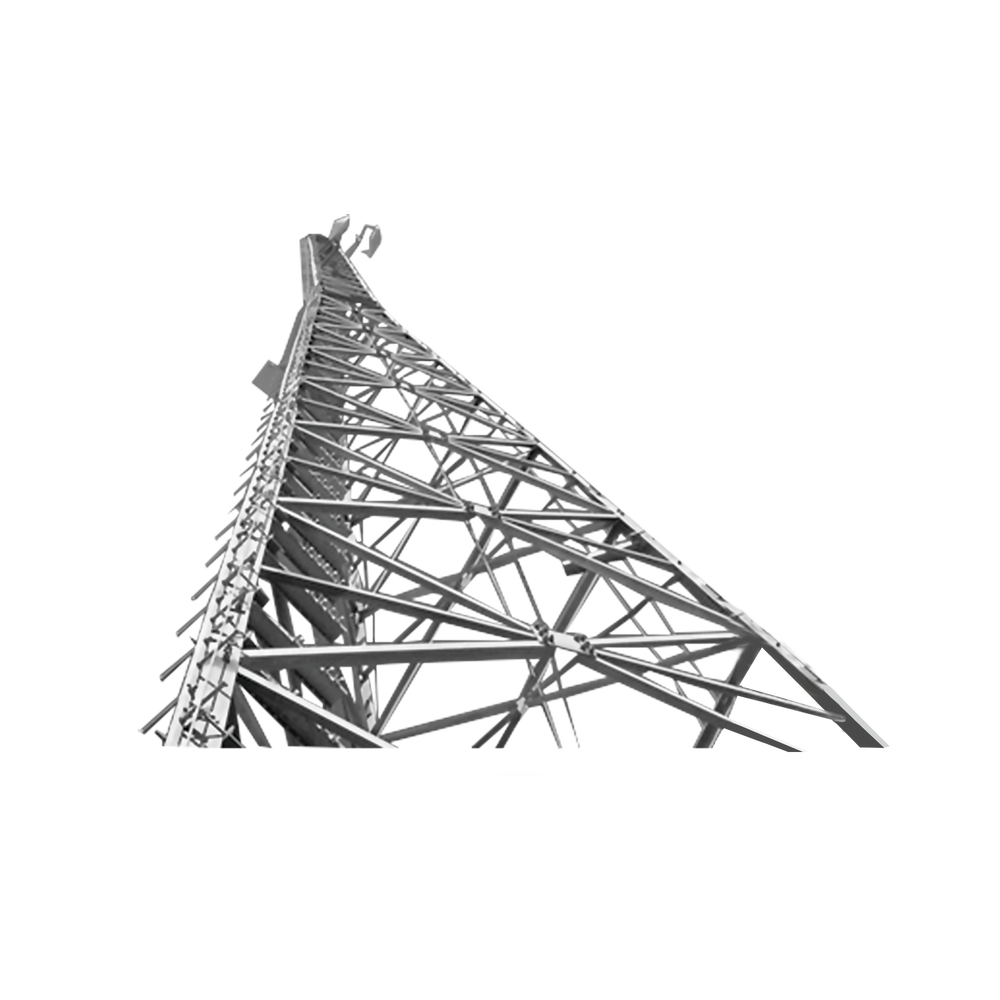

SUPER TITAN S-1100 30.48 meter (100 foot) Self-Supporting Tower with Anchorage.

SUPER TITAN S-1100 30.48 meter (100 foot) Self-Supporting Tower with Anchorage.

The SuperTitan KD is a modular tower that can rise up to 190 feet in height. This modular system can be configured to create different types of towers, varying heights and load capacities.
The SuperTitan KD design meets ANSI-TIA-222 F & G standard.



Specs:

Type: Self-supporting.

Height of each section: 10' (3m).

Total Height: 30.48m (100').

Model: S-1100

Sections included: 11HD, 12HD, 13, 14, 15, 16, 17, 18, 19 and 20.

Designed to comply with TIA/EIA-222 standard.

Applications:

Emergency services (police, fire, etc.).
SCADA systems.
Ideal for base stations with higher load parameters.
Towers for base station installation.

Additional accessories ( Not included ).

Quantity Model            Description

2 TRY-ST-STEP10 Bolt-on Tower Steps. Sections 1 to 12, 10-piece kit.

8 TRY-ST-STEPW 3m Bolt-Type Ladder with Welded Section for Towers. Sections 13 to 21.

1 TRY-ST-LV100 Lifeline up to 30.48 m (100 ft). Compatible with Super Titan line.

1 TRY-TLR Solid Lightning Rod Tip for Tower Structure.

1 TRY-ST-GROUND3 3-Leg Landing System for ST towers.

38 TRYSTBRKT4H 4-Hole Cable Guide Bracket for ST Tower.

1 TRYSTANTIC13 Anti-scale system for tower, sections 13-21.

2 EIGSL HE * Autonomous Obstruction Lamp with red LED and Solar Panel.

2 HLU3TA Base for EIGSLE Obstruction Lamp.

* Two at the tip.

Optimized Packaging System:
