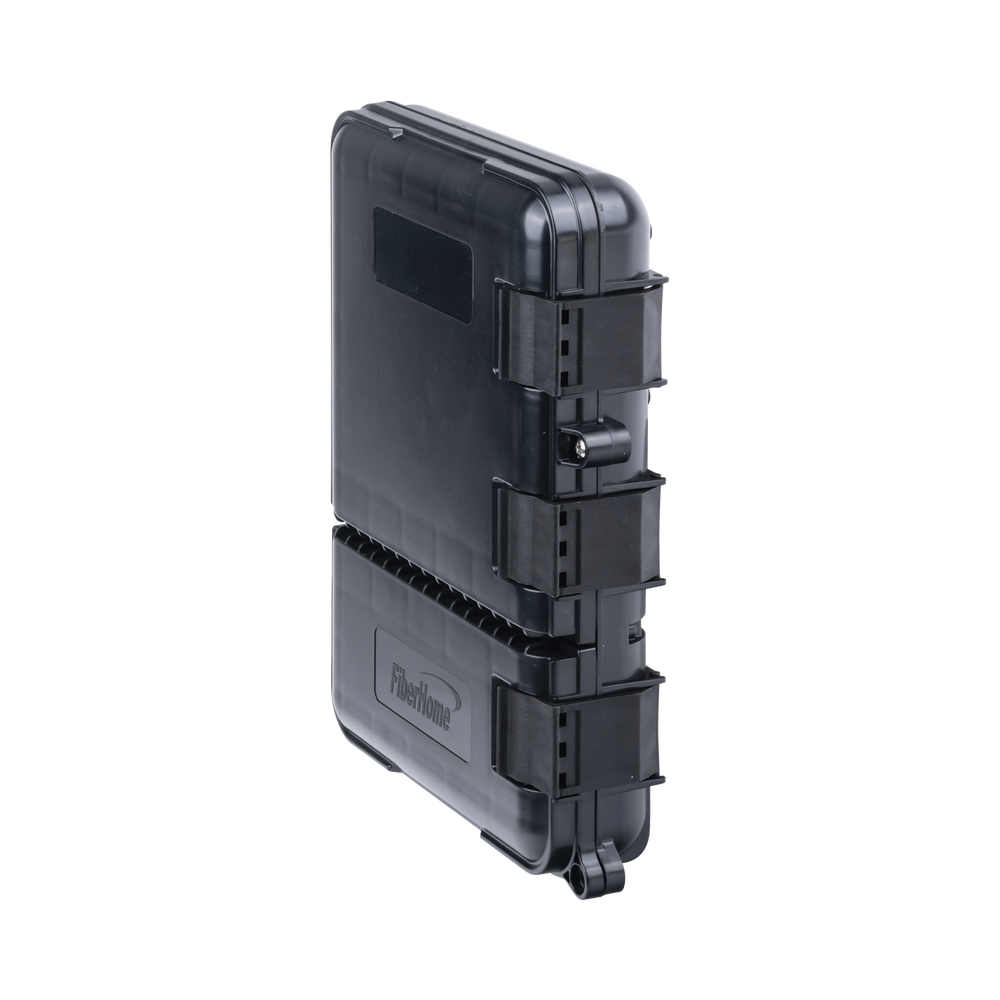

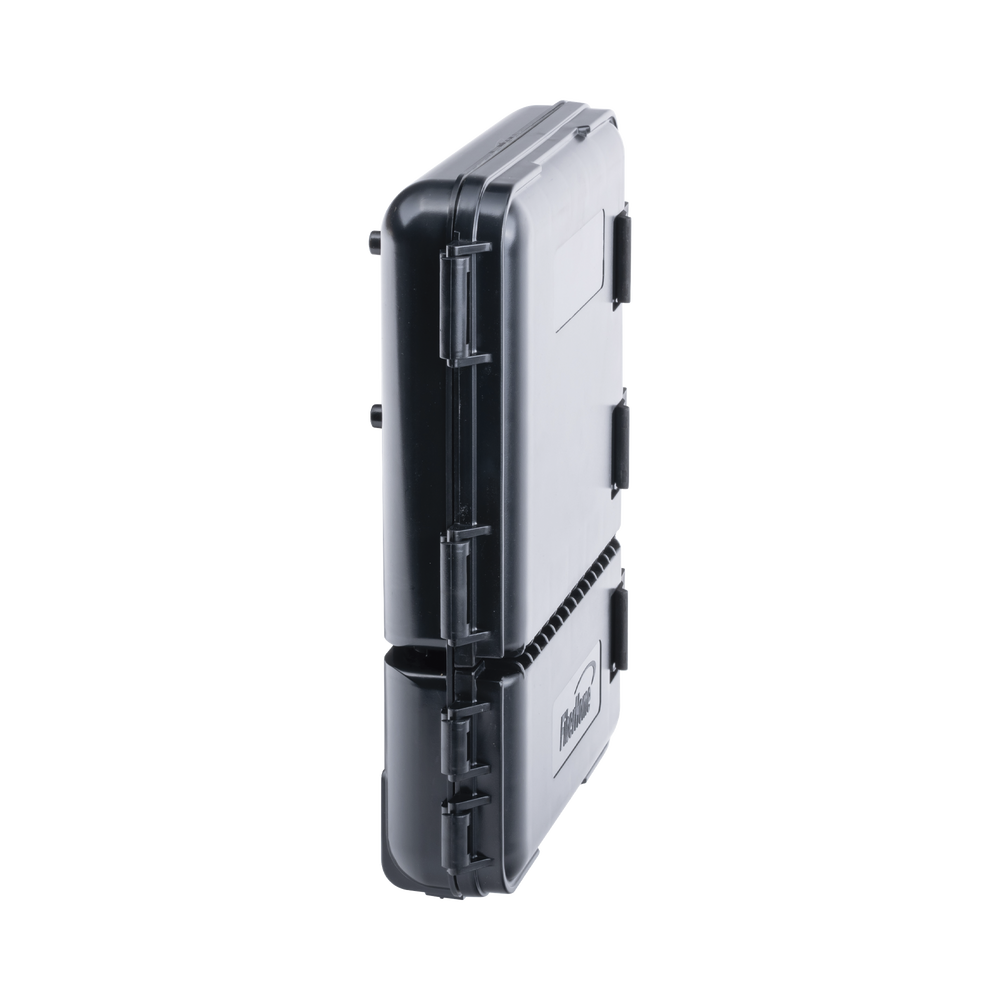

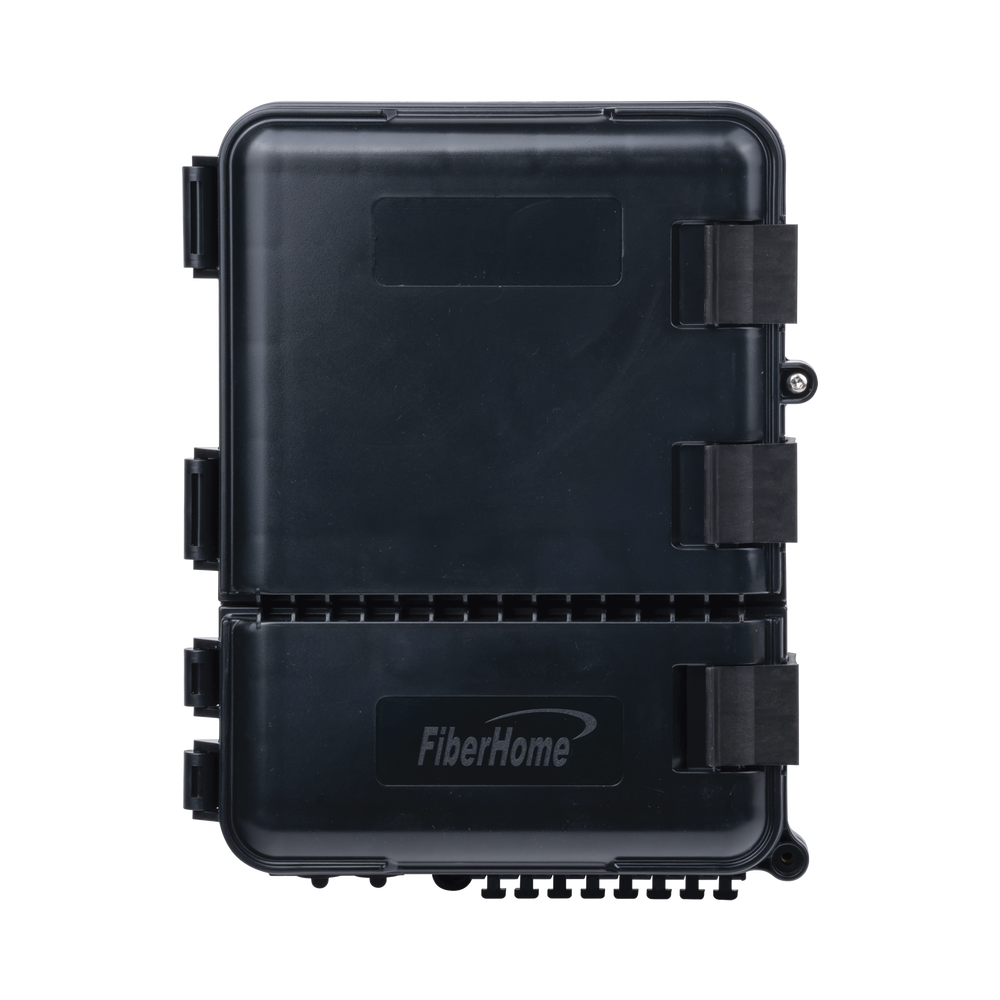

Fiber Optic Distribution Box for 24 Splices, with 8 SC/APC Simplex Couplers, IP55 Exterior, Black

Fiber Optic Distribution Box for 24 Splices, with 8 SC/APC Simplex Couplers, IP55 Exterior, Black

The FDP-440A fiber distribution box provides a protected access point between the distribution fiber and the drop fiber. To simplify network installation and maintenance, FiberHome splice boxes provide an ideal connection point. A 900 µm pigtail can be added. With an IP55 protection rating, it is adaptable to any harsh environment, even with limited space.

Characteristics

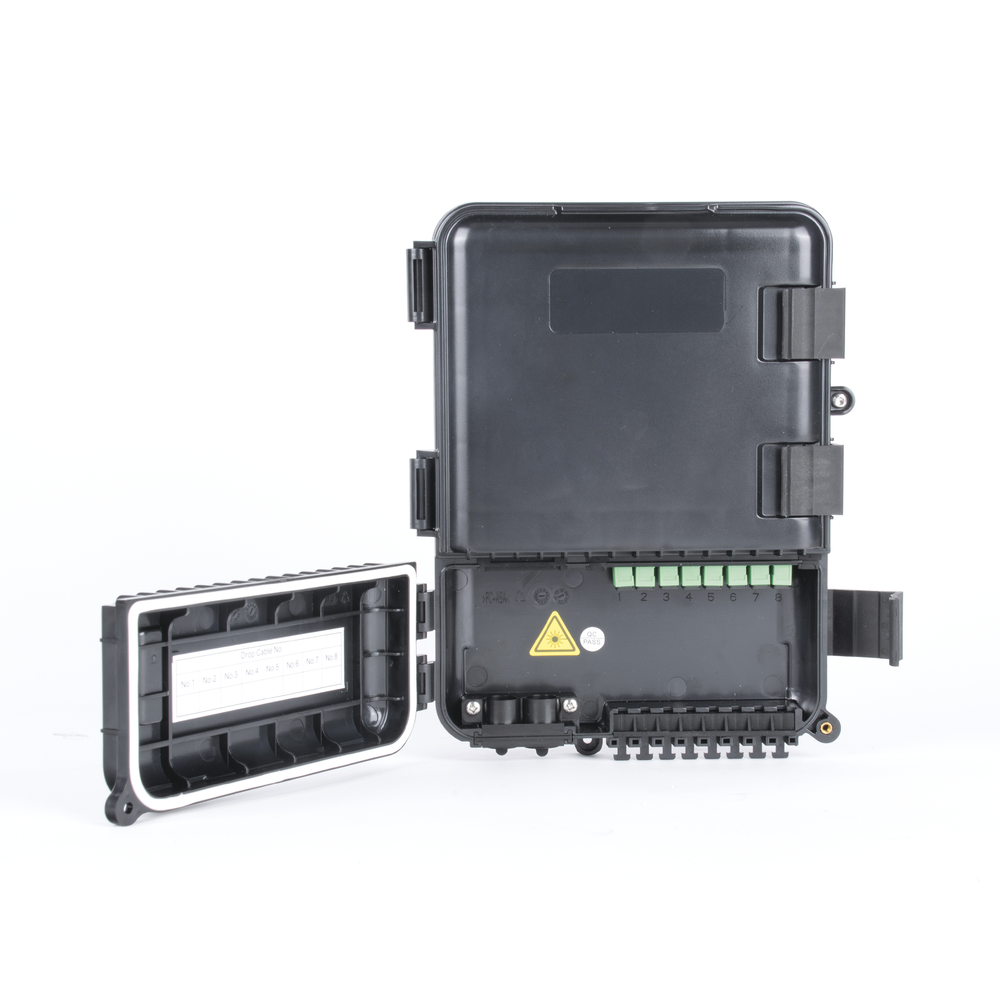

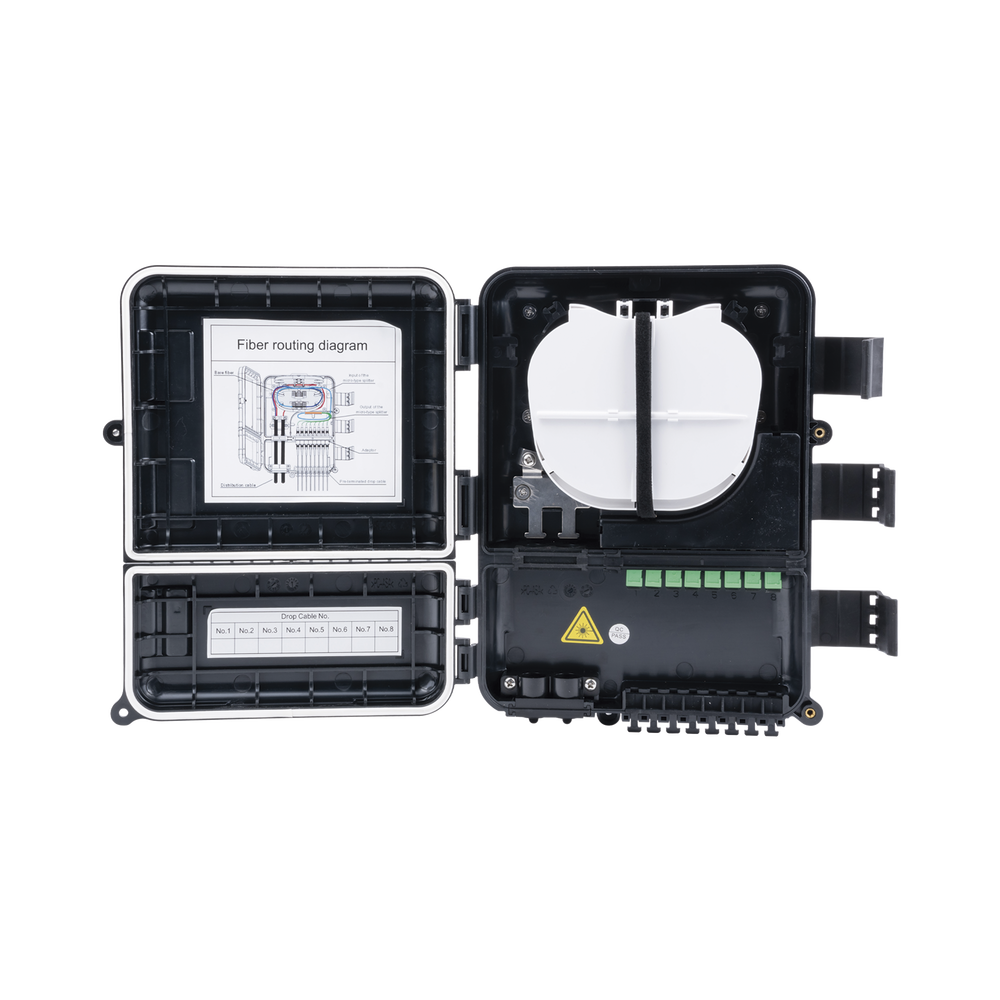

• Design with separate compartments

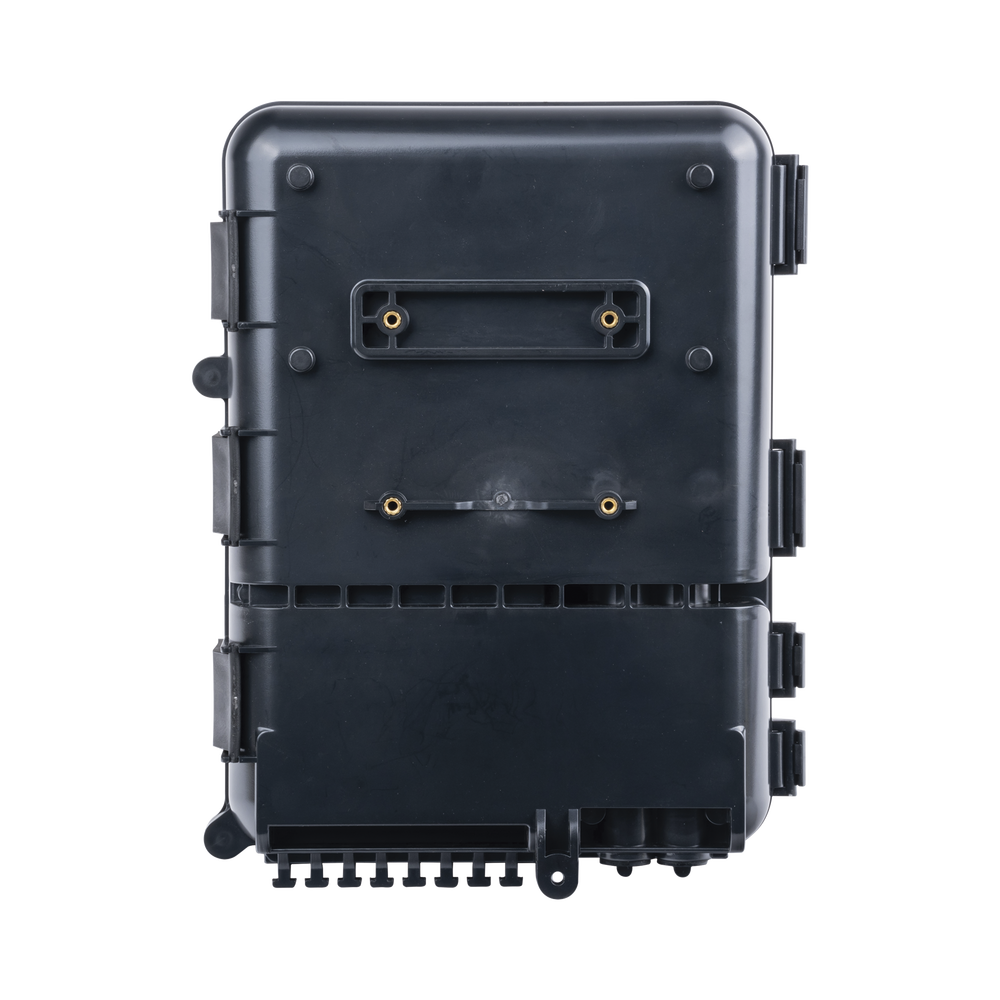

• Wall or pole mount
• Compact and easy to install model
• Option to install a 1:8 900 µm splitter (not included)
• Orderly fiber management and good protection.
• Made of high-strength polypropylene + fiberglass with good climate adaptability.
• IP55 Protection Degree
• It has pass-through ports for the distribution cable
• Compatible with ADSS, Mini ADSS and Mini Figure 8 fiber*

*It is recommended to add more fusion tape (sealing mud) at the cable entry when used with Mini Figure 8 fiber ( OC-FIG8-06C , OC-FIG8-12C )

Application

• Recommended for installation in NAP in FTTH/GPON fiber optic networks

Specs

• Dimensions (mm): 260 × 190 × 50 (Height × Width × Depth)
• Color: Black
• Fiber Ports: 2 distribution fiber ports, 8 drop fiber ports
• Includes 8 SC/APC couplers

Wall or pole mount, Recommended for NAP, for branching from distribution fiber to Drop fiber, 8 outputs for Drop fiber
