LoRa Access Point on Frequency 902-928 MHz
- Marca
- MIKROTIK
- Referencia / SKU
-
WAP-LORA9-KIT
- Disponibilidad
-
Agotado por ahora
- Envíos a toda Colombia. El envío y el IVA se calculan al pagar.
- Pago seguro y factura electrónica.
- ¿Dudas? Escríbenos por WhatsApp
Descripción y especificaciones
LoRa Access Point on Frequency 902-928 MHz

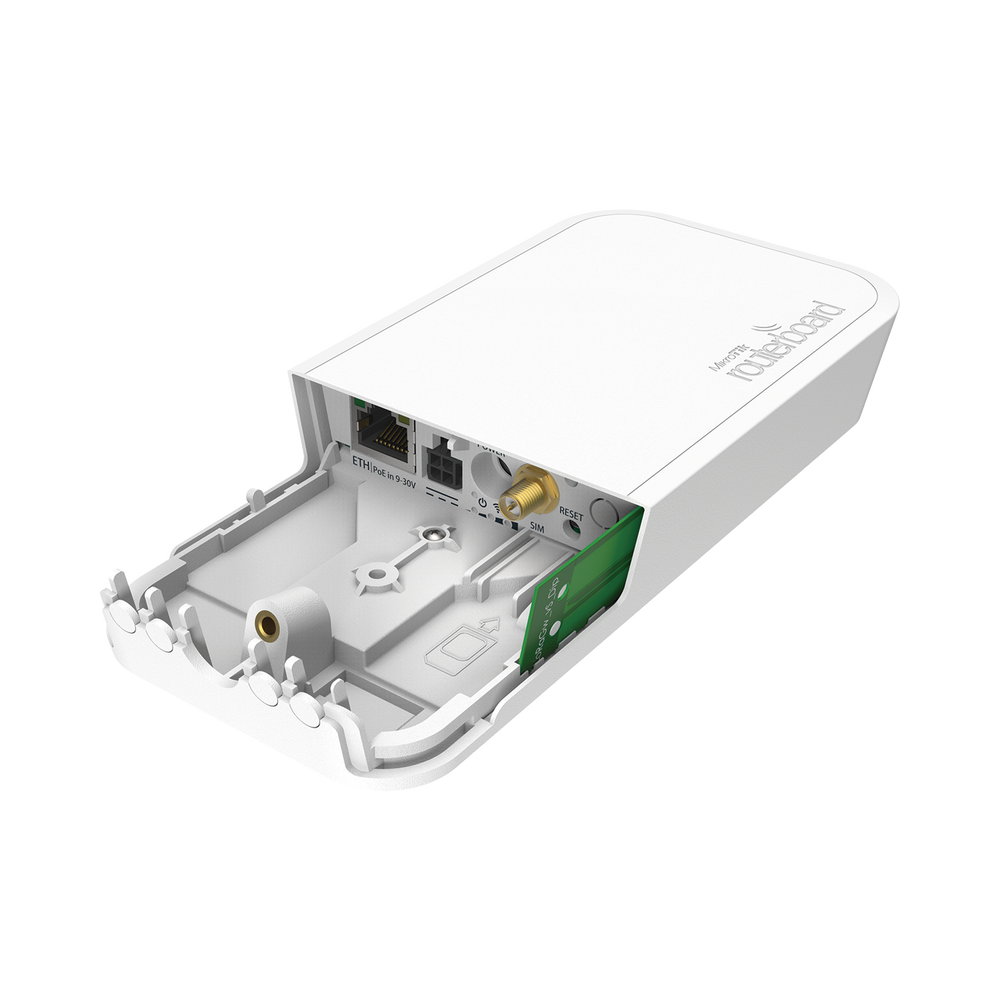

wAP LoRa9: A ready-to-use solution for using the LoRaWAN gateway. This kit contains a pre-installed UDP packet forwarder to any public or private LoRa server and an outdoor weatherproof wireless access point with a 2.4 GHz WLAN interface and an Ethernet port that could be used as a backend.
This particular wAP form factor has been tested in many other MikroTik products: it can deliver excellent and stable performance in almost any weather conditions.
You can use the optional 2 dBi internal antenna or connect an external antenna. For additional network coverage, we suggest adding the MikroTik LoRa Antenna Kit.
It operates on a frequency of 902-928 MHz (used in the United States, Canada, Mexico, Australia, Brazil, many countries in Asia, etc.)
Functional, non-intrusive design, amazing durability, and great value: that's the wAP LoRa9 kit, the long-awaited LoRa solution for LoRa enthusiasts of any level.
Specs
| Details | |
|---|---|
| Product code | RBwAPR-2nD&R11e-LoRa9 |
| Architecture | MIPSBE |
| CPU | QCA9531 |
| Number of CPU cores | 1 |
| Nominal CPU frequency | 650 MHz |
| License level | 4 |
| RAM size | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Room temperature tested | -40°C to 60°C |
Feeding
| Details | |
|---|---|
| PoE in | Passive PoE |
| PoE in input voltage | 9-30 V |
| Number of DC inputs | 3 (DC connector, PoE-IN, automotive) |
| DC jack input voltage | 9-30 V |
| Automotive input voltage | 9-30 V |
| Maximum energy consumption | 7 W |
Wireless
| Details | |
|---|---|
| Maximum wireless data rate of 2.4 GHz | 300 Mbit/s |
| Number of 2.4 GHz wireless chains | 2 |
| 2.4 GHz wireless standards | 802.11b/g/n |
| 2.4 GHz wireless chip model | QCA9531 |
| 2.4 GHz wireless generation | Wi-Fi 4 |
Ethernet
| Details | |
|---|---|
| 10/100 Ethernet ports | 1 |
Peripherals
| Details | |
|---|---|
| Number of SIM slots | 1 modem (mini SIM) |
| MiniPCI-e slots | 1 |
Other
| Details | |
|---|---|
| PCB Temperature Monitor | Yeah |
| Voltage monitor | Yeah |
Certifications and approvals
| Details | |
|---|---|
| Certification | CE/RED, FCC, IC, EAC, ROHS |
Parts included
