Sensitive Fiber Optic Perimeter Security Sensor / Rack Mount (19'') / 4 Protection Zones / From 0 to 800m

Sensitive Fiber Optic Perimeter Security Sensor / Rack Mount (19'') / 4 Protection Zones / From 0 to 800m

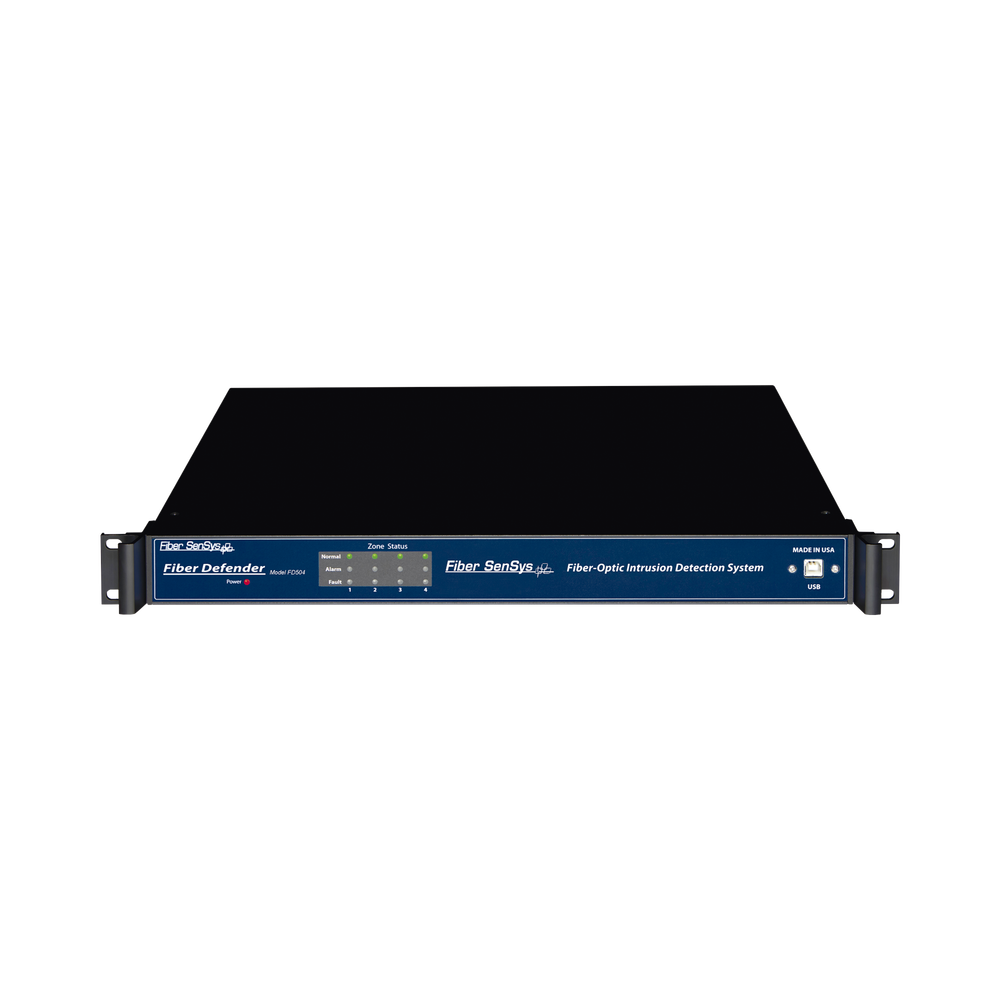

The FD504™/FD508™ incorporates Fiber SenSys’ patented and patent-pending technology, which has been successfully deployed in thousands of sensors worldwide, into a versatile fiber optic sensor. The FD504/FD508 detects intruders attempting to climb or cut through fences. Sophisticated algorithms distinguish between intruders and “nuisance alarms,” which may be caused by wind, wildlife, or other environmental conditions.

• Applications: industrial, medium and commercial substations

• 19' rack mount, 1U
• 8 zones
• Cable insensitive to 5 km

The FD508 monitors up to eight different sensing fibers (zones); the FD504 monitors four. Each sensing fiber can be up to 800 meters long for maximum perimeter protection. Front indicator lights display the status of each zone; a steady green light indicates normal/secure operation. Red lights illuminate during an intrusion attempt (alarm) or if the fiber is cut (fault), providing instant notification of unauthorized physical access.

Remote APU deployment with input cable insensitive capability

Nuisance alarm discrimination with built-in adjustment software

Capability to integrate with head-up/annunciator panels

Immune to EMI, RFI and lightning

Ambient noise compensation

Linear, uniform sensitivity

Ideal for sites with four to 16 zones.
