MU-MIMO 4x4:4ac Access Point, 4.9-6.2 GHz, 360° Opening, 14 dBi Gain, IP67, PTMP up to 1.5 Gbps, Distance from 300 to 500.

MU-MIMO 4x4:4ac Access Point, 4.9-6.2 GHz, 360° Opening, 14 dBi Gain, IP67, PTMP up to 1.5 Gbps, Distance from 300 to 500.

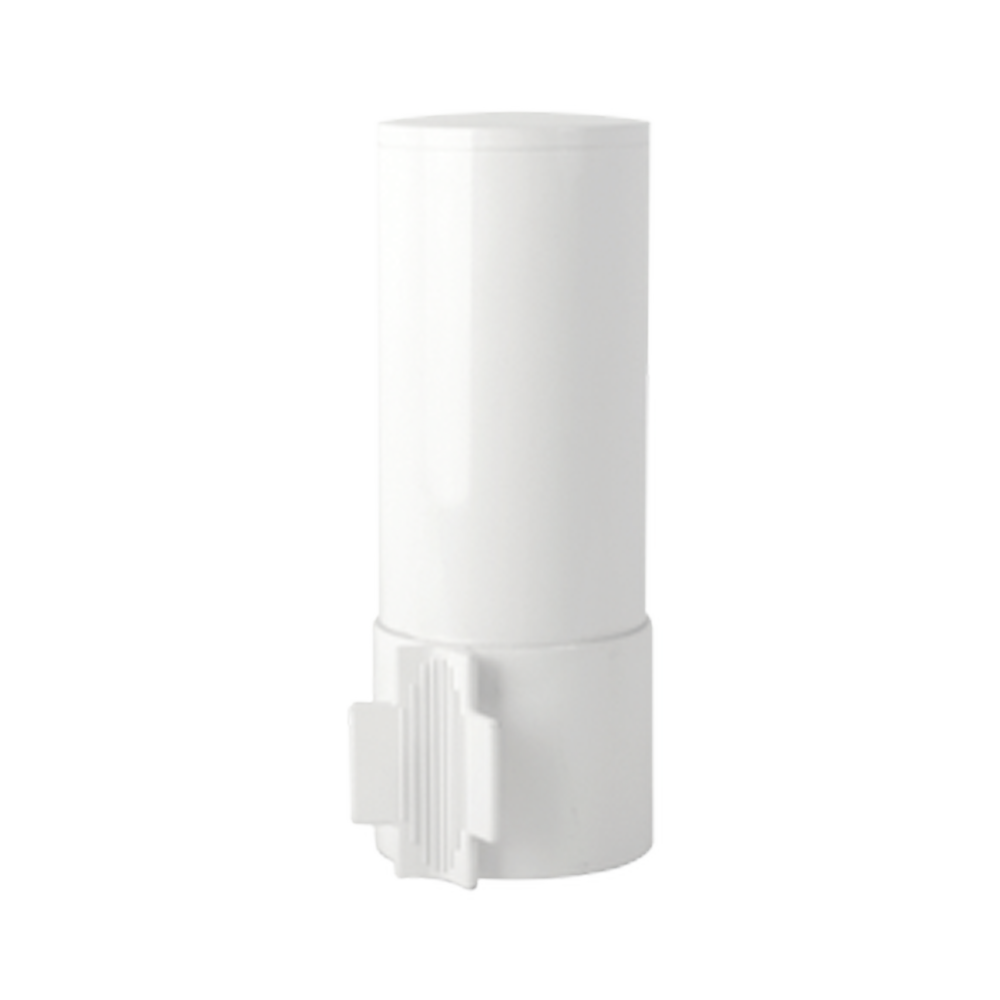

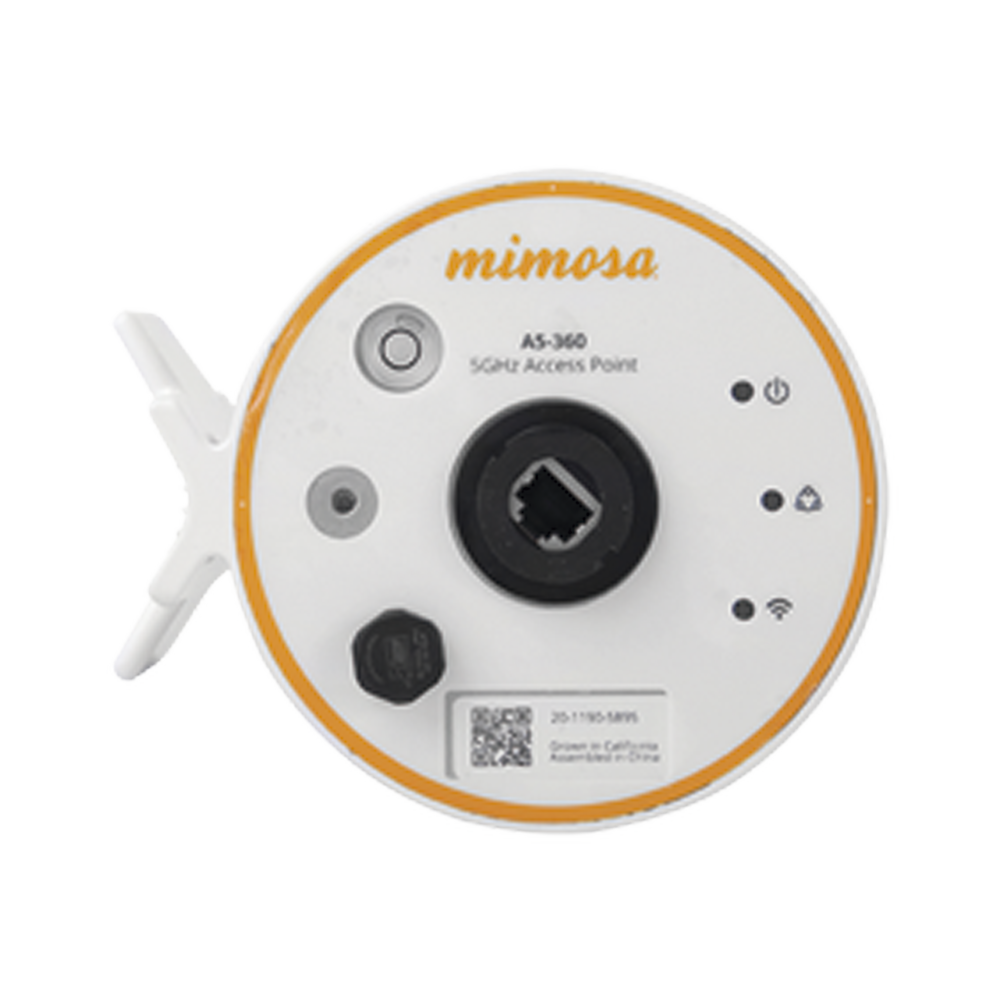

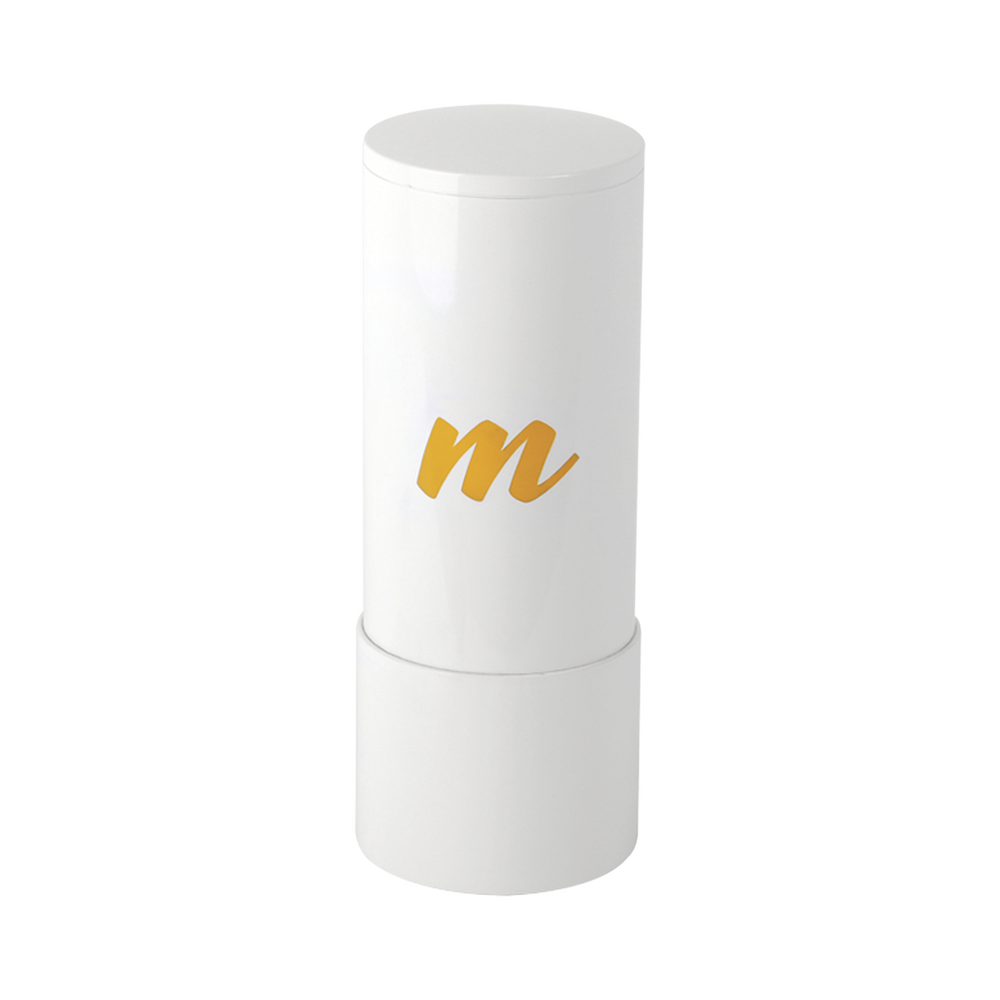

A5-14 Access Point 1.5 Gbps MU-MIMO 4X4:4ac, Integrated 360°, 802.11ac

(Estimated distance up to 300 - 500 m in PTMP with C5-KIT subscribers or 1 km with C5c + 25 dBi antenna). Distances depend on the conditions of each site such as spectrum availability, noise levels, full line of sight and desired bandwidth.

The A5-14 is designed for point-to-multipoint solutions in residential developments for high-speed internet transmission, supporting up to 100 subscribers and high-definition video surveillance systems with megapixel cameras.

• Distance from 300 m to 500 m for maximum performance.
• Up to 1.5 Gbps aggregate speed on DL/UL.
• Antennas: 14 dBi, circular polarization, 70° H azimuth and 16° V elevation.

Some general characteristics of A5-14 access points

• Frequency: 4.9 – 6.2 GHz in GPS Sync and 5.1 – 5.8 GHz standard (WiFi interop).
• Technology: MU-MIMO (Multiple Users).
• Integrated GPS + GLONASS system for packet synchronization in Tx and Rx.
• 100 clients in WiFi Interop mode or 44 clients in SRS mode.
• Integrated 2.4 GHz 802.11b/g/n radio for management via WiFi from a cell phone or tablet.
• MIMO 4x4:4 OFDM up to 256 QAM.
• Bandwidth management: in DL/UL.
• CPE traffic management: guaranteed UL/DL and maximum data rate.
• Operating mode: Proprietary GPS Sync with TDMA and standard mode (WiFi Interop).
• Channel widths : 20 / 40 / 80 MHz.
• Transmission power: 30 dBm.
• Supports monitoring via Mimosa Cloud.
• Outdoor: IP 67.
• Wind resistance: 200 km/h (125 mph).
• Temperature range : -40 to 55 °C (-40 to 131 °F).
• Maximum power consumption: 15 to 25 W, ideal for solar-powered systems.
• Power: 48 - 56 Vdc via passive PoE injector (included), also supports 802.3at.
• Integrated ESD surge protection.
• Network interface : Gigabit Ethernet.
• Advanced security: WPA2 + Mimosa 802.1x RADIUS, VLAN Management.

*4.9 GHz uses 20 MHz channels (USA only, regulations vary by region).
**Available in future firmware versions.
