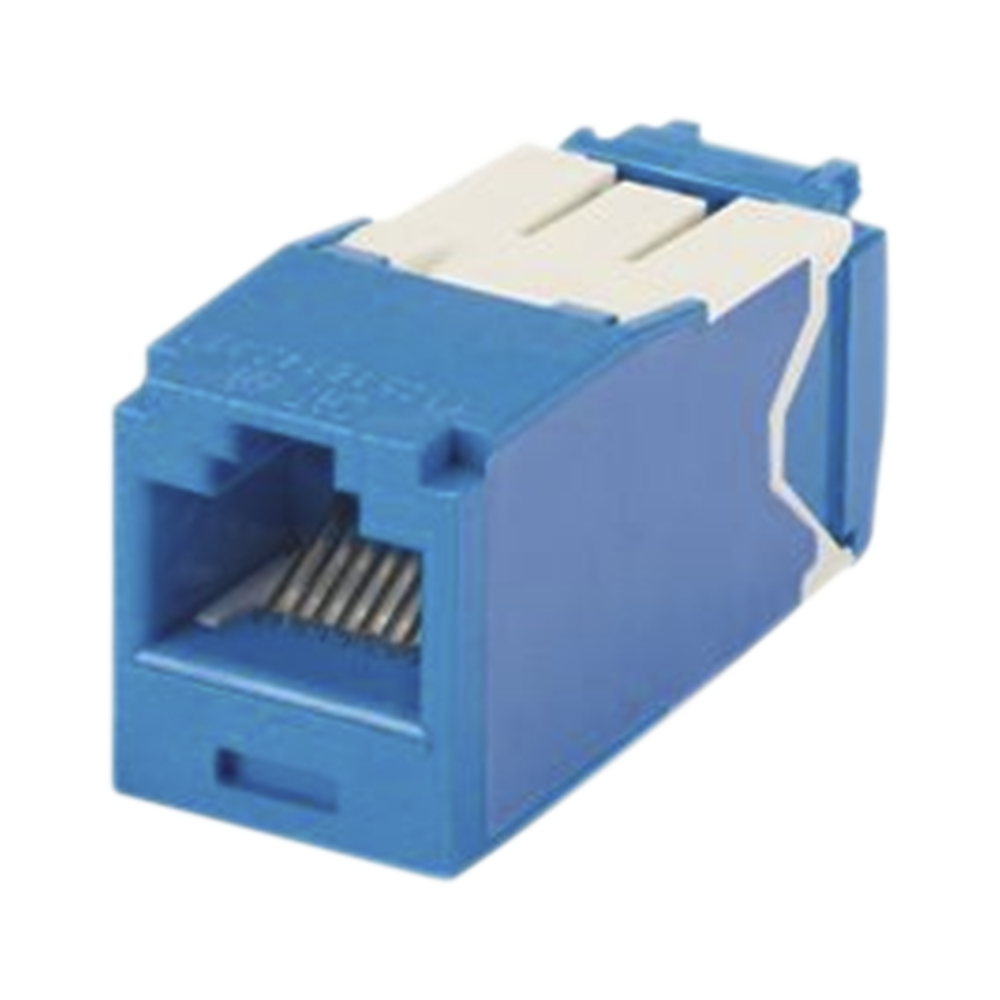

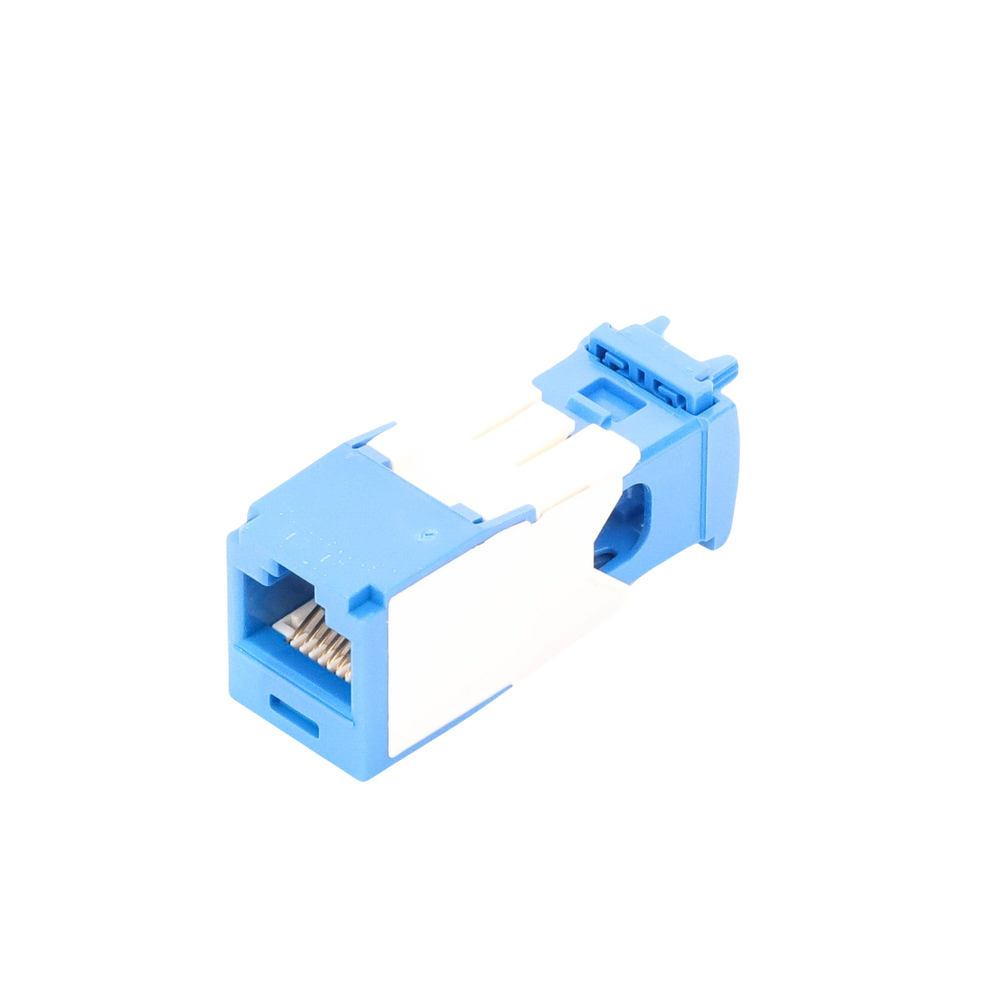

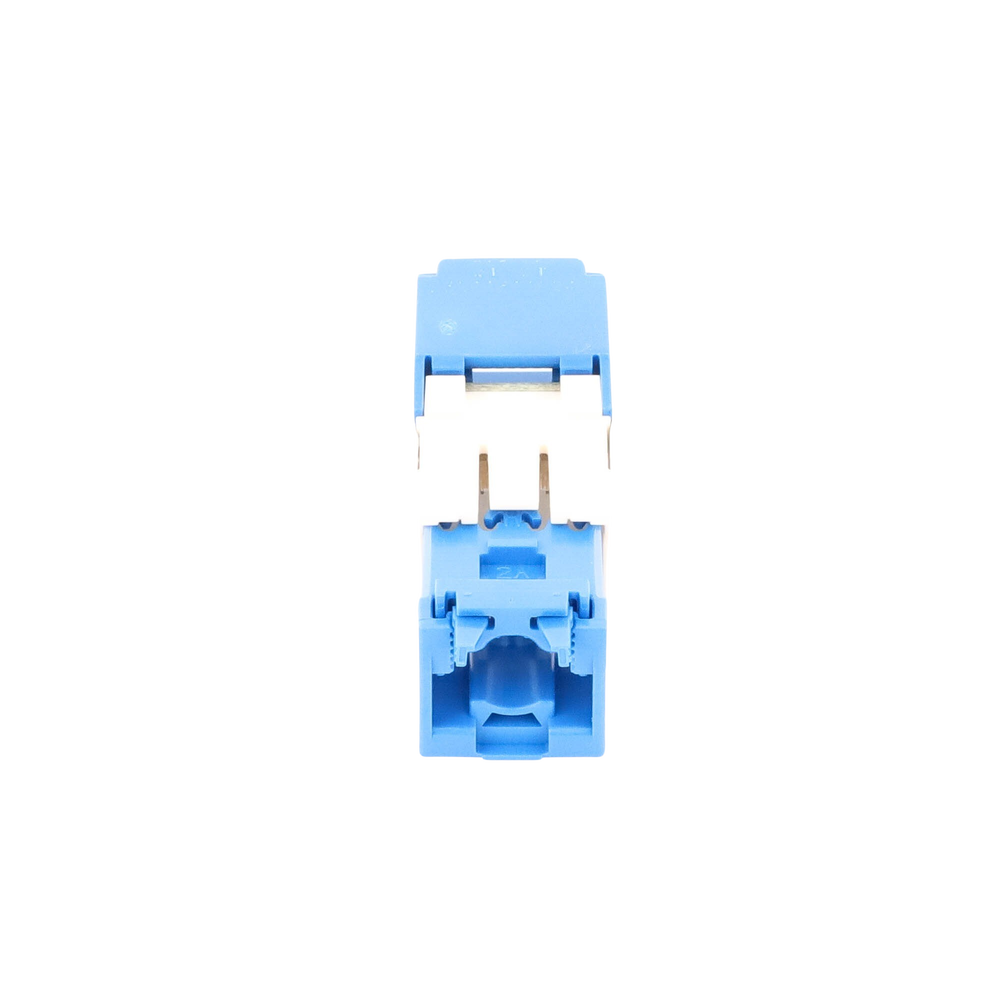

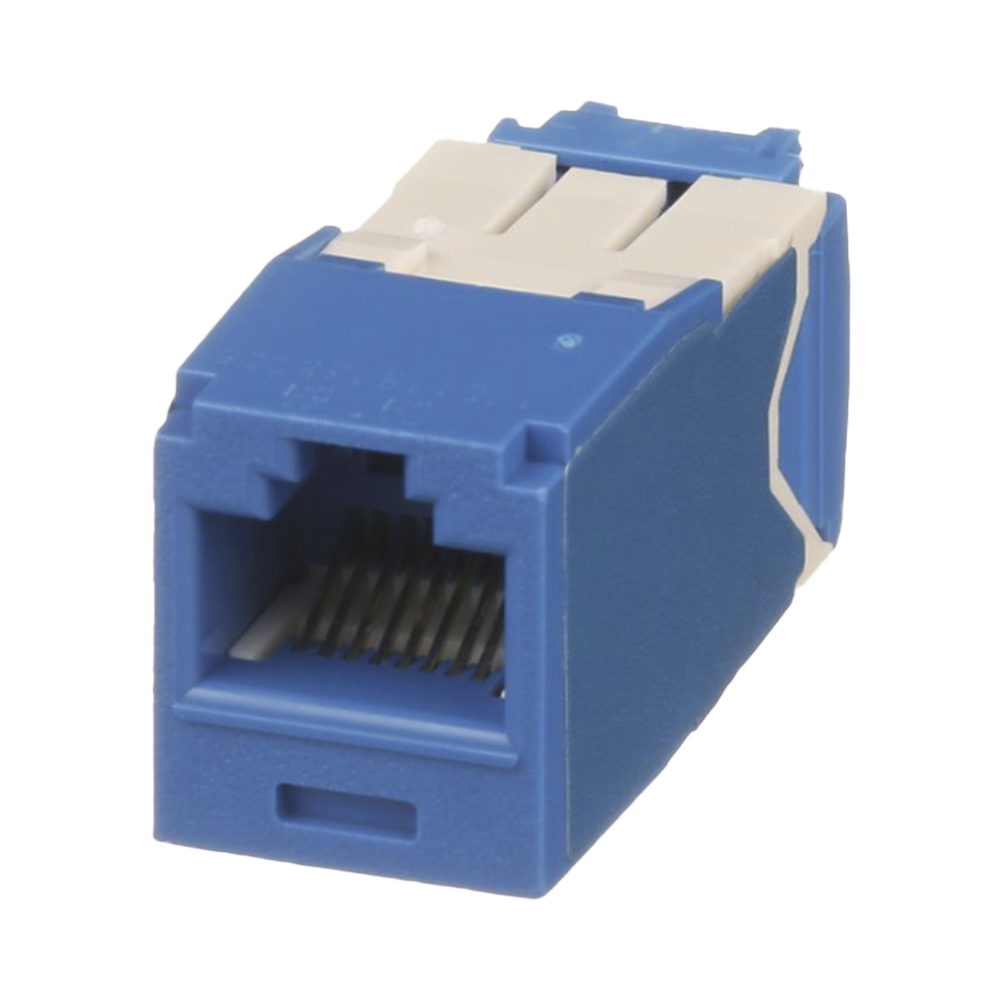

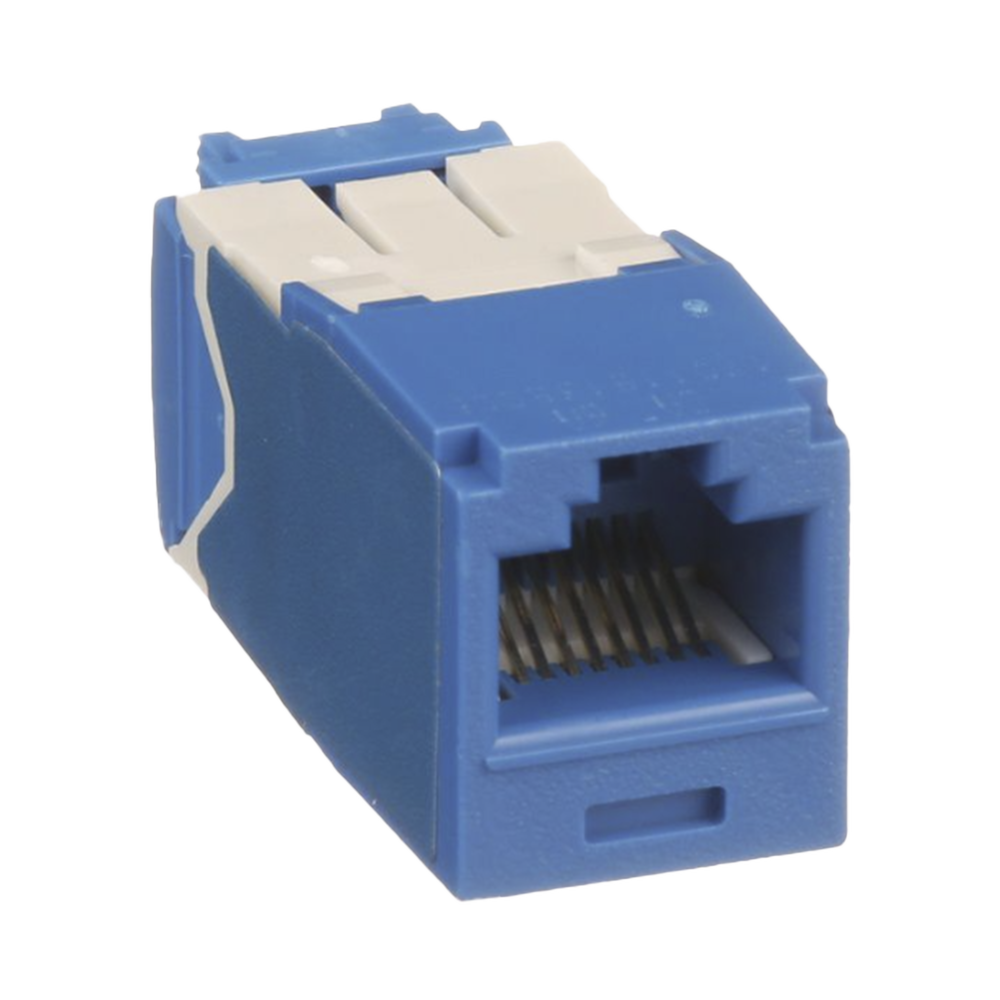

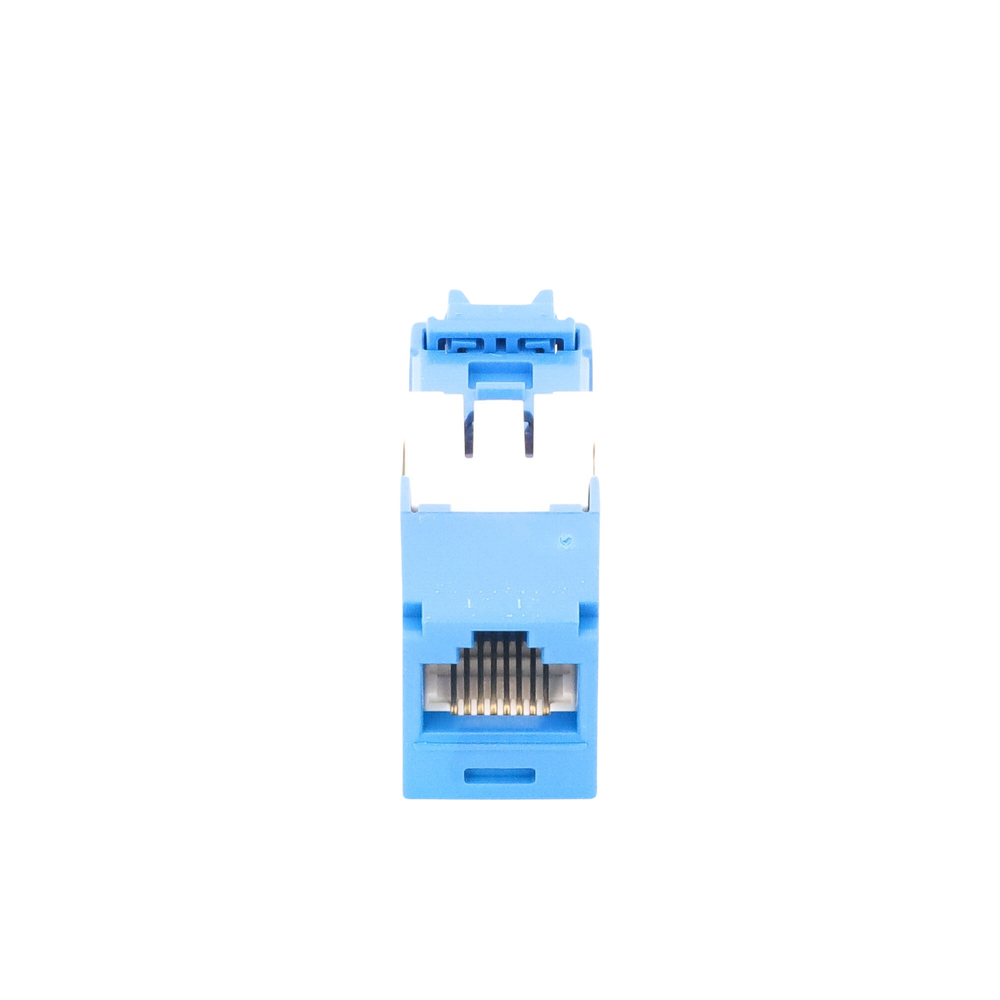

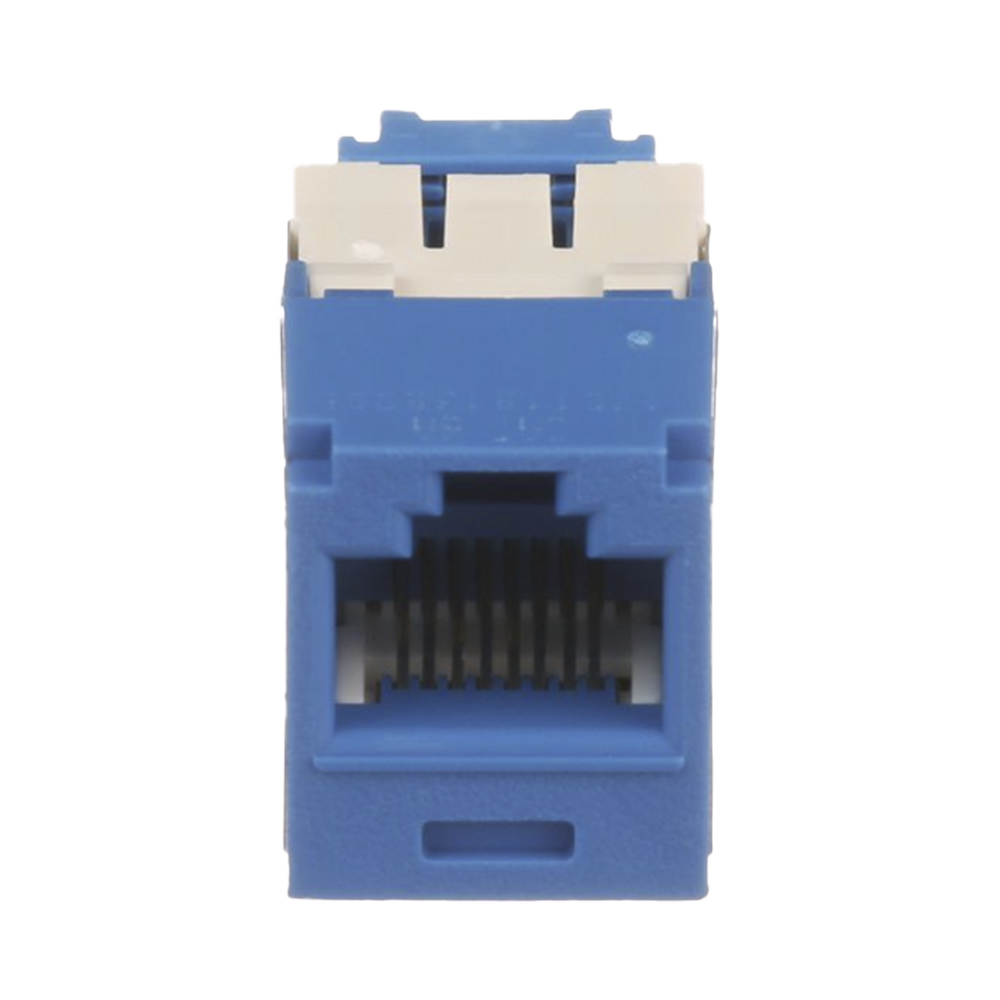

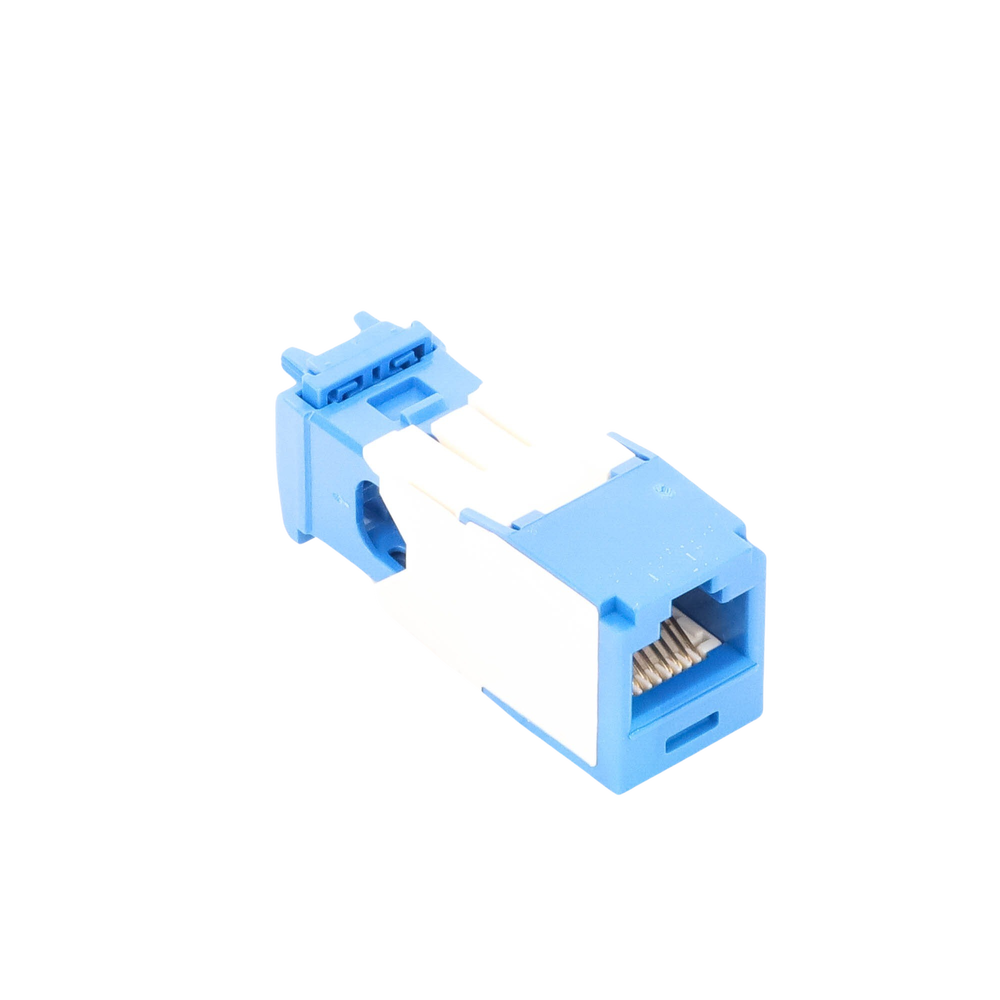

RJ45 Jack Connector TG Style, Mini-Com, Category 6A, 8 Positions and 8 Wires, Blue Color
The 8-position Category 6A/Class EA UTP connector module terminates on a 4-pair, 22-26 AWG, 100 ohm unshielded twisted pair cable and does not require a knockout tool. The termination cap is color-coded blue to designate Category 6A performance and includes a universal coded label for T568A and T568B wiring schemes. The Mini-Com® TX6A 10Gig UTP connector module installs as part of a TX6A 10Gig UTP copper cabling system to achieve IEEE 10GBASE-T certified performance.
Technical Specifications:
Type: Copper Jack Module
Color: Blue
Performance Level: Category 6A
Finish style: TG
Module Type: Mini-Com®
Jack type: RJ45
Meets ANSI/TIA-1096-A with 50 micro-inch gold-plated contacts for superior performance
Complies with IEC 60603-7 and 60512-9-001
Rated for 2500 cycles with IEEE 802.3af/802.3at and 802.3bt Type 3 and Type 4. Supports Power over HDBaseT up to 100 Watts
Operating temperature: -10ºC to 65ºC
Conductor Range: Compatible with 22 - 26 AWG solid or stranded wire
